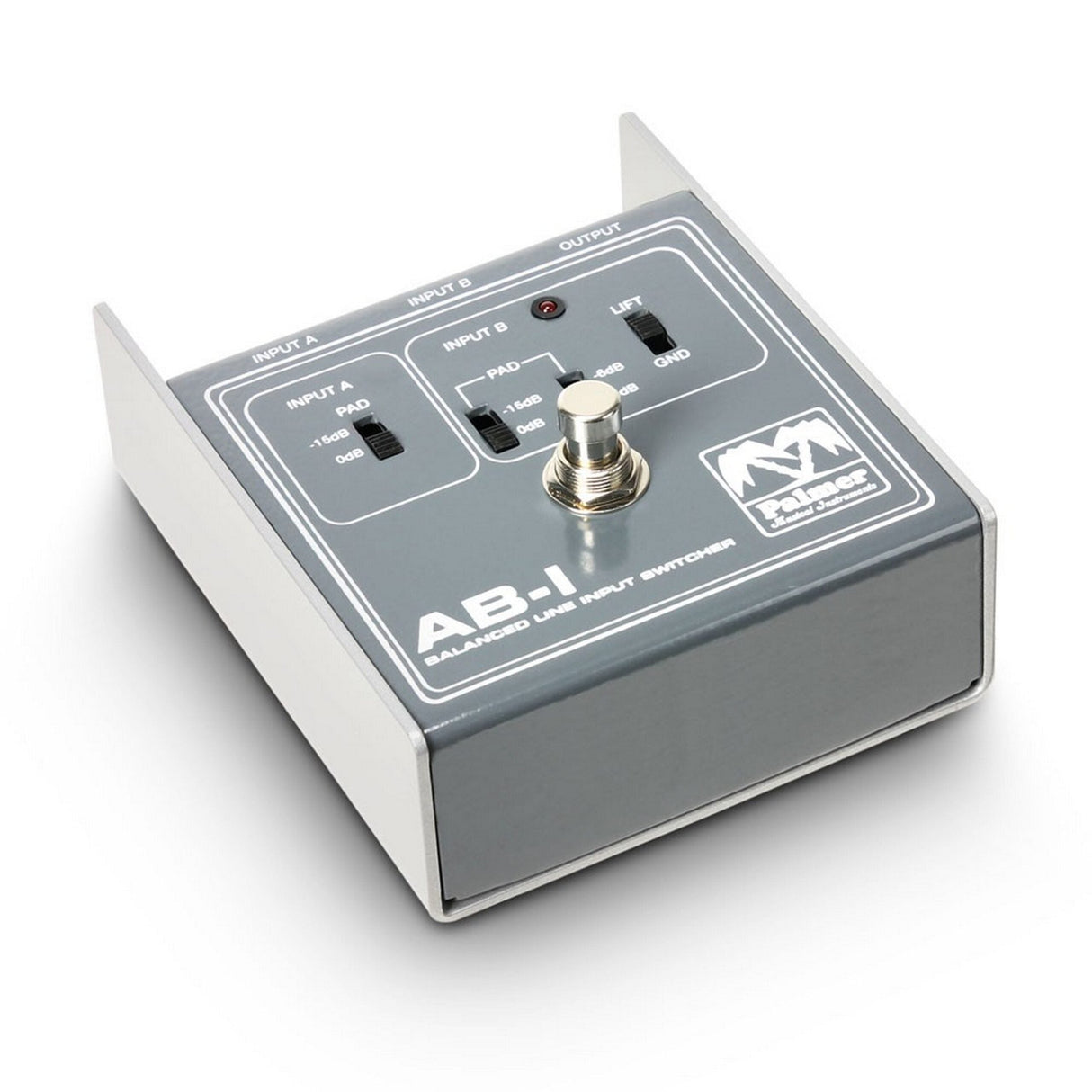

Palmer ABI Balanced Line Input Switcher
The Palmer PEABI is more than a simple switcher for two sources, it also provides level adjustment of microphone or line signals. Whether microphone or line signal, the PEABI toggles silently between the two inputs permitting fast and simple signal comparison and the connection of two sources to one input. Three slide switches select 15 dB of attenuation for input A and 6, 15 or 21 dB for input B. A ground lift switch eliminates earth loop hum. The PEABI is housed in a solid metal case with extended edges for optimum protection of the inputs and output. A red LED clearly indicates which input is active.
Technical Specifications
Product type
Switches
Switching function
input switcher
Channels
2
Inputs
2
Input connectors
XLR
Outputs
1
Output connectors
XLR
Transformer isolated outputs
no
Controls
ground lift , input pad
Indicators
channel number
Operating voltage
9 V block
Max. Current
n.a.
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
100 mm
Depth
120 mm
Height
60 mm
Weight
0,69 kg
