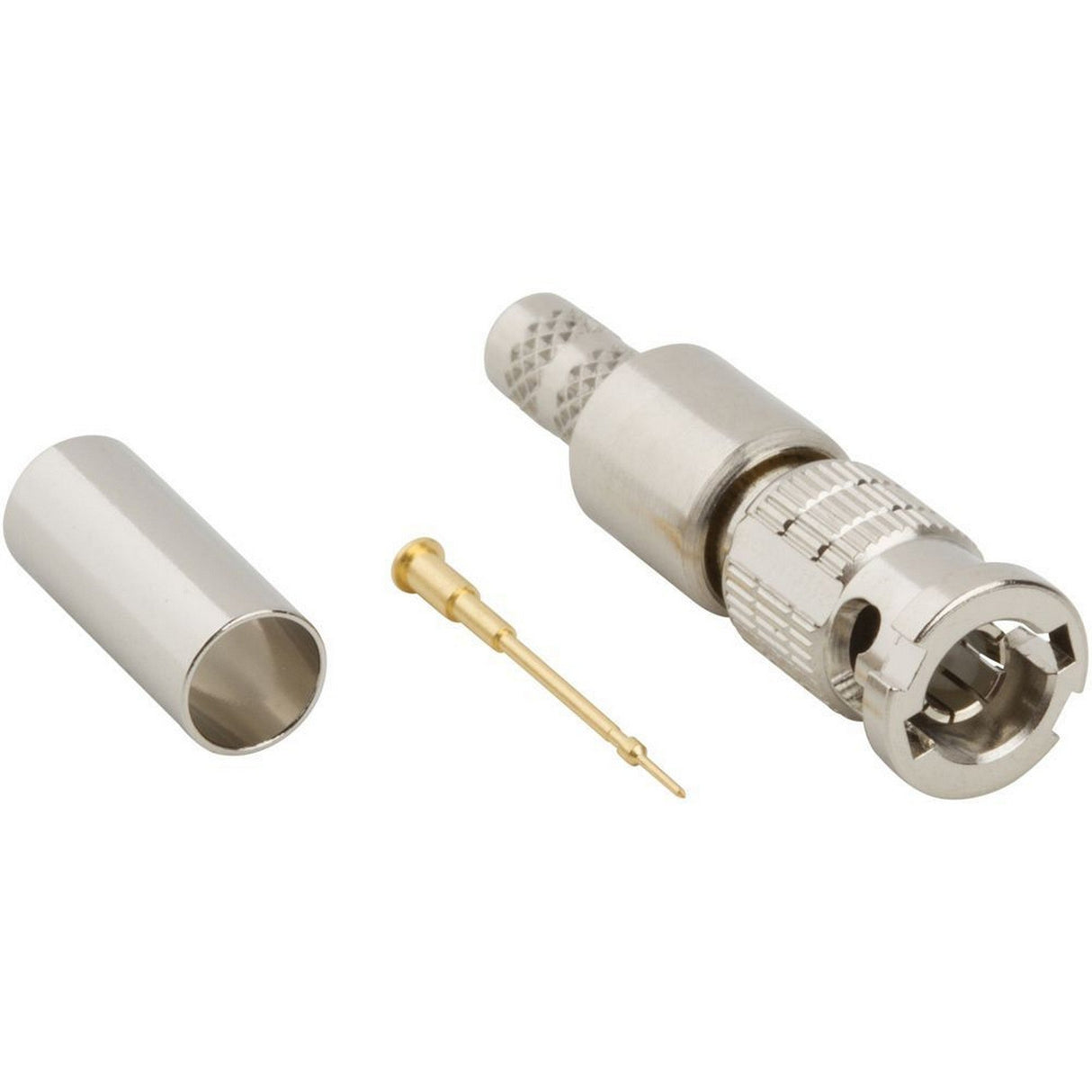

Amphenol 034-1026 3G HD-BNC Connector High Density BNC Plug
Amphenol 034-1026 3G HD-BNC Connector High Density BNC Plug
The inventor of the BNC introduces the High-Density BNC family of connectors. HD BNC delivers true 75-ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD BNC seamless.
Key Features
- High Density Solution - Allows four times as many interconnects as the BNC.
- 51% smaller than the BNC
- 39% smaller than the Mini-BNC
- Bayonet Coupling - Provides a positive lock and allows for quick and easy connect and disconnect
- True 75 Ohm Impedance - Higher performance, unmatched reliability
- Fits Belden 1855A
Technical Specifications
Impedance
75 Ohms
Frequency Range
0-6 GHz
Voltage Rating
170 VRMS
Dielectric WIt'standing Voltage
500 volts
Return Loss
30dB @ 3Ghz
Data Rate
3 Gbps or higher
