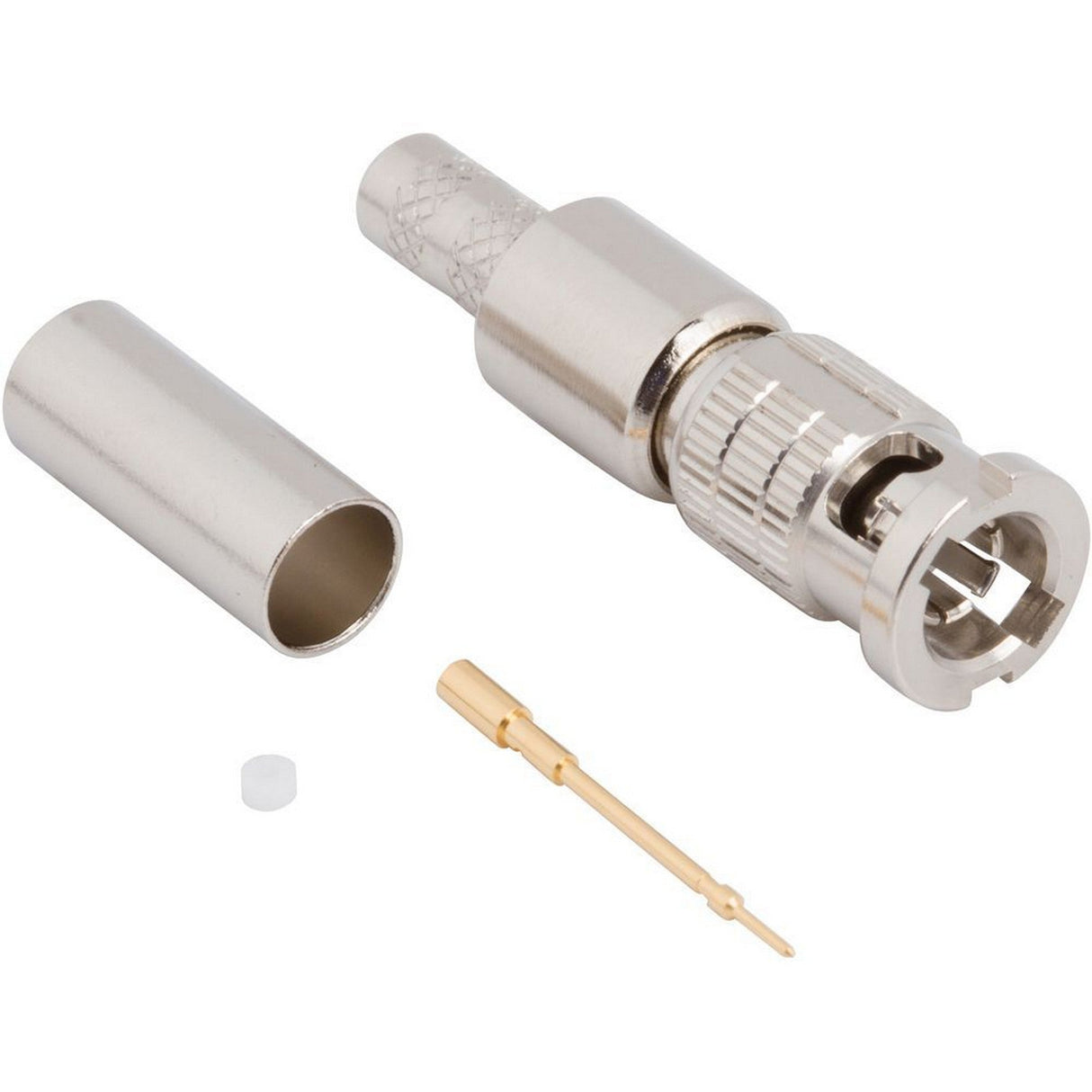

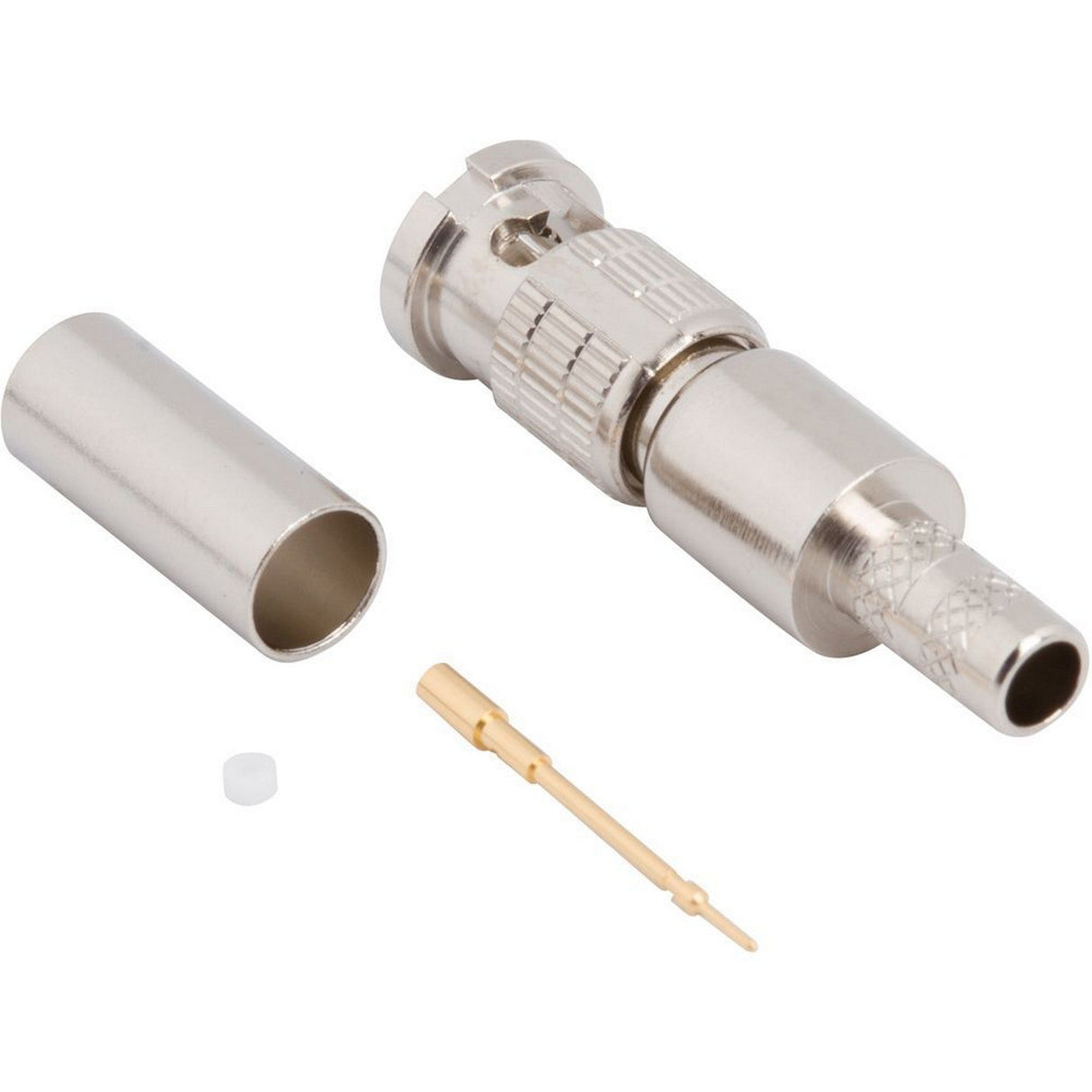

Amphenol 034-1107-12G Straight Crimp Plug 12G HD-BNC Connector
The Amphenol 034-1107-12G is an RF Connector, High Density HD-BNC Straight Crimp Plug for Belden 4855R and 1855A Cables, 12G Optimized, 75 Ohm. Compatible with Belden 1855A, Belden 4855P & Belden 4855R.
Technical Specifications
Brand
Amphenol RF
Gender
Plug
Orientation
Straight
Termination Style
Cable - Crimp
Impedance (Ohms)
75
Body Finish
Nickel
Body Material
Brass
Contact Finish
Gold
Contact Material
Phosphor Bronze
Contact Termination Style
Crimp
Insulator Material
PTFE
Cable Group
K3
Cable Type
Belden 1855A, Belden 4855P, Belden 4855R
Coupling Mechanism
Bayonet
Max Frequency (GHz)
18
Polarity
Standard
Min. Temp. (Celsius)
-65
Max. Temp. (Celsius)
165
Mating Cycles
500
