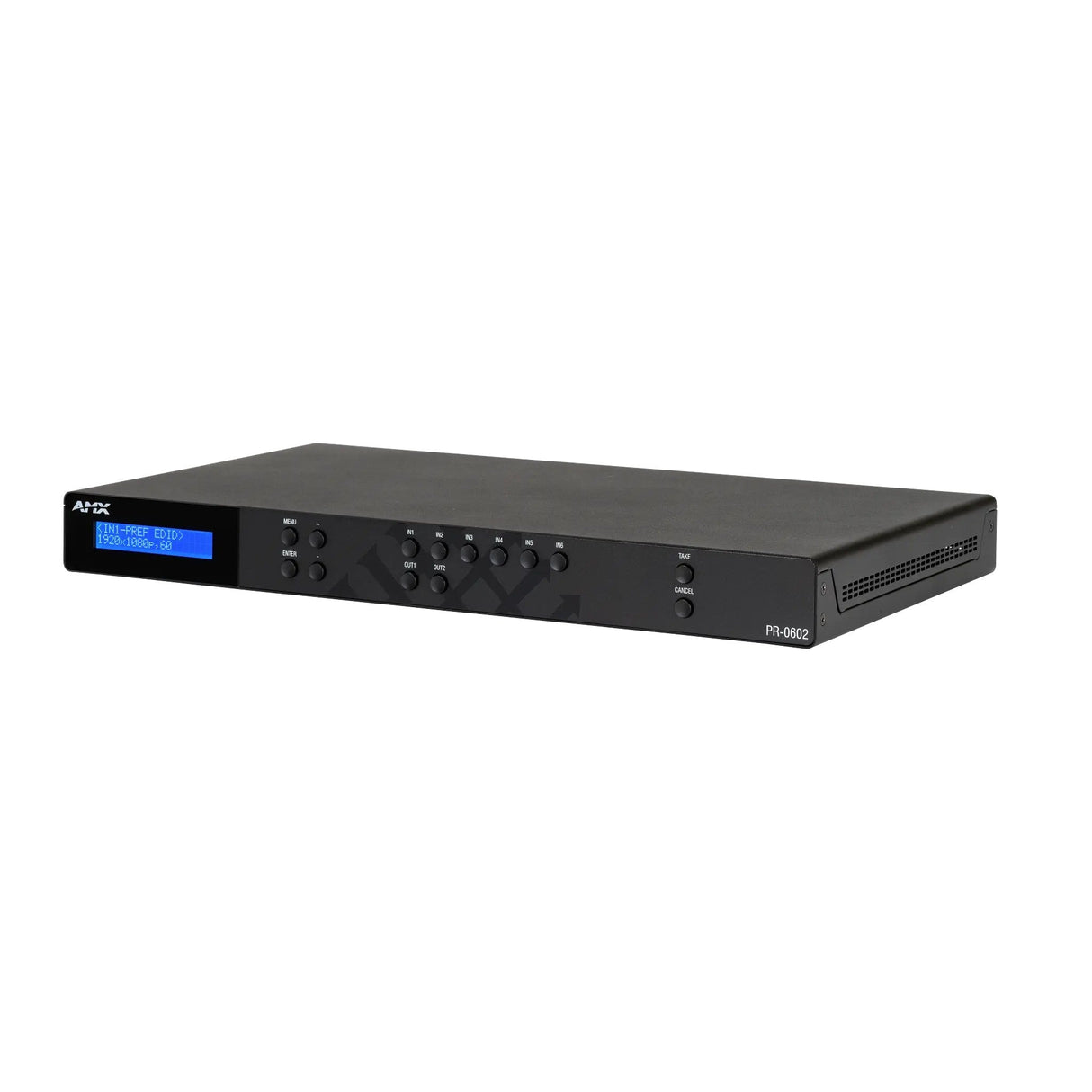

AMX PR-0602 Precis 6 x 2 4K60 HDMI Switcher

AMX PR-0602 Precis 6 x 2 4K60 HDMI Switcher

The AMX Precis 6x2 4K60 HDMI Matrix Switcher is an extremely affordable yet fully featured HDMI video routing solution for medium to larger installations. Featuring 6 HDMI inputs and 2 HDMI outputs, it includes best-in-class capabilities like pixel-for-pixel video reproduction, comprehensive EDID management, manual switching modes, and extreme control flexibility with an open control API and a simple-to-manage HTML5 web interface.

The PR-0602 supports high quality HDMI 2.0, HDCP 2.2, HDR10+, 36-bit per pixel Deep Color, and Dolby Vision. Dynamic audio de-embedding and multiple open control options offer maximum configuration flexibility. Combining a robust matrix switcher and a highly affordable price point, backed by over 30 years of industry-leading matrix switching experience, the AMX Precis PR-0602 can be trusted to deliver an exceptional switching solution.

Key Features

• Perfect HDMI 2.0 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
• High Dynamic Range (HDR) and Deep Color Support - Support for HDR10+, 36-bit per pixel Deep Color, and Dolby Vision
• HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
• EDID Management - Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format
• Audio De-Embedding - Includes the convenience of analog audio de-embedding from each HDMI output separately
• H-Control Upgradable - Ready to support H-control in the future by firmware re-writing via USB

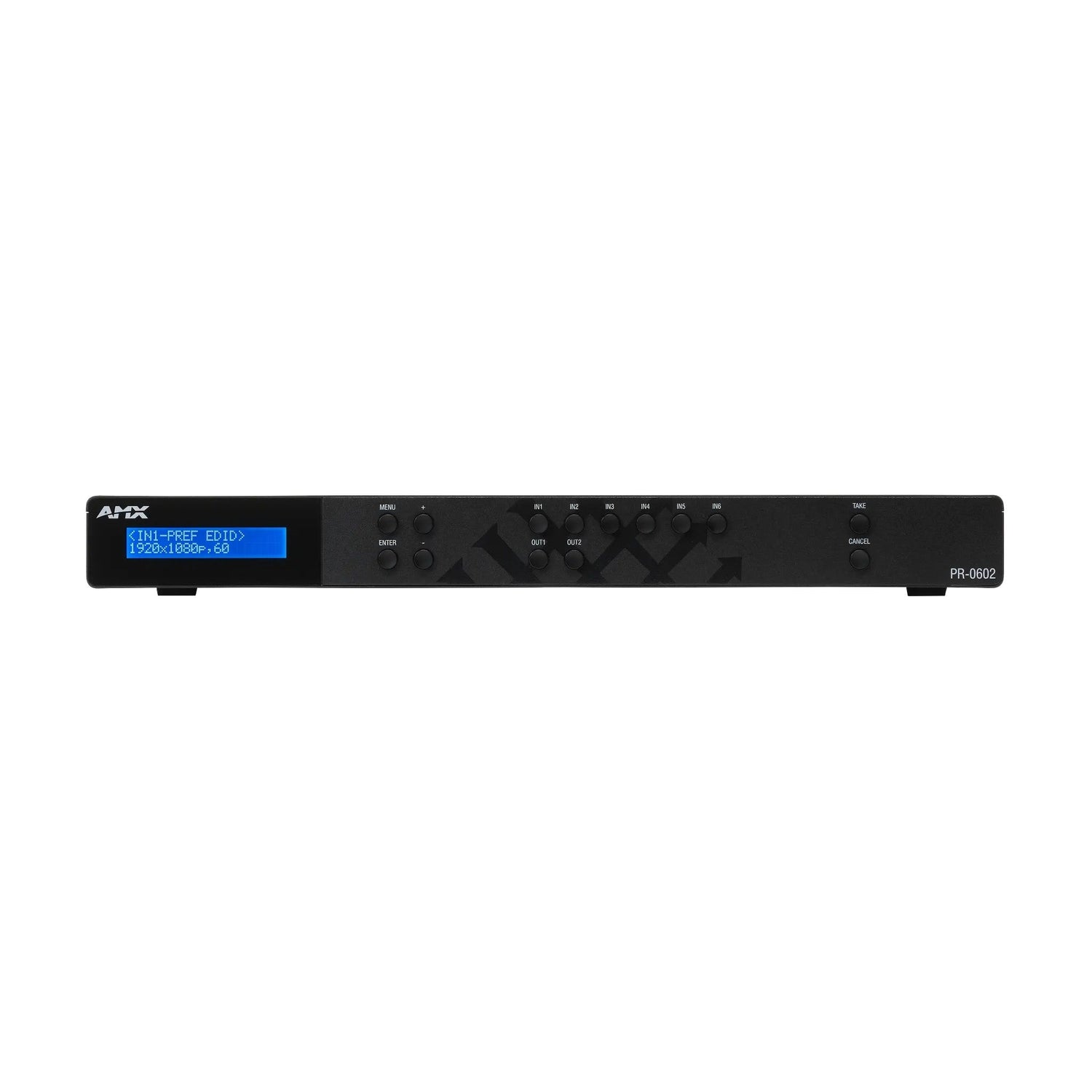

• Multiple Control Options - Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons

Technical Specifications

Video Inputs
(6) HDMI; supports HDMI/HDCP
Video Outputs
(2) HDMI; supports HDMI/HDCP
Video Resolution Support
Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
Audio Inputs
Embedded audio on HDMI; support 2 CH L-PCM
Audio Outputs
(2) 3 Position 3.5mm pluggable Phoenix Terminal Block; supports Unbalanced Analog Stereo

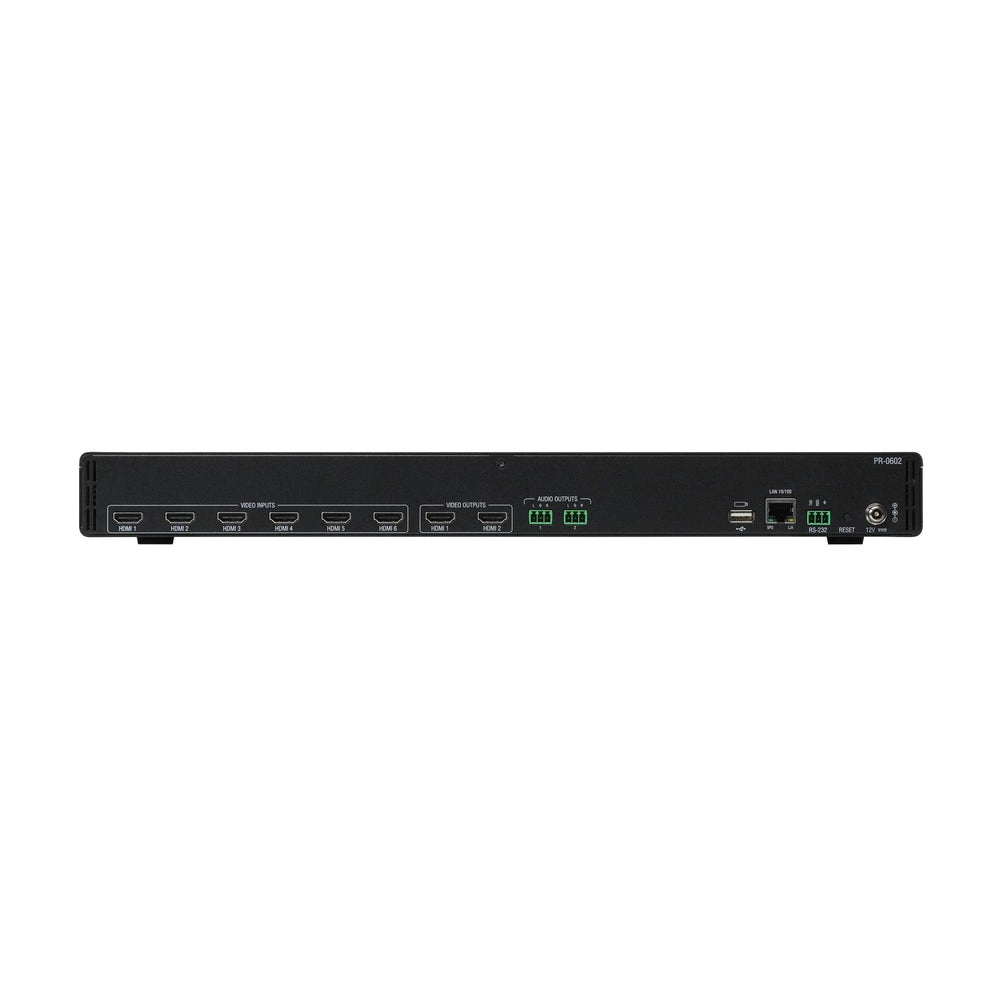

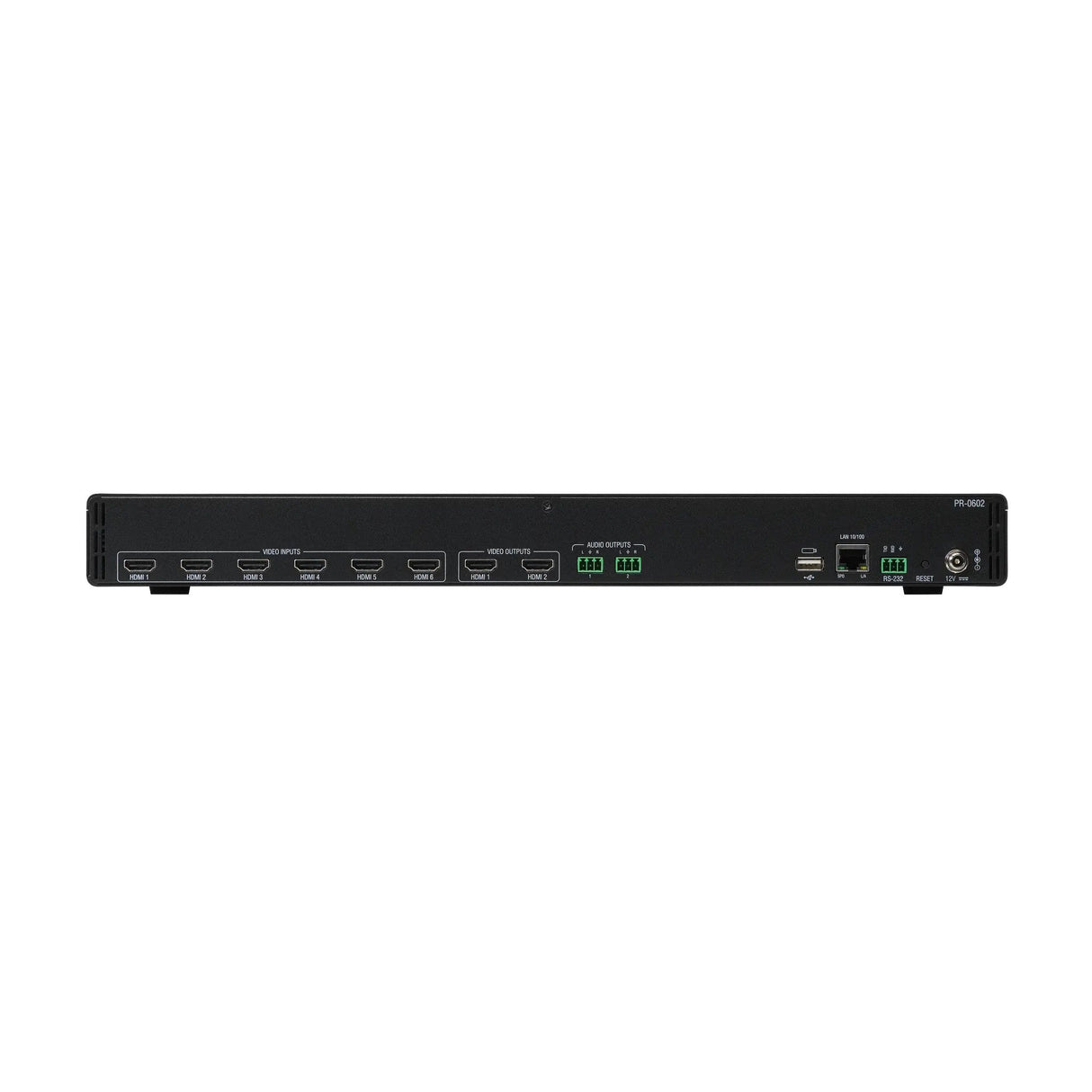

Ports
12V Power: (1) Screw Down Locking Power Connector; HDMI Input: (6) HDMI Type A Socket; HDMI Output: (2) HDMI Type A Socket; Ethernet: (1) RJ45 Connector; Analog Stereo Output: (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; RS-232: (1) 3 Position 3.5 mm pluggable Phoenix Terminal Block; Program Port: (1) USB Type A Socket
Environmental
Temperature (Operating): 32 Degrees F (0 Degrees C) to 122 Degrees F (50 Degrees C)
Temperature (Storage): -4 Degrees F (-20 Degrees C) to 140 Degrees F (60 Degrees C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Thermal Dissipation (Typical): 51.5 BTU/hr
Regulatory Compliance
FCC Part 15 Class B
EN 55032
EN 55035
CB IEC/EN 60950
CB IEC/EN 62368-1
UL 62368-1
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D)
1.73” x 17.24” x 10.59” (4.4 cm x 43.8 cm x 26.9 cm)
Weight
6.3 lbs (2.85 kg)
FG Numbers
AMX-PR-0602
