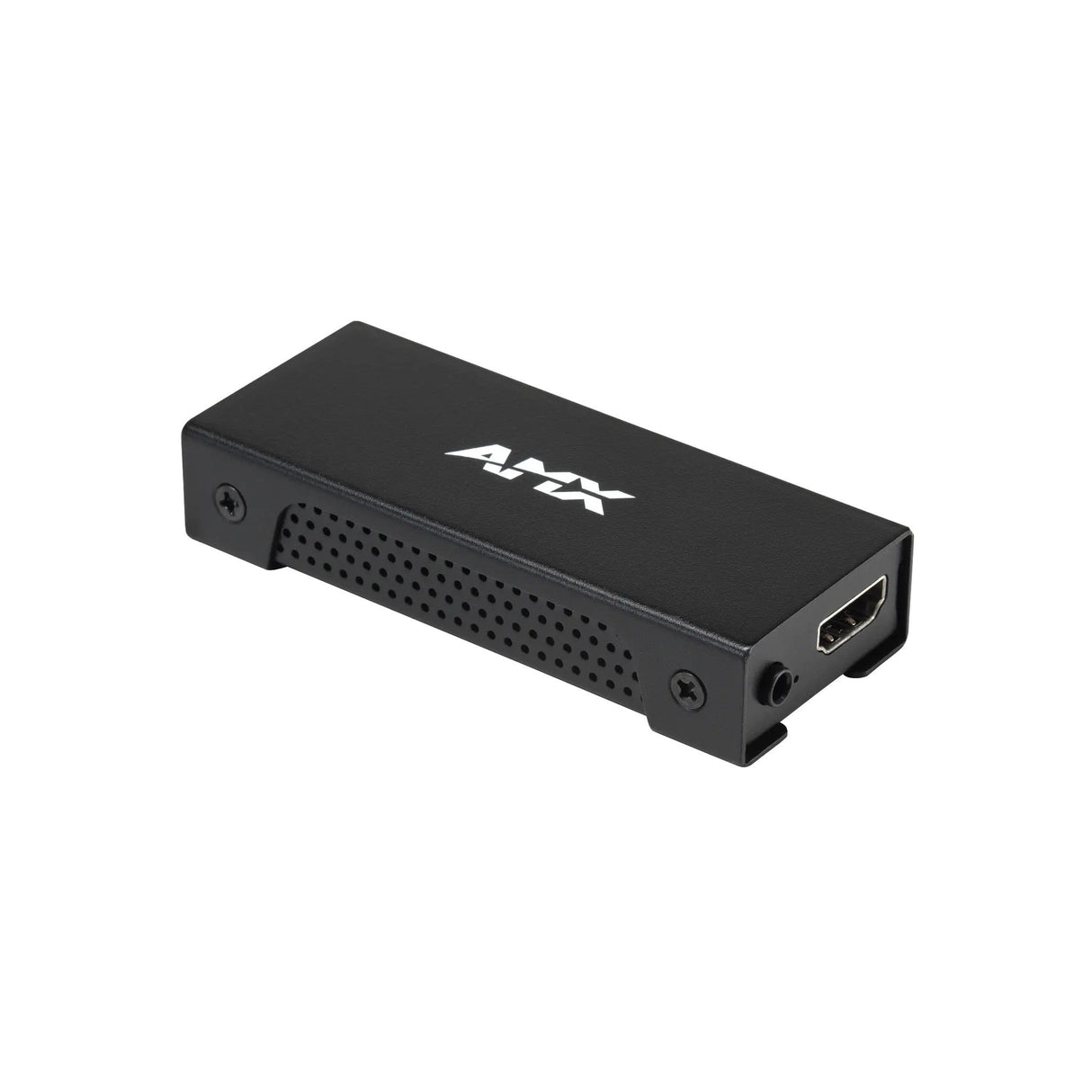

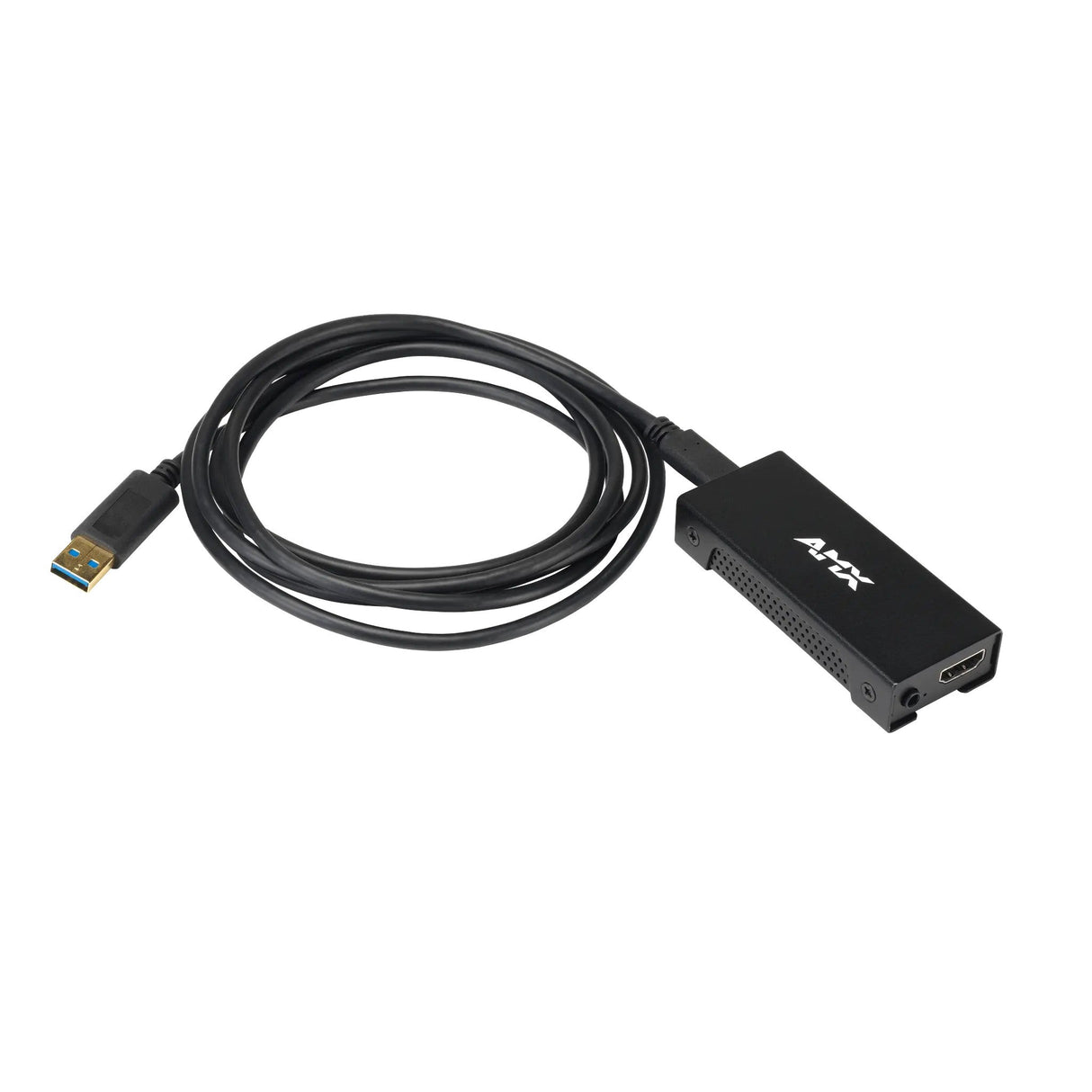

AMX UVC1-4K 4K HDMI to USB Capture Device
AMX UVC1-4K 4K HDMI to USB Capture Device
Free Shipping
AMX UVC1-4K 4K HDMI to USB Capture Device
The UVC1-4K captures content from HDMI video sources for seamless importation into PCs and video conferencing software such as Zoom or Teams via USB. It'supports HDMI video input resolutions up to 4096x2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color and outputs resolutions up to 3840x2160p@30fps (NV12, I420) or 1920x1080p@60fps (YUY2, P010).
The UVC1-4K solves the issue of PCs that lack HDMI or other video inputs for importing content from video cameras, document cameras, DVD players or other traditional video sources. It also serves as an ideal solution for users of the AMX TPC-TPI-PRO professional in-room presentation management system, offering the ability to preview and control their presentation and environment from a single, third-party touch panel interface.
Key Features
- HDMI 2.0 Support - HDMI video input supports resolutions up to 4096x2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color
- USB 3.0 Capture - UVC video output supports resolutions up to 3840x2160p@30fps (NV12, I420) or 1920x1080p@60fps (YUY2, P010)
- Audio Input Embedded - Audio input support includes analog stereo audio and HDMI embedded audio
- Support for Popular OS Platforms - Windows 10 (64-bit), macOS (10.12 or newer)
- UVC Software Compatible - Supports Zoom, Teams, WebEx, Skype, Slack, Discord, BlueJeans, GoToMeeting, VLC, and more.
- Ideal TPC-TPI-Pro Companion - Works with AMX TPC-TPI-PRO professional in-room presentation management system to enable users to preview and control their presentation and environment from a single, third-party touch panel interface
Technical Specifications
Video Inputs
(1) HDMI 2.0
Video Outputs
(1) USB 3.0; supports UVC 1.1
Video Input Resolutions
Up to 4096x2160p@60fps (4:4:4 10-Bit HDR)
UVC Output Resolution
4096x2160p@60/50fps and 3840x2160p@60/50fps
inputs will be output at 3840x2160p@30fps
(NV12, I420) or 1920x1080p@60fps (YUY2, P010)
For all inputs below 3840x2160p@30fps, UVC1-4K outputs will match the input resolution
Audio Inputs
HDMI Embedded Audio / 3.5mm Analog Stereo Audio
Ports

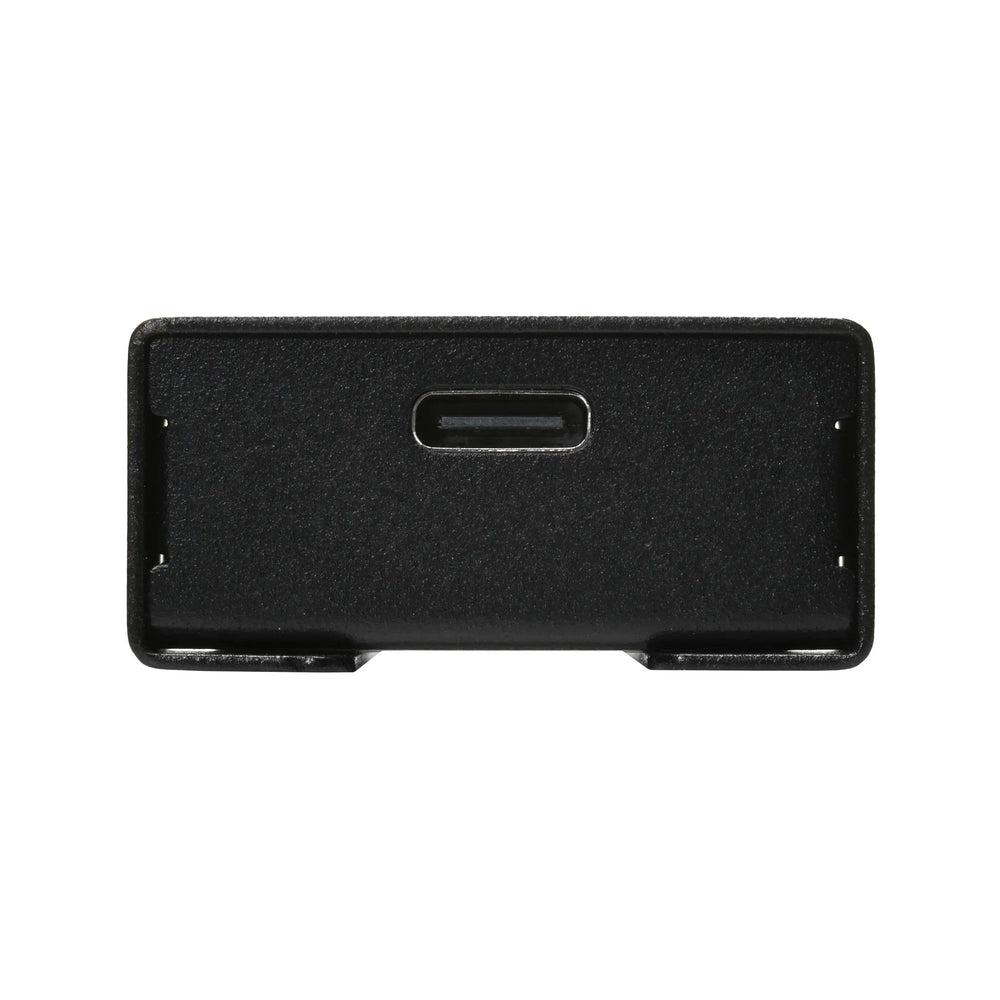

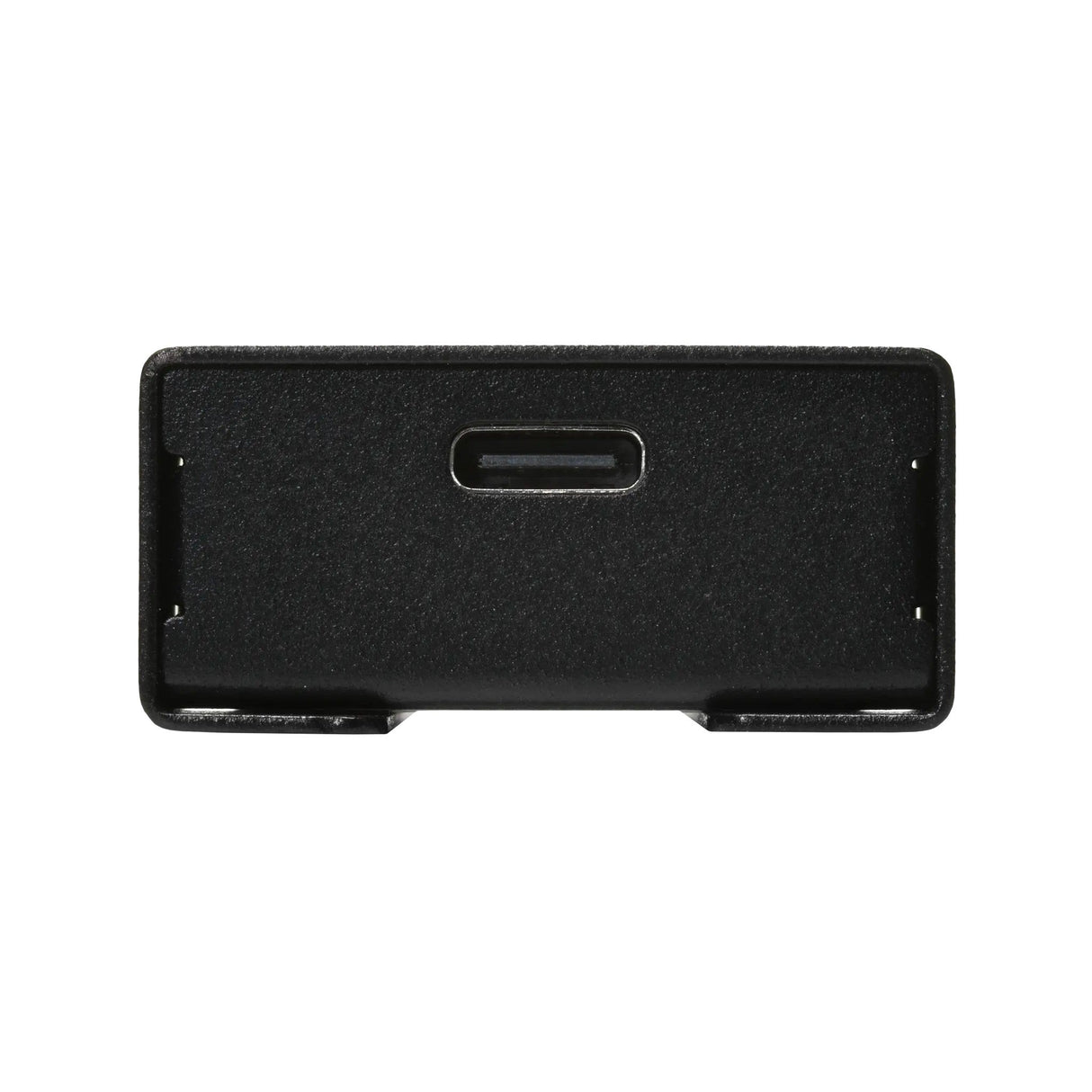

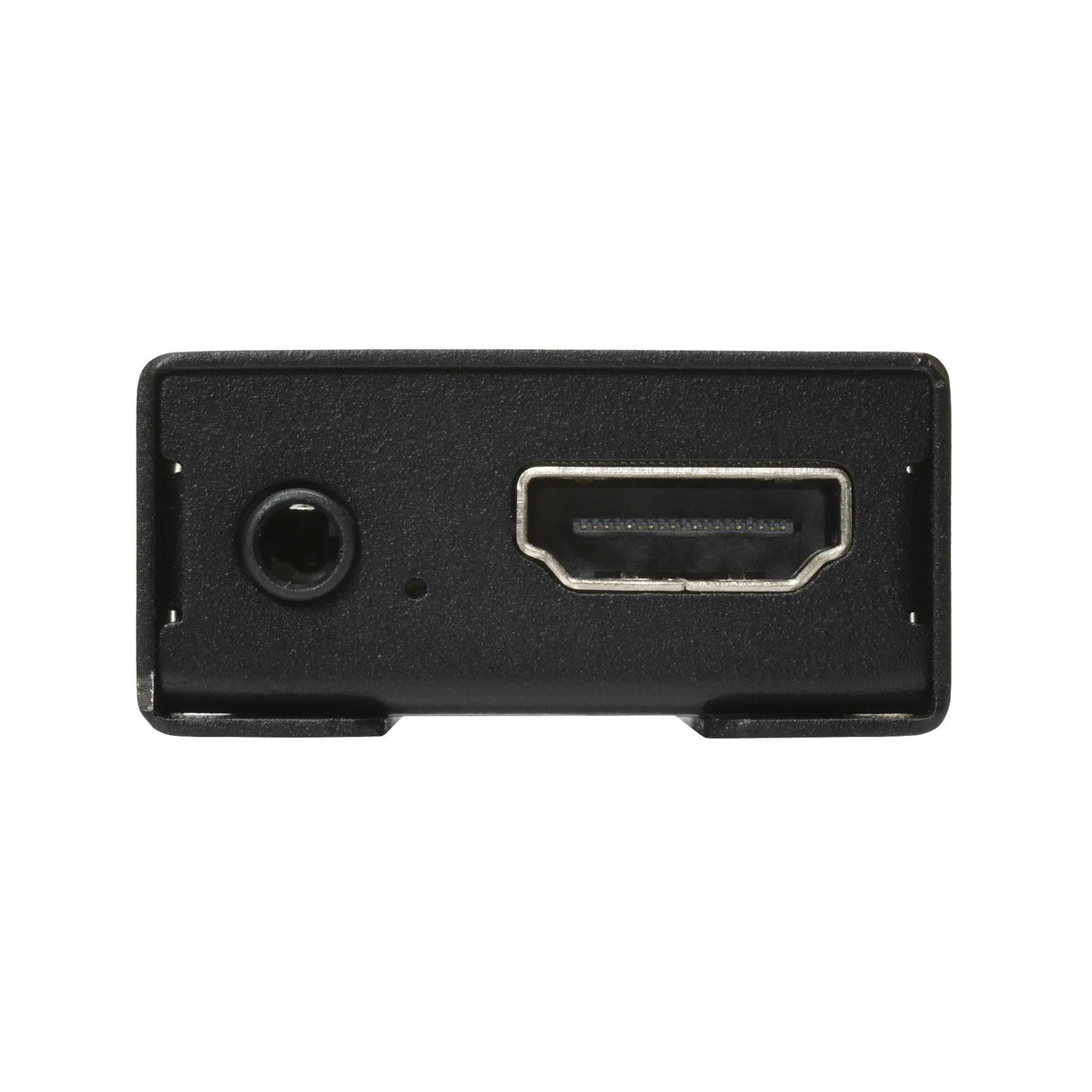

HDMI Input: (1) HDMI Type A Socket; Analog Stereo Input: (1) 3.5 mm TRS audio jack; USB 3.0: (1) USB Type C Socket
Environmental
Temperature (Operating): 32 Degrees F (0 Degrees C) to 104 Degrees F (40 Degrees C)
Temperature (Storage): -4 Degrees F (-20 Degrees C) to 158 Degrees F (70 Degrees C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Regulatory Compliance
FCC Part 15 Class B
EN 55032
EN 55035
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D)
0.66ā x 1.43ā x 3.44ā (17 mm x 36.3 mm x 87.3 mm)
Weight
3.3 oz (93.62 g)
FG Numbers
AMX-UVC1-4K
