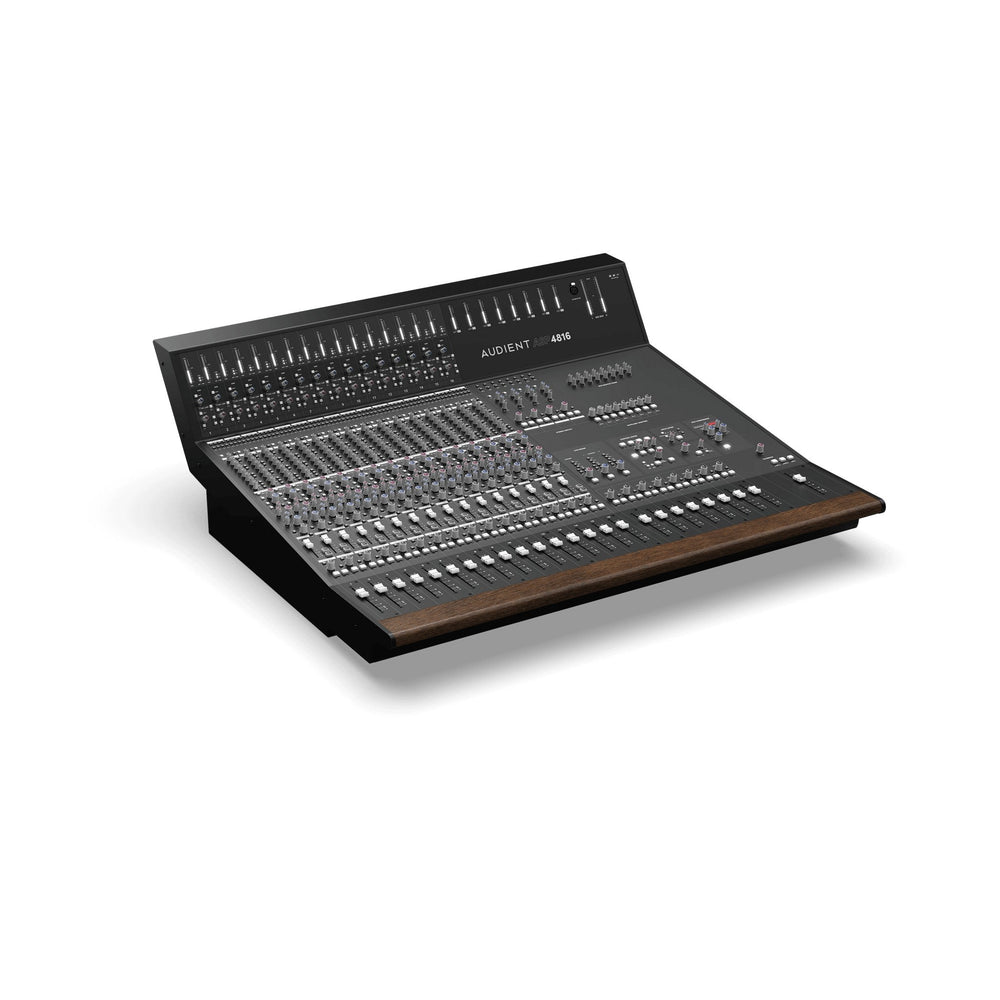

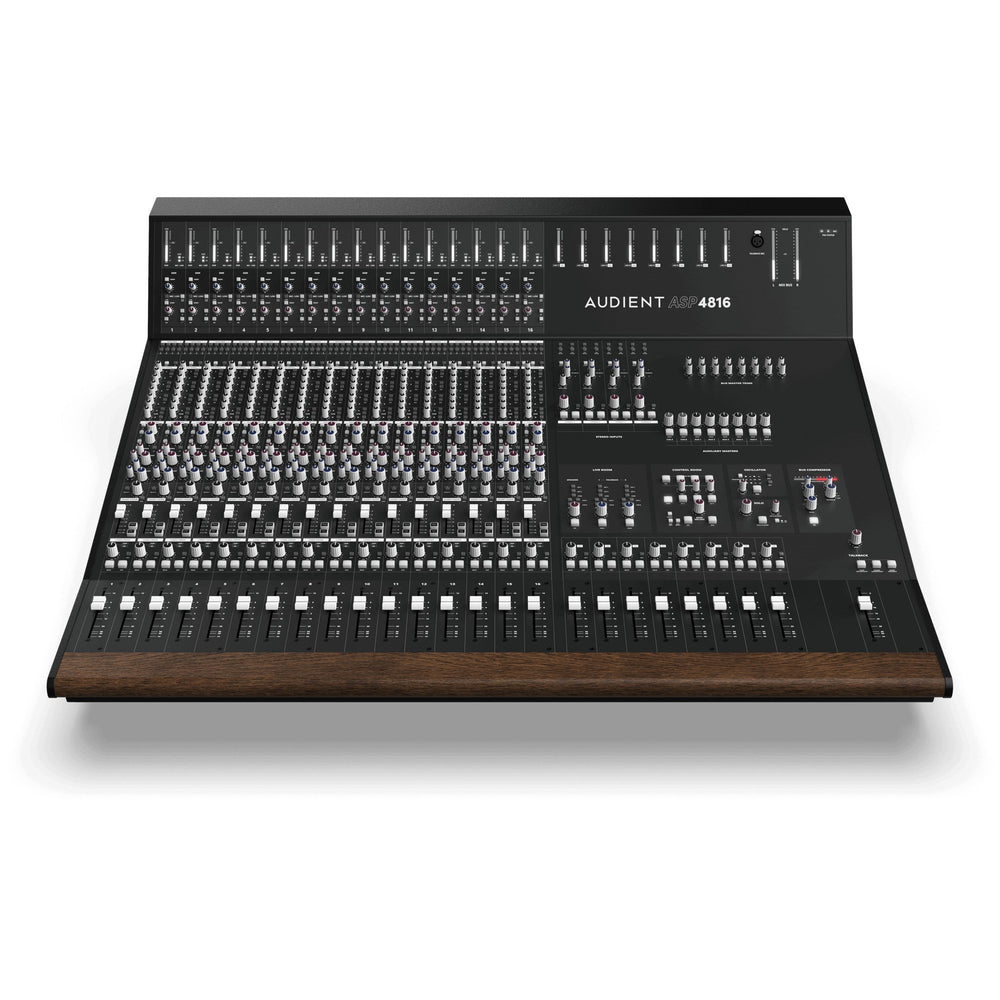

Audient 4816 Standard Edition Console

Unleash your creativity with the Audient 4816 Standard Edition Console, an innovative mixing desk that fuses the warmth of classic analog sound with the precision of modern digital technology. Designed for the contemporary studio environment, this console is a powerhouse that provides an extensive array of features, ensuring every audio engineer can craft the perfect mix. With its robust build and sleek design, the 4816 is not just a piece of equipment; it's a pivotal part of your musical journey.

Equipped with 16 high-quality Audient mic preamps, the 4816 captures every nuance of your audio, providing pristine clarity and depth. This console boasts a staggering 48 inputs at mix, giving you the flexibility to incorporate multiple instruments and vocalists without compromising quality. The 40 faders allow for precise control over your mix, making adjustments smooth and intuitive. Whether you’re mixing live performances or working in the studio, the Audient 4816 is engineered to enhance your workflow, offering streamlined controls that make navigation effortless.

The in-line architecture features twin inputs on each channel, allowing for efficient routing and monitoring, while the 4-band splittable EQ offers unparalleled versatility in shaping your sound. Add in advanced monitor control and a stereo VCA mix bus compressor, and you have a console that not only meets but exceeds the demands of modern audio production. With a rugged construction and a weight of approximately 250 lbs, the 4816 is built to withstand the rigors of studio life while delivering exceptional audio performance.

Key Features

• 16 Audient mic preamps for top-tier audio performance

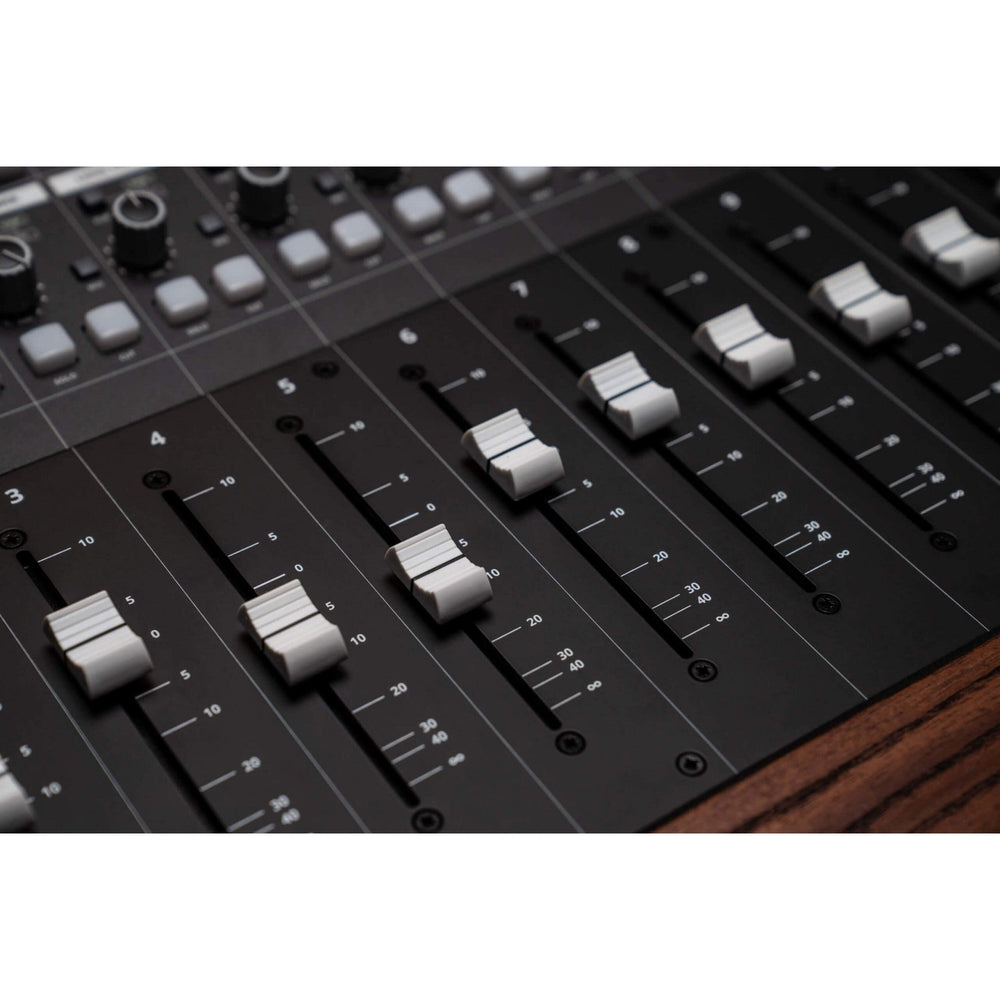

• 40 faders for seamless mixing control
• 48 inputs at mix for extensive flexibility
• 4-band splittable EQ for tailored sound shaping
• Stereo VCA mix bus compressor for polished mixes
• Advanced monitor control and footswitch for talkback control
• Durable design built to withstand daily use in professional environments

Technical Specifications

Dimensions
335mm x 995mm x 1090mm (approximately 13.2" x 39.2" x 42.9")
Weight
Approximately 250 lbs
Channel Count
16 Channels
Mic Preamps
16 Audient Console Mic Preamps
Line Inputs
16 Line Inputs
Bus Outputs
8 Group Buses
Frequency Response
MIC INPUT TO MIX OUTPUT: <+0,-0.3dB 20Hz-20kHz @6-40dB gain.
LINE INPUT TO MIX OUTPUT: <+0,-0.3dB 20Hz-20kHz @0dB gain.
THD and Noise at +20dB Output
MIC XLR INPUT TO ANY OUTPUT: < 0.005% at 1kHz
LINE INPUT TO ANY OUTPUT: < 0.005% at 1kHz
TAPE INPUT TO ANY OUTPUT: < 0.003% at 1kHz
Noise
MIC EIN (20-20KHZ, 150R SOURCE): < 0.005% at 1kHz
BUS NOISE (NO INPUTS ROUTED): < 0.005% at 1kHz
BUS NOISE (36 INPUTS ROUTED): < 0.003% at 1kHz
Crosstalk and Mute Attenuation at 1kHz
SHORT FADER MUTE: >90dB
LONG FADER MUTE: >90dB
MIX ASSIGN: >90dB
BUS ASSIGN: >90dB
Maximum Output Into 2K OHMS
MIX OUTPUT: +126dBu
BUS OUTPUT: +126dBu
AUX OUTPUT: +126dBu
INSERT SEND: +120dBu
MONITOR, STUDIO, F/B OUTPUTS: +120dBu
MIC CMRR
70dB (Min Gain)
75dB (Max Gain)
Maximum Input
MIC: >+21dBu (Min Gain)
LINE: +30dBu (Min Gain)
INSERT RETURN: >+21dBu
Faders
40
Inputs At Mix
48
Record Buses
16
Subgroups
8
Inputs
42
Auxes
6
Cue Sends
2
In-line Architecture
Twin Inputs on Each Channel
Stereo Monitor Outputs
4
Advanced Monitor Control
Yes
Splittable EQ
4 Band
Stereo VCA Mix Bus Compressor
Yes
Footswitch for Talkback Control
Yes
Vintage Mix Bus Processing
No
Gain Reduction VU Meter
No
John Hardy 990 Opamps
No
Bus Compression Bass Expand
No
Monitoring Grade Headphone Output
No
