Yamaha AG03MK2 LSPK USB Live Streaming Kit, White

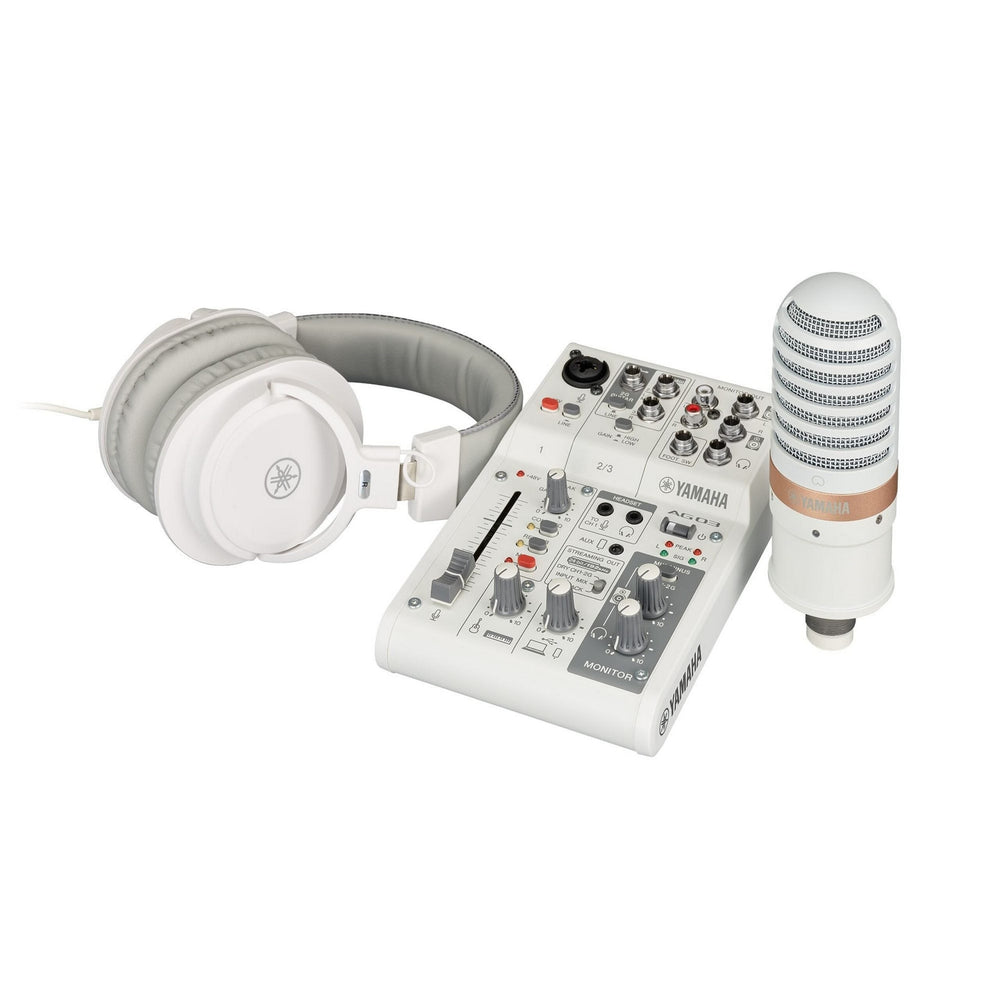

The AG03MK2 LSPK (Live Streaming Package) is a full-streaming setup that includes, and centers around, an AG03MK2 3-channel mixer- the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.

Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.

Key Features

• New design with two models in black and white
• AG03MK2: 3-channel Live Streaming mixer with USB audio interface
• YCM01: Studio-quality condenser microphone (XLR, Cardioid type)
• YH-MT1: Studio-quality headphones
• XLR microphone cable (3 m, Black)

Technical Specifications

AG03MK2
Outline
Input Channels
Mono
1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
Stereo
1 - Stereo Line / Guitar Input (Mono)
Smartphone
1 - 4-pole mini-input/output (TRRS)
USB
1
Output Channels
PHONES
1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone
1 - 4-pole mini-input/output (TRRS)
MONITOR OUT
2 - L/R Stereo: Phone, RCA
USB
1
Bus
1 Stereo
Functions
MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors
DSP
COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB
USB Audio
2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input
1 - Type-C, 5 V DC, 900 mA
General specifications
Power requirements
5 V DC, 900 mA
Power consumption
Max. 4.5 W
Dimensions
W
126 mm (5.0”)
H
63 mm (2.5”)
D
201 mm (7.9”)
Net weight
0.8 kg (1.8 lbs)
Included Accessories
USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others
Operating Temperature: 0 to + 40 degrees Celsius
YCM01
Microphone
Microphone Unit
Back electret condenser type
Polar Pattern
Cardioid
Address Type
Side
Frequency Response
30 Hz - 20 kHz
Max Input SPL
130 dB (THD ≦ 1.0 ％ at 1 kHz)
Sensitivity
-37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz)
Connector
XLR
Dimensions (Microphone Only)
Ø55 x 166 mm (Ø2.2” x 6.5”)
Weight (Microphone Only)
0.4 kg (0.9 lbs)
Included Accessories
Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, technical specifications
