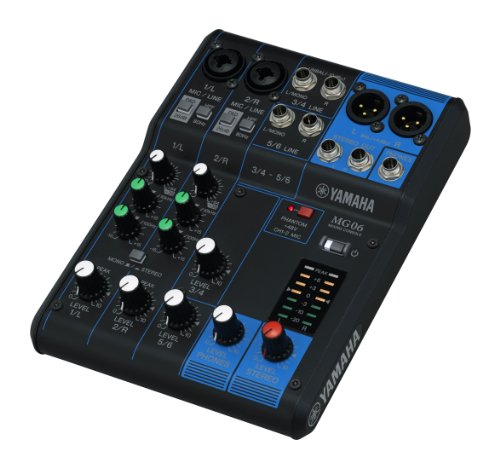

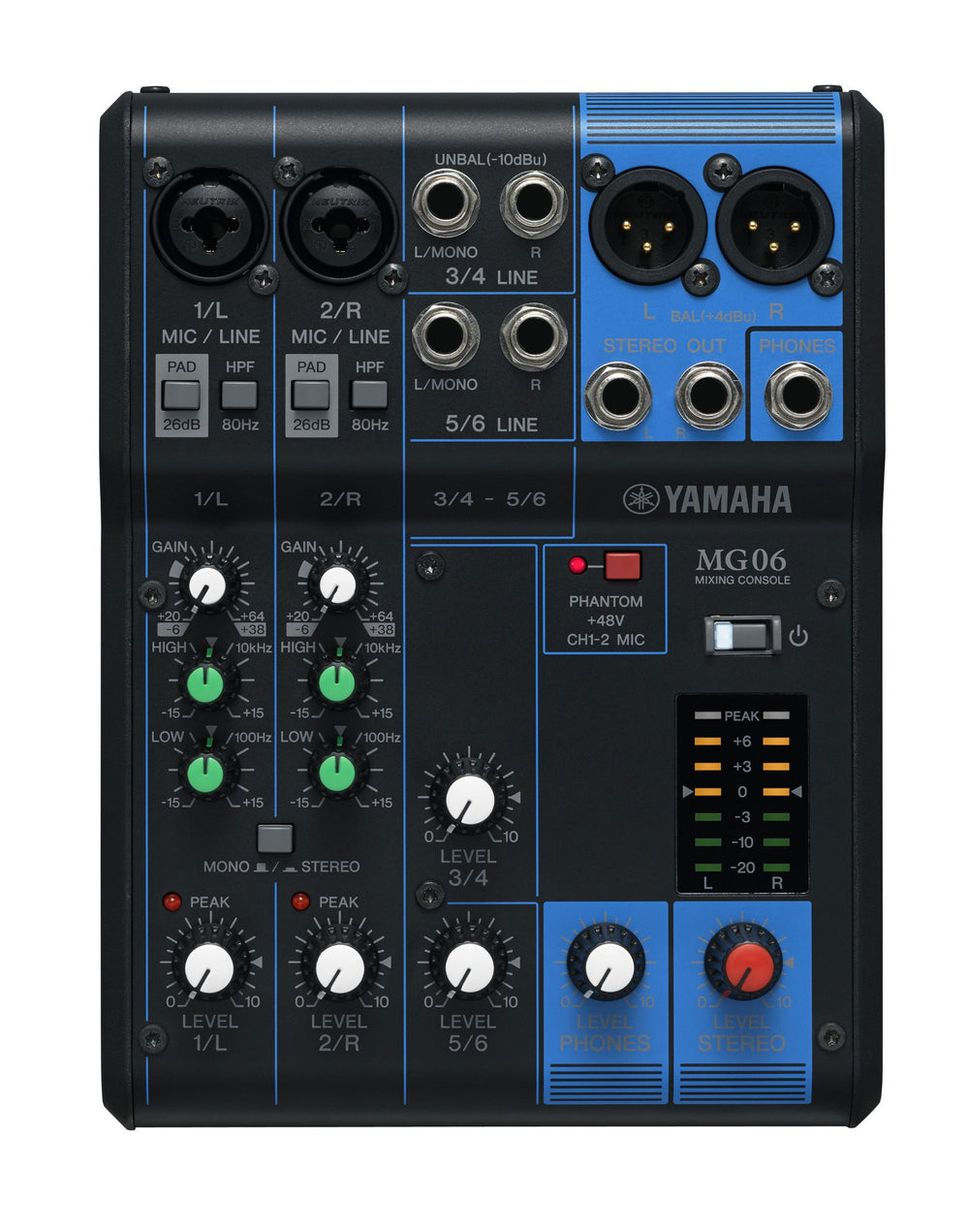

Yamaha MG06 6-Channel Mixing Console
The third generation of the acclaimed MG Series, these compact mixing consoles focus on delivering high quality sound for a diverse range of mixing environments. With the same mic preamps as our high-end professional mixers, the MG Series provides serious sound with the reliability and performance this series is renowned for.
Key Features
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- XLR balanced outputs
Technical Specifications
Outline
I/O
Phantom power
+48 V
Mono[MIC/LINE]
2
Stereo[LINE]
2
STEREO OUT
2
PHONES
1
Bus
Stereo: 1
PAD
26 dB (Mono)
HPF
80 Hz, 12 dB/oct (Mono)
EQ HIGH
(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW
(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED
LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter
2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
Total Harmonic Distortion
0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency Response
+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent Input Noise
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual Output Noise
-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk
-88 dB
Power Requirements
PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Power Consumption
12 W
Dimensions
W
149 mm (5.9")
H
62 mm (2.4")
D
202 mm (7.9")
Net Weight
0.9 kg (1.98 lbs.)
Accessories
Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others
Operating Temperature: 0 to +40˚C
