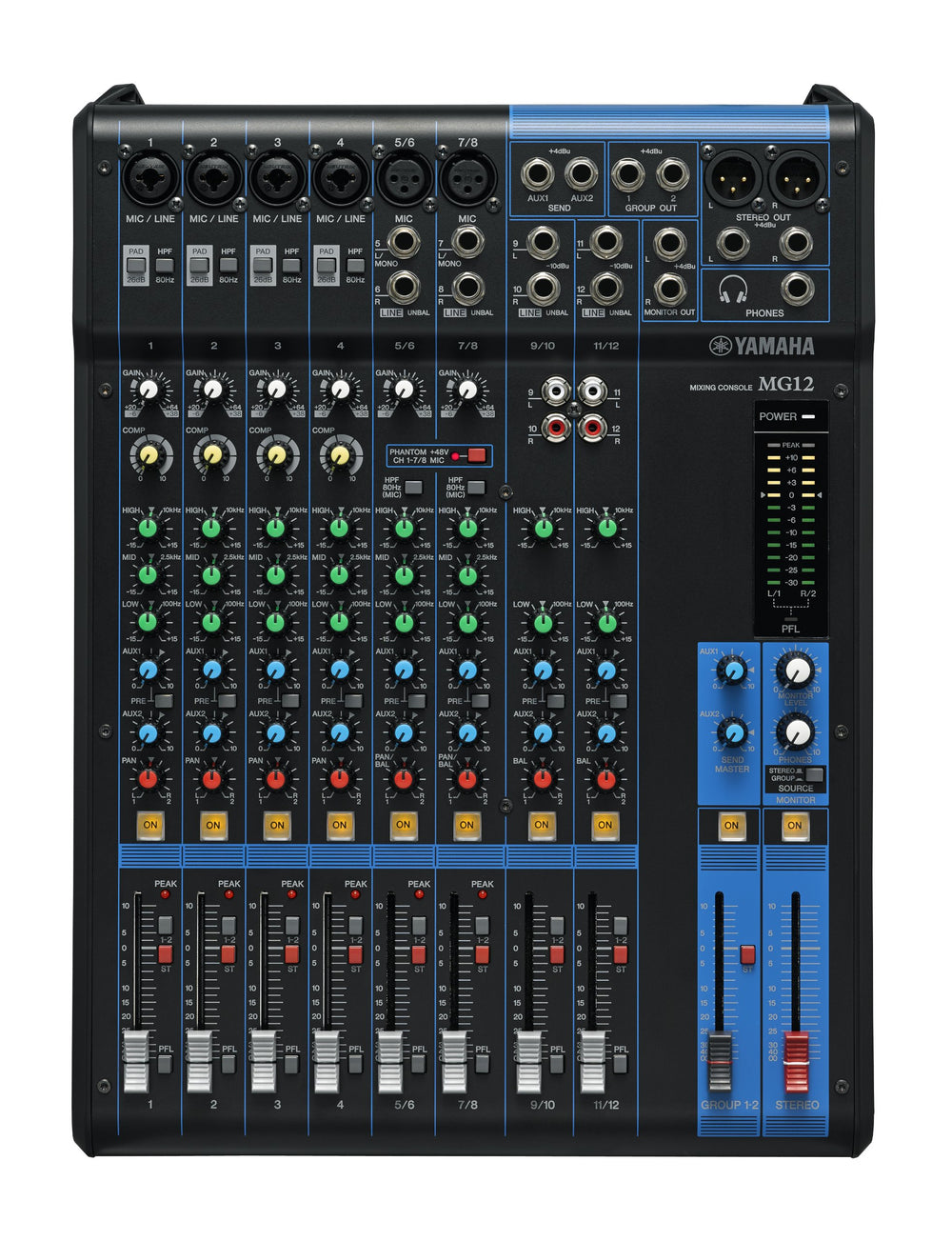

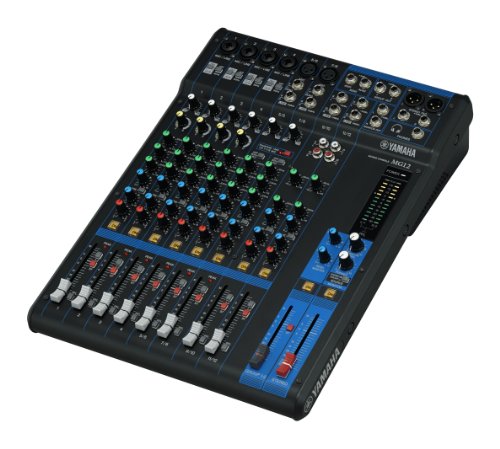

Yamaha MG12 12-Channel Mixing Console
The third generation of the acclaimed MG Series, these compact mixing consoles focus on delivering high quality sound for a diverse range of mixing environments. With the same mic preamps as our high-end professional mixers, the MG Series provides serious sound with the reliability and performance this series is renowned for.
Key Features
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (incl. FX)
- D-PRE mic preamps with an inverted Darlington circuit
Technical Specifications
Outline
I/O
Phantom power
+48 V
Mono[MIC/LINE]
4
Mono/Stereo[MIC/LINE]
2
Stereo[LINE]
2
STEREO OUT
2
MONITOR OUT
1
PHONES
1
AUX SEND
2
GROUP OUT
2
Bus
Stereo: 1, GROUP: 2, AUX: 2
PAD
26 dB (Mono)
HPF
80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID
Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED
LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter
2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total Harmonic Distortion
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency Response
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent Input Noise
-128 dBu (Mono Input Channel, Rs: 150Ī©, GAIN knob: Max)
Residual Output Noise
-102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk
-78 dB
Power Requirements
AC 100 ā 240 V, 50 / 60 Hz
Power Consumption
22 W
Dimensions
W
308 mm (9.6")
H
118 mm (2.8")
D
422 mm (11.6")
Net Weight
4.0 kg (8.8 lbs.)
Accessories
Included Accessory: Ownerās Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12
Others
Operating Temperature: 0 to +40ĖC
