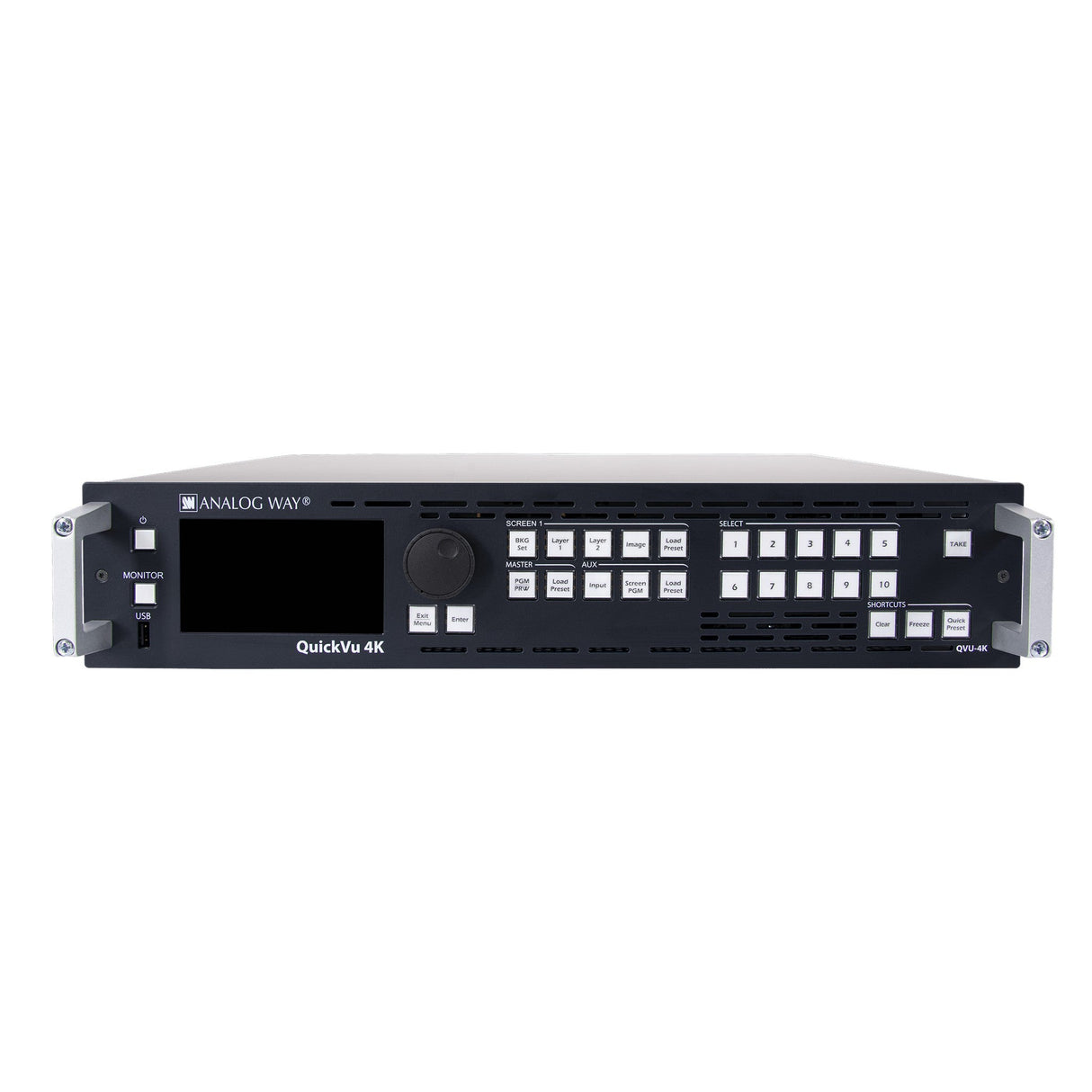

Analog Way QuickVu 4K 4K60 Video Mixer and Presentation Switcher

The Analog Way QuickVu 4K 4K60 Video Mixer and Presentation Switcher is a versatile and advanced solution designed to elevate your video production and presentation quality. This powerful device supports up to 10 seamless inputs and 2 active outputs, making it perfect for managing multiple video sources and delivering high-quality outputs. It features HDMI 2.0 and DisplayPort 1.2 inputs that support up to 4K60 resolution, ensuring crisp and vivid visuals. With a dedicated Multiviewer output and ultra-low latency processing, this mixer ensures smooth transitions and seamless editing, making it ideal for professional productions and live events.

Built on Analog Way’s exclusive 5th generation scaling engine, the QuickVu 4K 4K60 Video Mixer offers ultra-low latency of just 16ms at 60Hz, supporting multiple color spaces like BT.601, BT.709, and BT.2020. Its advanced audio processing capabilities allow de-embedding and embedding audio channels across all inputs and outputs, providing comprehensive audio management. This switcher also includes flexible control options via its full-featured front panel, web-based user interface, and compatibility with various control solutions, making it a user-friendly and robust choice for various applications.

Whether you're streaming live events to YouTube, Facebook, or Twitch, or delivering presentations in a professional setting, the Analog Way QuickVu 4K 4K60 Video Mixer provides exceptional performance and reliability. Its customizable output formats, advanced video effects, and the ability to handle up to 8 concurrent 4K still images make it an indispensable tool for any video production or event management setup.

Key Features

• 10 Seamless inputs including HDMI 2.0, DisplayPort 1.2, and 12G/3G-SDI.
• Ultra-low latency 4K60 processing with 16ms at 60Hz.
• Supports custom input and output formats up to 4096 width.
• Advanced audio processing with de-embed/embed features.
• Flexible control options with full-featured front panel and web-based interface.
• RTMP-based IP streaming compatible with major web platforms.
• High dynamic range support including HDR10 and HLG.
• Dedicated Multiviewer output with customizable layouts.
• Advanced video effects including Luma and Chroma keying.
• Live monitoring of inputs and Program output on a color TFT LCD display.

Specifications

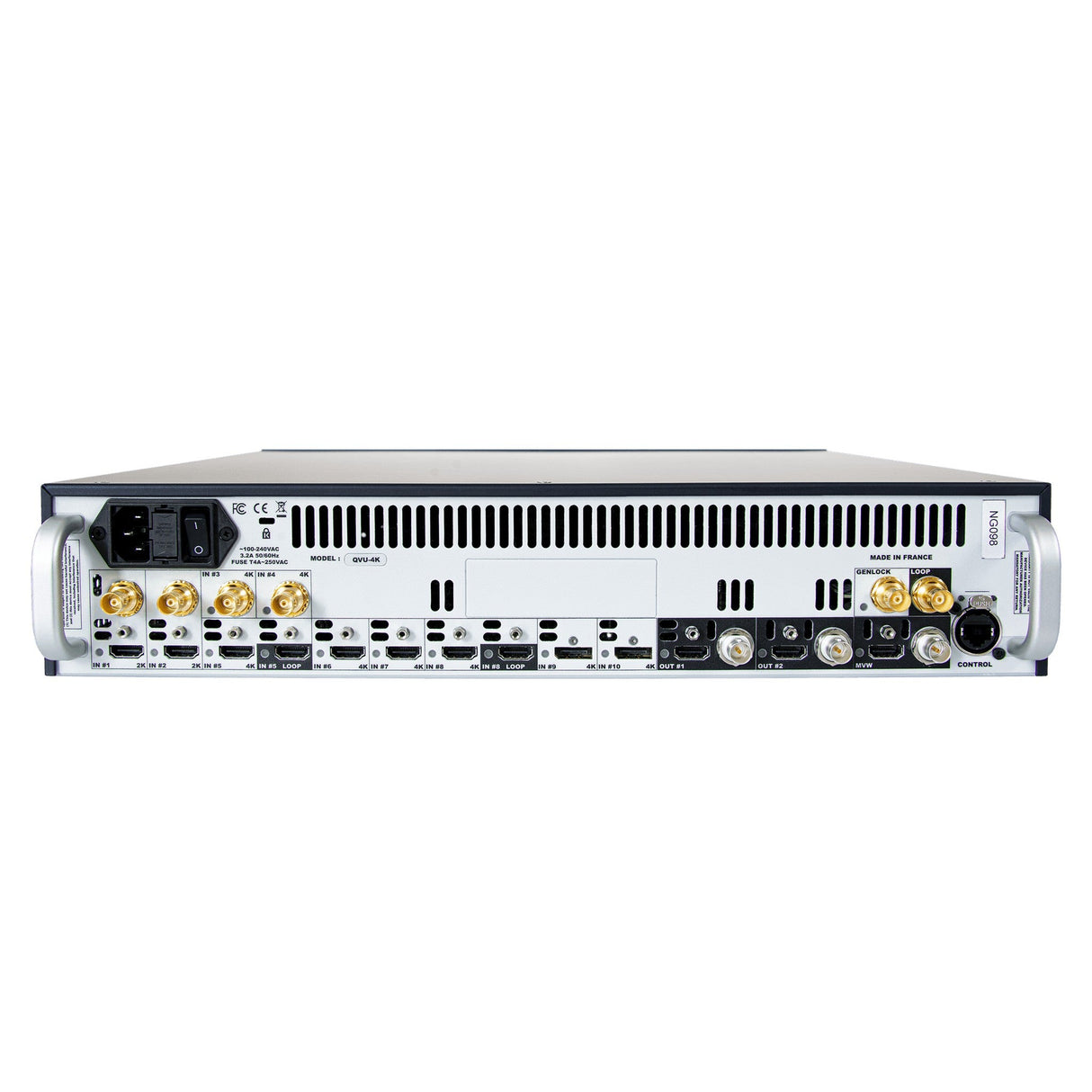

• 10 seamless inputs: 4x HDMI 2.0, 2x DisplayPort 1.2, 2x 12G-SDI, 2x HDMI 1.4 or 3G-SDI.
• 2 active outputs: 2x HDMI 2.0 + 2x mirrored 12G-SDI.
• 1 dedicated Multiviewer output: 1x HDMI 1.4 + 1x mirrored 3G-SDI.
• Ultra-low latency: 16msec @60Hz.
• Color spaces: BT.601, BT.709, BT.2020.
• Audio channels: 8 per HDMI 2.0, 12G-SDI, DisplayPort 1.2 input; 4 per 3G-SDI input; 2 per HDMI 1.4 input.
• Output resolutions: up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2.
• Streaming: RTMP-based IP streaming, 720p30 in H.264 with AAC audio.
• Simultaneous 4K still images: 8 concurrent images.
• Advanced control options: Front panel, web RCS, Shot Box2/Control Box2, RC400T.

Package Contents

• Analog Way QuickVu 4K 4K60 Video Mixer and Presentation Switcher.
• Power cable.
• User manual.
• Warranty card.
