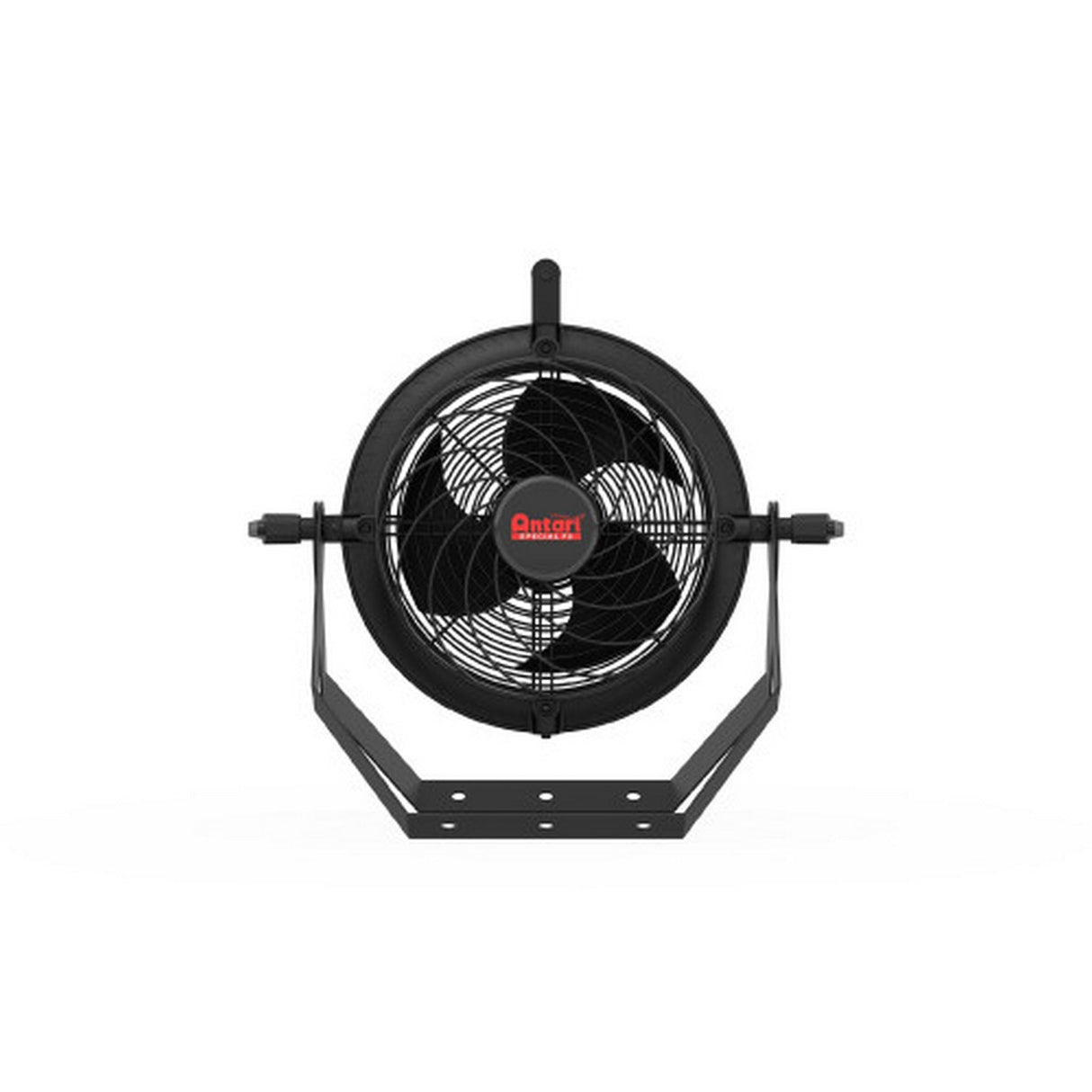

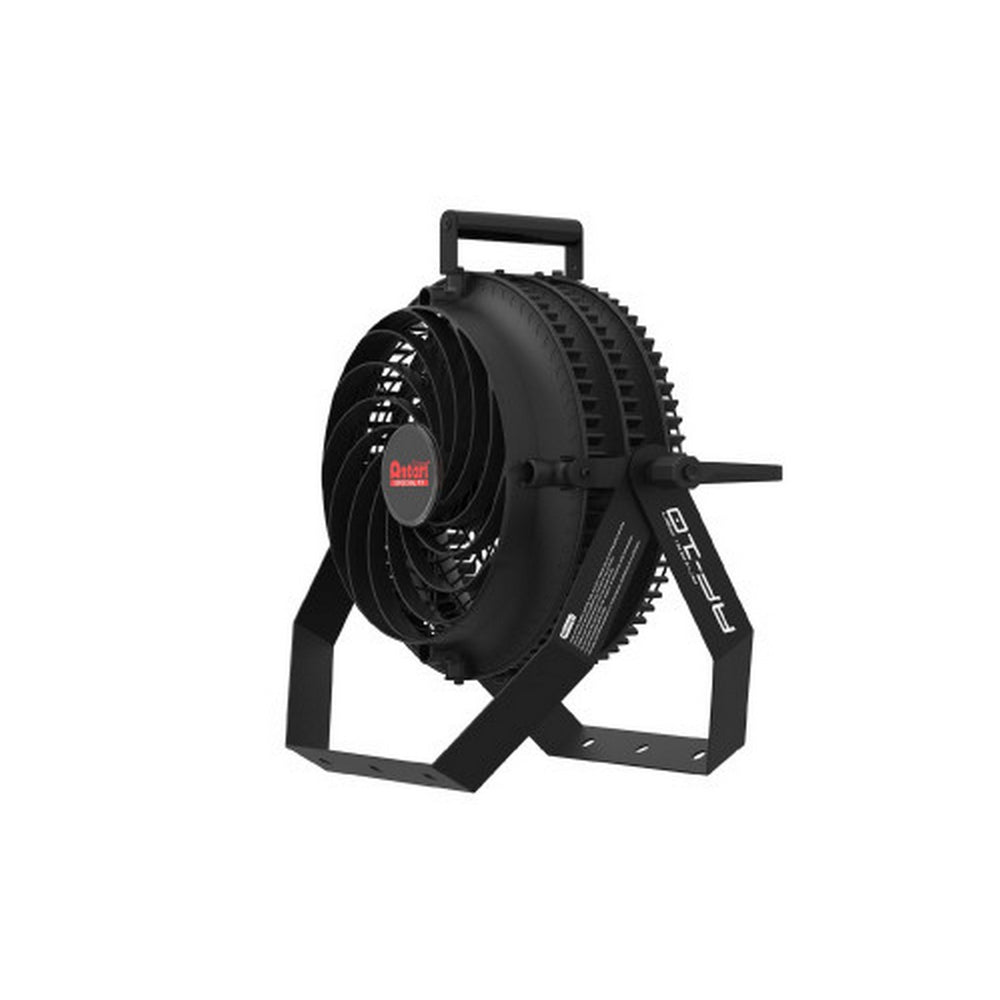

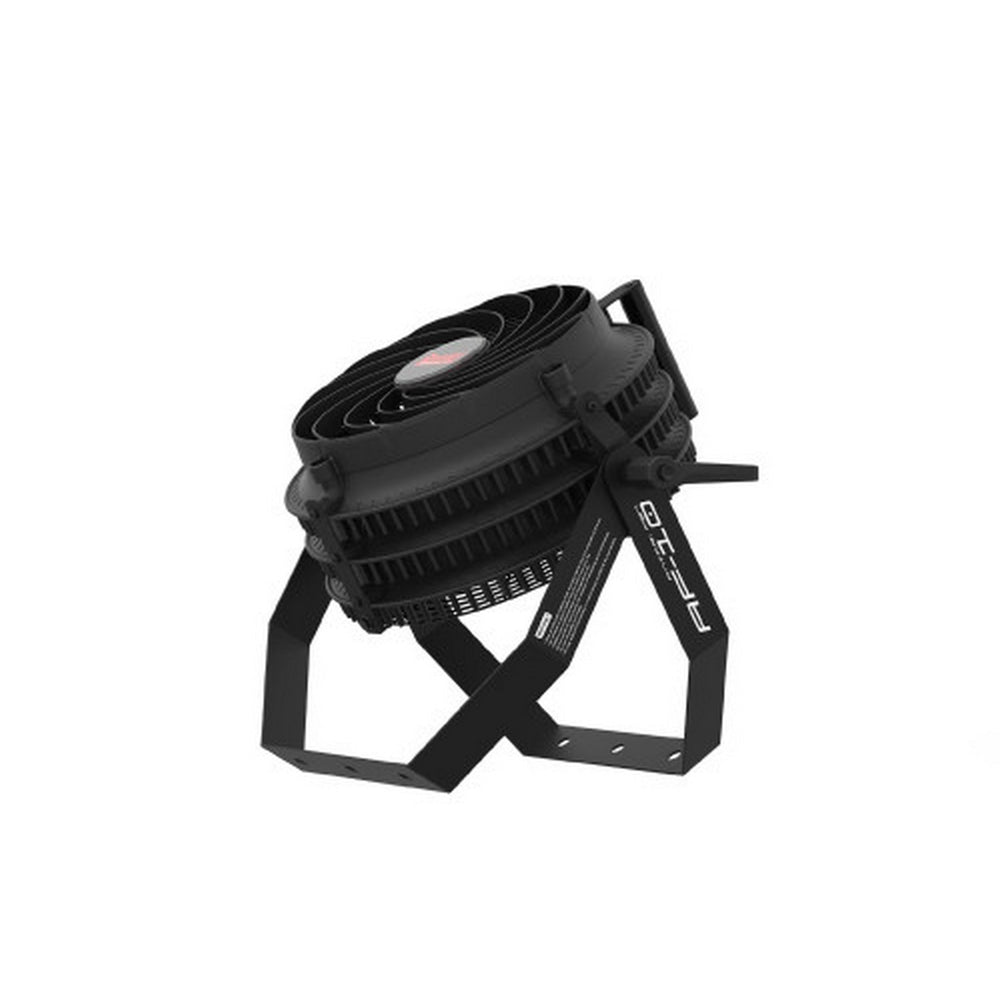

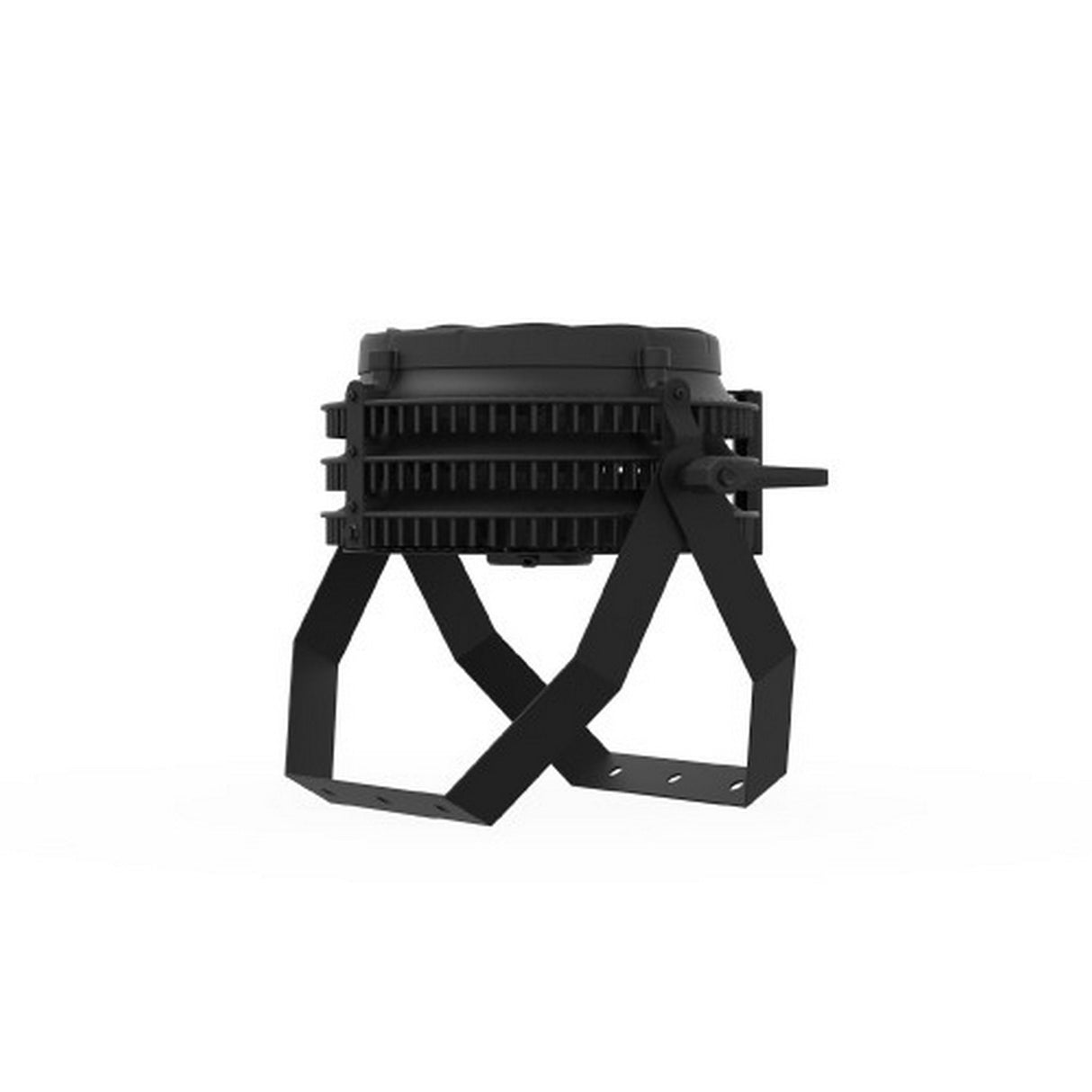

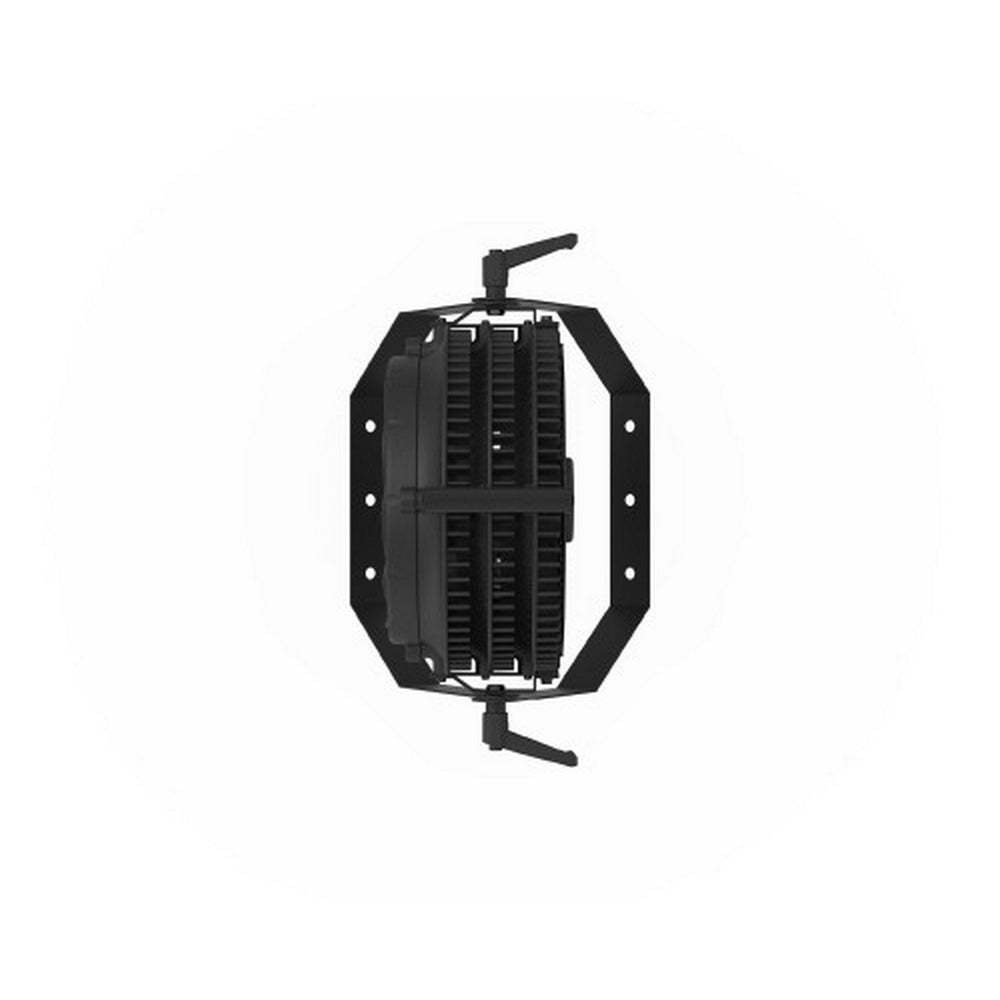

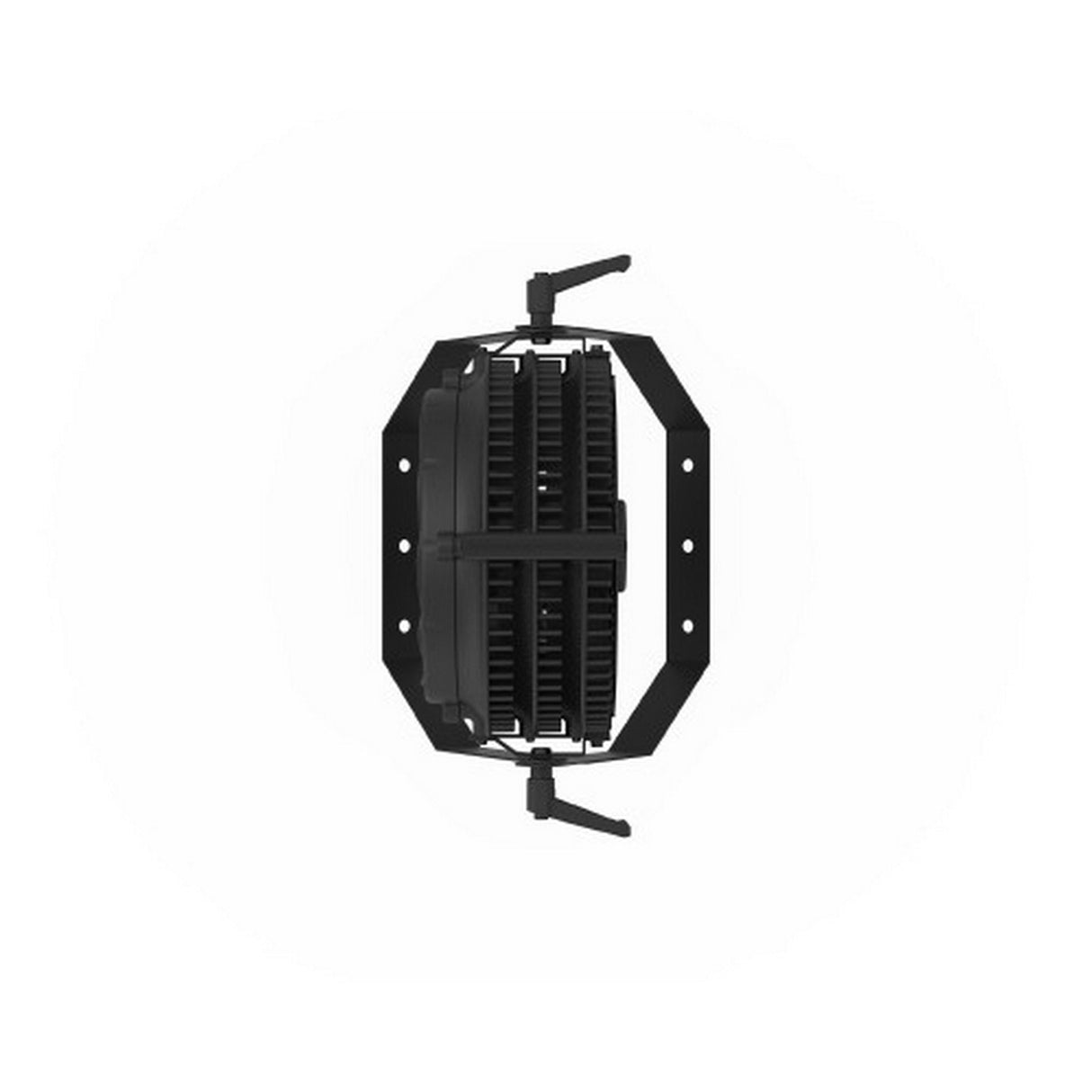

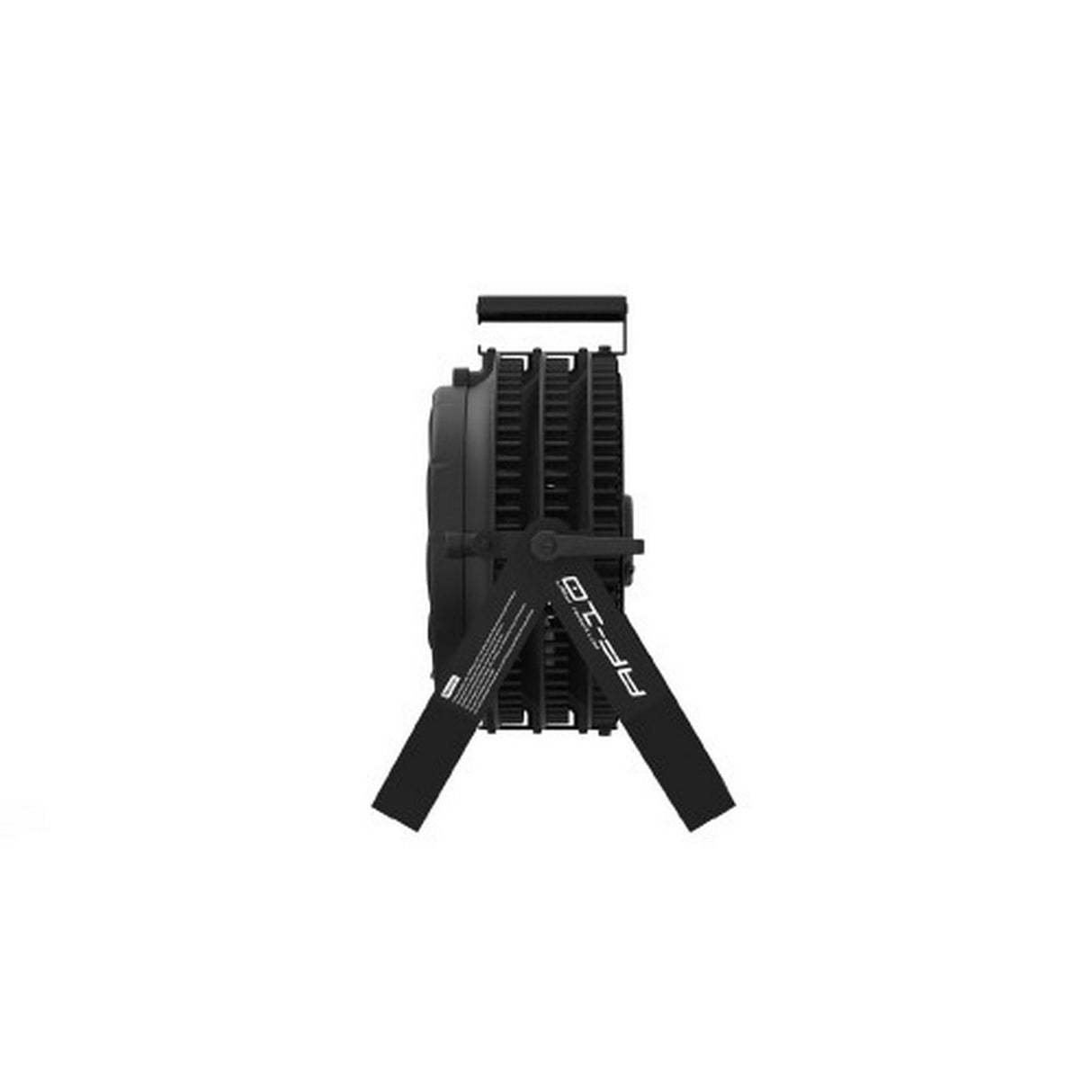

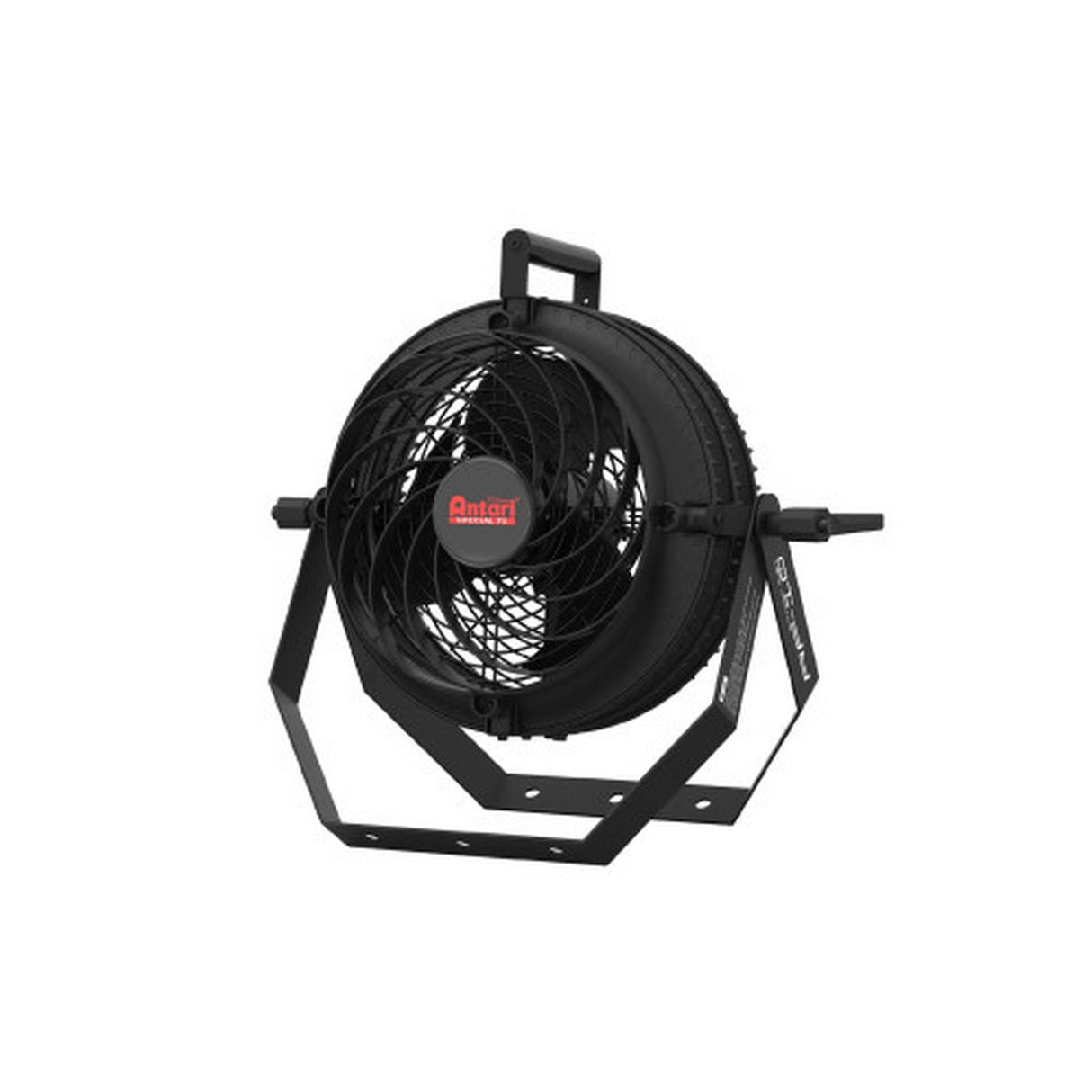

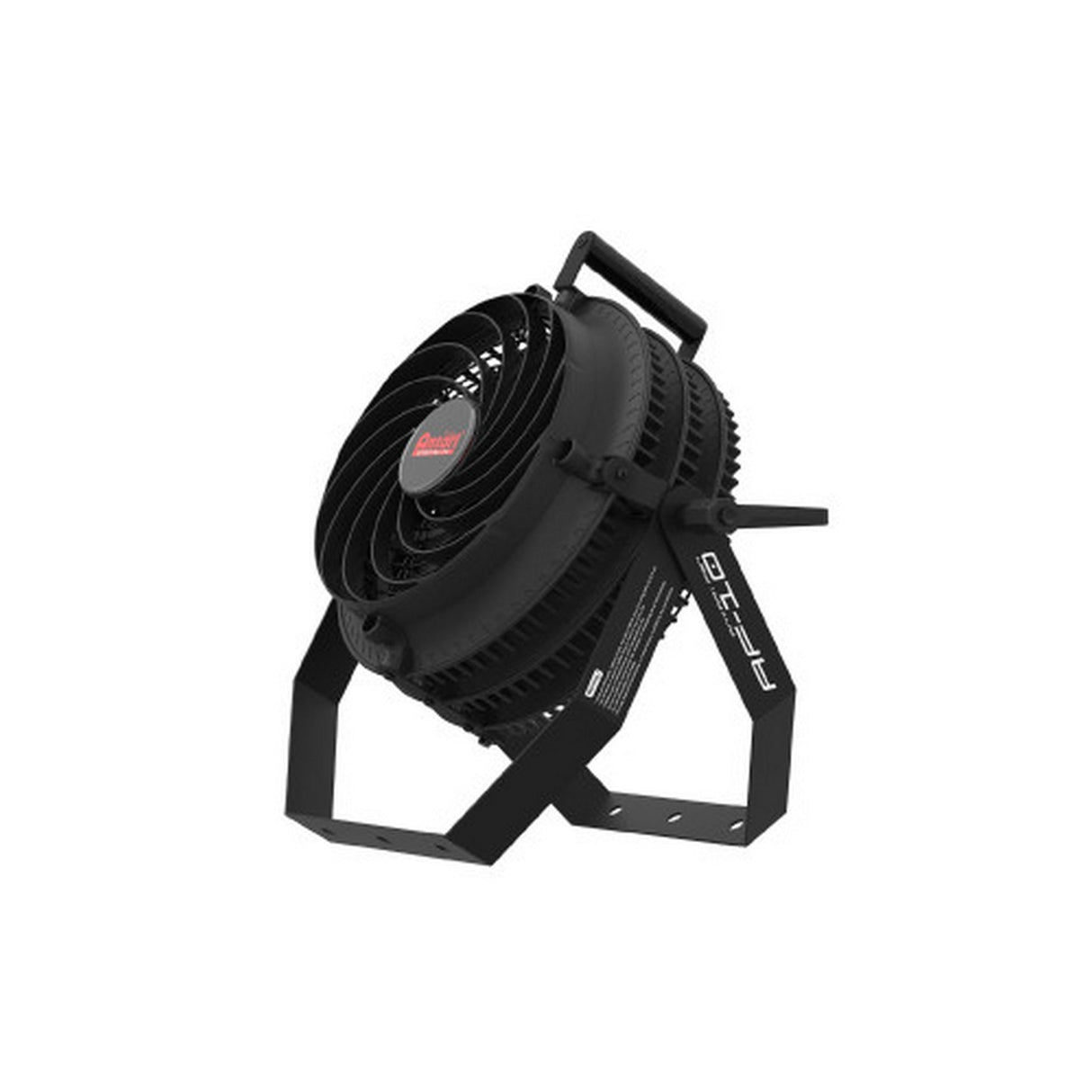

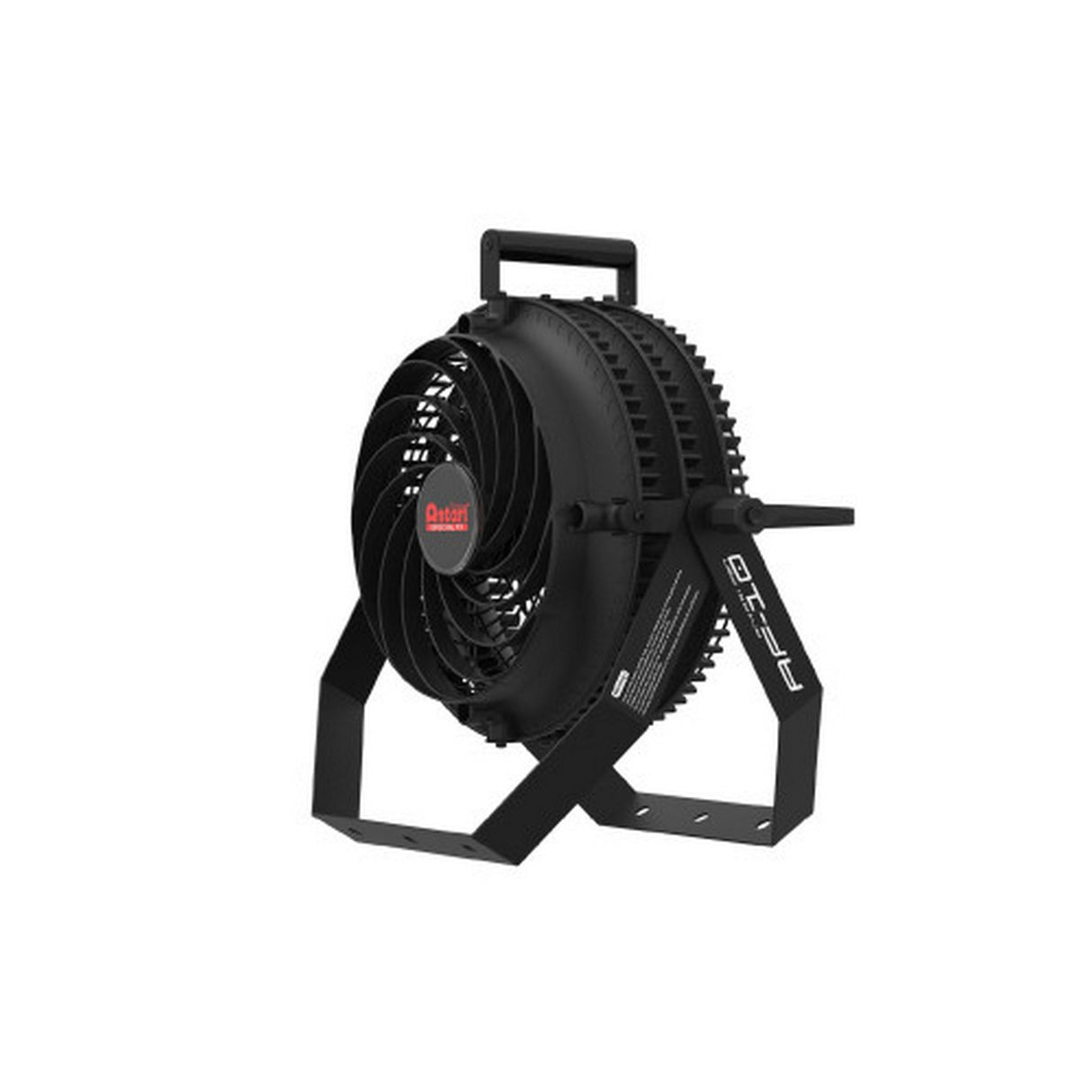

Antari AF-14 Special Effects Fan
The Antari AF-14 Special Effects Fan is a high output fan designed for stage, event, and production environments that require powerful, controllable wind effects. With an IP55 rated design for temporary outdoor use, it is engineered to resist dust ingress and withstand low pressure water jets from any direction.
The AF-14 delivers strong airflow to move fog and haze, enhance atmospheric effects, and create practical wind across larger spaces. It uses a SEETRONIC IP65 power connector and includes a dual use bracket to support flexible placement and angle adjustments.
Built for dependable operation in demanding conditions, the AF-14 offers straightforward plug in control and is designed for routine maintenance and long term use. It is ideal for crews who need higher airflow capacity, rugged construction, and repeatable performance for shows and productions.
Key Features
- IP55 Rated Design: Designed and tested for dust protection and low pressure water jets from any direction for temporary outdoor use.
- High Airflow Output: Air flow rated at 3826 CFM (AC 240V/60Hz).
- High Power Performance: Rated power of 120V 190W or 240V 145W.
- Controlled Fan Speed: Fan speed rated at 1609 rpm (50Hz) and 1678 rpm (60Hz).
- Low Noise Operation: 59.0 dB at max output.
- Flexible Mounting: Includes a dual use bracket for positioning and angle adjustment.
- Rugged Power Connection: SEETRONIC IP65 connector for power.
Technical Specifications
- Rated Voltage: US Model: AC 100-120V, 50/60Hz 2.0A
- Rated Voltage: EU Model: AC 220-240V, 50/60Hz 1.0A
- Rated Power: 120V 190W, 240V 145W
- Ambient Temp. Range: 0°C - 40°C (32°F - 104°F)
- Air Flow: 3826 CFM (AC 240V/60Hz)
- Fan Speed: 1609 rpm (50Hz), 1678 rpm (60Hz)
- Noise Level: 59.0 dB (Max. Output)
- Control Methods: N/A
- DMX Channel: N/A
- Interface: SEETRONIC IP65 Connector (Power)
- Included Accessories: Dual Use Bracket
- Optional Accessories: AFC-1 Fan Control Box
- Dimension: L 654 W 433 H 672 mm (L 25.75 W 17.05 H 24.46 inch)
