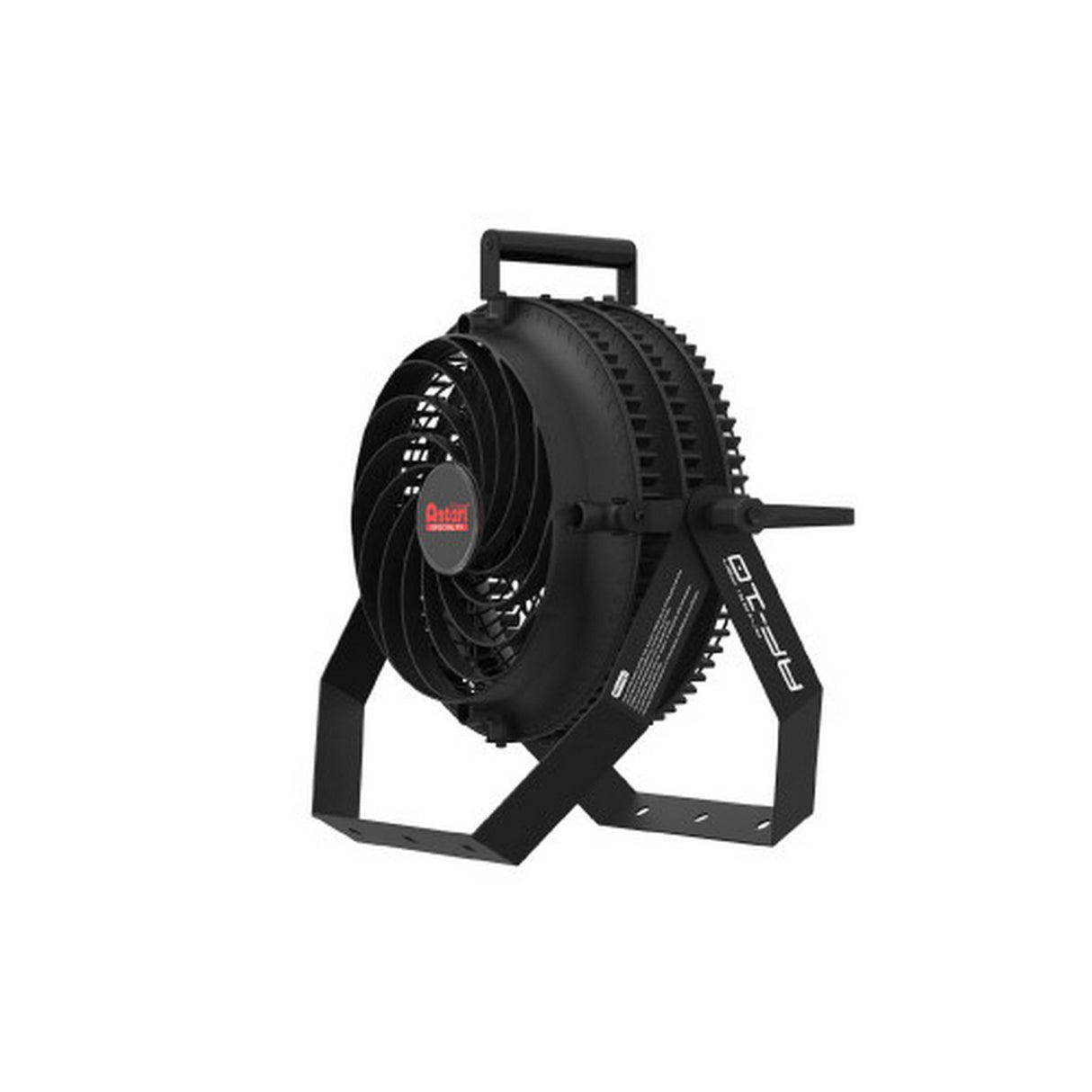

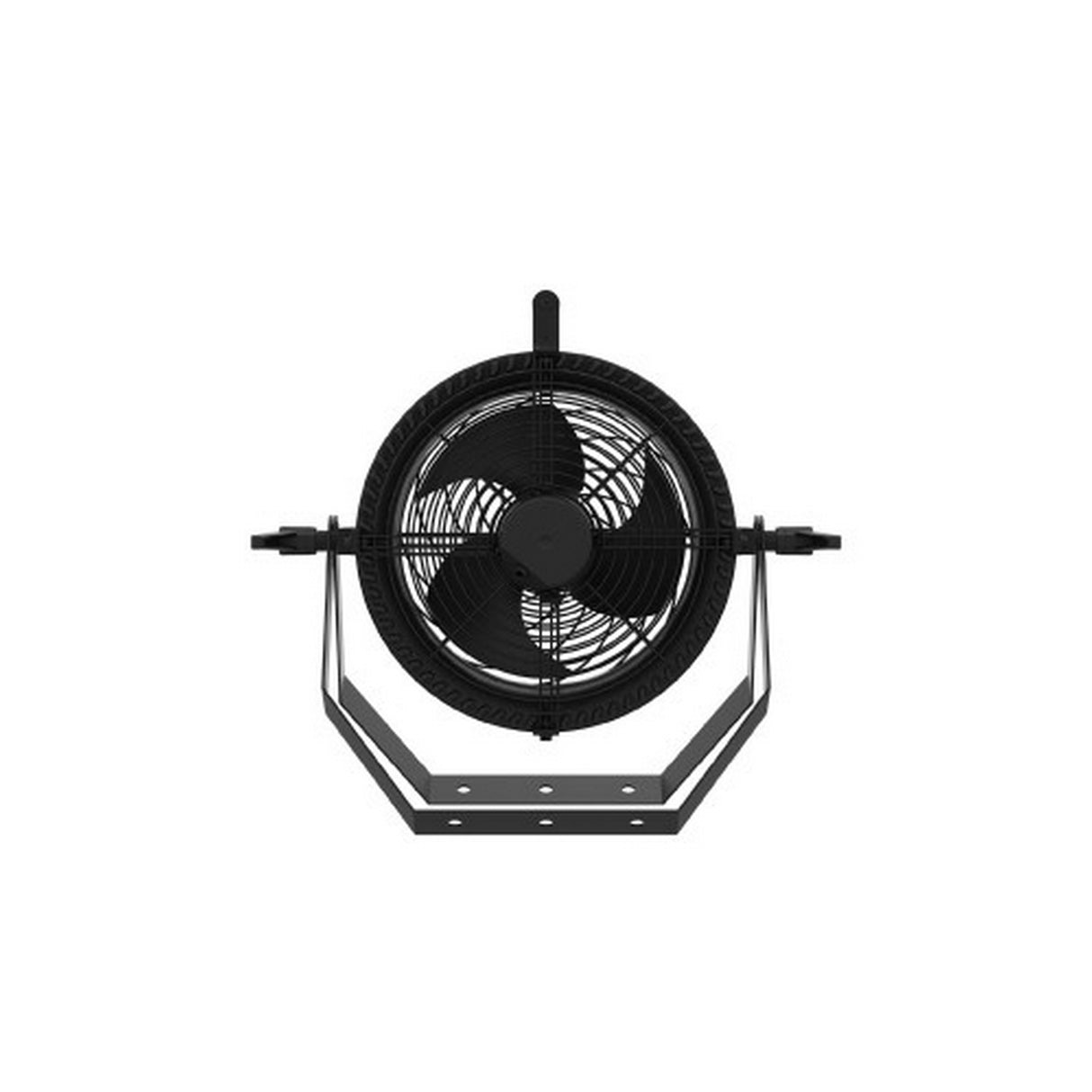

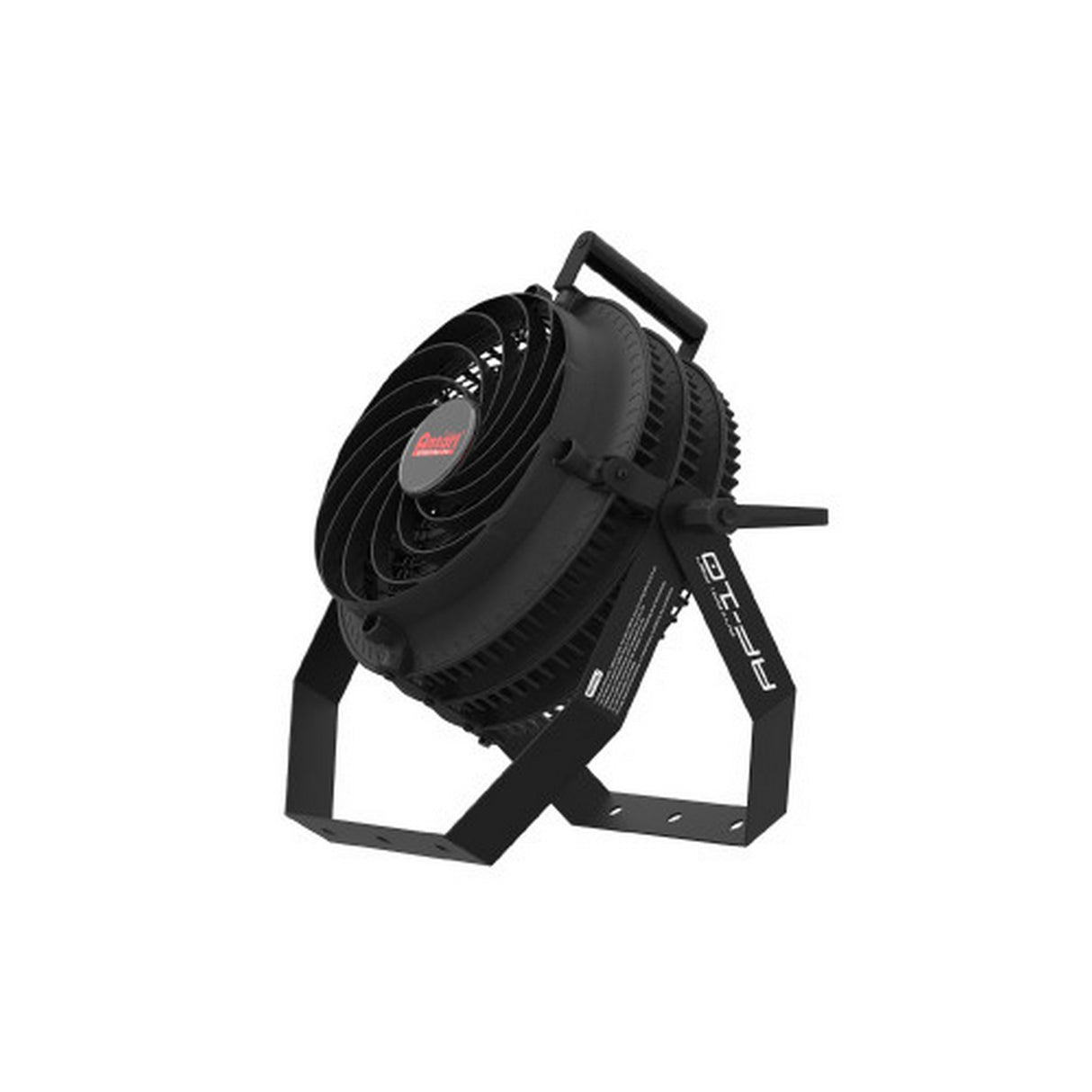

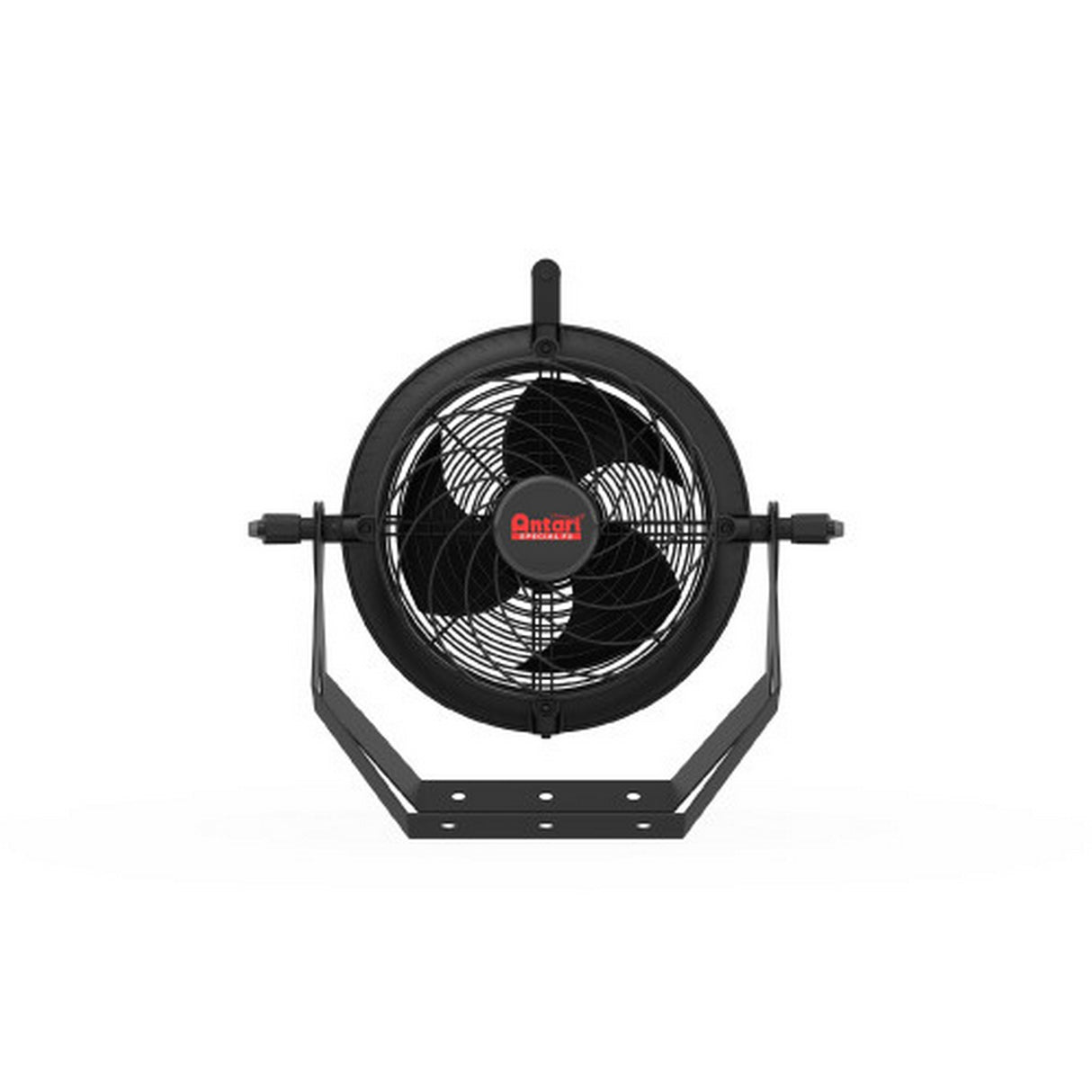

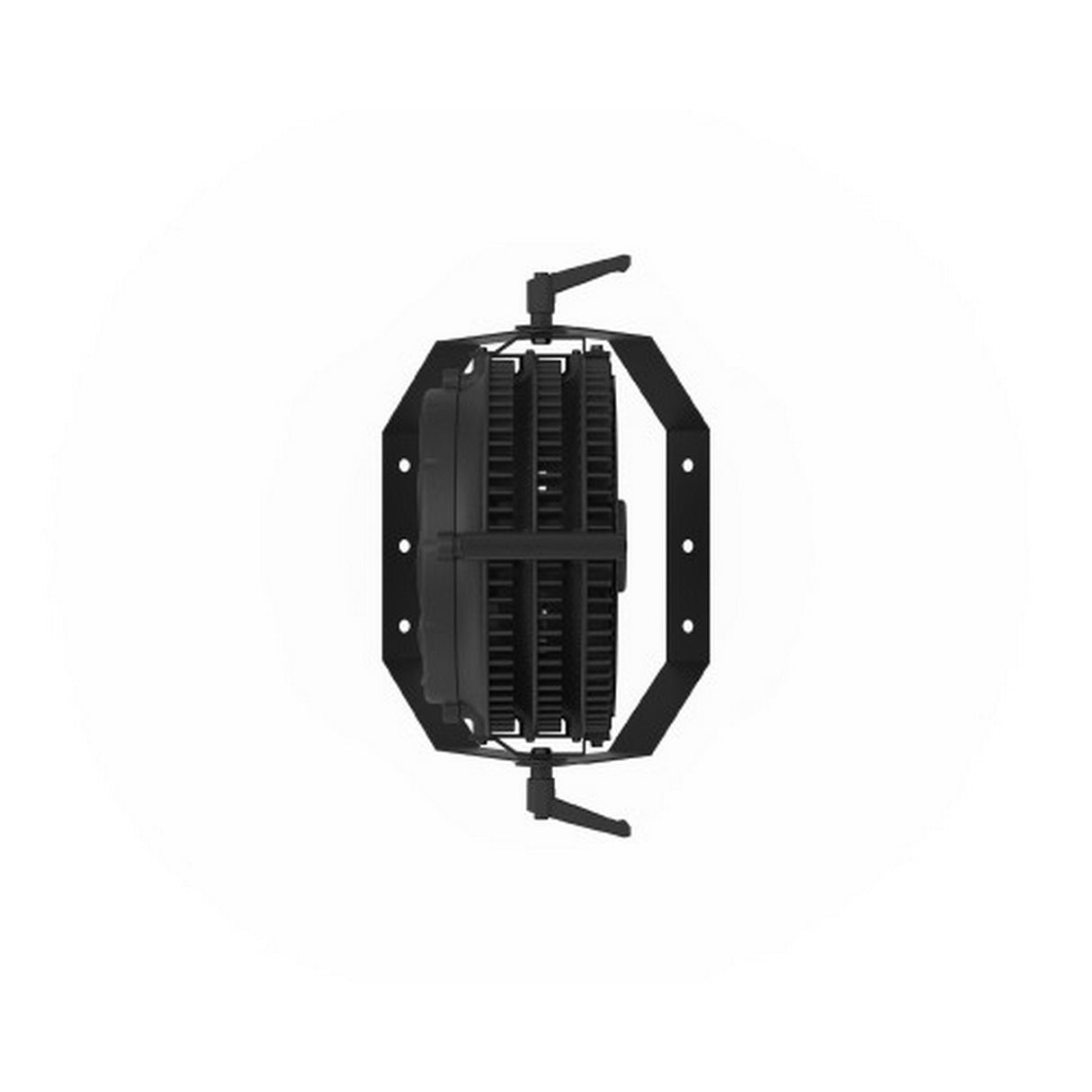

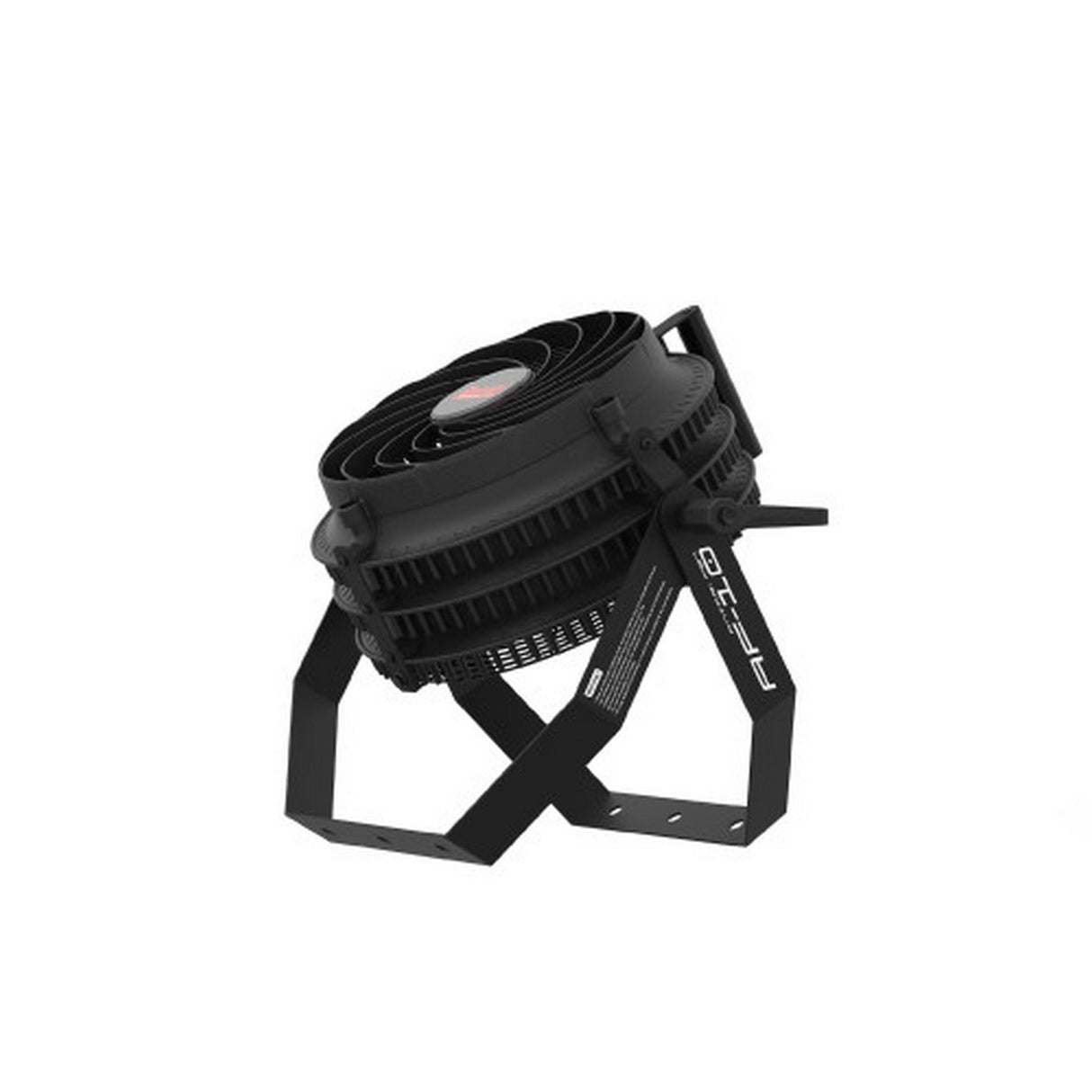

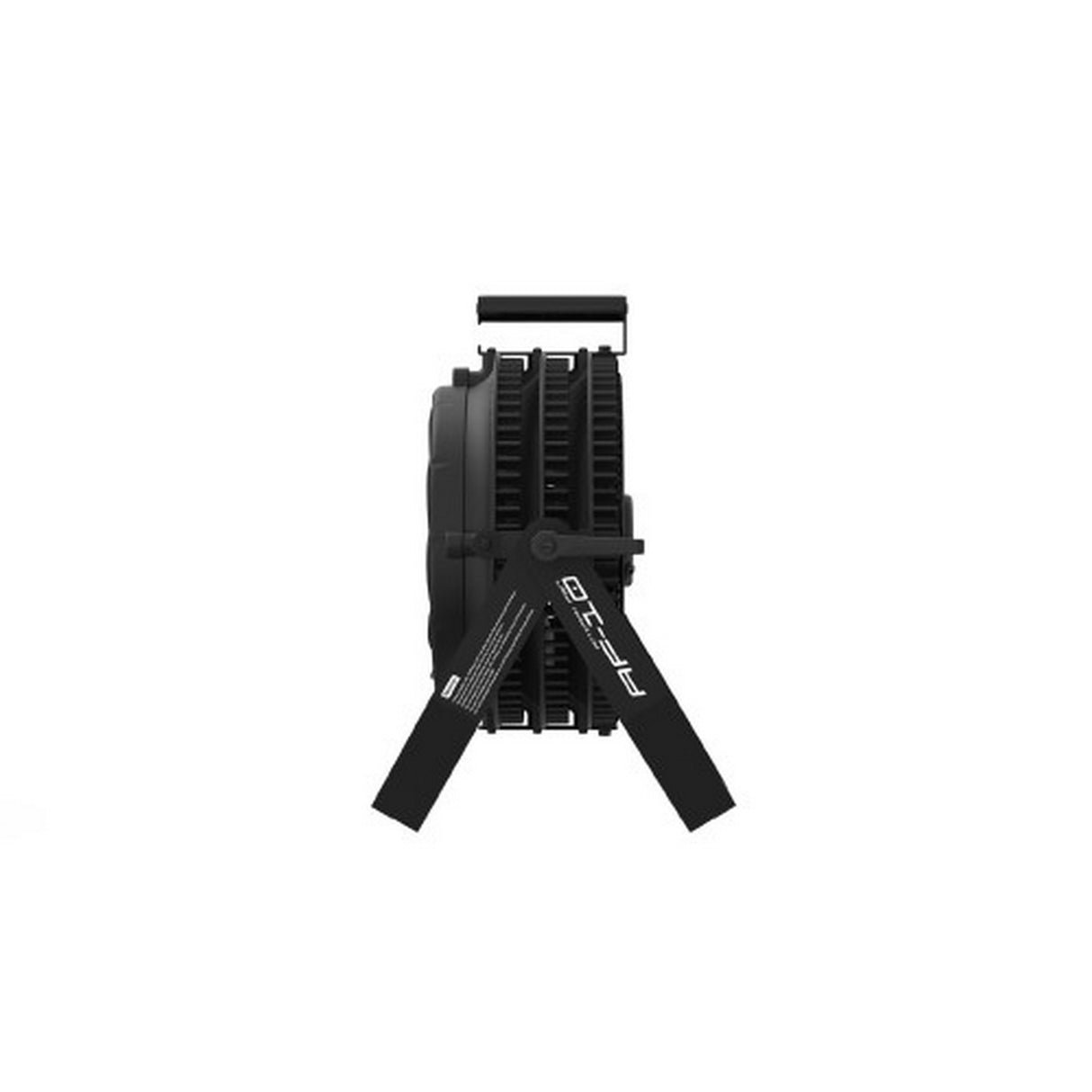

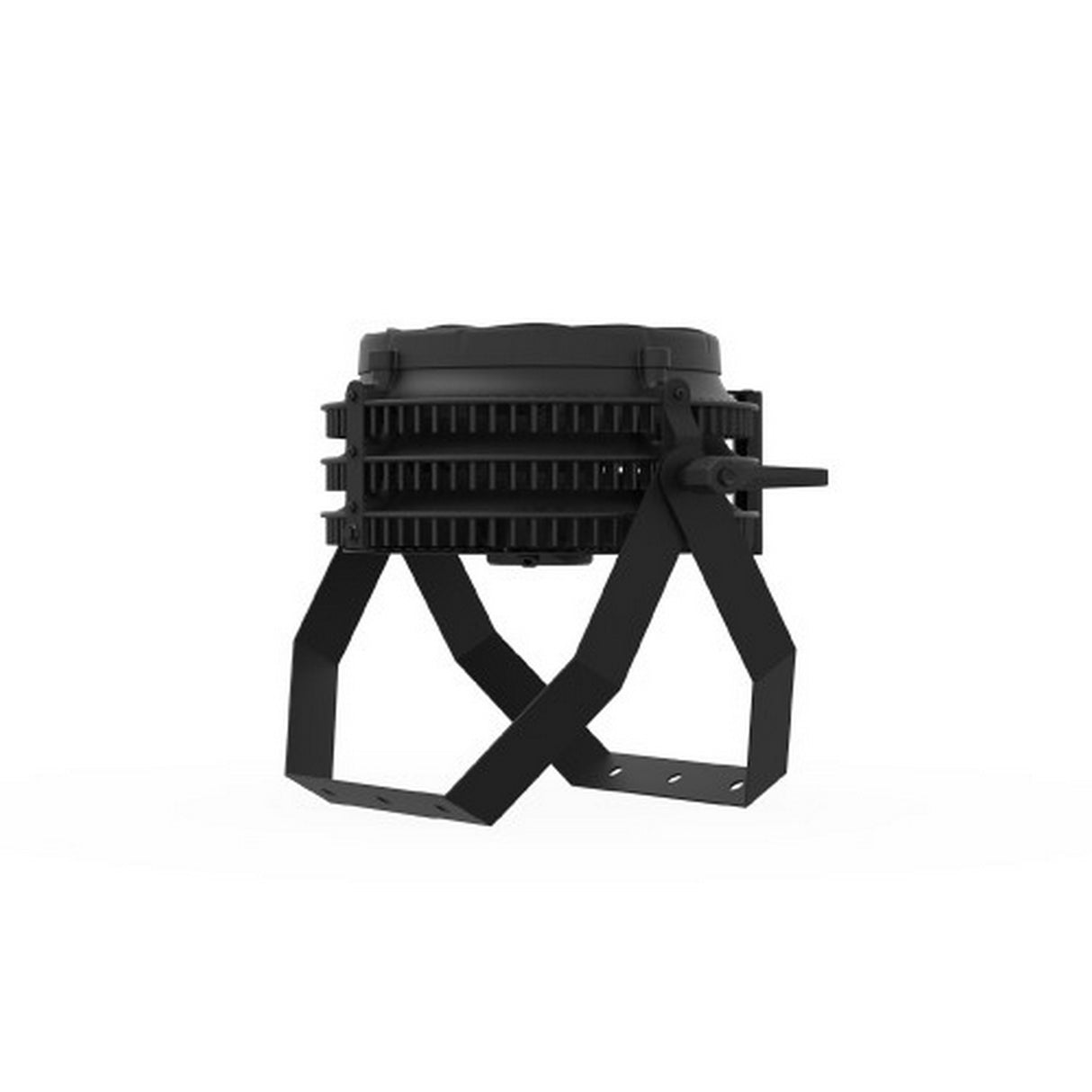

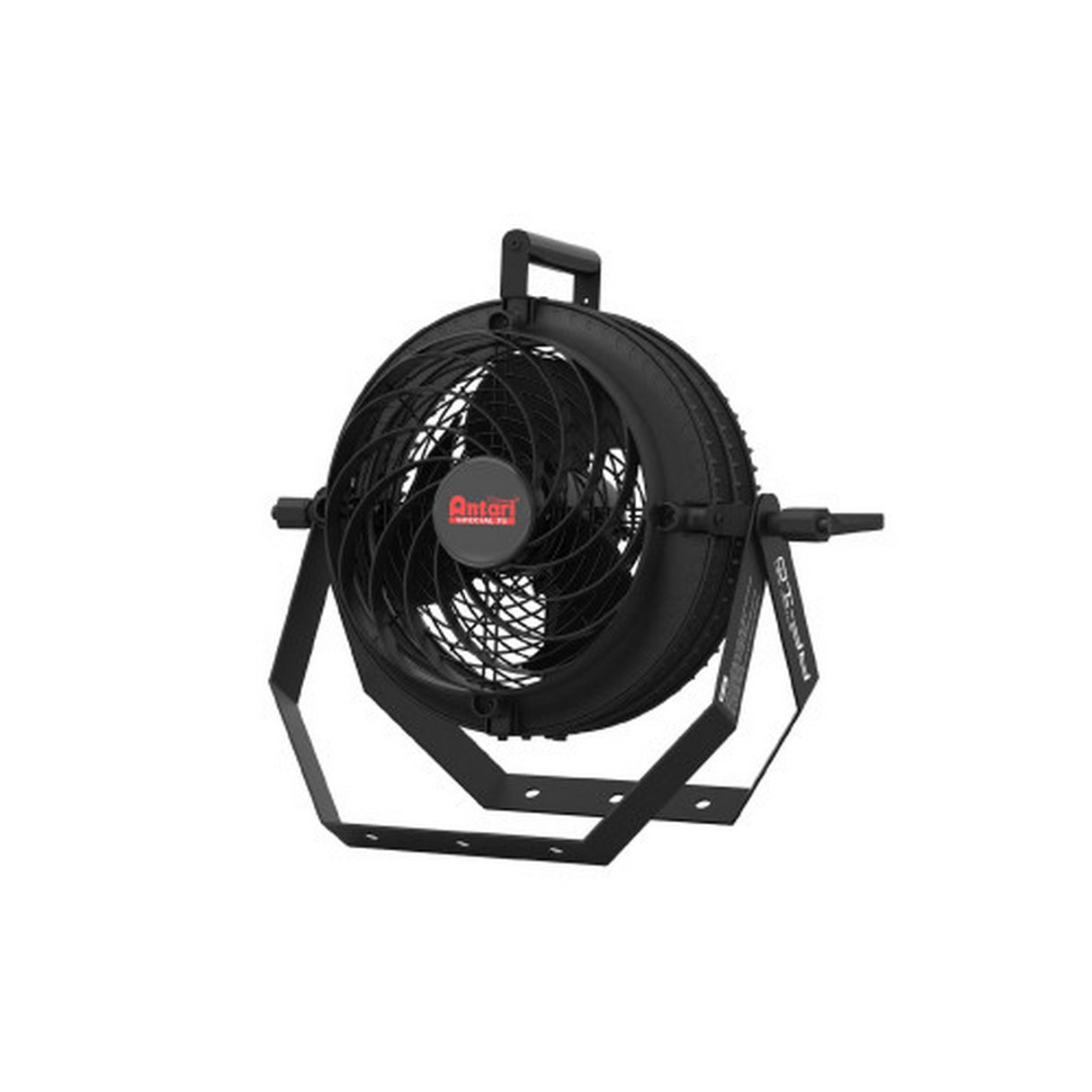

Antari AF-10 Special Effects Fan

Antari AF-10 Special Effects Fan

The Antari AF-10 Special Effects Fan is a compact high airflow fan built for stage, event, and production environments where controlled wind effects matter. With an IP55 rated design for temporary outdoor use, it is engineered to handle dust exposure and low pressure water jets while delivering consistent performance.

The AF-10 provides strong airflow for practical effects, haze and fog movement, and environmental wind simulation across sets and venues. It uses a SEETRONIC IP65 power connector and includes a dual use bracket for flexible positioning and angle adjustment.

Designed for reliable operation and simple deployment, the AF-10 runs by plug in power control and is built for repeated use with routine cleaning. It is ideal for crews who need durable construction, predictable output, and straightforward setup in demanding show conditions.

Key Features

• IP55 Rated Design: Designed and tested for dust protection and low pressure water jets from any direction for temporary outdoor use.
• High Airflow Output: Air flow rated at 1913 CFM (AC 120V/60Hz).
• Controlled Fan Speed: Fan speed rated at 1643 rpm (50Hz) and 1672 rpm (60Hz).
• Low Noise Operation: 51.0 dB at max output.
• Flexible Mounting: Includes a dual use bracket with adjustable positioning.
• Rugged Power Connection: SEETRONIC IP65 connector for power.

Technical Specifications

• Model: AF-10
• Rated Voltage: US Model: AC 100-120V, 50/60Hz 0.5A
• Rated Voltage: EU Model: AC 220-240V, 50/60Hz 0.5A
• Rated Power: 120V 60W, 240V 65W
• Ambient Temp. Range: 0°C - 40°C (32°F - 104°F)
• Air Flow: 1913 CFM (AC 120V/60Hz)
• Fan Speed: 1643 rpm (50Hz), 1672 rpm (60Hz)
• Noise Level: 51.0 dB (Max. Output)
• Control Methods: N/A
• DMX Channel: N/A
• Interface: SEETRONIC IP65 Connector (Power)
• Included Accessories: Dual Use Bracket
• Optional Accessories: AFC-1 Fan Control Box
• Dimension: L 534 W 327 H 515 mm (L 21.03 W 12.87 H 20.28 inch)
