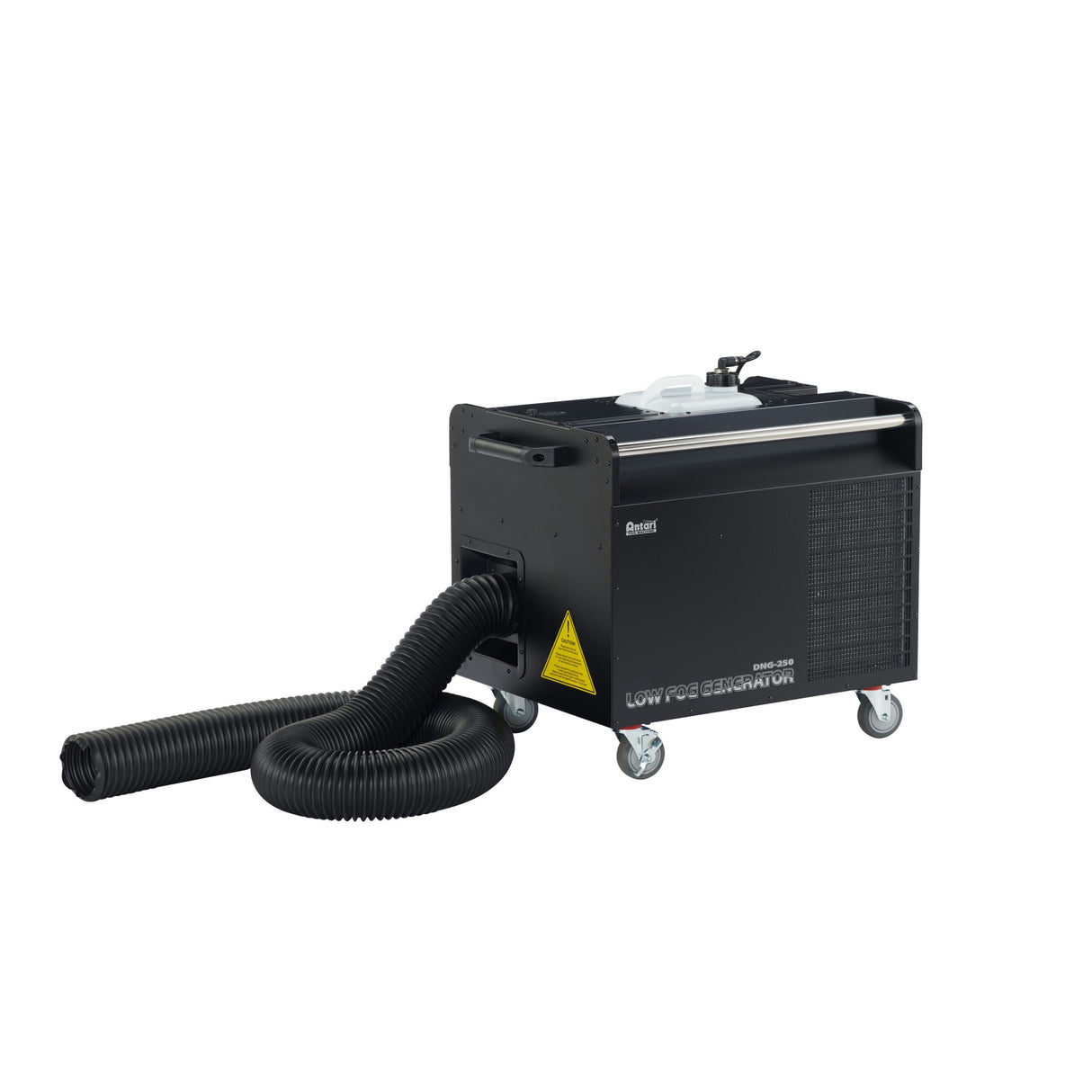

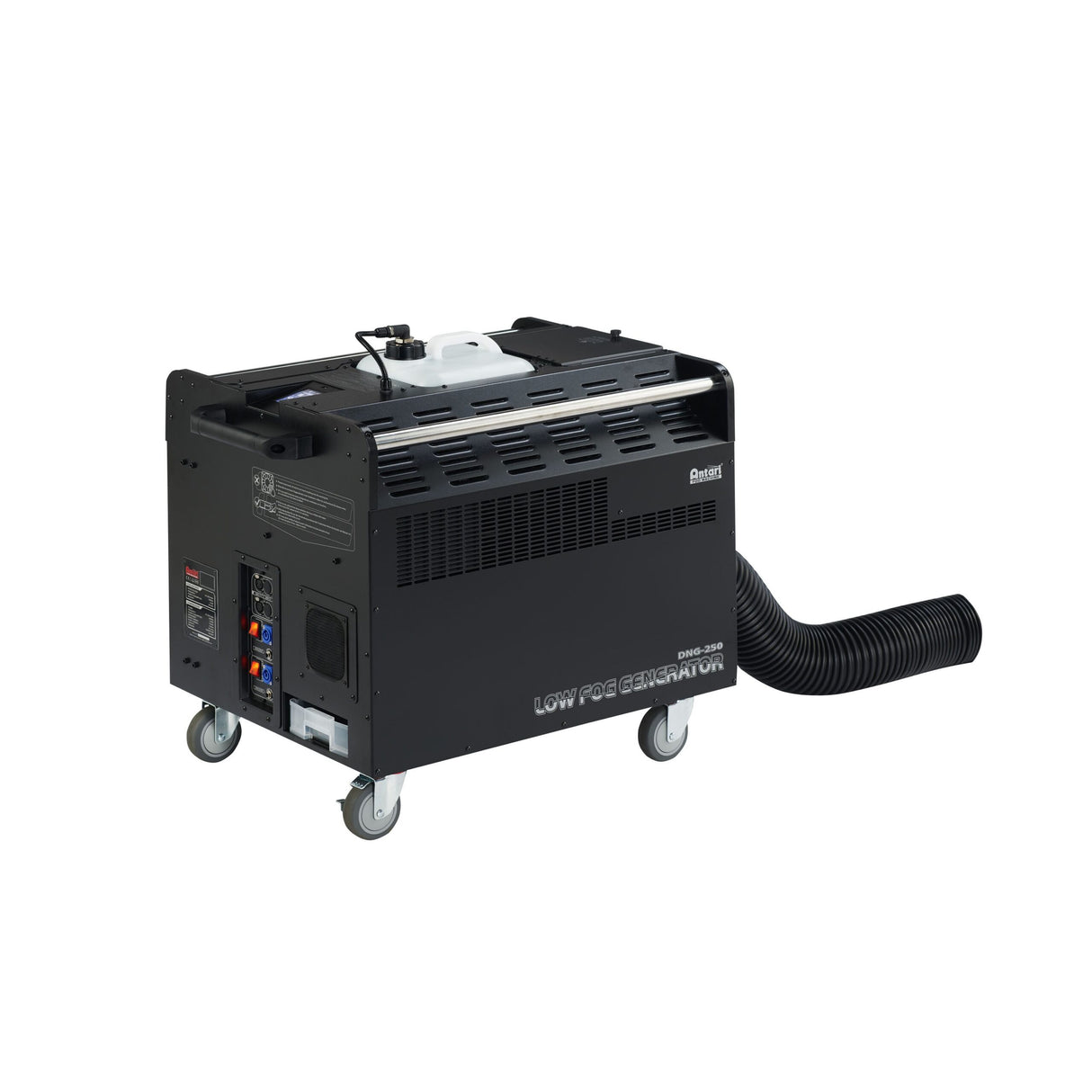

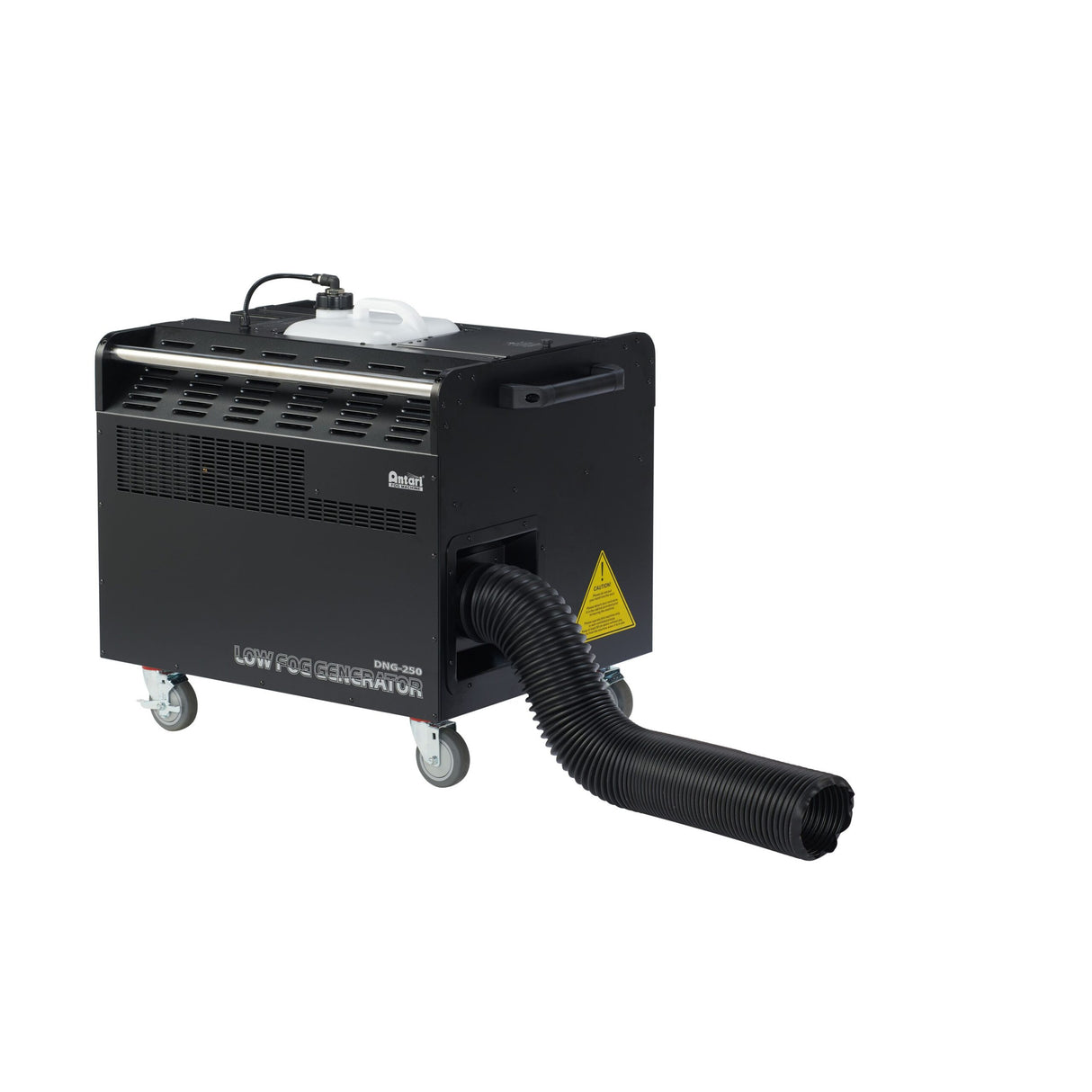

Antari DNG-250 High-Output Low Fog Machine
Antari DNG-250 High-Output Low Fog Machine
Antari DNG-250 High-Output Low Fog Machine
Compare to its previous version DNG-200, the DNG-250 is upgraded to a more powerful heating element and more efficient refrigeration systems, which enables it to produce higher volume and even better low fog effects.
Technical Specifications
Input voltage
US model : AC 100-120V, 50/60Hz
Refrigerant
120V R- 404A , 1.76LB (0.8Kg)
240V R- 404A , 1.76LB (0.8Kg)
Start Current
120V / 77.4A
240V / 36.1A
Rated Current
120V / 14.2A
240V / 6.5A
Fog Power Consumpion
120V / 1600W 13.5A
240V / 1600W 6.8A
Warm-up time
6 minutes (approx)
Fluid consumption
100 ml/min
Fluid tank capacity
10 Liters (2.64 gallon)
Compatible fluid
Antari FLL-10 Low Fog Effects Fluid
Ambient temp.range
5°C40°C (41°F104°F)
Control
Manual, Timer, DMX 512
DMX channels
1 channel
Connection
Neutrik Powercon (Power)
XLR 3-pin and 5-pin (DMX)
Dimension
L 780 W 608 H 715 mm
(L 30.7 W 23.93 H 28.15 inch)
Weight
130 kg (286.6 lbs)
