Antari LCU-1S Liquid Control Unit

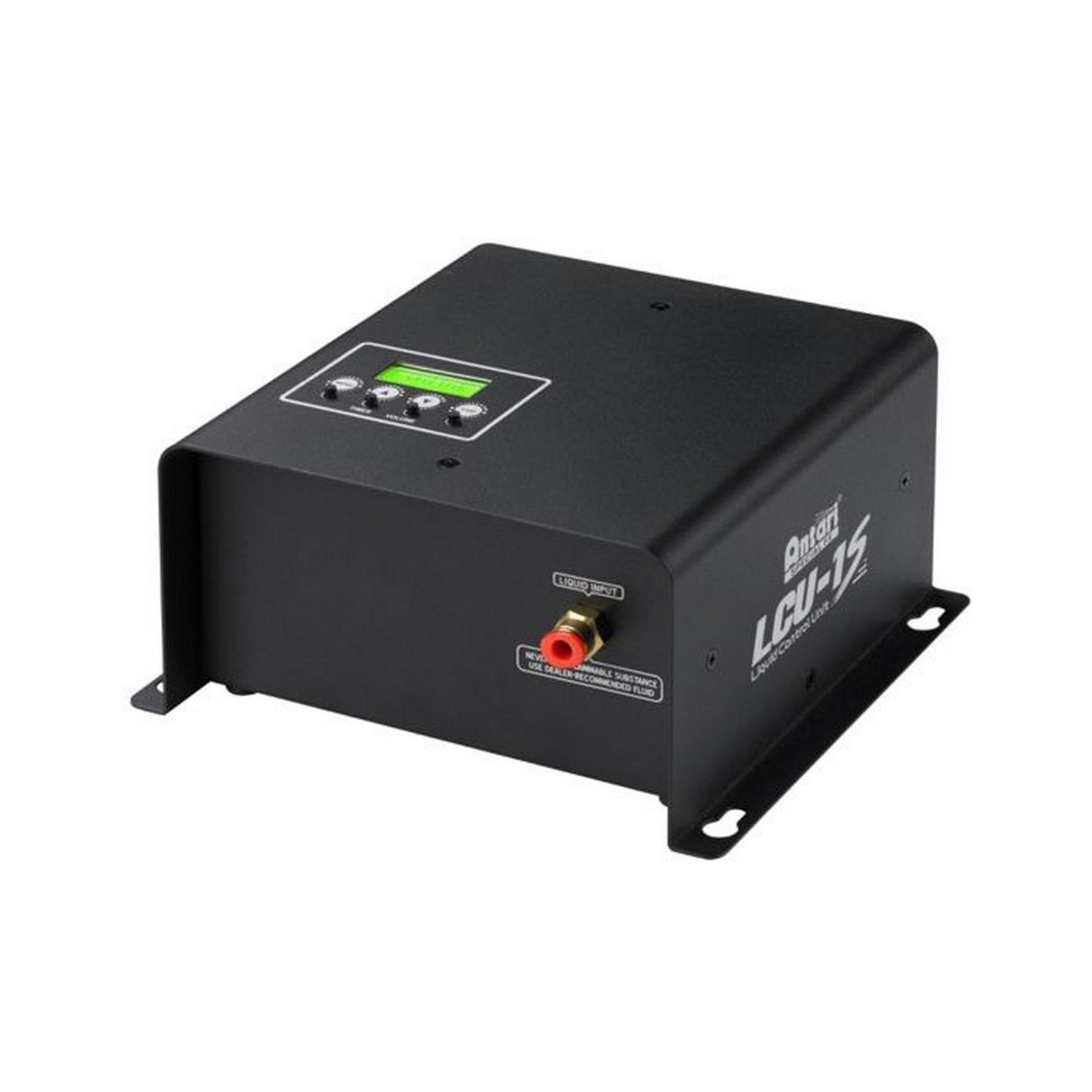

The Antari LCU-1S Liquid Control Unit is the ideal effect liquid delivery system for compatible Antari fog and snow machine installations with large volume liquid usage. The system features a separate, ground-based liquid supply that can be stored wherever most convenient for the operator. No more ladders or scissor lifts required to fill empty liquid containers as the liquid is automatically pumped directly from any size container to compatible Antari fog or snow machine models including Z-1200 II, S-100X, S-200X, and SW-250.
The LCU-1S unit can be controlled via an Antari wired remote (Z-8 or SC-2) or via DMX. The same DMX channel as the connected effect machine can be used for easy operation, or a unique DMX address can be assigned which provides greater control over the effect produced, as the unit will not pump liquid unless the assigned DMX channel is selected.
Key Features
- Compact Metal Housing for Easy Installation
- DMX or Antari Wired Remote Control (Z-8, SC-2)
- Assignable DMX Address
- Interval, Duration, Timer, Output Volume Settings
Technical Specifications

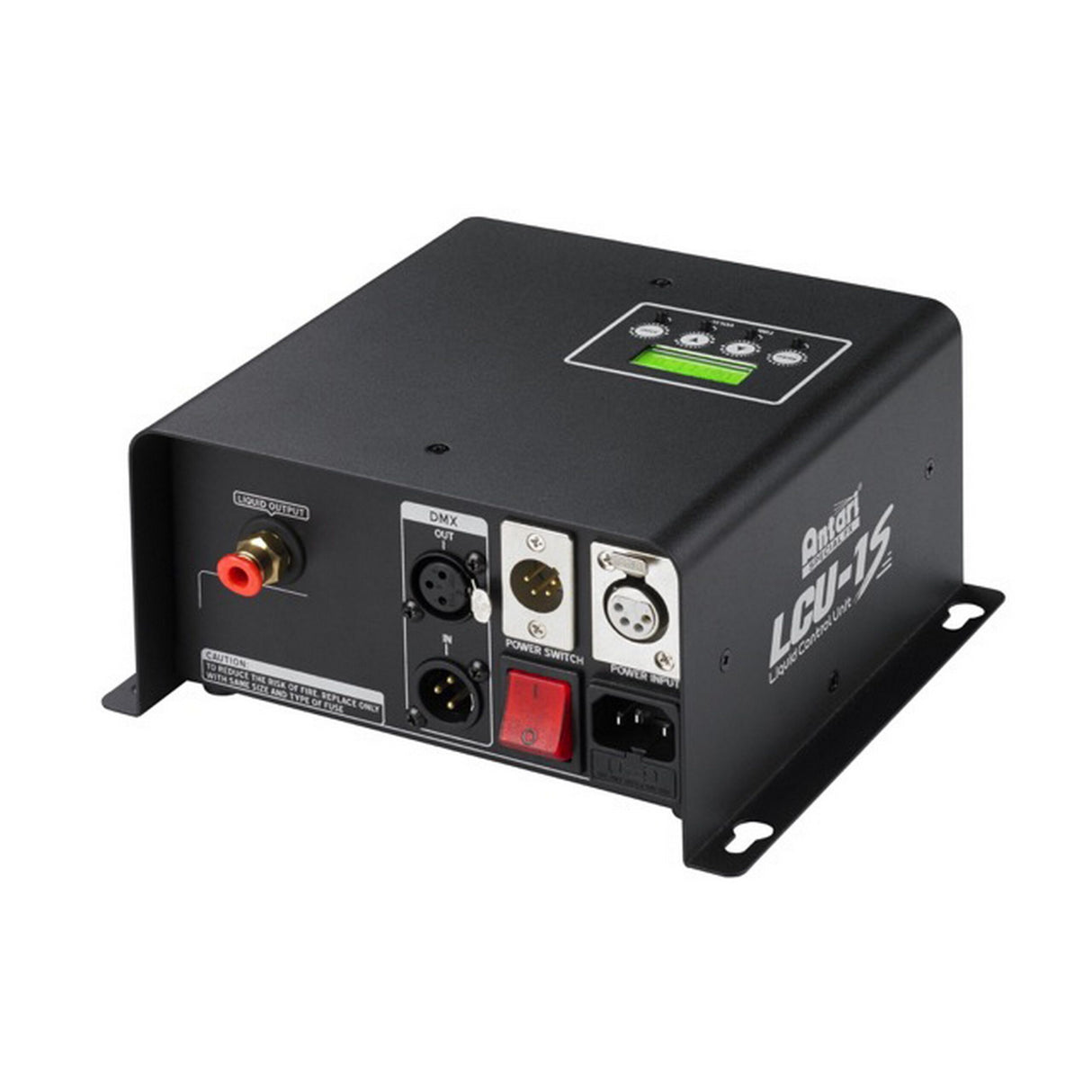

CONTROL/CONNECTIONS
4 Button LCD Control Display
3pin XLR DMX In/Out
4pin XLR Antari Remote Control In/Out
C13 Power Cord Inlet
Power Switch
SIZE / WEIGHT
Length: 7.9ā (202mm)
Width: 7.0ā (179mm)
Vertical Height: 3.8ā (95.8mm)
Weight: 7.3 lbs. (3.3 kg)
ELECTRICAL
AC 120V 60Hz
Fuse: T1A 250V
