Antari LCU-2S Liquid Control System

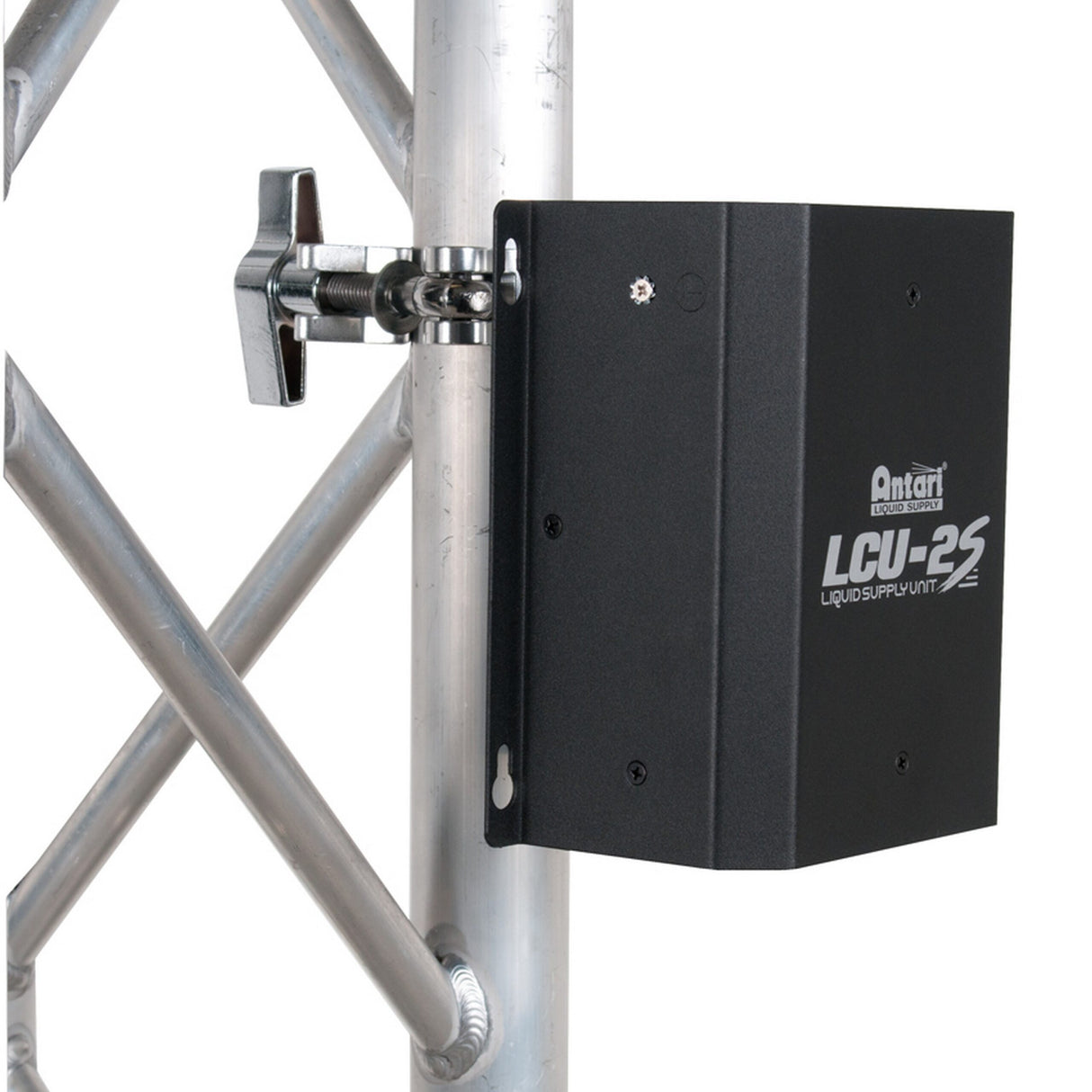

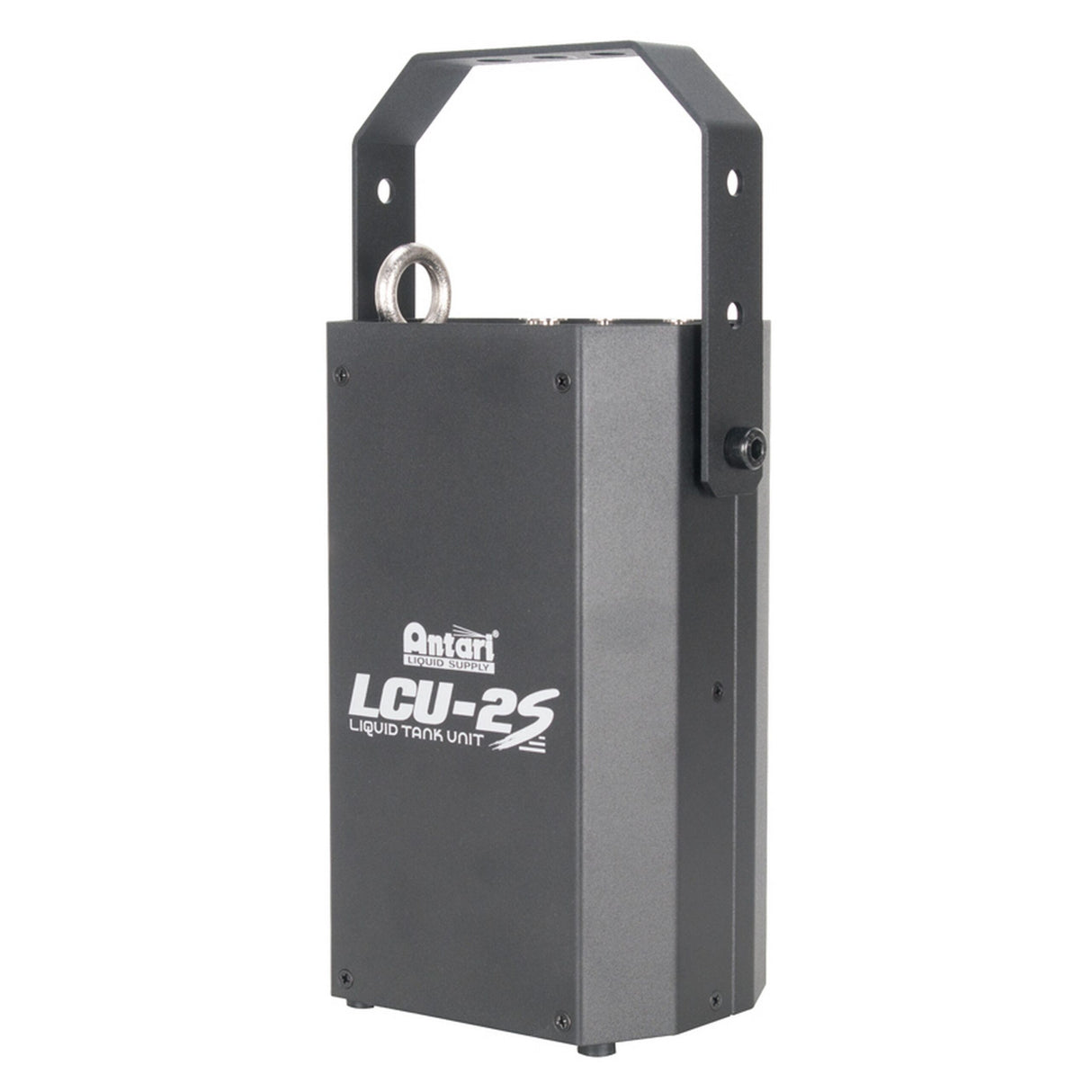

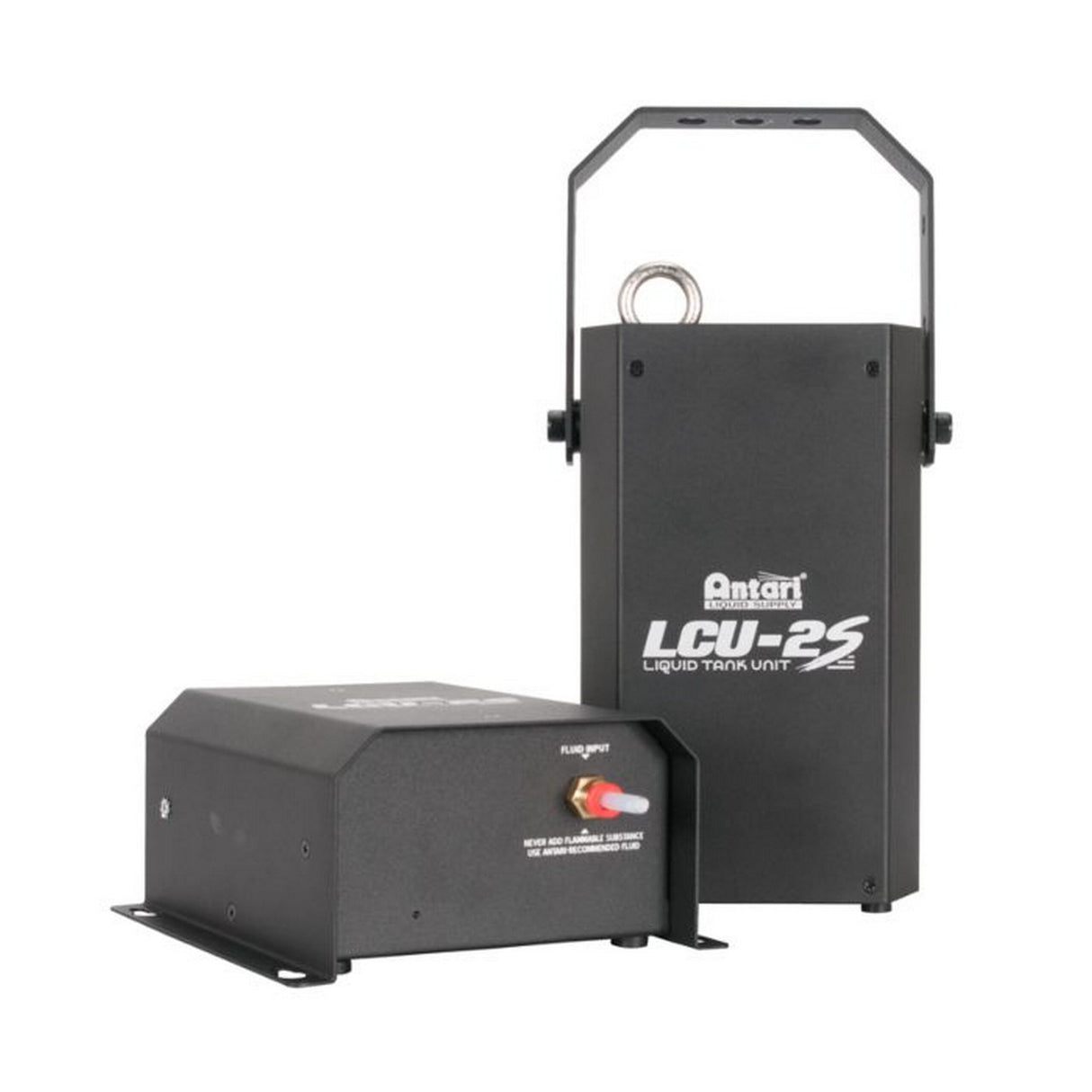

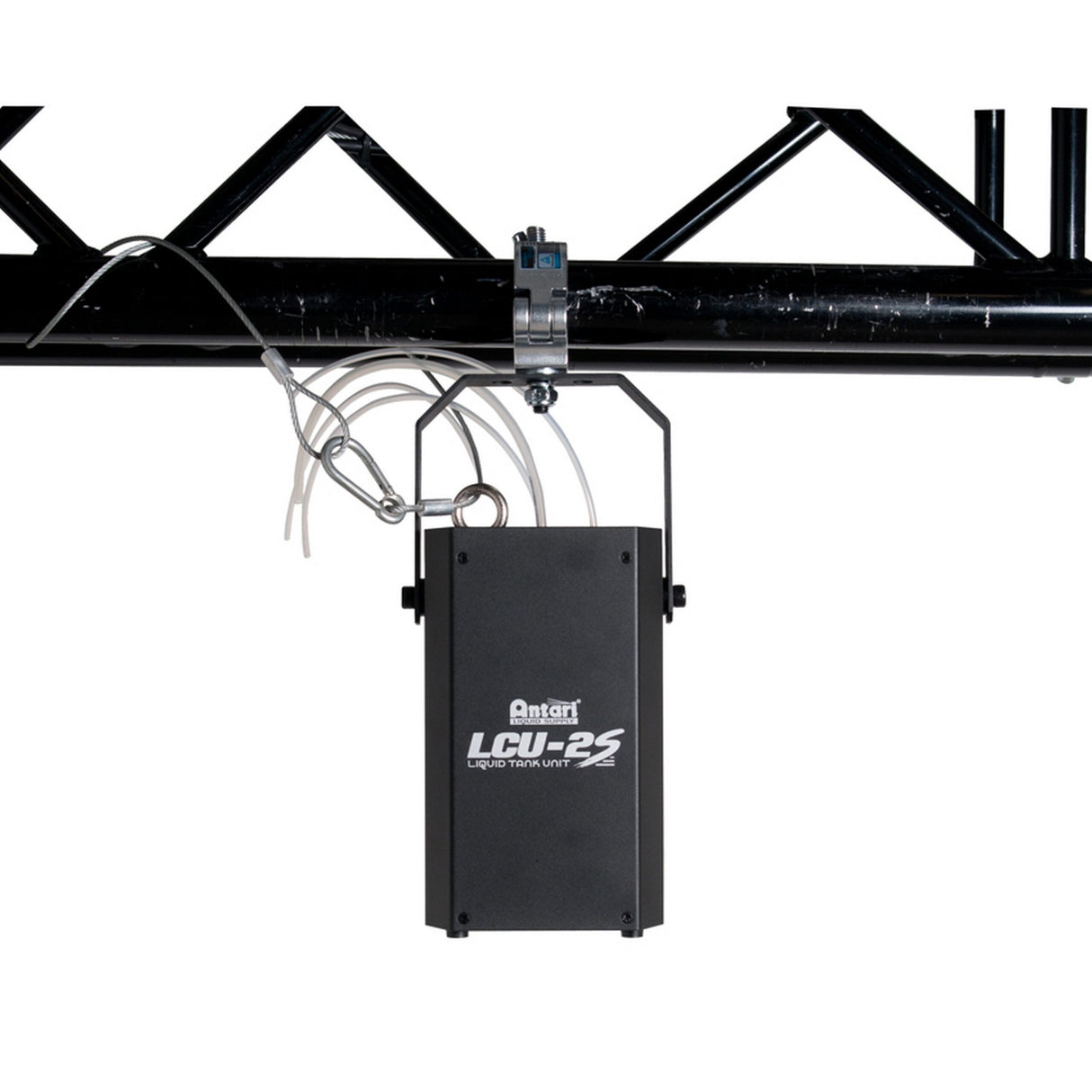

The Antari LCU-2S Liquid Control System is a universal effect liquid delivery system for all high volume usage Antari fogger, fazer, and snow machine installations. The system can supply up to 3 different Antari effect machines which use the same type of effect liquid. The system features a separate Liquid Supply Unit with 3 4mm liquid tube outputs, 1 6mm liquid tube input, 3pin data control input, an adjustable yoke bracket and safety cable loop for clamp/truss mounting, and a separate Liquid Tank Unit with 1 6mm liquid tube output, 1 3pin data control output, and a main power switch. The system also includes 1 3pin data connection cable, 1 6mm fluid tube, 1 4mm fluid tube, 3 4mm-4mm adaptors, 3 6mm-4mm adaptors, a fluid filter, and power cord.
The Liquid Tank Unit can be stored wherever most convenient such as near the main liquid supply container. No more ladders or scissor lifts required to fill empty effect machine liquid containers as the liquid is automatically pumped directly from any size container to the Liquid Supply Unit. Maximum vertical distance between the Liquid Tank Unit and the Liquid Supply Unit is up to 40 feet (12m) and the maximum horizontal run length between the two units is up to 115 feet (35m). Control of the system is easy, simply power on the Liquid Tank Unit and it continuously supplies the Liquid Supply Unit with effect liquid which guarantees the liquid tanks of up to 3 Antari effect machines remain full at all times.
Key Features
- Universal Antari Effect Liquid Delivery System
- Separate Liquid Tank and Liquid Supply Units
- Continuous Effect Liquid Supply
- Supports All Model Antari Fogger, Fazer, and Snow Machines
- Supply Up To 3 Different Antari Machines with the Same Type of Effect Liquid
- Up To 40 feet (12m) Maximum Vertical Distance
- Up To 115 feet (35m) Maximum Horizontal Distance
Technical Specifications

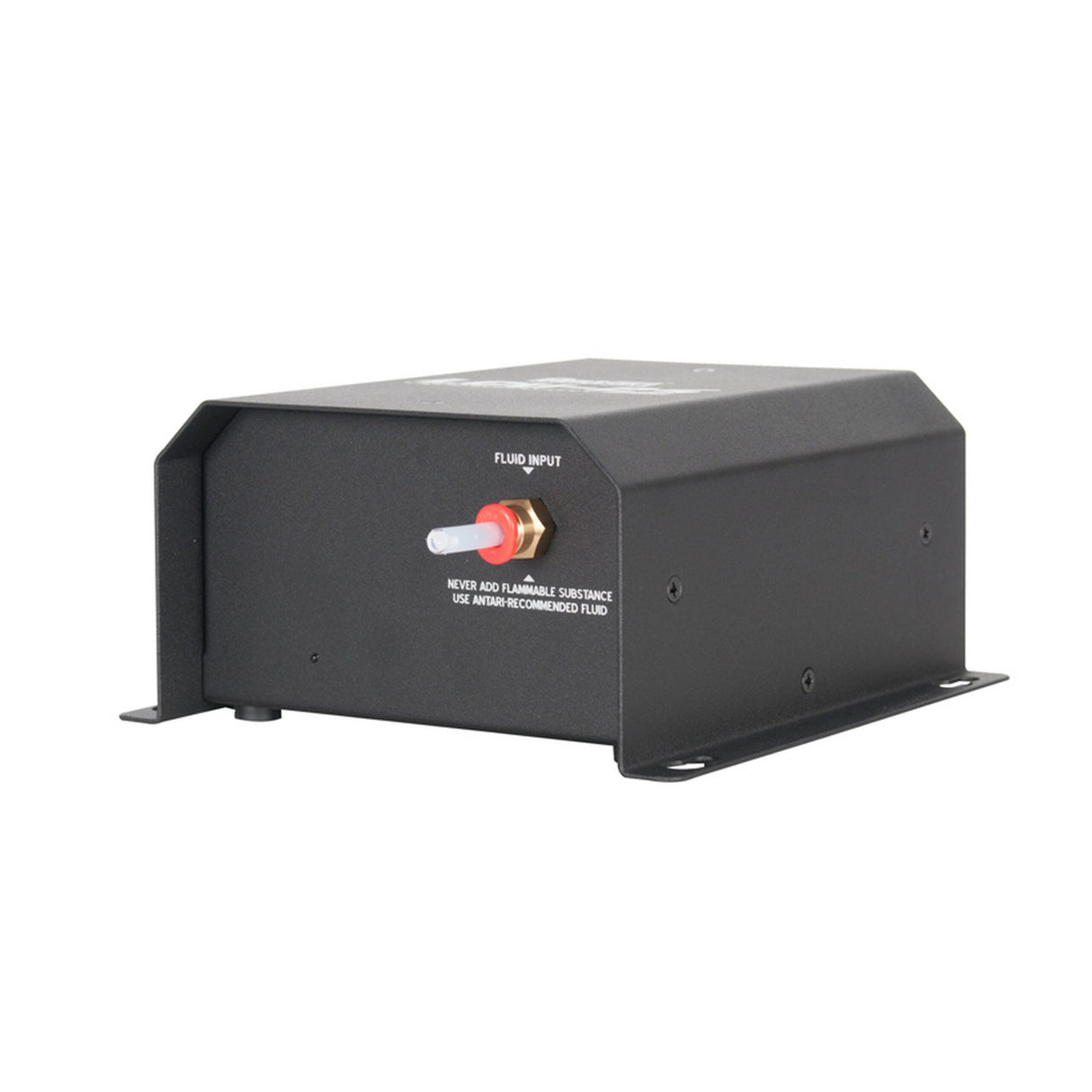

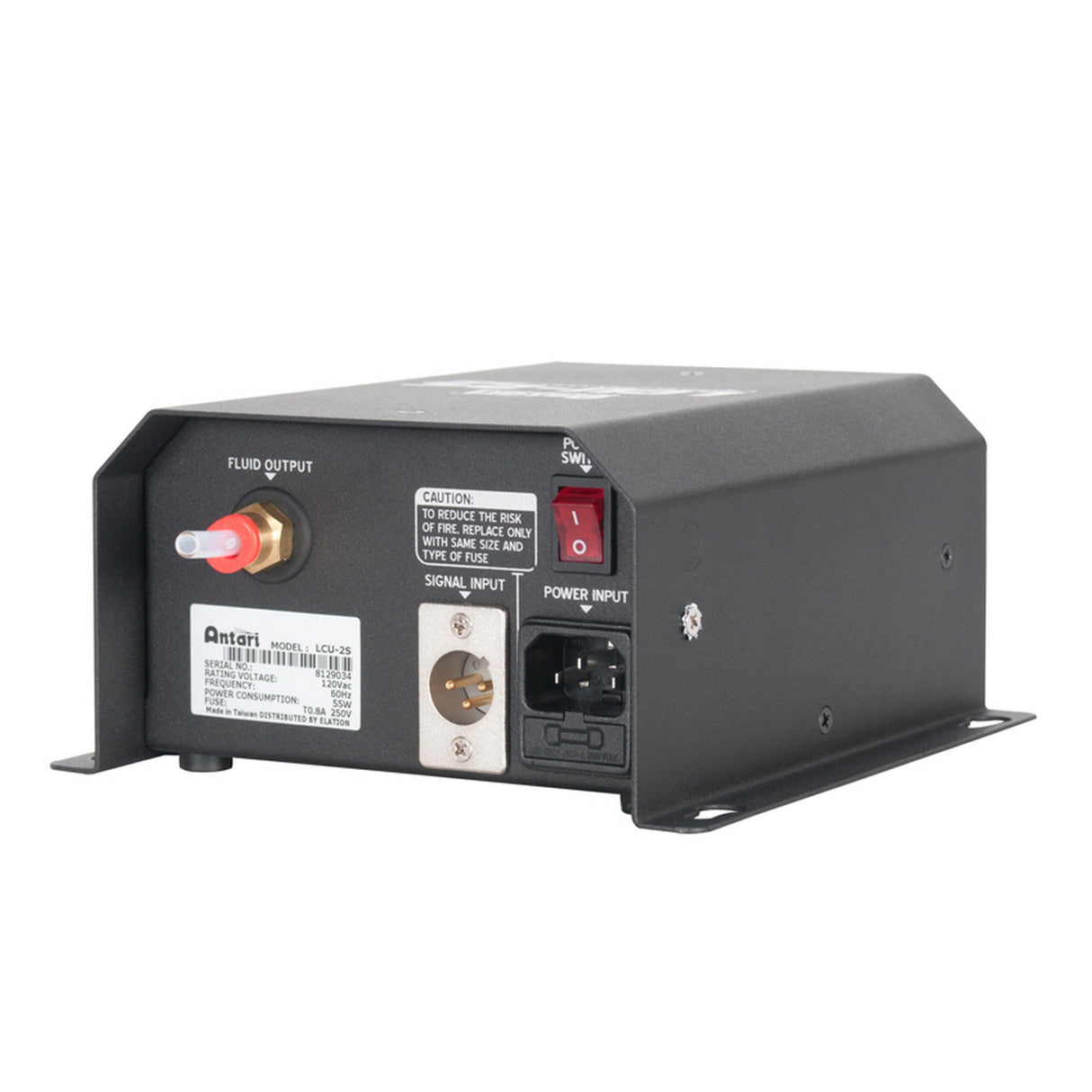

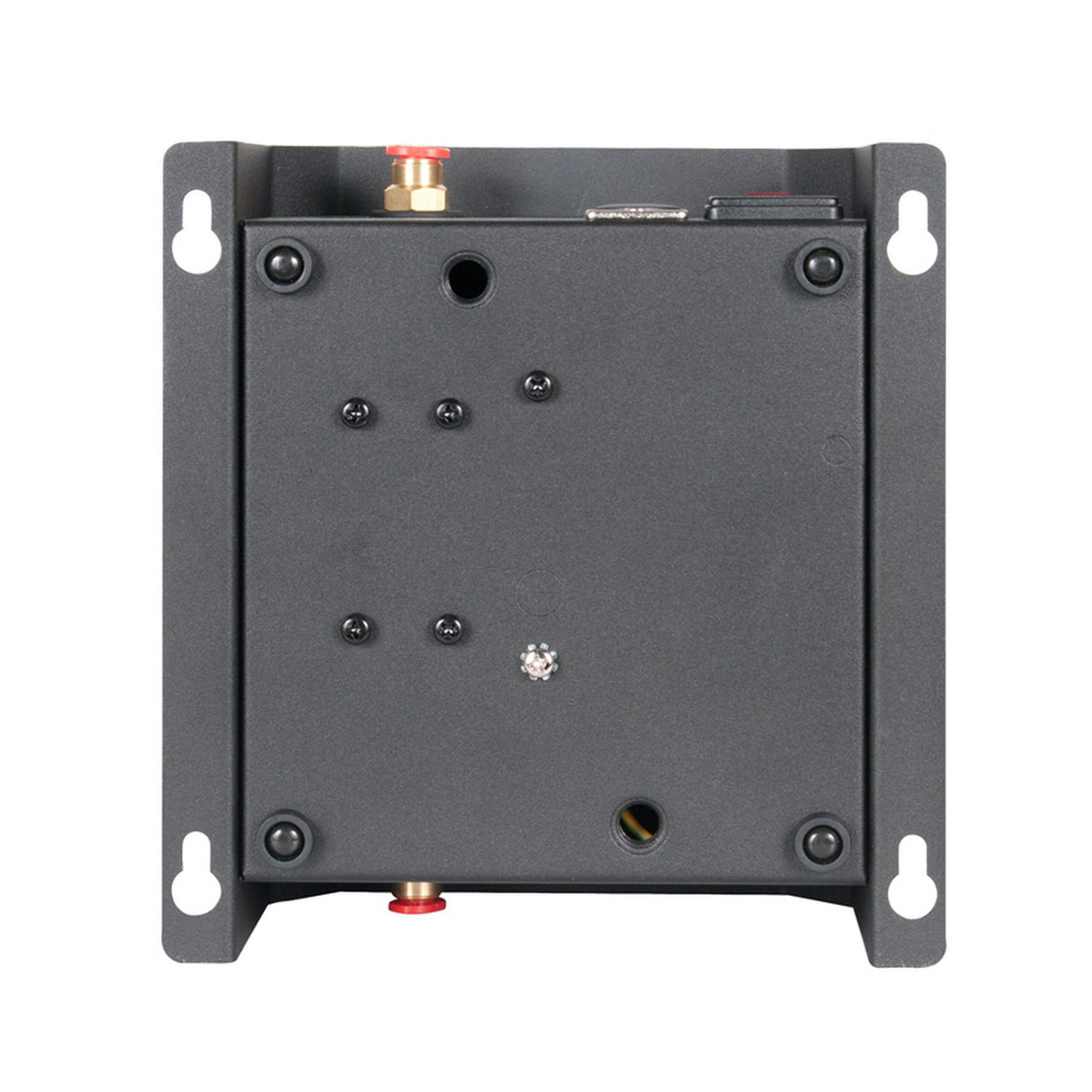

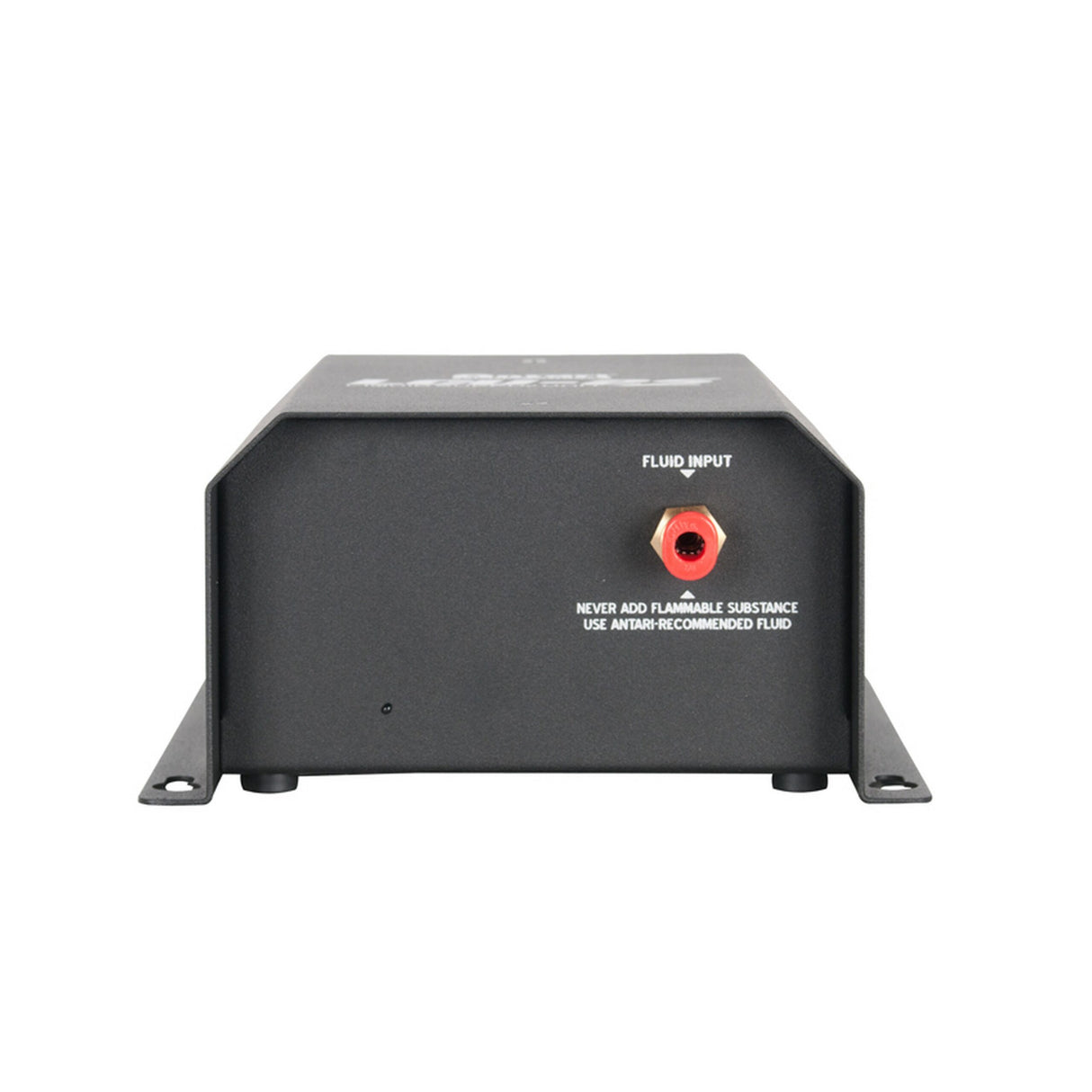

LIQUID TANK UNIT
CONTROL/CONNECTIONS
Power Switch
3pin Data Control Output
1 6mm Liquid Tube Input
1 6mm Liquid Tube Output
IEC Power Input
SIZE / WEIGHT
Length: 6.22” (158mm)
Width: 4.06” (103mm)
Vertical Height: 9.76” (248mm)
Weight: 3.97 lbs. (1.8 kg)
ELECTRICAL / THERMAL
AC 100-120V 50/60Hz 0.35A
48W Max Power Consumption
Fuse: T0.8A 250V
5 °C - 40 °C (41 °F-104 °F)
LIQUID SUPPLY UNIT

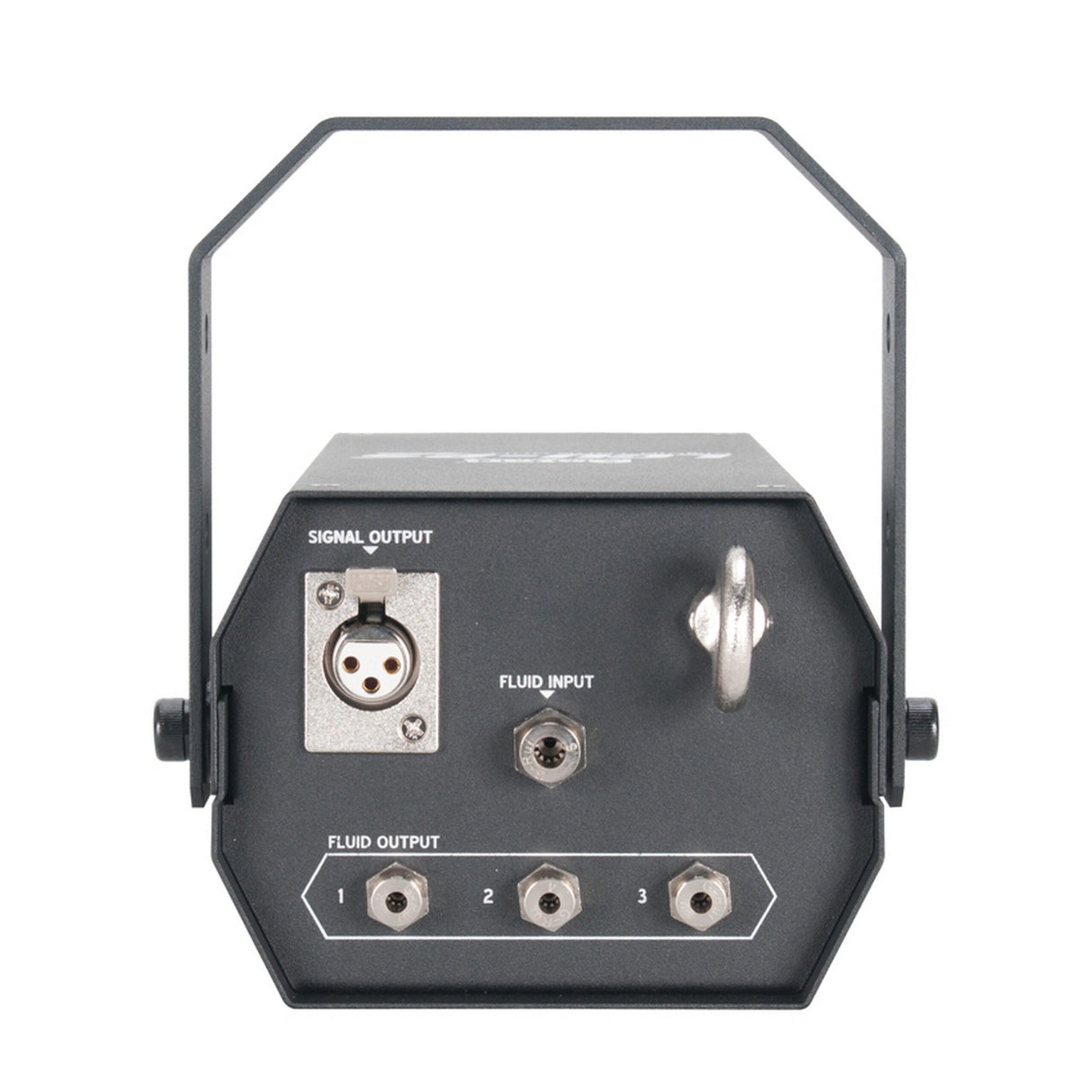

CONTROL/CONNECTIONS
3pin Data Control Input
1 6mm Liquid Tube Input
3 4mm Liquid Tube Outputs
SIZE / WEIGHT
Length: 7.05” (179mm)
Width: 6.57” (167mm)
Vertical Height: 3.31” (84mm)
Weight: 4.30 lbs. (1.95 kg)

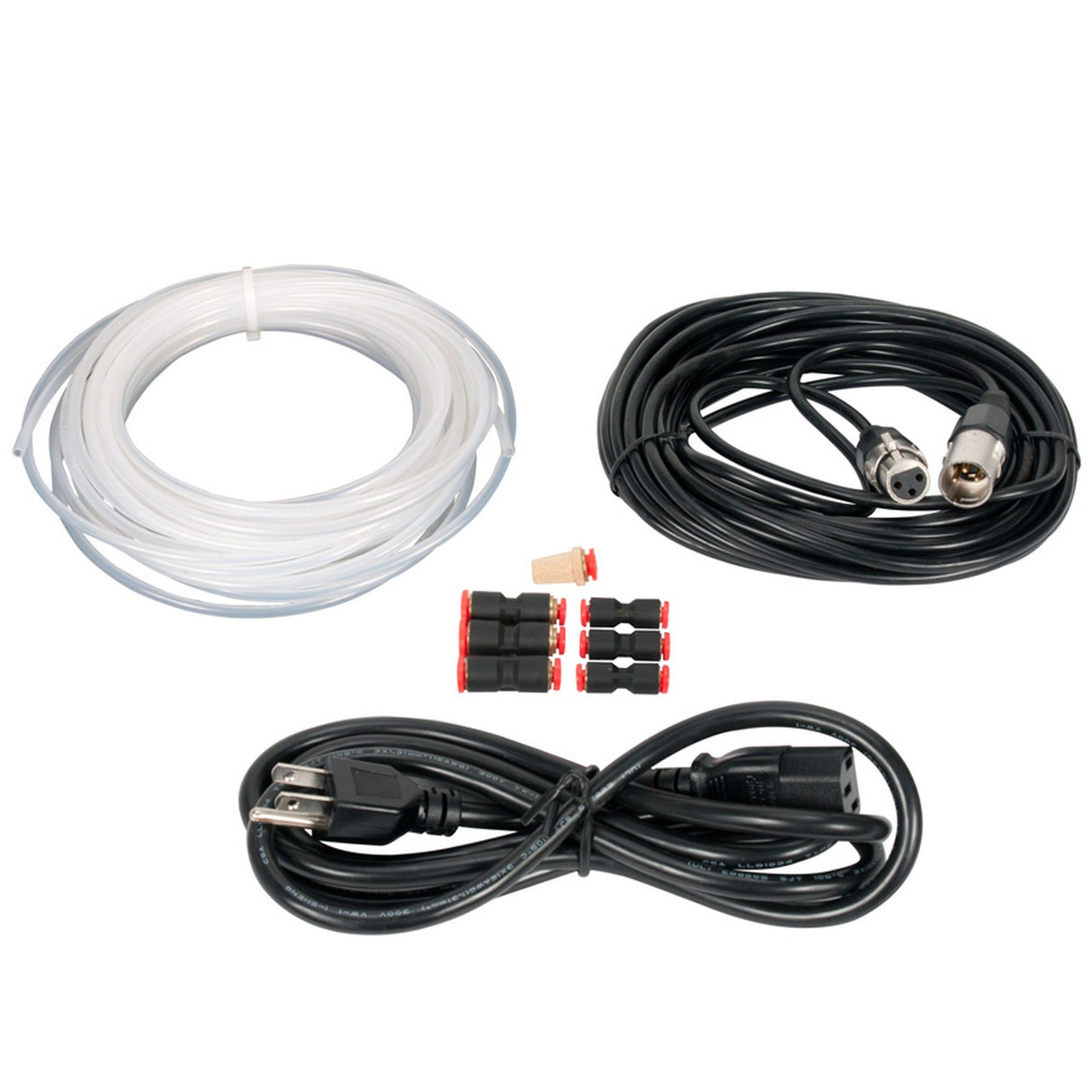

INCLUDED ACCESSORIES
40 feet (12m) 6mm Tubing
32.8 feet (10m) 3pin Control Data Cable
6.6 feet (2m) IEC Power Cable
