Antari PM-1 Pan Motor for S-500
Antari PM-1 Pan Motor for S-500
Free Shipping

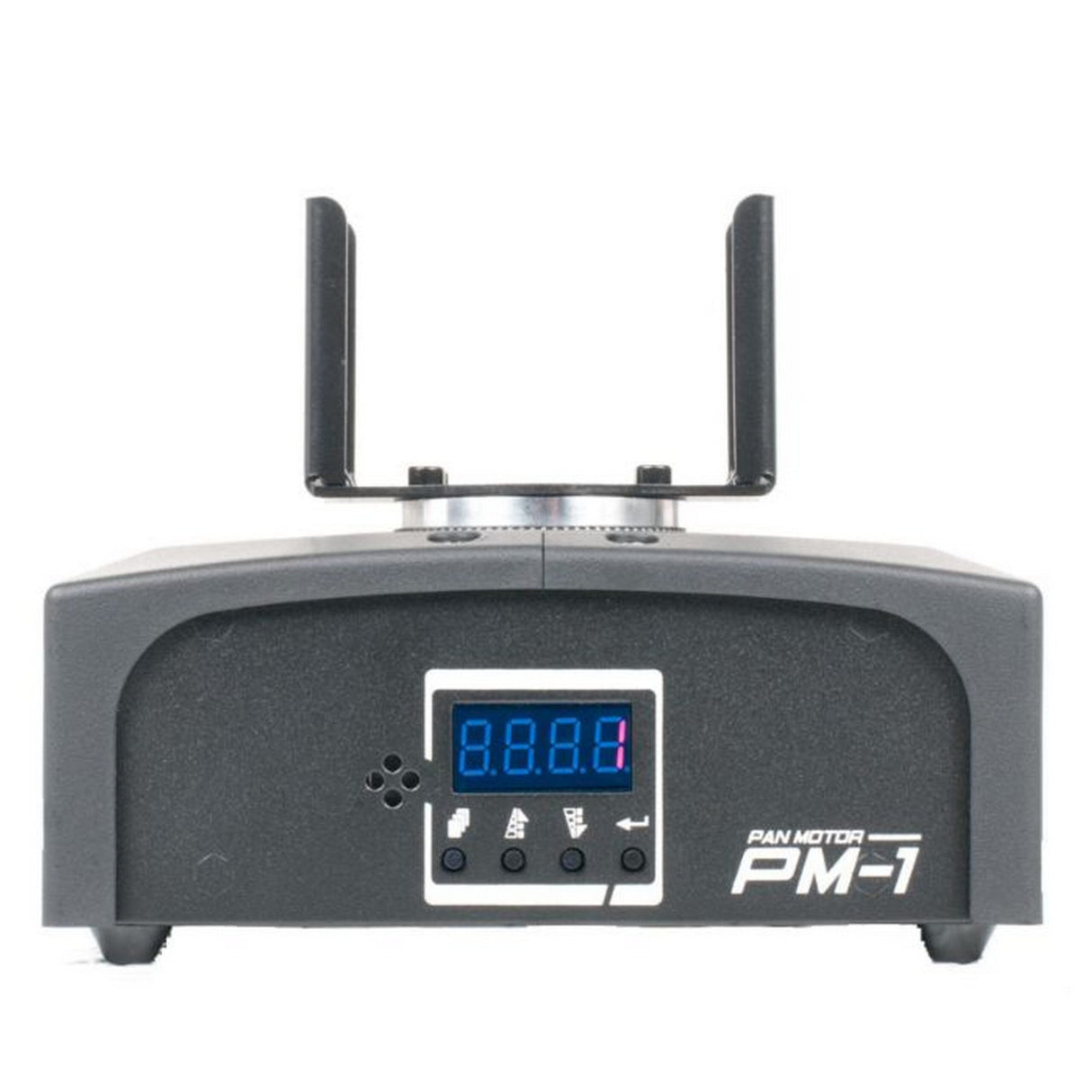

Antari PM-1 Pan Motor for S-500
Antari PM-1 is an optional pan motor accessory for the Antari S-500 Snow Machine. Install the output nozzle of the S-500 onto the PM-1 to precisely control 120 degrees of pan movement via DMX-512 or manually using the 4-button LED control panel menu display on the unit. The PM-1 features 2 DMX channel modes, 0-120 degree position index movement and 3 different degree internal auto-pan programs (60°, 90°, 120°) each having 5 speed settings, a pan inversion mode which inverts the pan movement, master/slave modes, 3pin DMX in/out for easy control connection and linking multiple units, an included mini-omega bracket for clamp/truss mounting, and an auto-switching 100-240V power supply.
Key Features
- 120 Degrees of Pan Movement
- Manual and DMX-512 Control
- 2 DMX Channel Modes
- Master/Slave Modes
- 60°, 90°, 120° Auto-Pan Programs
- 5 Auto-Pan Program Speeds
- Pan Inversion Mode
Technical Specifications
CONTROL / CONNECTIONS
Manual and DMX-512 (2 channel modes)
0-120° Pan Movement
Pan Inversion Mode
Master/Slave Modes
Auto-Pan Programs and Varying Speeds
4-Button Control Panel
LED System Menu Display
(3) 3pin DMX In/Out
AC Power Plug
SIZE / WEIGHT
Length
6.6" (169mm)
Width
6.0" (153mm)
Vertical Height
5.9" (151mm)
Weight
4.1 lbs. (1.9kg)
ELECTRICAL
AC 100-240V 50/60Hz
11W Max Power Consumption
