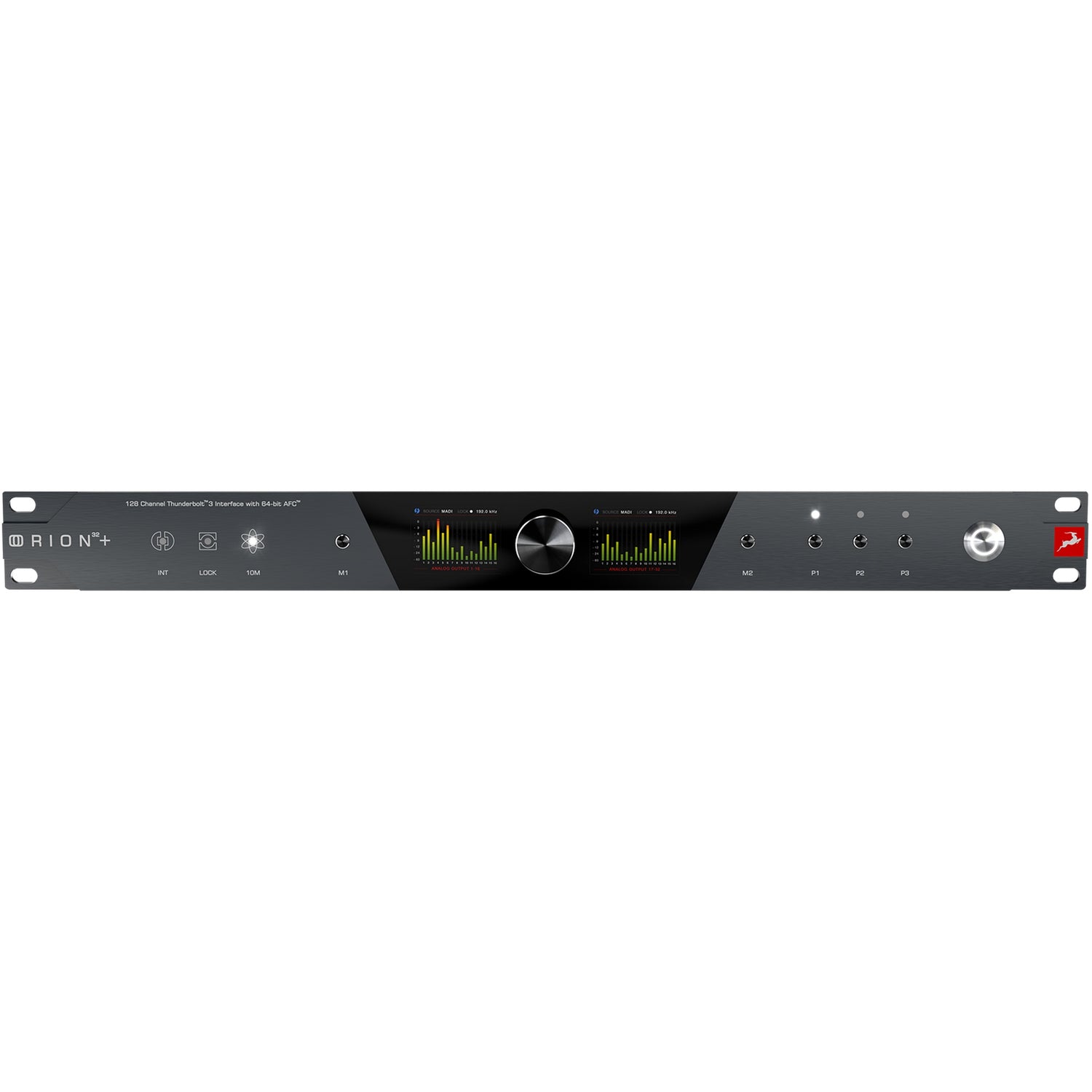

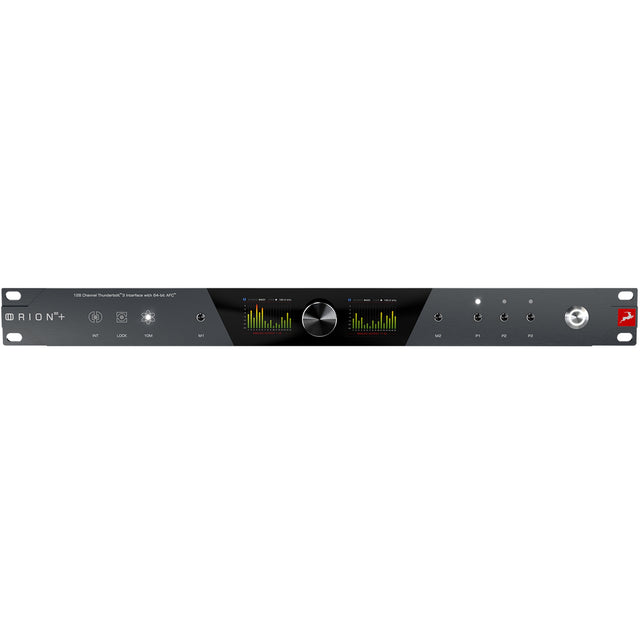

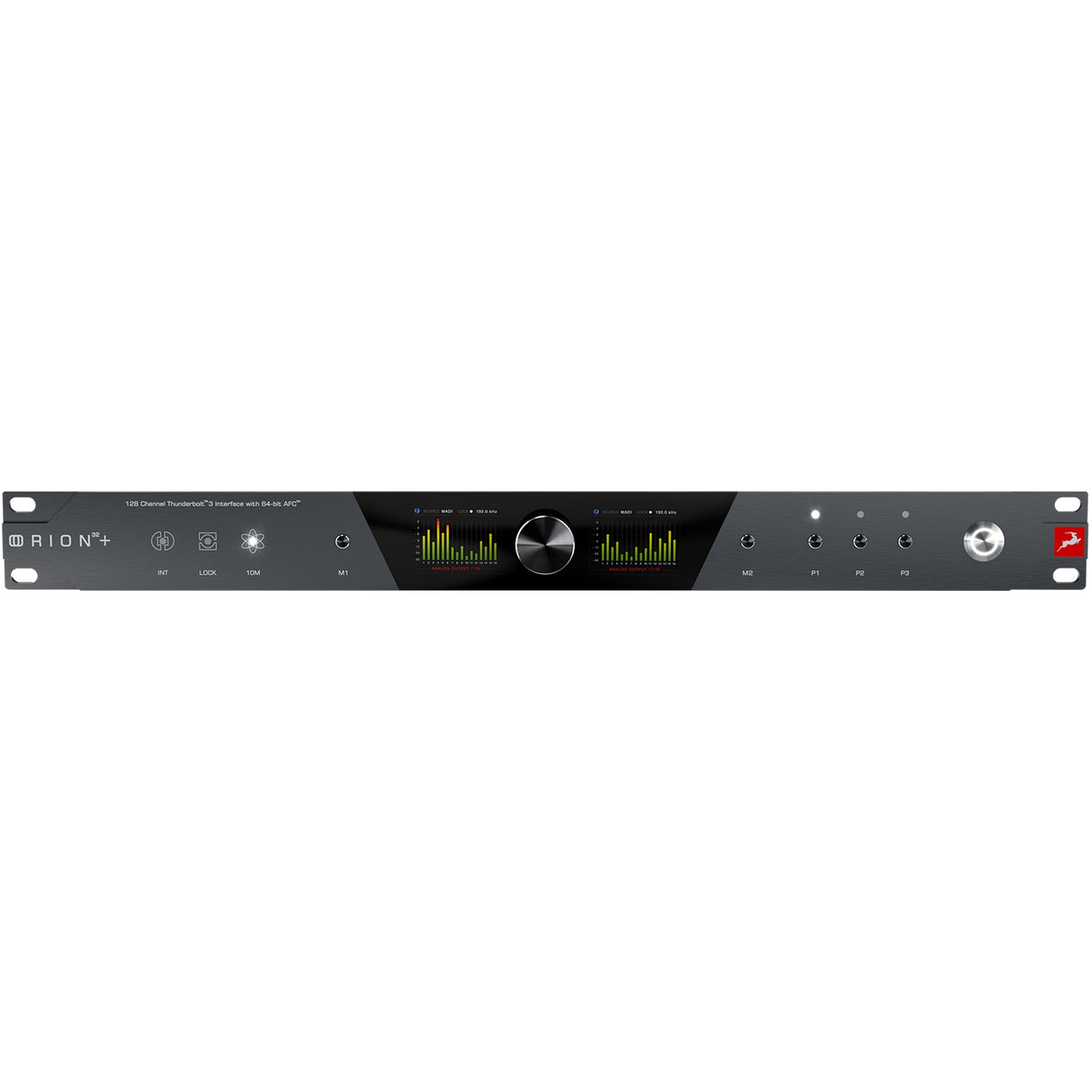

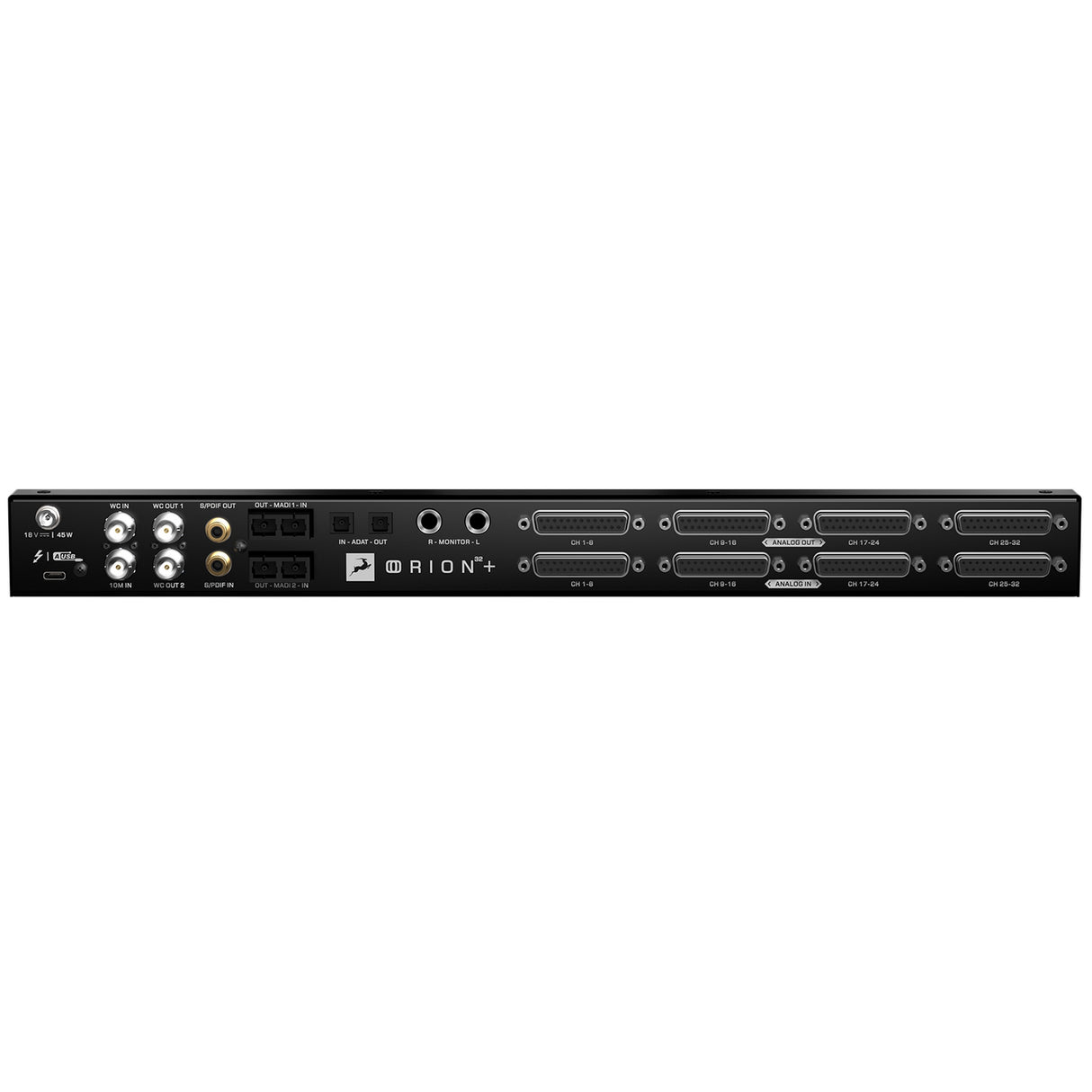

Antelope Audio Orion 32+ Gen 4 Audio Interface
The Antelope Audio Orion 32+ Gen 4 is a premium 1U Thunderbolt 3 and USB-compatible AD/DA audio interface, offering extensive multi-channel recording capabilities designed for professional studios, post-production, broadcast, and immersive audio setups.
Featuring 32 channels of DC-coupled analog I/O, powerful digital connectivity (MADI, ADAT, S/PDIF), and exceptional conversion driven by 64-bit Acoustically Focused Clocking, it delivers pristine audio with up to 130 dB dynamic range. Optional surround and Atmos-ready monitoring with advanced control software make it a truly future-ready centerpiece.
Key Features
- Form Factor: 1U rackmount Thunderbolt 3 / USB 2.0 interface
- Analog I/O: 32 × 32 DC-coupled via DB-25 (TASCAM standard), plus dedicated stereo monitor output
- Digital Connectivity: 128 channels via Thunderbolt 3, USB 2.0 support up to 32 channels
- MADI Support: Up to 128 channels over optical MADI at 48 kHz (reduced at higher sample rates)
- ADAT & S/PDIF: ADAT (8 channels), S/PDIF (2 channels)
- Conversion & Clocking: Up to 130 dB dynamic range; 64-bit Acoustically Focused Clocking with jitter management
- Immersive Audio (Optional): Compatible with Dolby Atmos formats up to 9.1.6, with speaker/room calibration and monitoring presets
- DC-Coupled I/O: Supports CV control for modular synth setups
- Software Control Panel: Includes routing matrix, mixer, monitoring widget, preset recall, and signal patching
- Daisy-Chaining: Supports chaining up to four units via Thunderbolt for expanded channel capacity
- Compatibility: Works with macOS and Windows platforms
- Made In: Designed and tested in Europe
Technical Specifications
- Weight: 3.4 kg (7.4 lbs)
- Dimensions (W×D×H): 48.3 cm × 28 cm × 4.4 cm (19″ × 11″ × 1.73″)
- Analog I/O Channels: 32 × 32 DC-coupled
- Digital I/O: 128 channels via Thunderbolt 3; USB 2.0 up to 32 channels
- MADI I/O: Up to 128 channels (optical, at 48 kHz)
- ADAT: 8 channels
- S/PDIF: 2 channels
- Conversion Range: Up to 130 dB dynamic range
- Clocking: 64-bit AFC with jitter management
- Immersive Formats: Up to Dolby Atmos 9.1.6 (optional license)
- Daisy-Chain Limit: Up to 4 units
- Included in Box: Interface unit, power adapter, USB cable, getting started guide
What's Included
- 1x Orion 32+ Gen 4 audio interface
- 1x Power adapter
- 1x USB cable
- 1x Getting started guide
