Antelope Audio Orion Studio Synergy Core Audio Interface

Antelope Audio | SKU: ANTEL-ORIONSTUDIOSYNERGYCORE
1 2
$3,09500

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

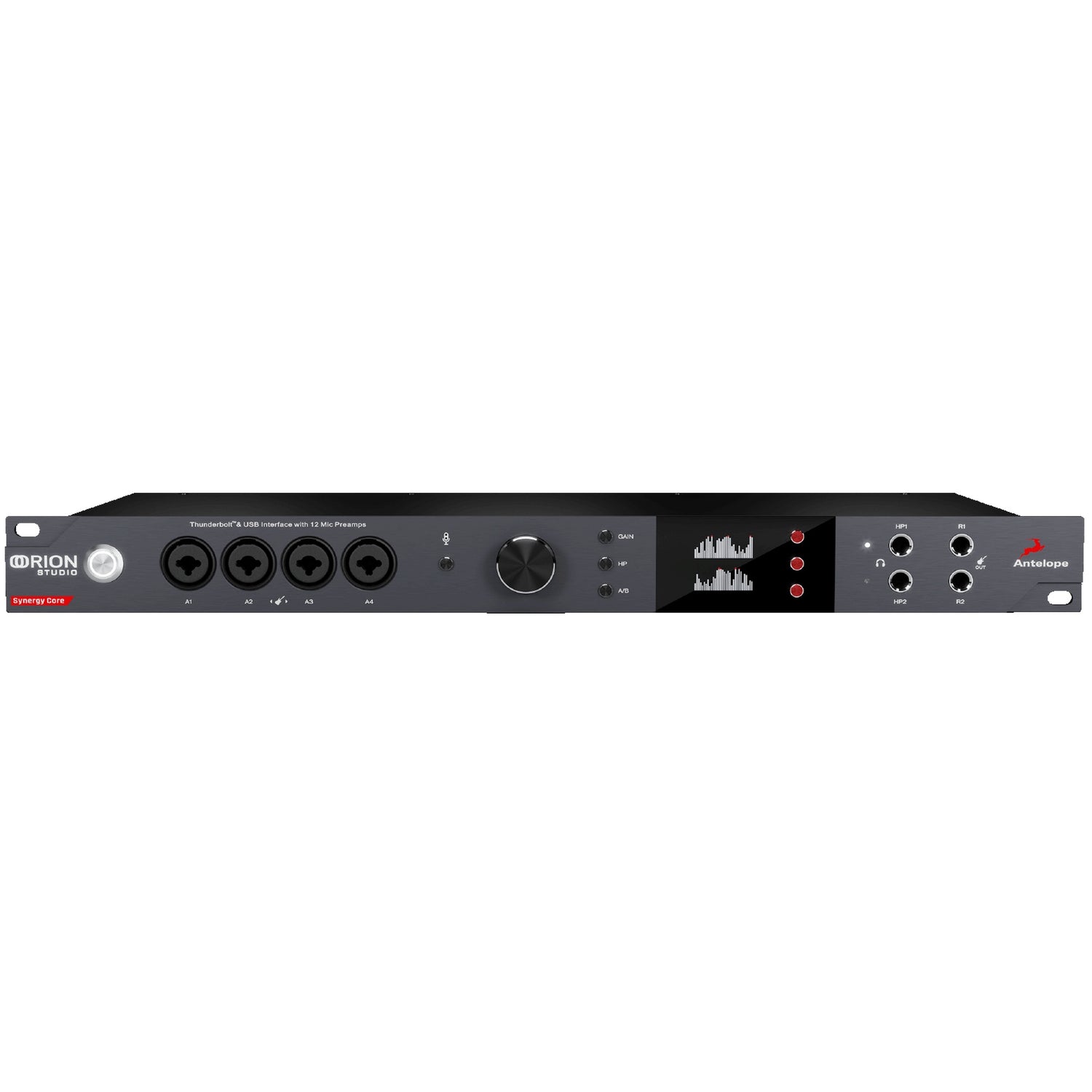

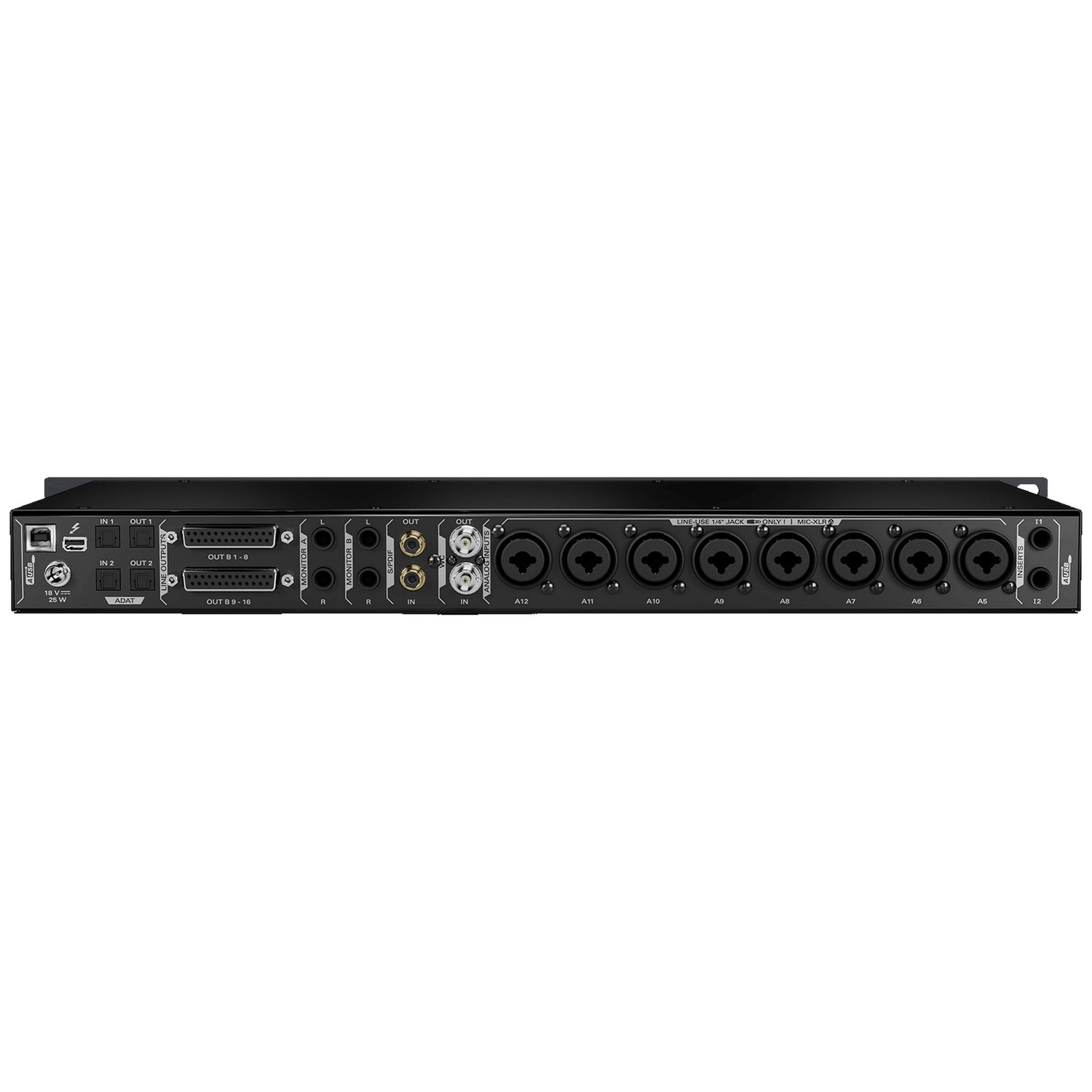

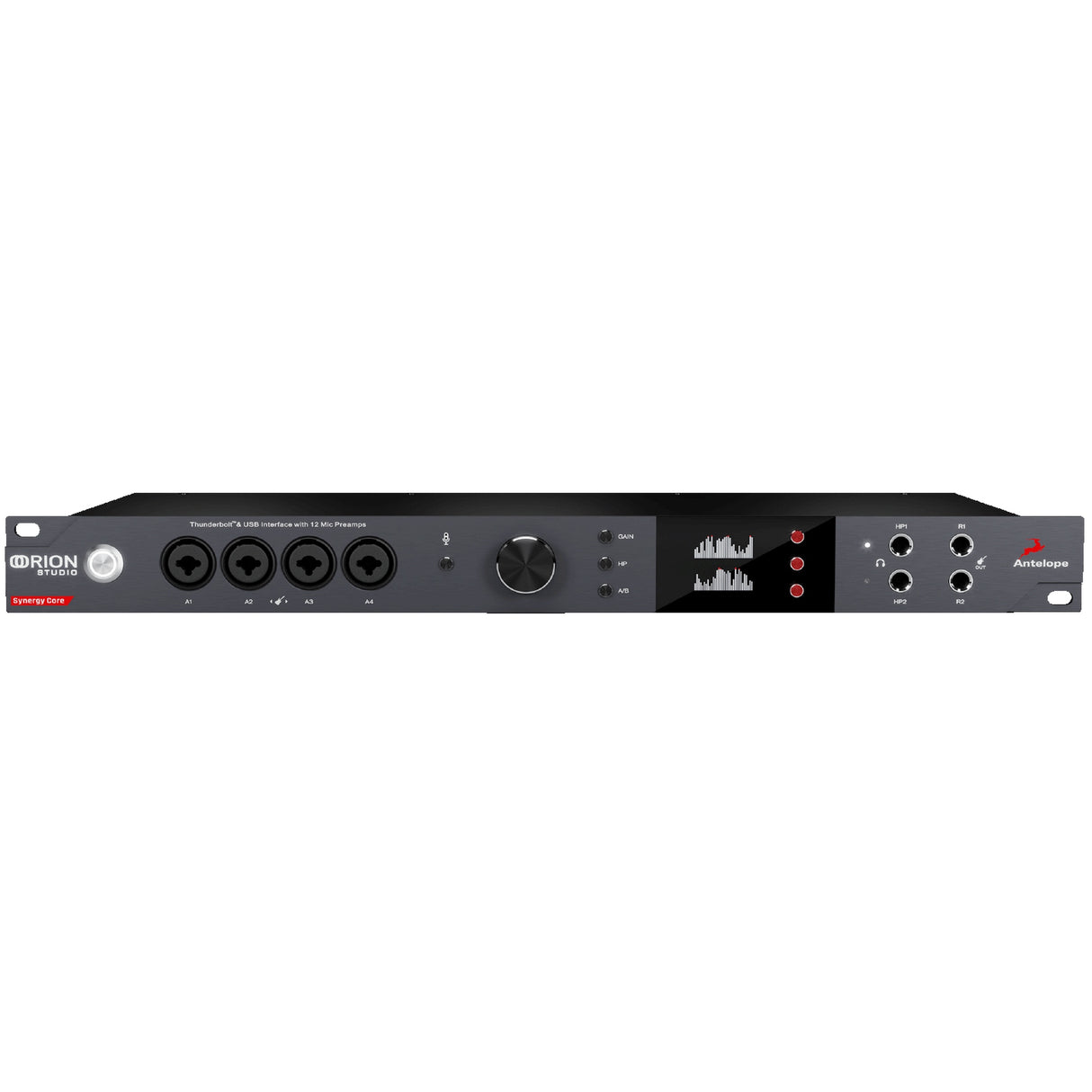

Antelope Audio Orion Studio Synergy Core Audio Interface

This is a professional rackmount Thunderbolt 3 and USB 2.0 audio interface designed for Mac and Windows. It offers unmatched sound quality via 12 discrete ultra-linear mic preamps, DC-coupled I/O, and a powerful Synergy Core FX engine featuring 2 FPGA + 6 DSP processors for low-latency real-time effects.

Featuring 32 Ɨ 32 I/O over Thunderbolt (24Ɨ24 over USB), expandable via ADAT/S/PDIF, and equipped with world-class conversion (up to 24-bit/192 kHz with up to 130 dB dynamic range), this device is tailored for immersive and surround monitoring setups. It includes virtual patchbay, low-latency mixers, and a fully customizable control panel.

Key Features

  • Interface Type: Rackmount, Thunderbolt 3 and USB 2.0 connectivity
  • Mic Preamps: 12 discrete ultra-linear preamps with 75 dB gain, Mic/Line/Hi-Z/Direct-In options (front/back panel)
  • Inserts: Two analog inserts on Preamp 1 & 2
  • Sampling: Up to 24-bit/192 kHz resolution
  • Conversion & Clocking: Best-in-class AD/DA converters with up to 130 dB dynamic range and 64-bit Acoustically Focused Clocking jitter management
  • FX Processing: Synergy Core real-time FX with 2 FPGA and 6 DSP processors, includes 50+ legendary audio effects
  • I/O Flexibility: 16 analog line outputs (via DB25), S/PDIF & ADAT expansion, 2 headphone outs, 2 monitor outputs, 2 Re-amp outputs
  • Routing & Monitoring: Virtual patchbay, low-latency mixer, direct monitoring, customizable presets
  • Immersive Audio Ready: Compatible with Atmos-Ready system with room calibration, supports over 23 audio formats (stereo to Dolby Atmos)

Technical Specifications

  • Channels: Up to 32Ɨ32 via Thunderbolt, 24Ɨ24 via USB
  • Analog Inputs: 12 mic preamps; 4 are Hi-Z compatible for instrument inputs
  • Analog Outputs: 16 line outputs (DB25), 2 monitor (TRS), 2 headphone, 2 Re-amp outputs
  • Digital I/O: 2Ɨ ADAT (up to 16 channels in/out), 1Ɨ S/PDIF in/out
  • Clock I/O: Word Clock I/O (BNC), 4th gen Acoustically Focused Clocking
  • Sample Rates: 44.1 to 192 kHz
  • FX Units: 2 FPGA + 6 DSP processors
  • Effects Included: 50+ Synergy Core real-time FX
  • Operation: Not bus-powered (external PSU included)
  • Extras: DC-coupled I/O for CV control of modular synths
  • Build: Rackmount 1U, hand-assembled in Europe
  • Processing Integration: AFX2DAW plugin support
