Description

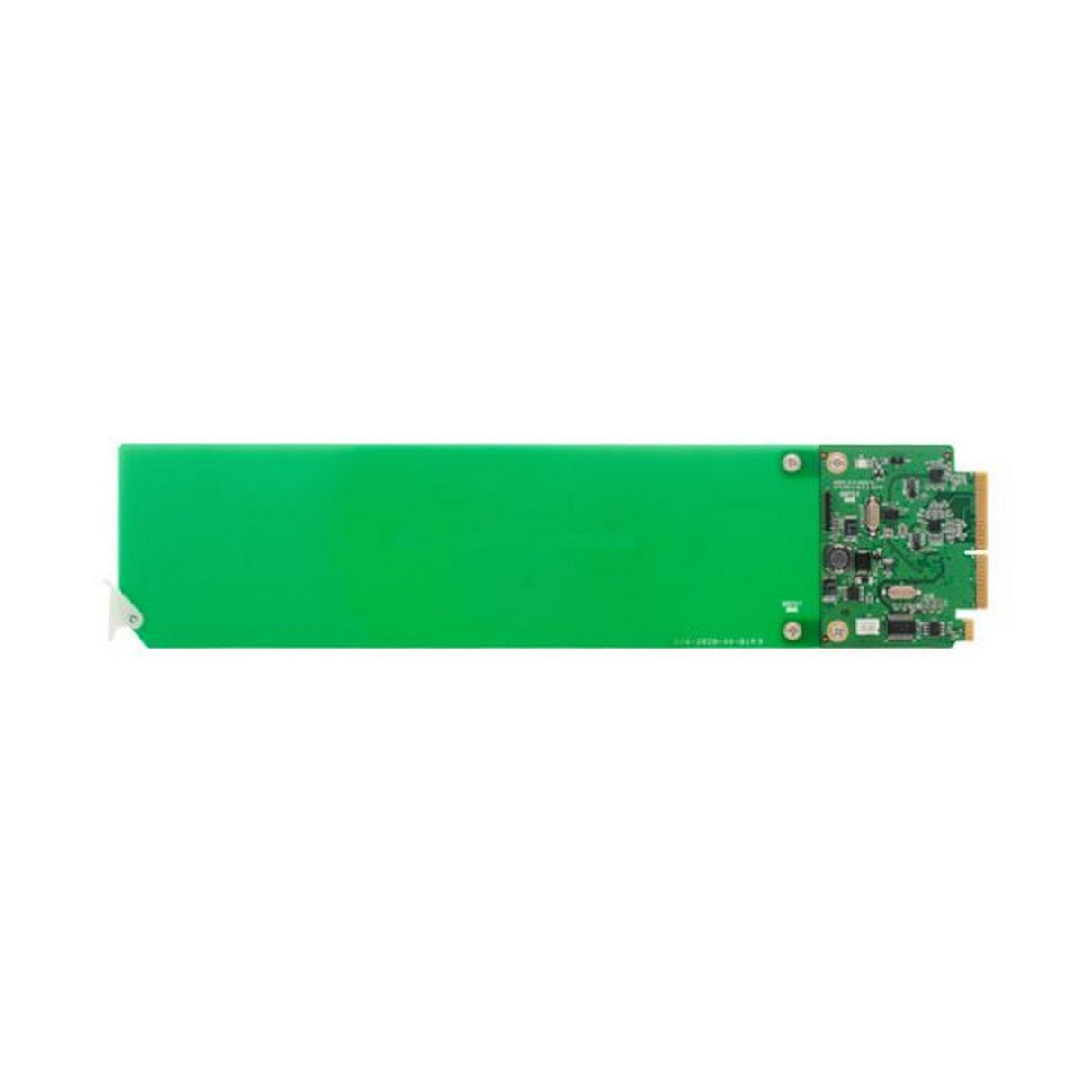

Apantac Triple-Rate 1 x 8 SDI Distribution Amplifier with Passive Loop-Output
The SDI Distribution Amplifier is a high-performance device designed to increase the versatility and efficiency of your broadcasting or production environment. As a triple-rate 1 x 8 SDI unit, this state-of-the-art amplifier serves to distribute a single input signal to up to eight output devices simultaneously. Noteworthy is its Passive Loop-Output feature, enabling signal distribution without compromise to quality or strength. This implementation makes it ideal for applications demanding consistent, high-quality video distribution, enhancing operational reliability and efficiency. The SDI Distribution Amplifier demonstrates a fine blend of sophistication, functionality, and premium performance, offering users a remarkable solution for audio-visual distribution needs.
Key Features
- SDI Distribution Amplifier in an openGear 3.0 card-based form factor.

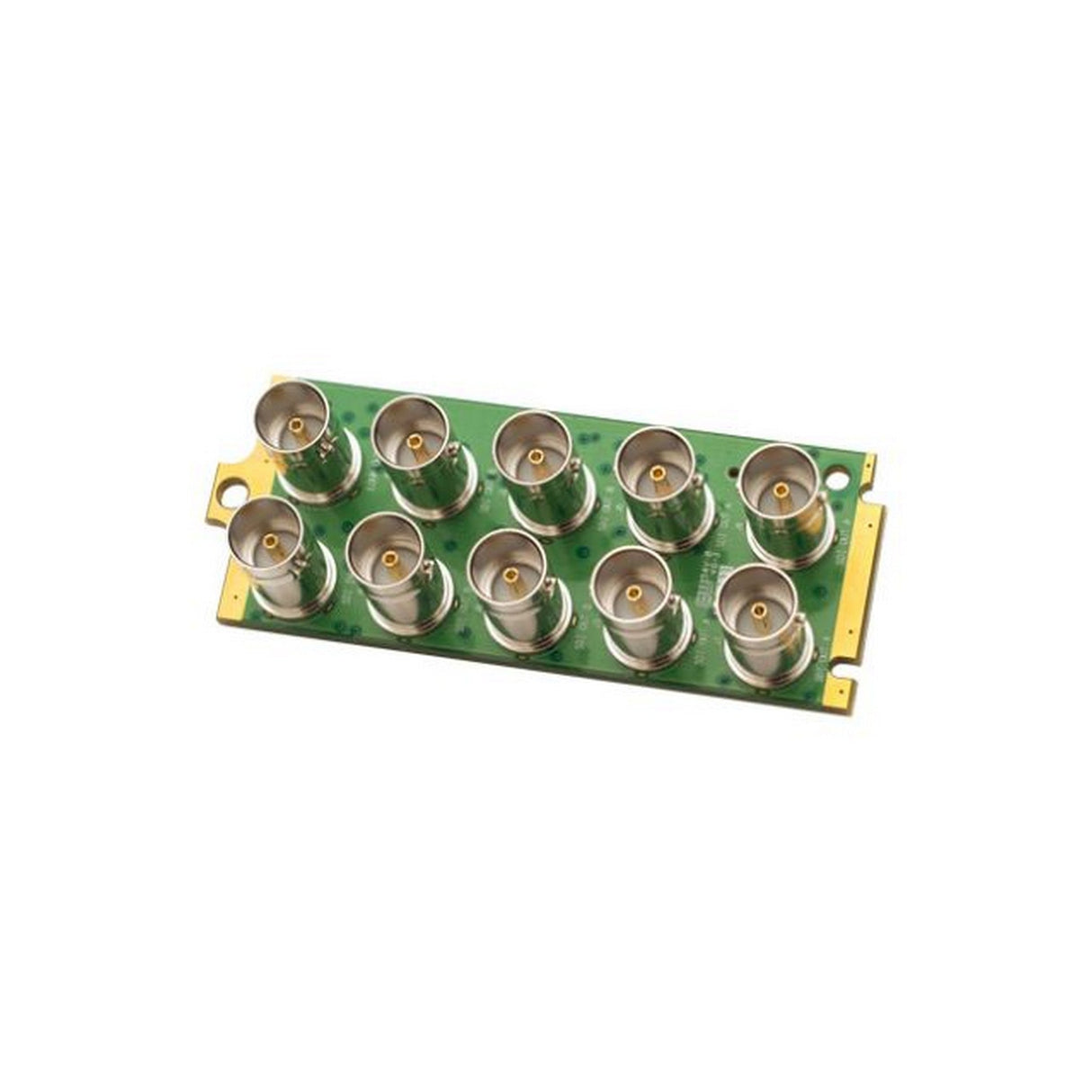

- Features 1 x 8 triple rate reclocking SDI configuration with passive loop out.
- Reclocker accessibility through openGear Dashboard.
- Complies with SMPTE 424M/292M/344M/259M standards.
- Supports data rates between 125 Mbps to 2.97 Gbps.
- Maintains signal level at 800mVP-P±10%.
- Provides equalization up to 120m at 2.97 Gbps, 140m at 1.485 Gbps, or 400m at 270 Mbps on Belden 1694A.
- DVB-ASI at 270 Mbps supported for output 1, 3, 5, and 7.
