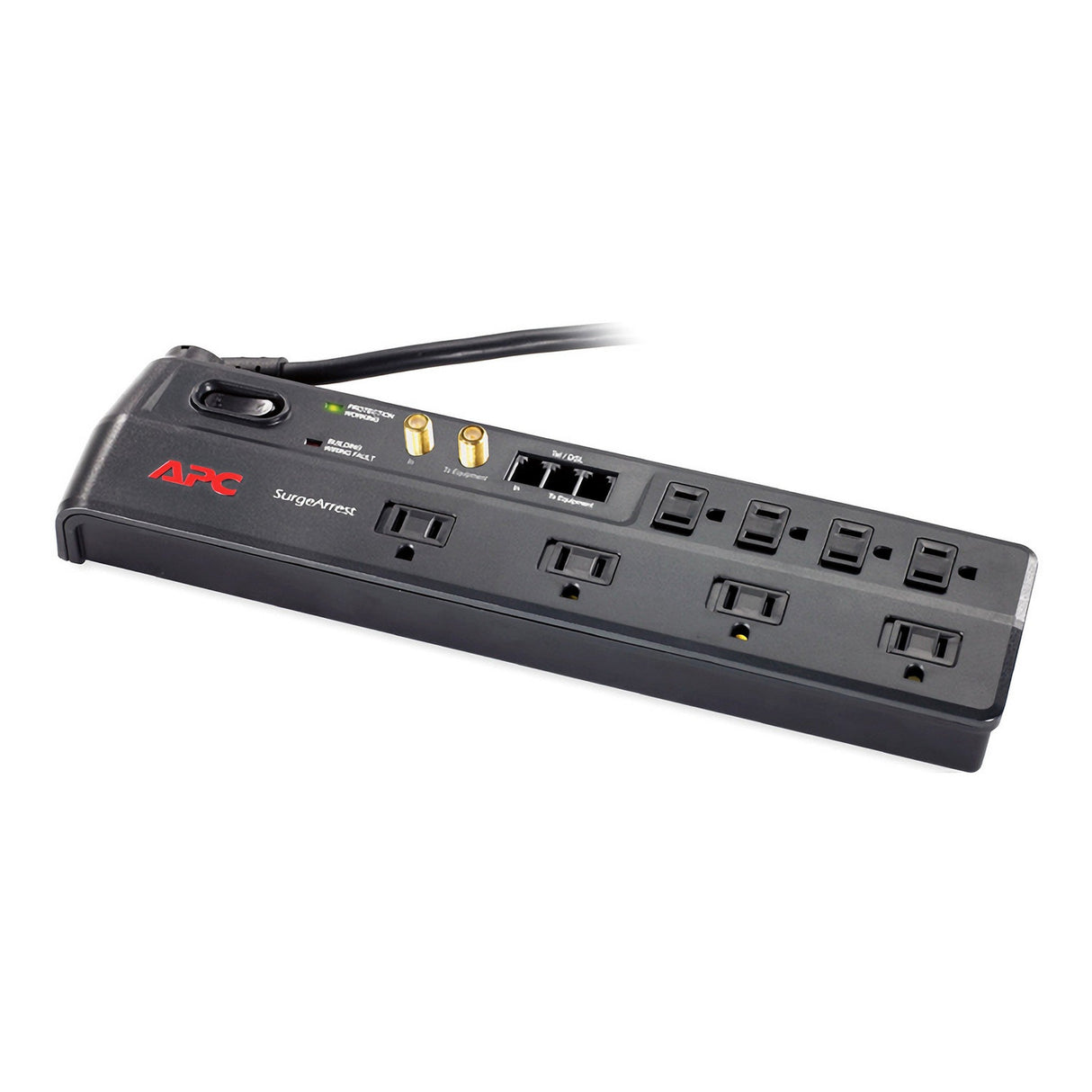

APC P8VT3 Home Office SurgeArrest 8 Outlet with Phone and Coax Protection, 120V
APC P8VT3 Home Office SurgeArrest 8 Outlet with Phone and Coax Prot...
APC P8VT3 Home Office SurgeArrest 8 Outlet with Phone and Coax Protection, 120V
APC SurgeArrest Home/Office 8-Outlets Surge Suppressor - Receptacles: 8 x NEMA 5-15R - 1750J
Key Features
- 180 degree Rotating Cord Retainer
- Adjustable Cable Management
- Building wiring fault indicator
- Catastrophic Event Protection
- Fail Safe Mode
- Noise Filtering
- Phone Line Splitter
- Protection Working Indicator
- Receptacle Shock Safety Shutters
- Resettable circuit breaker
- Right Angle Plug
- Transformer Block Spacing
Technical Specifications
Main Input Voltage
120 V
Input Connection Type
NEMA 5-15P
Cable length
6 ft (1.83 m)
number of cables
1
Provided Equipment
Coaxial cable
Cord management straps
Telephone Cable
User Manual
Color
Black
Height
1.26 in (3.2 cm)
Width
3.50 in (8.9 cm)
Depth
12.99 in (33 cm)
Net Weight
2.03 lb(US) (0.92 kg)
Mounting preference
No preference
Mounting Mode
Not rack-mountable
Input
Input Frequency: 50/60 Hz
Switching current capacity: 15 A
Output
Number of power socket outlets: 8
Outlet standard: NEMA 5-15R
UL 1449 TVSS Rating
L-N: 400
L-G: 500
N-G: 500
Product Certifications
CSA
Standards
UL 1363
UL 1449
Equipment protection policy
Lifetime : $150000
Ambient Air Temperature for Operation
32…113 °F (0…45 °C)
Relative Humidity
0…95 %
Operating altitude
0...10000 ft
Ambient Air Temperature for Storage
5…113 °F (-15…45 °C)
Storage Relative Humidity
0…95 %
Storage altitude
0…50000 ft (0.00…15240.00 m)
eP Joule Rating
2525 J
Data Lines Protected (multi-line only)
1-4
NM Surge Response Time (ns)
0 ns common mode
EMI/RFI Noise rejection (100 kHz to 10 MHz)
70 dB
Surge energy rating
2770 J
Data line protection
RJ11 2-Way Modem/Fax/DSL splitter with protection (four wire dual lines)
Cable modem/video protection
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.36 in (6 cm)
Package 1 Width
14.17 in (36 cm)
Package 1 Length
5.59 in (14.2 cm)
Package 1 Weight
2.43 lb(US) (1.1 kg)
Number of Units in Package 2
6
Package 2 Height
12 in (304.80 mm)
Package 2 Width
8 in (203.20 mm)
Package 2 Length
15 in (381.00 mm)
Package 2 Weight
16.5 lb(US) (7.48 kg)
SCC14
10731304249044
Warranty
Limited Lifetime
