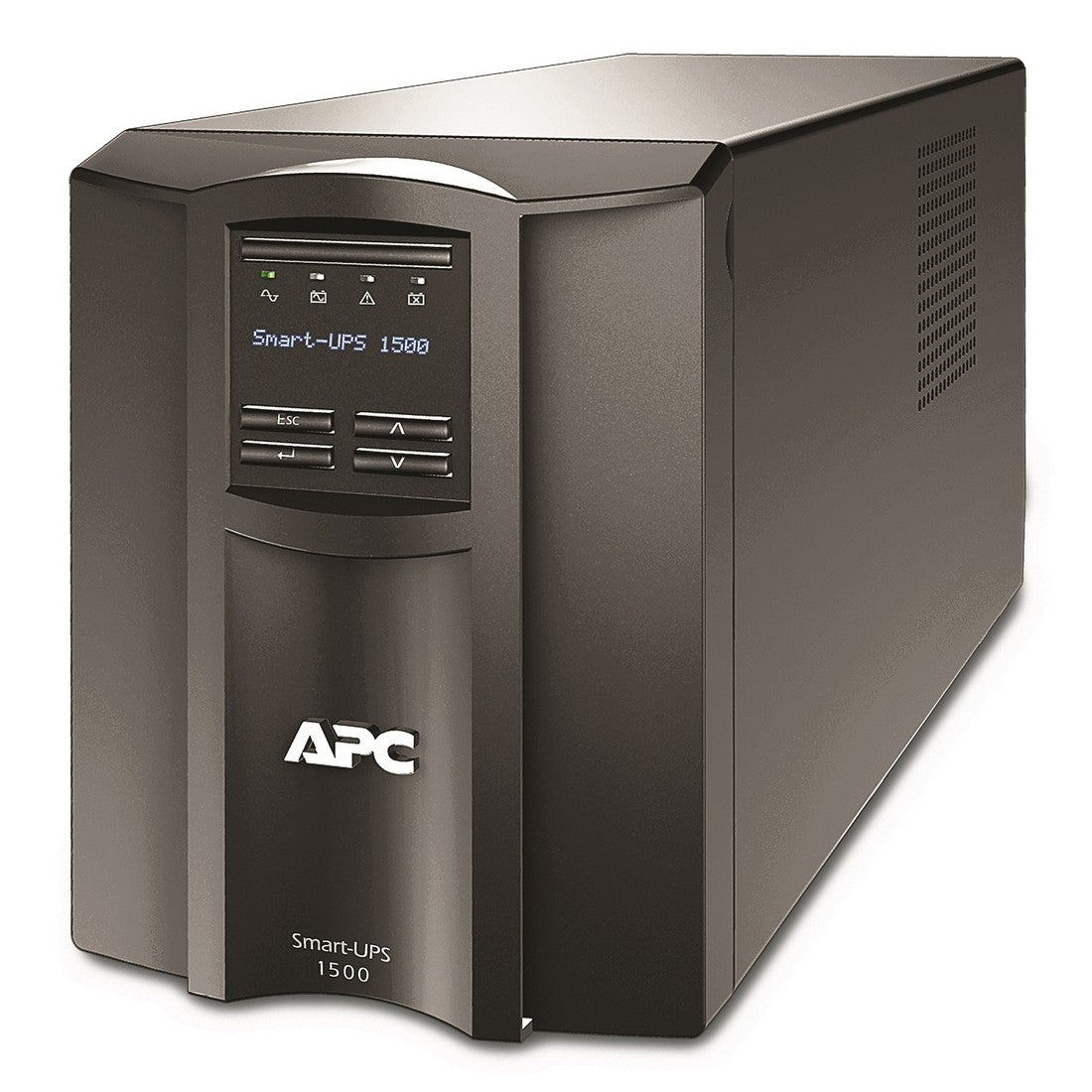

APC SMT1500C 1440VA Smart-UPS 1500 with SmartConnect Port with Eight NEMA 5-15R Outlets
APC SMT1500C 1440VA Smart-UPS 1500 with SmartConnect Port with Eigh...
APC SMT1500C 1440VA Smart-UPS 1500 with SmartConnect Port with Eight NEMA 5-15R Outlets
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Key Features
- 1000W
- 1440VA
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Technical Specifications
Run time for load
1000W
Min-max: 100-1000 W
Max. Capacity Used
100 %
Main Input Voltage
120 V
Other Input Voltage
110 V
125 V
Main Output Voltage
120 V
Other Output Voltage
110 V
125 V
Kw Rating
1000 W
Rated power in VA
1440 VA
Input Connection Type
NEMA 5-15P
output connection type
8 NEMA 5-15R
Cable length
6 ft (1.83 m)
Number of cables
1
Battery Type
Lead-Acid battery
Provided equipment
Installation guide
USB cable
Complementary
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Batteries & Runtime
Extendable Run Time
0
Included Battery Modules
0
Battery Slots Empty
0
Typical recharge time
3 h
RBC Quantity
1
Battery Life
3ā¦5 year(s)
Replacement battery
RBC7
Battery power in VAH
408 VAh runtime
Battery Charge Power (Watts)
136 W rated
General
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Cloud-enabled monitoring
Redundant
No
Physical
color
Black
Height
8.62 in (21.9 cm)
Width
6.73 in (17.1 cm)
Depth
17.28 in (43.9 cm)
Net Weight
54.23 lb. (US) (24.6 kg)
Mounting Location
Front
Mounting preference
No preference
Mounting Mode
Not rack-mountable
Two post mountable
0
USB compatible
Yes
Input
Efficiency at full load
75...154 V adjustable
82...144 V
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output
Harmonic distortion
Less than 5%
Maximum configurable power in VA
1440 VA
Max Configurable Power (Watts)
1000 W
Transfer Time
6ms typical: 10ms maximum
Topology
Line Interactive
Waveform Type
Sine wave
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz sync to mains
Conformance
Product Certifications
cULus
ENERGY STAR V2.0 (USA)
Equipment protection policy
Lifetime: $150000
Environmental
Acoustic level
45 dBA
Heat dissipation
225 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
32ā¦104 Degrees F (0ā¦40 Degrees C)
Ambient Air Temperature for Storage
5ā¦113 Degrees F (-15ā¦45 Degrees C)
Storage altitude
0ā¦50000 ft (0.00ā¦15240.00 m)
Relative Humidity
0ā¦95 %
Storage Relative Humidity
0ā¦95 %
Communications & Management
control panel
Multi-function LCD status and control console
Free slots
1
Communication port support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm
Alarm when on battery: distinctive low battery alarm: configurable delays
Surge Protection and Filtering
Surge energy rating
680 J
Filtering
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: m
Ordering and shipping details
Category
11309 - APC RESALE PRODUCTS
GTIN
731304322795
Returnability
No
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
12.99 in (33 cm)
Package 1 Width
23.23 in (59 cm)
Package 1 Length
12.99 in (33 cm)
Package 1 Weight
59.92 lb. (US) (27.18 kg)
