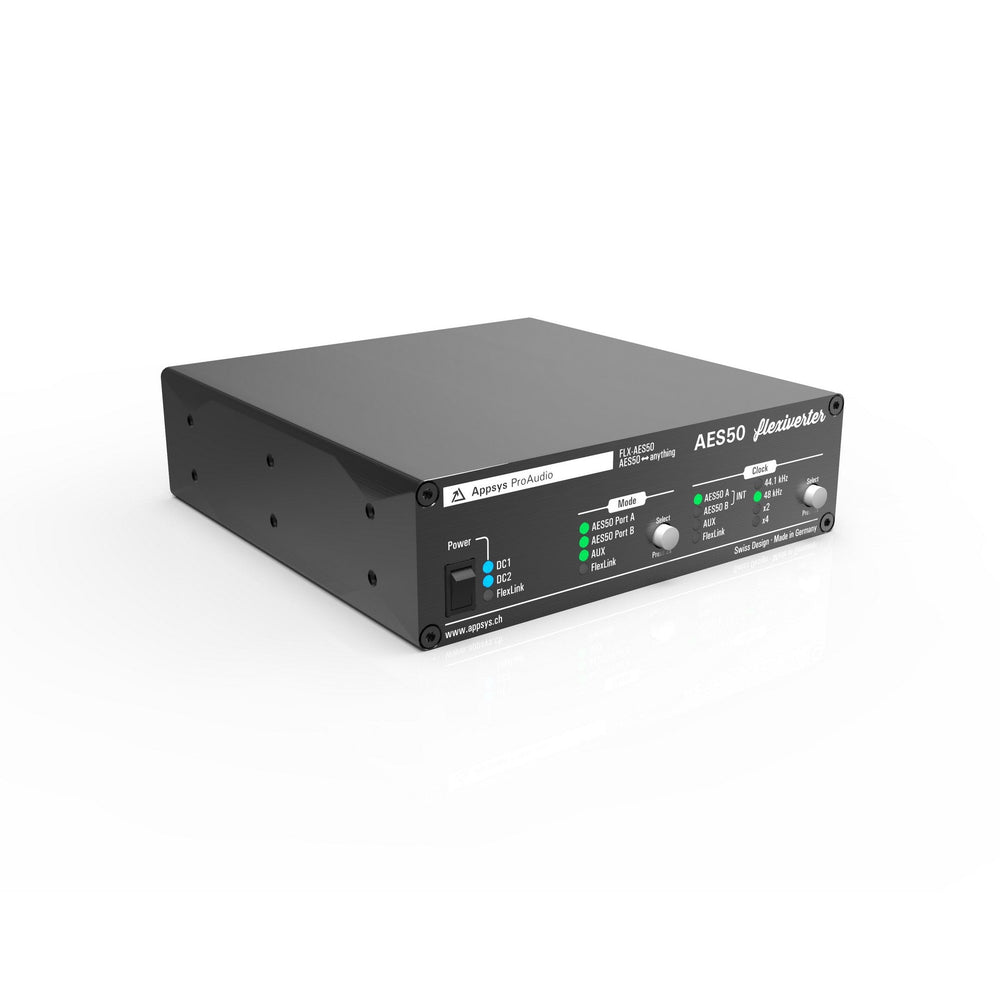

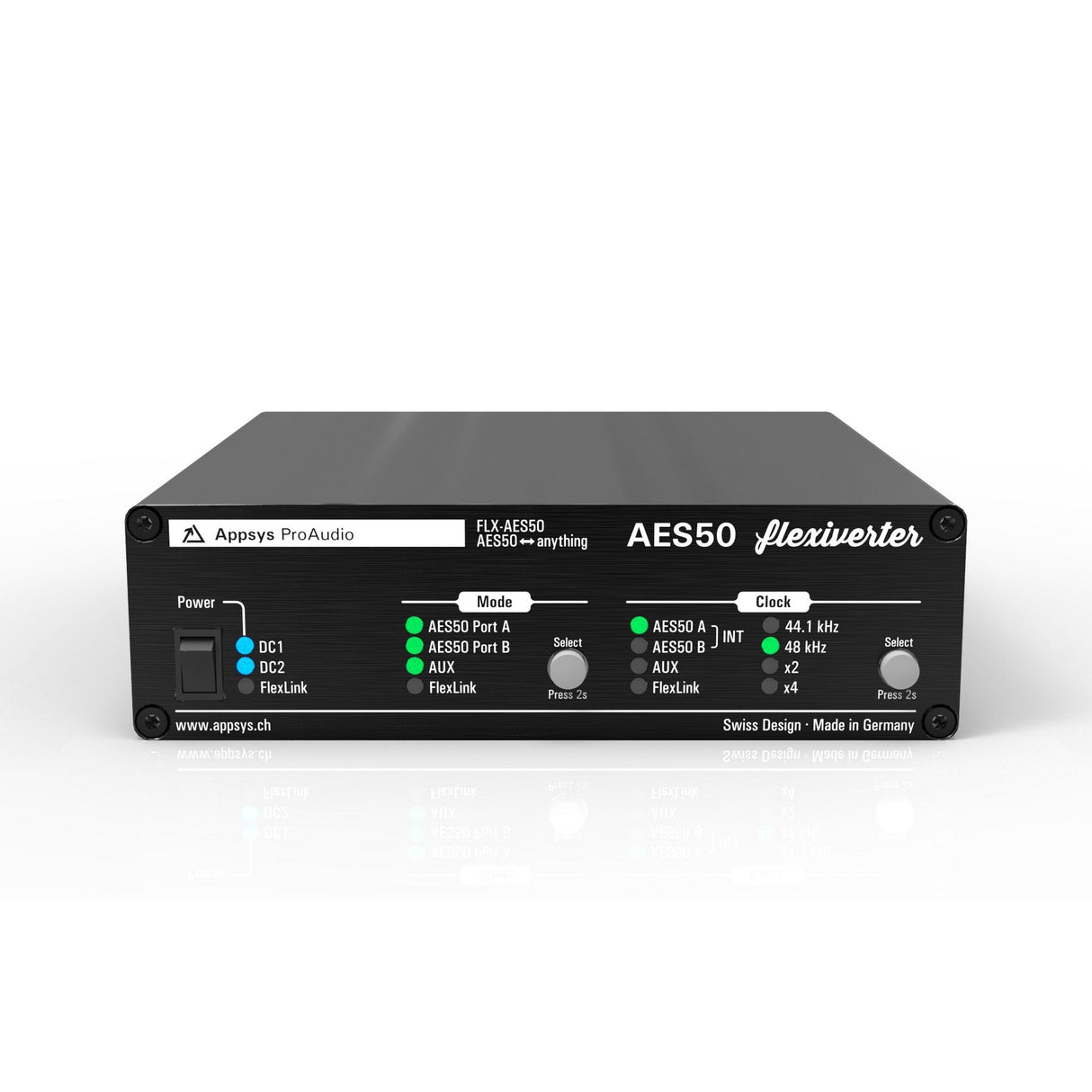

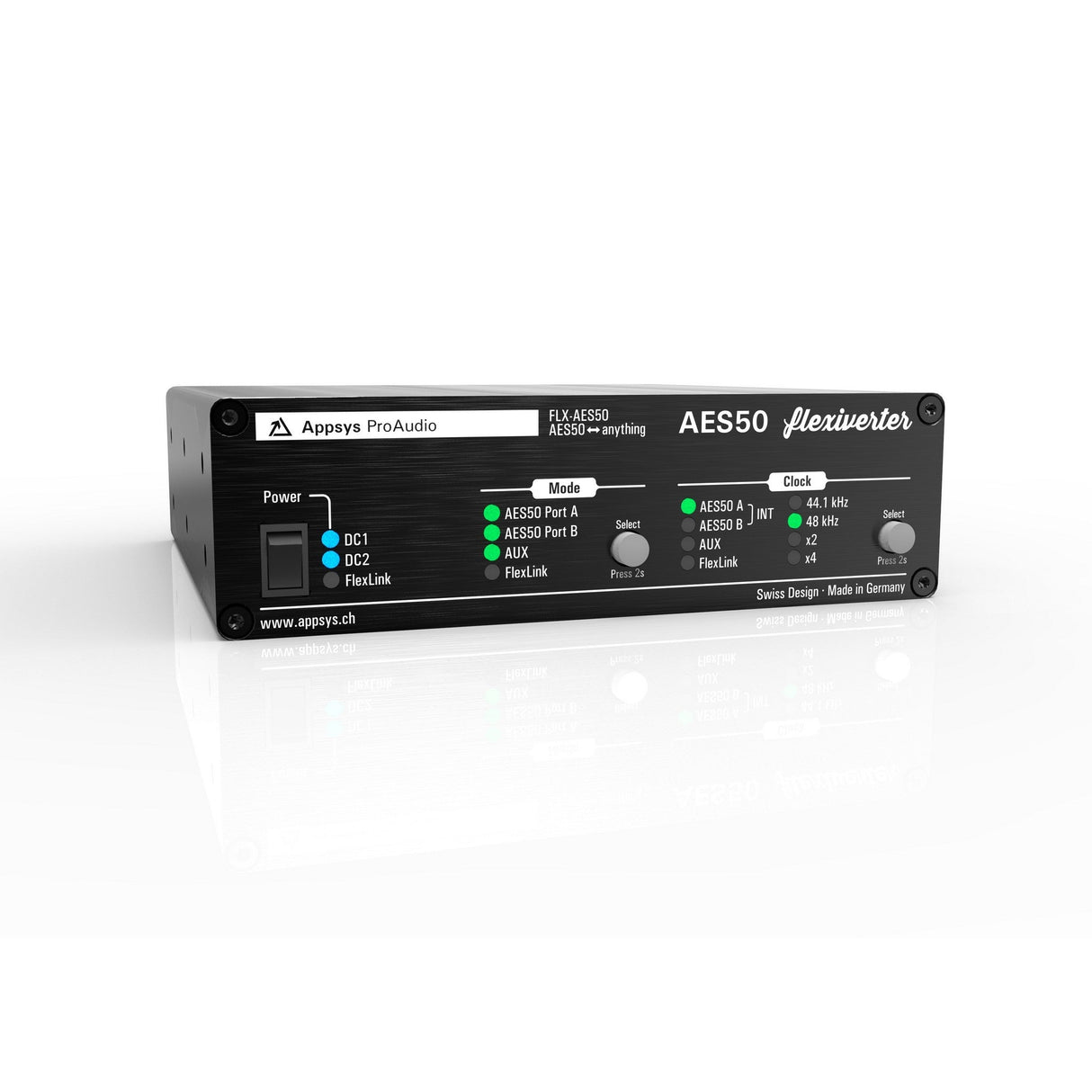

Appsys FLX-AES50: Versatile AES50-to-Anything Digital Audio Converter

The Appsys FLX-AES50 is a powerful and compact digital audio converter designed for professional audio applications. This versatile device serves as an AES50-to-anything converter, offering seamless integration between AES50 and various other audio protocols. With its two built-in AES50 ports, the FLX-AES50 can handle up to 96x96 channels at 48kHz or 48x48 channels at 96kHz, making it suitable for a wide range of audio setups.

One of the standout features of the FLX-AES50 is its AUX slot, which accepts various AUX cards for expanded functionality. This allows users to convert AES50 to virtually any other audio protocol, providing unparalleled flexibility in audio routing and conversion. The device also includes a FlexLink port, enabling it to work as an extension to the MVR-64 or another Flexiverter for larger systems, further expanding its capabilities.

With its versatile functionality and robust design, the Appsys FLX-AES50 is an essential tool for audio professionals seeking a reliable and flexible solution for AES50 conversion and audio routing in their setups.

Key Features

• Two AES50 ports compatible with Behringer and MIDAS equipment
• AUX port for additional protocol conversion
• Supports sample rates: 44.1/48/88.2/96kHz
• Forwards remote control (auxiliary) data between AES50 ports
• FlexLink port for low-latency, bi-directional transfer of 192 channels audio, clock, and power
• Remote control via USB: web remote (no software required) or UART command line
• Triple-redundant power supply for enhanced reliability

Product Specifications

Audio Interfaces:

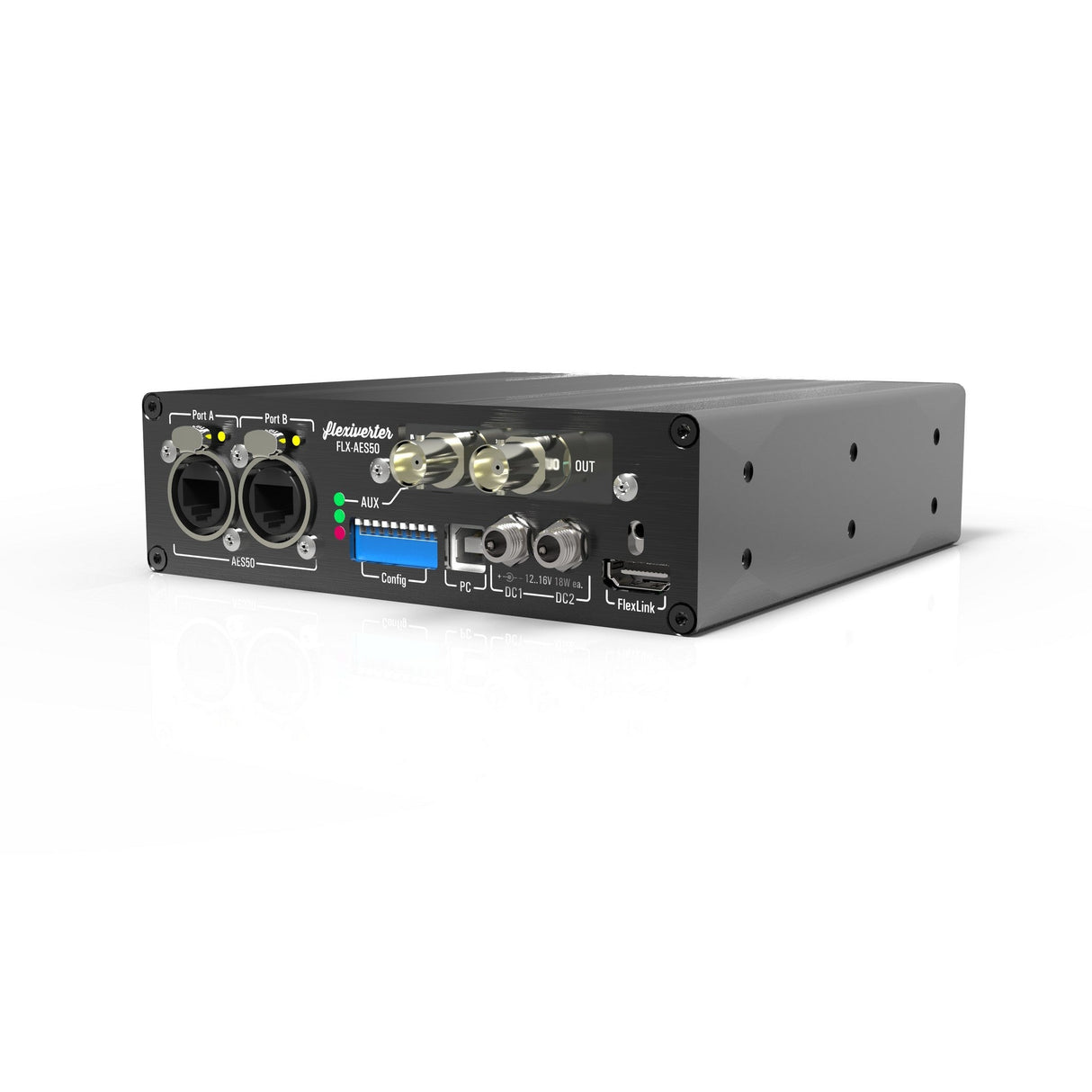

- 2x AES50 ports (RJ45 connectors)
- 1x AUX slot for additional audio interfaces
- 1x FlexLink port (HDMI connector)

Channel Capacity:
- 96x96 channels at 48kHz
- 48x48 channels at 96kHz

Supported Sample Rates:
44.1kHz, 48kHz, 88.2kHz, 96kHz

Control Interfaces:
- USB port for firmware updates and remote control
- Web-based remote control (no software required)
- UART command line interface

Power Supply:
Triple-redundant power supply with 3 DC input ports

Additional Features:
- Mode selector for audio routing
- Clock selector for clock source and sample rate
- DIP switches for output data format control
- LED indicators for power, mode, and clock status

Compatibility:
Compatible with Behringer and MIDAS equipment

Dimensions and Weight:
[Include specific dimensions and weight when available]

Applications:

The Appsys FLX-AES50 is ideal for various professional audio setups, including:

• Live sound reinforcement systems
• Recording studios
• Broadcast environments
• Post-production facilities
• Complex audio routing scenarios
