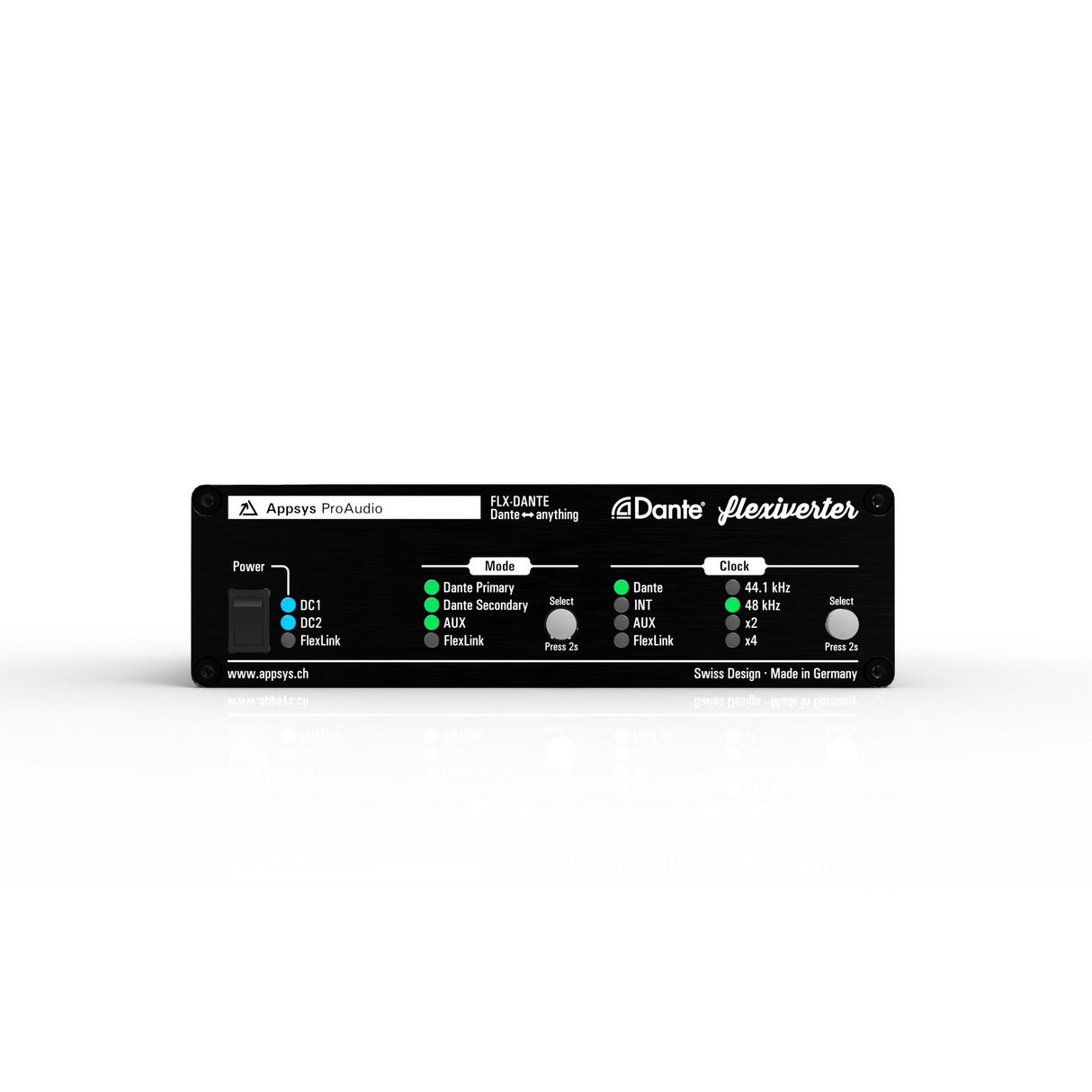

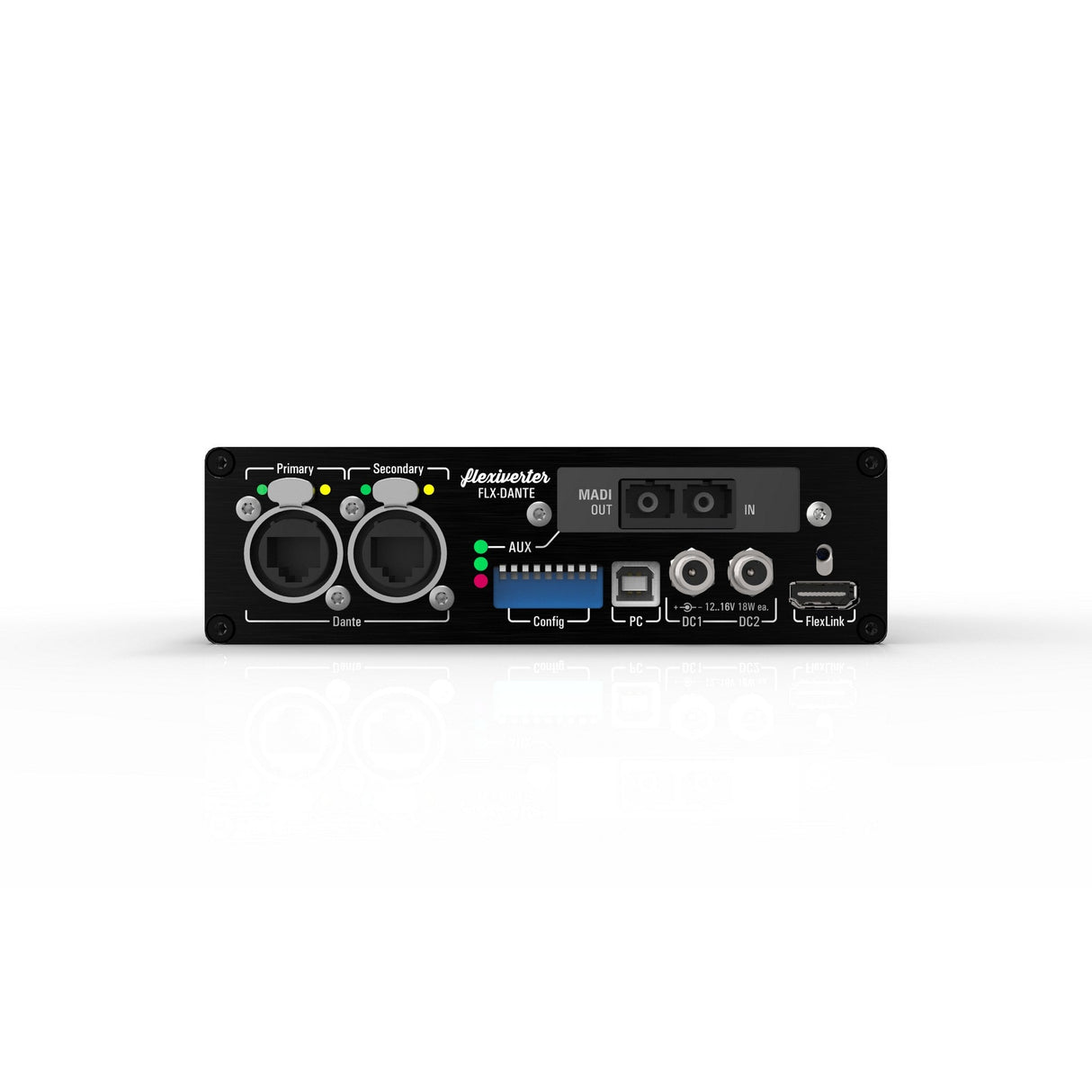

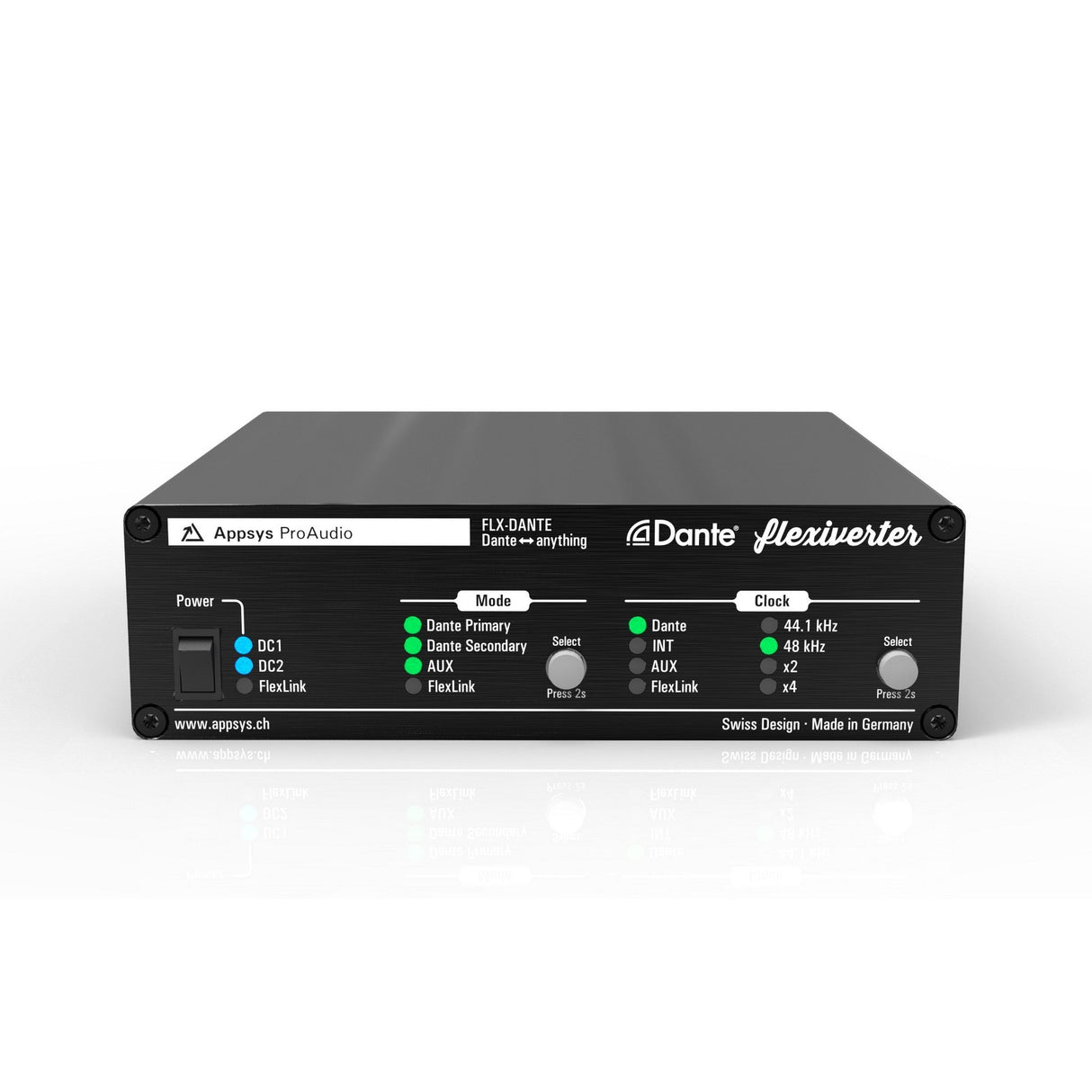

Appsys Flexiverter Dante 64 x 64 Channel Format Converter
Description
Description
Appsys Flexiverter Dante 64 x 64 Channel Format Converter
A Flexiverter is an ultra-compact box with a main format, dual power supply and a slot for a switchable AUX board, which adds the conversion format to the FLX unit. At the moment 5 FLX units and 10 AUX boards are available.
Format combinations provide the most common conversions with improved features and unique pairings (e. g. AES50 <> Dante, Dante <> Dante SRC, Dante <> AVB).
The Flexlink Connection
The FlexLink connection is designed to connect two Flexiverters, or one Flexiverter with the Multiverter.
The Flexiverter FLX-DANTE is the main format 64 x 64 channel EAS/EBU converter that converts between the built-in interface and the AUX card or splits Dante to the Aux Card.
Key Features
- 3 Possible Flexiverter Applications - Stand Alone, Dual Mode and Multiverter Extension
- Status LEDs For Each Port
- DIP Switches for Advanced Configuration
- USB for Firmware Updates
- AUX Port for Optional Format Module
Technical Specifications
Stand Alone (Converts between built-in AES67 interface and the AUX card)
Channels (all can be used at the same time)
64x64 Dante @ 48kHz 32x32 Dante @ 96kHz, 16x16 Dante @ 192kHz or maximum capacity of the AUX
card, whichever is less
Redundant Power Supply
up to 2x
Battery-powered Operation (DC 12-15V)
Yes
Sample Rate Conversion
No
Signal Splitting
Yes (to AUX or FlexLink)
Channel-wise Routing
No
Remote Control
No
Dual Flexiverter (Devices are connected via FlexLink cable)
Channels (all can be used at the same time)
64x64 Dante @ 48kHz32x32 Dante @ 96kHz, 16x16 Dante @ 192kHz plus what the AUX card provides
Redundant Power Supply
up to 3x
Battery-powered Operation (DC 12-15V)
Yes
Sample Rate Conversion
No
Signal Splitting
Yes (to AUX or FlexLink)
Channel-wise Routing
No
Remote Control
No
Flexiverter + Multiverter (Flexiverter connected to multiverter via FlexLink cable)
Channels (all can be used at the same time)
448x448 from multiverter plus 64x64 Dante plus what the AUX card provides
Redundant Power Supply
up to 3x
Battery-Powered Operation (DC 12-15V)
Yes
Sample Rate Conversion
Yes (with SRC-64 card in Multiverter)
Signal Splitting
Yes, to everything
Channel-wise Routing
Yes, via MVR-64 (web, telnet or serial terminal)
Remote Control
Yes, via MVR-64 (web, telnet or serial terminal)
General
Dimensions
152x44x153mm (WxHxD) excluding connectors/buttons, 152x44x169mm (WxHxD) including device-side connectors/buttons
Weight
560g
Power Consumption
+15V DC, 9W max (18W to power two devices via FlexLink) Triple-redundant input (2x DC, 1x via FlexLink)
Cable Length
FlexLink 1m / 3ft. max. recommended
Sample Rates
32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz
Channel Count
64x64 @ 48kHz, 32x32 @ 96kHz, 16x16 @ 192kHz plus additional AUX channels depending on AUX card
Item Includes
1x FLX-DANTE Flexiverter Device
1x AC Power Cord (country specific)
1x User Manual
Warranty
2 Year Manufacturer's Warranty
