Araknis Networks AN-530-AP-I Wi-Fi 7 Indoor Access Point
The Araknis Networks AN-530-AP-I Wi-Fi 7 Indoor Access Point is a mid-range tri-band AP for modern homes and light commercial networks. It delivers Wi-Fi 7 performance, multi-gig throughput, ultra-low latency, clean 6GHz connectivity, and a 10Gbps LAN uplink for demanding connected environments.
Designed for professional integrators, this Araknis 530 Series access point supports smart homes, SMB offices, conferencing spaces, streaming systems, automation networks, and connected AV installations. Use it when you need a Wi-Fi 7 indoor access point with stable coverage, faster roaming, and dependable performance across busy wireless environments.
Concurrent tri-band 2x2x2 antennas, enterprise-grade WPA3 security, OvrC remote management, Wi-Fi Optimization, Proximity View, and Wireless Bridge Mode help simplify deployment and ongoing support. The AN-530-AP-I is Wi-Fi 7 certified, PoE powered, and backward compatible with Araknis Wi-Fi 6 access points for mixed network upgrades.
Wi-Fi 7 Tri-Band Access Point Features
- Wi-Fi 7 Performance: Supports IEEE 802.11be for faster wireless throughput, lower latency, and improved efficiency with compatible devices.
- Concurrent Tri-Band Design: Uses 2.4GHz, 5GHz, and 6GHz radios with a 2x2x2 antenna configuration for balanced coverage and throughput.
- 10Gbps LAN Uplink: Includes one 10GBASE-T Ethernet RJ45 port with PoE input to help remove wired bottlenecks.
- OvrC Remote Management: Enables remote monitoring, configuration, troubleshooting, firmware updates, and network visibility from a unified platform.
- Wi-Fi Optimization: Uses AI-powered RF scanning and automated channel tuning to improve performance in challenging wireless environments.
- Proximity View: Shows how access points see each other, helping installers identify coverage gaps, overlap, and roaming issues.
- Wireless Bridge Mode: Extends network coverage to areas where Ethernet cabling is not practical.
- Enterprise-Grade Security: Supports WPA2, WPA3, WPA3-SAE, OWE, and AES encryption for protected wireless connections.
Technical Specifications
- Product Type: Indoor wireless access point
- Brand: Araknis Networks
- Model: AN-530-AP-I
- ADI Part Number: V6-AN530API
- Product Series: 530
- Application: Single-family smart home, modern residential networks, and light commercial networks
- Wi-Fi Generation: Wi-Fi 7
- Wireless LAN Standard: IEEE 802.11be
- Wireless Protocols: IEEE 802.11be
- Radio Design: Concurrent tri-band 2x2x2
- Operating Frequencies: 2.4GHz, 5GHz, 6GHz
- Antenna Type: Embedded omnidirectional antenna
- Antenna Configuration: 2x2x2
- Outdoor Rating: No
- Ethernet Interface: 1 x 10GBASE-T Ethernet RJ45 port
- Network Technology: 10GBase-T
- Power over Ethernet: Yes
- PoE Standard: IEEE 802.3at/bt
- PoE Features: Power over Ethernet 802.3at/bt
- Full Functionality Power: 12V/3.5A DC at 27.24W or 802.3bt Class 6 at 28.56W
- Limited Functionality Power: 802.3at Class 4 at 24.84W
- Input Voltage: 12V 4A DC
- Line Voltage: 12V 3.5A DC
- Power Consumption: 28.56W
- PHY Data Rate: 2.4GHz up to 541.7Mbps, 5GHz up to 2722.2Mbps, 6GHz up to 5444.4Mbps
- Frequency Modulation: 2.4GHz up to 1024-QAM, 5GHz up to 4096-QAM, 6GHz up to 4096-QAM
- Channelization: 20MHz, 40MHz, 80MHz, 160MHz, 320MHz
- Maximum Antenna Gain: 2.4GHz up to 5.4dBi, 5GHz up to 6.2dBi, 6GHz up to 7.5dBi
- Antenna Gain: 7.5dBi
- Maximum Transmit Power: 2.4GHz 23dBm, 5GHz 24dBm, 6GHz 22dBm
- Wireless Features: Auto Channel Selection, Access Point Mode, Bridge Mode, multiple SSIDs, MAC Address Filtering, Hide SSID, Guest Network, WMM, WPA2/WPA3, Agile Multiband
- SSID Support: Up to 26 SSIDs per access point
- VLAN Features: 802.1Q, one per BSSID
- Spanning Tree: Yes
- Management Features: Rate Limiting, L2 Access Control List, Wi-Fi Scheduler, Max Client Limit, Wireless Client Isolation
- Security Modes: Open, OWE, WPA2 AES, WPA2-PSK AES, WPA3, WPA3-SAE, WPA3-SAE Mixed
- Encryption Standards: AES, WPA2, WPA3
- OvrC Enabled: Yes
- Compatibility: Backward compatible with Araknis Wi-Fi 6 access points
- Certifications: Wi-Fi 7 Certified, WMM, WPA2/WPA3, Agile Multiband
- Operating Temperature: 32°F to 122°F
- Operating Humidity: Up to 90% non-condensing
- Storage Temperature: -22°F to 158°F
- Dimensions: 7.33" x 7.33" x 1.56"
- Weight: 2.03 lbs

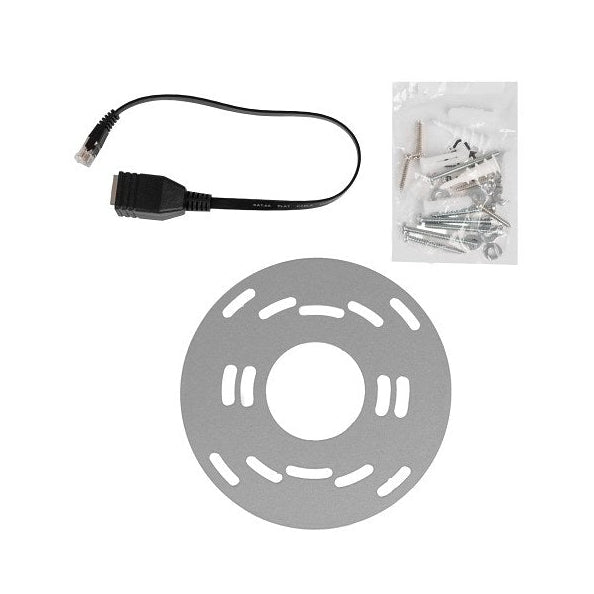

- Related SKUs: AN-ACC-ICBKT-LR, AN-ACC-PS-12V4A
- Warranty: 2-Year Limited Warranty
- UPC: 842822070027
