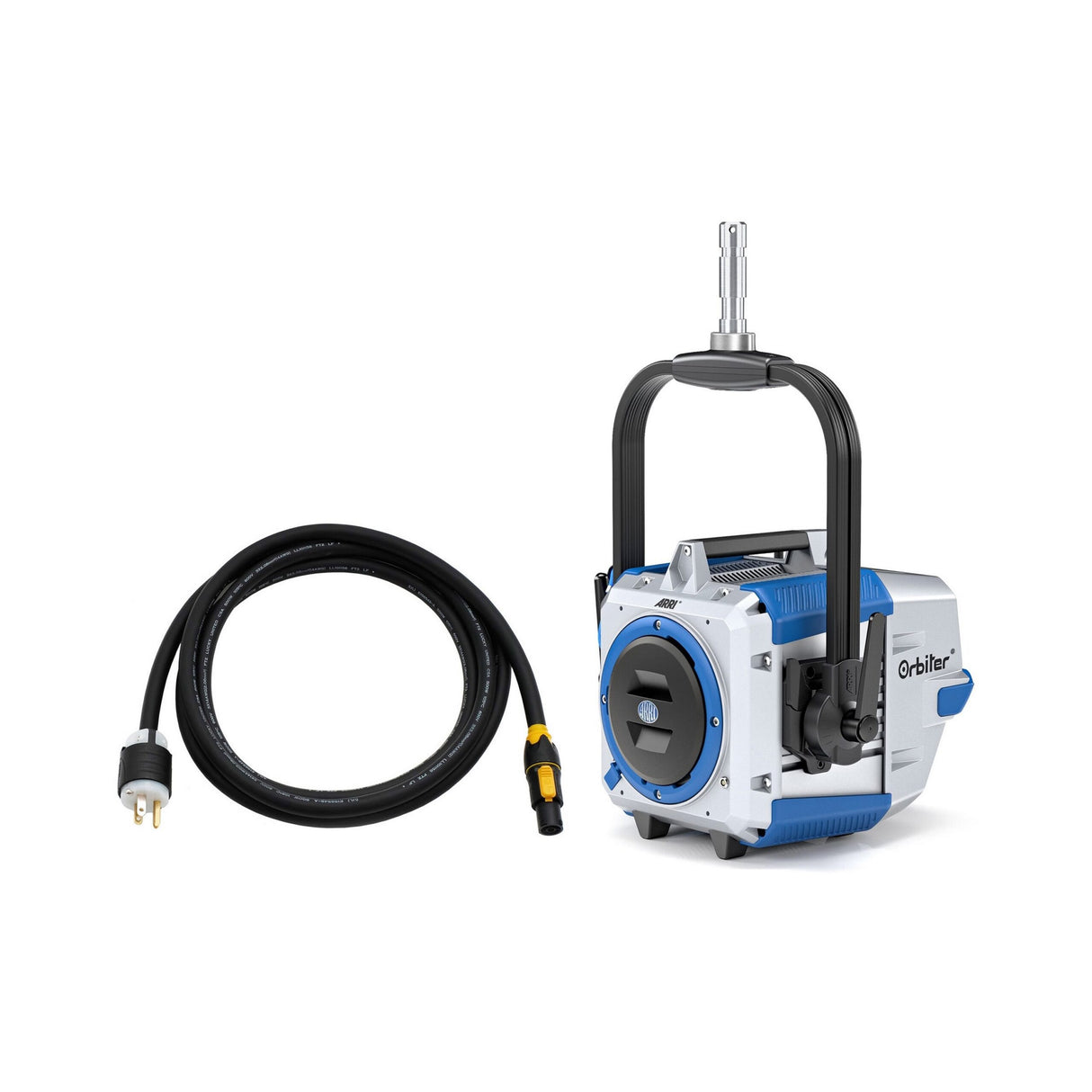

Arri L0.0034080 Orbiter LED Light with Manual Yoke and Mains Cable

The Quick Lighting Mount (QLM) allows for optics with very different properties to be attached to the fixture. The high-output, directional beam of the Open Face Optic is ideal for throwing light long distances. The high accuracy of the Projection Optics creates a precise circle of light that can be shaped with cutters, focus, and gobos. The Dome Optic provides omni-directional, soft light, great for illuminating large spaces, while the optional universal QLM adapter creates a direct mounting point for Orbiter-specific Chimera and DoPchoice products.

Key Features

• ARRI Spectra six-color, wide gamut light engine
• Extremely powerful output for maximal brightness and perfect colors
• Lighting Operating System (LiOS) with powerful software features
• Weatherproof housing
• Integrated color sensor for matching ambient light
• Removable, intuitive control panel
• Full suite of connectors and sensors
• Perfected smooth dimming to zero
• Internal power supply, wireless DMX, and battery input

Technical Specifications

Light Fixture
Beam Angle
80
Color Temperature
2000 to 20,000K
Color Accuracy Standard
CRI 98, TLCI 95
Cooling System
Passive
Dimming
Yes, 0 to 100% (Continuous)
Display
LCD
Housing Material
Aluminum
Number of LEDs
190 (RGB)
Expected Lamp Life
50000 Hours
Fixture Weight
35.27 lb / 16 kg (Including Yoke)
Connectors
Power Input Connector
powerCON
DMX Connector
5-Pin XLR
Lens
Reflector Mount
ARRI QLM
Lens Diameter
1.77" / 45 mm
Mounting
Fixture Mount
1-1/8" Stud
Yoke
Yoke Material
Steel
Yoke Type
Pole Operated
Tilt
90
Remote Operation
Remote Control Type
DMX, Wired Remote, CRMX, Wireless DMX
Power
AC Input Power
100 to 260 VAC, 50 / 60 Hz
DC Input Power
48 VDC
Power Source
AC Adapter, External Battery
Max Power Consumption
500 W
Cable
Cable Length
22.97' / 7 m
Inline Switch
Yes
Physical
Certifications
CB, CE, FCC, PSE, as per Manufacturer
Operating Temperature
-4 to 113F
