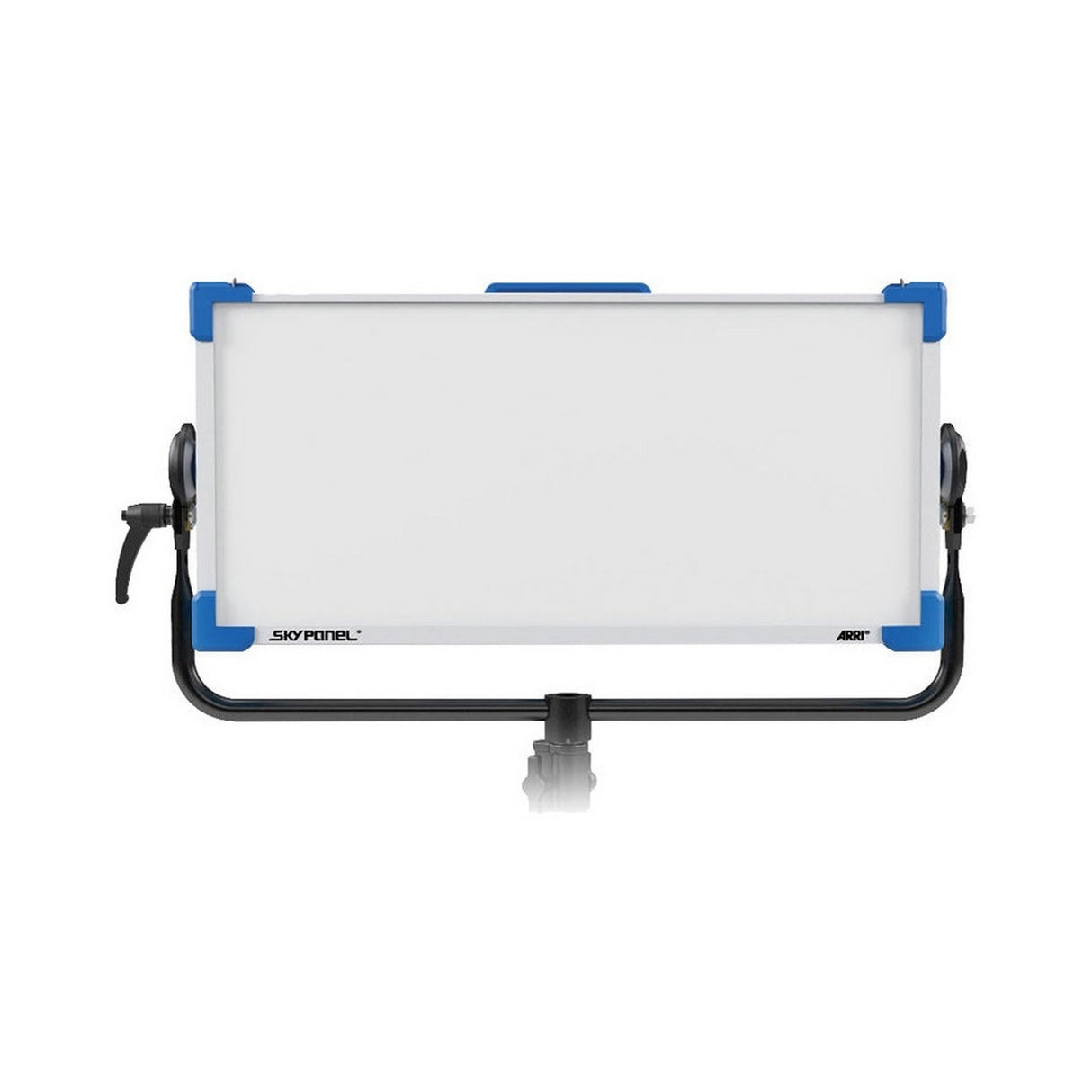

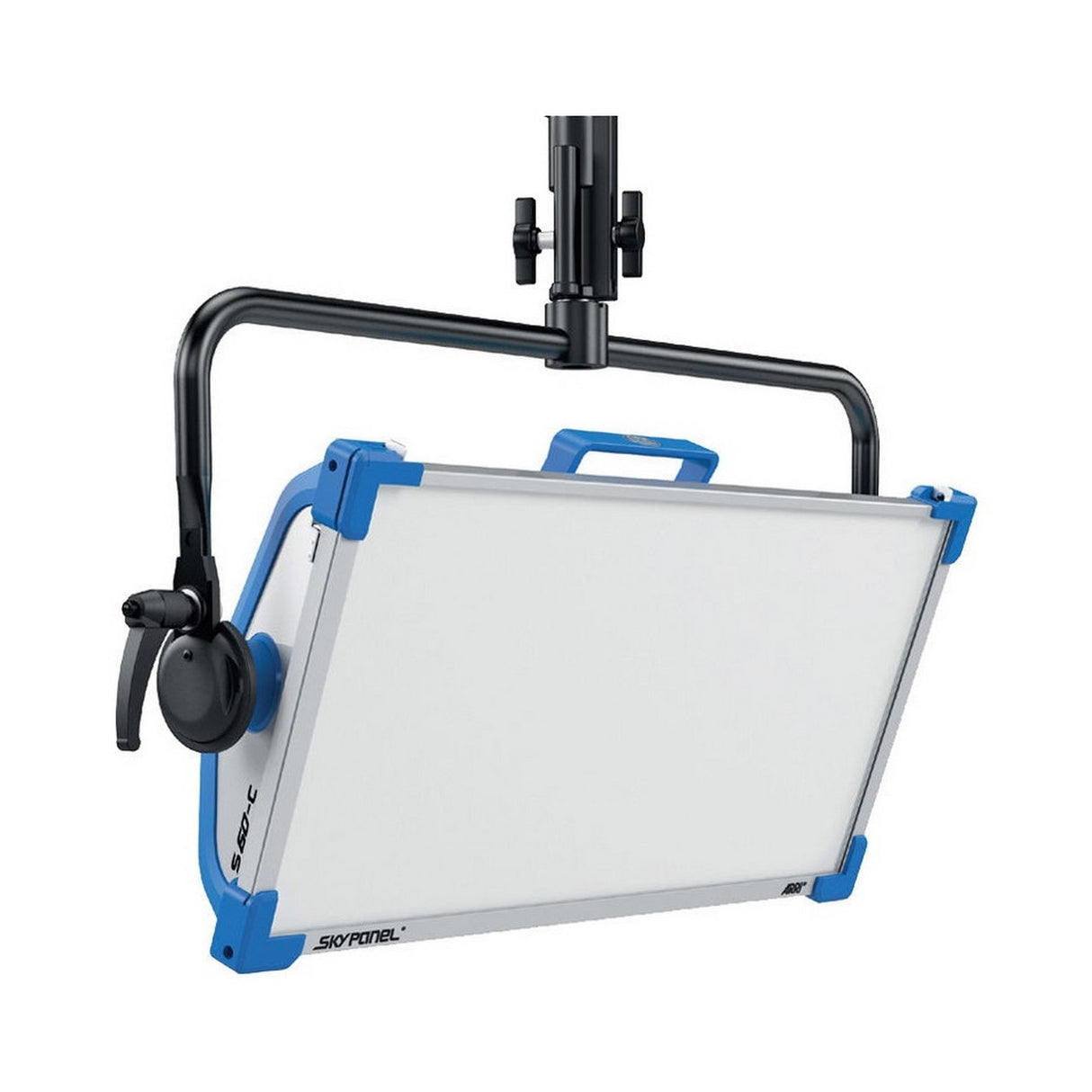

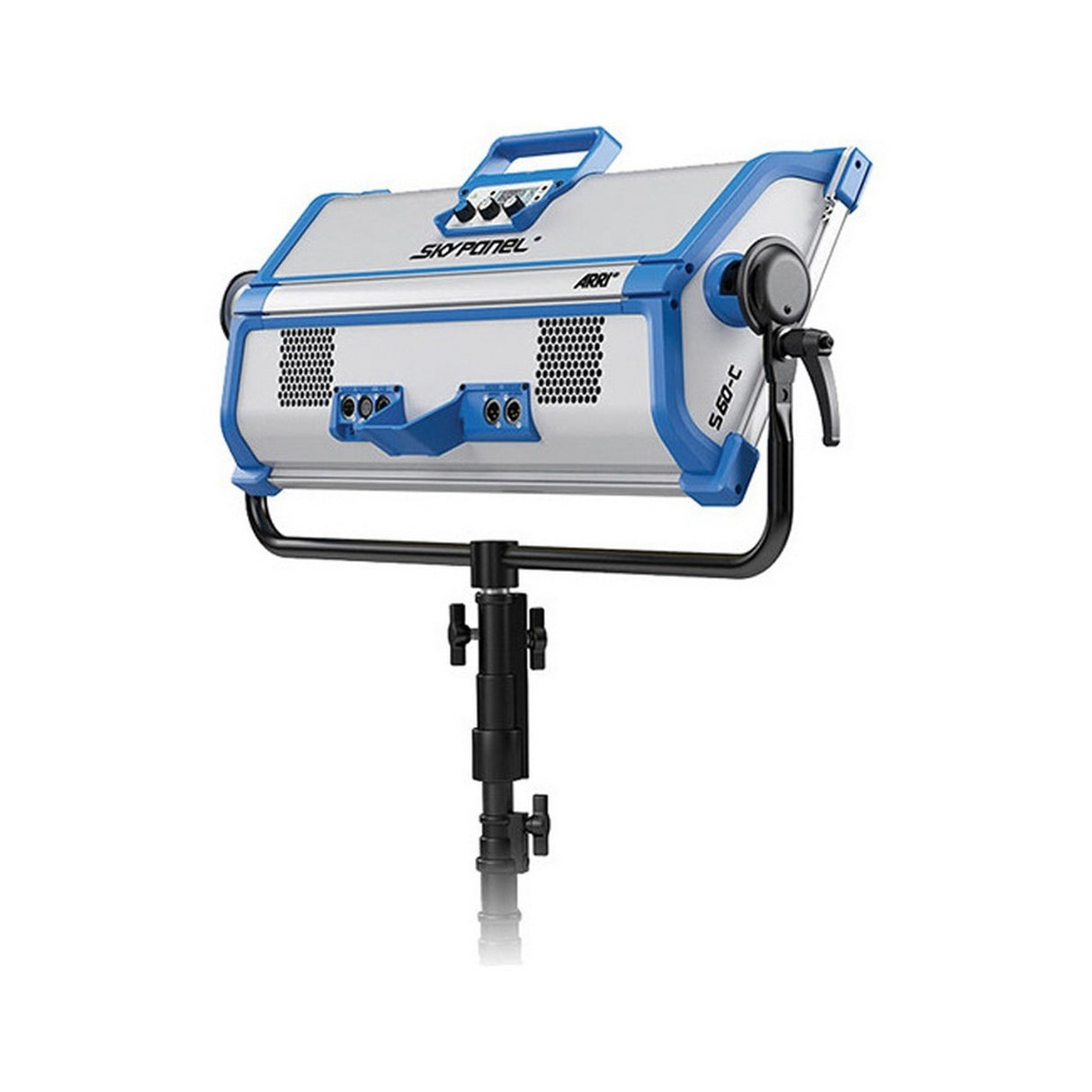

ARRI SkyPanel S60-C Color Standard Diffusion Light Panel with Edison powerCON

ARRI SkyPanel S60-C Color Standard Diffusion Light Panel with Edison powerCON

The ARRI L0.0007063 SkyPanel S60 is the mid-range model of the SkyPanel, one of the most versatile and brightest soft lights on the market! Featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications, the S60 is available in fully color tuneable and remote phosphor versions. Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. In some cases the fixture can even compete with natural sunlight; at the same time, it is able to perform beautifully at lower light levels.

Key Features

• The mid-range model SkyPanel
• Fully Tuneable - between 2,800 K and 10,000 K - Get the color you want in seconds.
• Tremendous Output. One of the brightest soft lights on the market.
• True Soft Light Beam Quality. Soft and uniform is the name of the game.
• Outstanding Color Rendition.
• LED white light without sacrifices.
• A Single Soft, Clean Shadow. The proof is in the shadows.
• Interchangeable Front Diffusor Panels
• Operate on Location with On-Board Battery Input
• Largest Light Aperture in its Power Class
• Thin 5.1" Profile fits into Tight Locations

Technical Specifications

Lamphead
S60-C
Optical System
Soft Diffusion Panel
Light Aperture
645 x 300 mm / (25.4 x 11.8 inches)
Beam Angle
115 (Half Peak Angle)
Weight
Manual Version
11.7 kg (25.8 lbs)
Pole Op Version
12.8 kg (28.1 lbs)
Handling
Steel Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt)
Mounting
28 mm Spigot (Junior Pin)
Tilt Angle
+/- 90
Lamphead Voltage Input
48 V DC
Power Consumption
420 W Nominal, 450 W Maximum
Lamphead Power Connection
Male 3-Pin XLR - 15 amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector
Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range
23 - 36 V DC
Battery Mode Light Output
50% of Total Output
White Light
2800K - 10000K Continuously Variable Correlated Color Temperature
Colored Light
Full RBG+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance
+/-100K (nominal), +/-1/8 Green-Magenta (nominal)
Color Rendition
CRI Average > 95
TLCI Average > 90
Green-Magenta Adjustment
Continuously Adjustable (Full Minusgreen to Full Plusgreen)
Dimming
0 - 100% Continuous
Control
On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN Network Connectivity, USB-A
Remote Device Management (RDM*)
DMX Setup, Hour Counter and Standard RDM Commands
Software Interface: Ethernet: DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac USB-A: Software upgrade via flash drive
Housing Color
Blue/Silver, Black
Ambient Temperature Operation
-20 - 45C (-4 - 113F)
Protection Class
IP 20
Estimated LED Lifetime (L70)
50,000 hours
Estimated Color Shift Over Lifetime
+/- 5% K
Certifications
CE, CB, ENEC, cNRTLus, FCC, PSE
Power Supply Unit
S60 PSU
Power Supply Input Range
110 - 240 V AC, 50/60 Hz
Power Supply Output Range
48 V DC
Power Input Connection
powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available)
Power Output Connection
Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight
3.5 kg (7.7 lbs.)
Dimension
383 x 192 x 90 mm (15 x 7.6 x 3.5 inch)
Control
On-Board On/Off Switch
Mounting
Super Clamp Attachment / SkyPanel PSU Rail Mount
