ART PS8-II 8-Outlet Power Sequencer & Conditioner

PS8-II 8-Outlet Power Sequencer & Power Conditioner

The PS8-II power sequencer is built to eliminate the momentary pops and turn-on/turn-off transients that can occur when powering up audio and A/V gear. By powering your equipment up and down in a controlled order, it helps prevent loud spikes from reaching speakers and reduces inrush current to better protect sensitive components.

With eight rear AC outlets that sequence in order and a global variable Sequence Delay of up to two seconds per outlet, the PS8-II makes it easy to power amplifiers last and shut them down first—so your system stays quiet until everything is ready. It also functions as a full-featured 1U rackmount power conditioner, providing surge and spike protection along with EMI/RFI filtering to reduce unwanted high-frequency noise, including digital and dimmer hash.

For installation and control flexibility, the PS8-II includes a rear 4-pin Euroblock connector for remote on/off sequence switching, plus a convenient unswitched front-panel AC outlet for quick access. It’s an ideal fit for live venues, studios, fixed installations, conferencing environments, and high-performance A/V systems.

Key Features of the PS8-II Power Sequencer

• Individually Sequenced Rear Outlets: Eight rear AC outlets power up or down in order to reduce transients between connected devices.
• Variable Sequence Delay: Global delay offsets each outlet by up to 2 seconds to keep power amps last-on/first-off for quieter system operation.
• Surge and Spike Protection: Helps safeguard connected equipment from damaging power events.
• EMI and RFI Filtering: Line filtering reduces electrical noise above the audio range to support cleaner performance.
• Remote Switching via Euroblock: Rear 4-pin Euroblock terminal enables remote on/off control of the power sequence.
• Front Convenience Outlet: One unswitched front-panel AC outlet for quick-access power.
• 1U Rackmount Design: Fits standard racks for professional A/V and studio installations.

Technical Specifications

• Power Capacity: 1800 W
• Maximum Load: 15 Amps / 1800 W (@ 120 VAC)

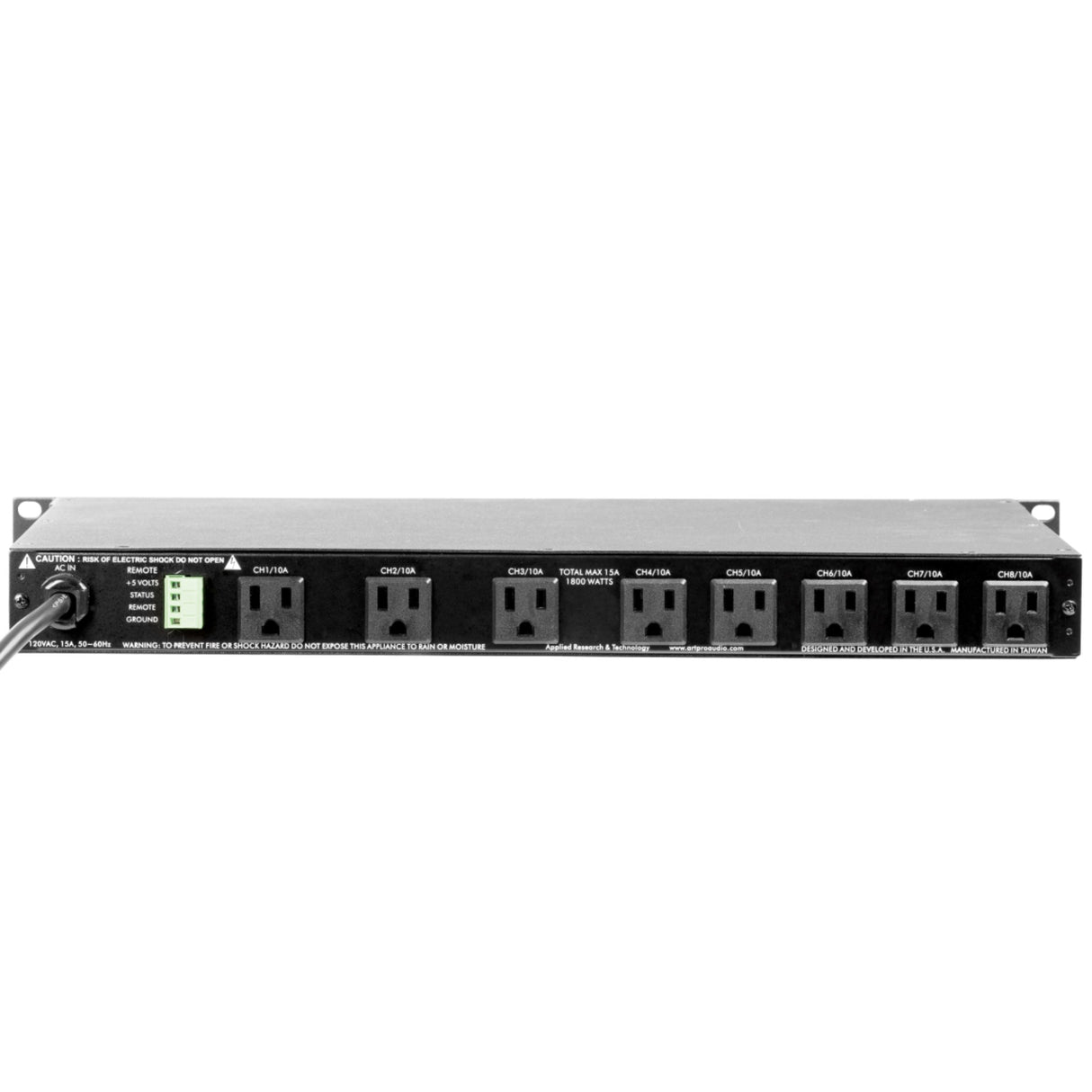

• Outlets (Rear): 8 x rear mounted individually sequenced outlets

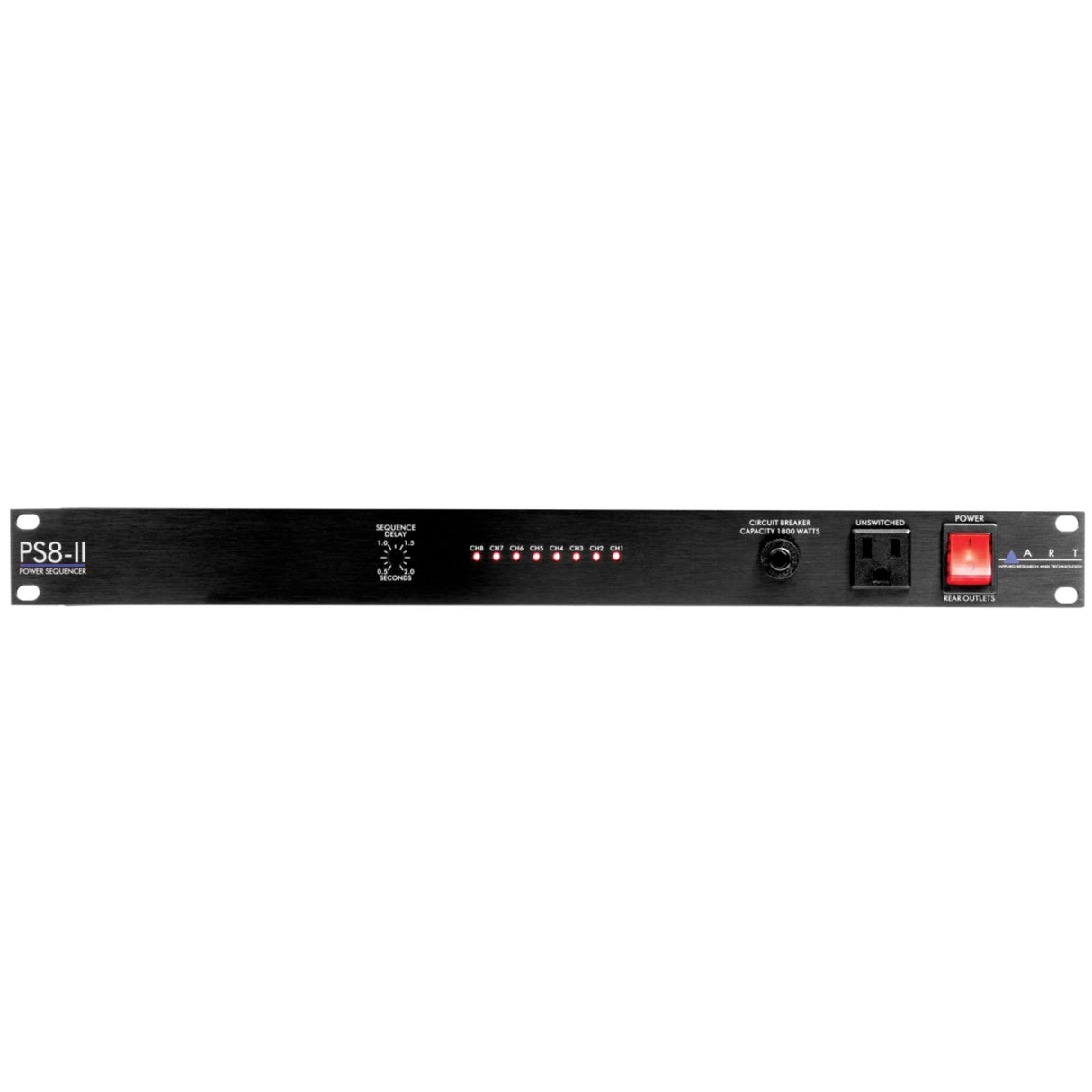

• Outlets (Front): 1 x front mounted unswitched
• Delay Time: 0.5 to 2.0 second variable pot
• Remote Switch: On/Off function
• Remote Terminal: Rear mounted 4-pin Euroblock connector
• Line Filtering: RFI / EMI
• Power Requirements: USA – 105 to 125 VAC / 60 Hz
• Dimensions (H x W x D): 1.75 in x 19.0 in x 11.5 in (16.5 cm x 48.2 cm x 29.2 cm)
• Weight: 9.2 lb (4.2 kg)
