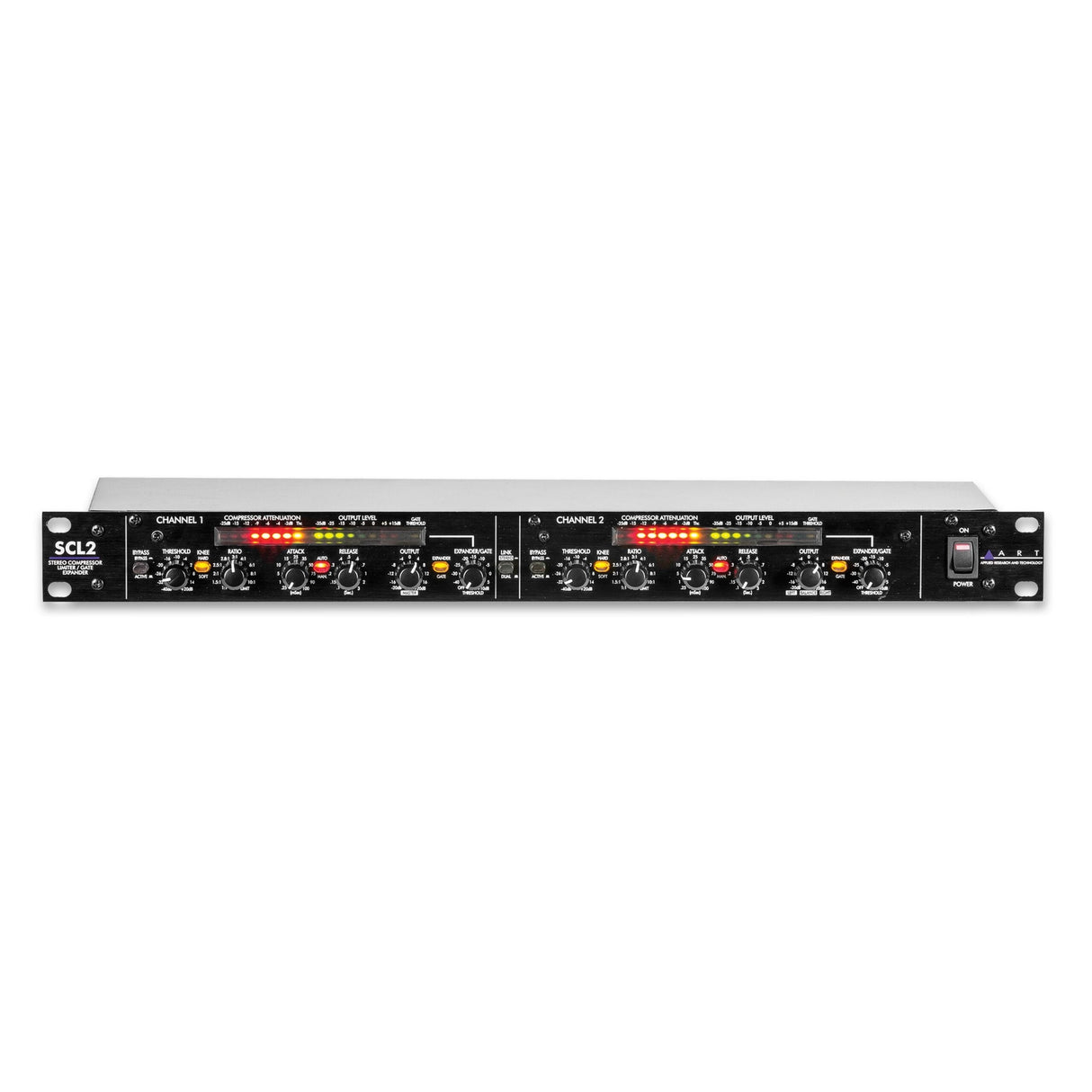

ART SCL2 Stereo Compressor Limiter

The SCL2 is a highly sophisticated and flexible dynamics processor designed for easy operation and great tone. The unit can be adjusted to provide anything from smooth subtle compression to hard limiting. Noise reduction is provided by a fast solid gate or a subtle expander. The Attack and Release functions allow the user to set the general operating range and then automatically adapt to the audio being processed. A full auto mode is also available. The ultra-precise LED meters while two LED meters clearly display the gain reduction for each channel.

Key Features

• Dual Channel or Linked Stereo Operation
• 1/4-Inch TRS And XLR Balanced Inputs
• Stereo Mode Balance Control
• Selectable Auto/ Manual Attack/Release
• Precise Led Level Meters
• All Steel Chassis
• 1/4-Inch TRS Side Chain Inserts
• 1/4-Inch TRS And XLR Balanced Outputs
• Led Gain Reduction Meters
• Selectable Hard/Soft Knee
• Internal Power Supply

Technical Specifications

Input/Output Connections
-inch TRS balanced
Side Chain Connections
-inch TRS (Tip = Send, Ring = Receive)
Input Impedance
10k
Output Impedance
200 (bal), 100 (unbal)
Maximum Input Level
+20 dBu Balanced
Maximum Output Level
+20 dBu Balanced
Frequency Response
10Hz to 40kHz, +/- .5dB
Dynamic Range
120 dB
Attack Time
.25mSec to 100mSec Adjustable
Release Time
100mSec to 3 Sec Adjustable
Total Harmonic Distortion
<0.06% (typical)
Power Requirements
120 V 60 Hz/50H, 10W max.
Dimensions
1.75” H x 19.0” W x 6” D (4.5 x 48 x 15.2 cm)
Weight
4.2 lbs (1.9 kg)
