ART Tube MP Microphone Preamplifier (Used)
Like New: Open box product with no signs of use.

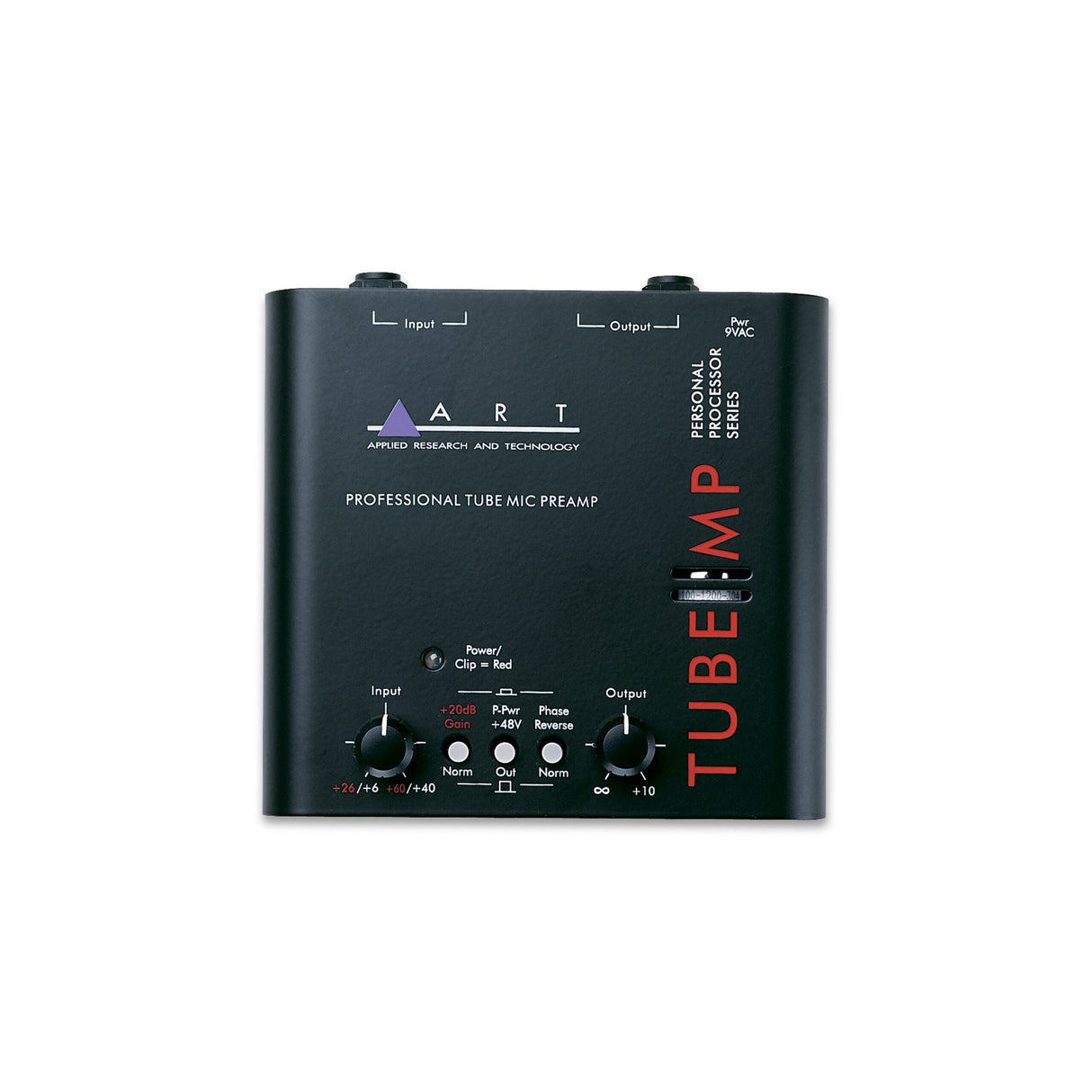

ART Tube MP Microphone Preamplifier
The Tube MP is the world’s most popular external tube microphone preamp. Whether you’re working with a digital, computer or analog recording system, the Tube MP’s TEC award nominated design will allow you to obtain professional recording studio results at a fraction of the cost of comparable equipment. The hybrid design of the Tube MP allows it to add warmth and fatness to a signal while maintaining exceptionally low-noise and high quality. While its primary application is to be used with a microphone, the Tube MP is an exceptional direct box - impedance matching, amplifying and improving the sound of any instrument plugged into it.
The usage of external mic/line preamps has become increasingly popular over the past several years. The Tube MP offers superior performance and sound quality to the “on-board” preamps found in today’s low-cost mixers and multi-trackers. It’s sound has been consistently favored over other products costing upwards to ten-times its price. Professional quality sound combined with professional features like
a hand-selected 12AX7a tube, phantom power and phase reverse are what have made the Tube MP a staple in thousands of studios worldwide. For a minimal investment, a Tube MP can provide the single largest improvement to the sound of your studio.
Key Features
- Provides Superior Preamplification for
- Microphones, Instruments and Line Level Sources
- Hand Selected 12AX7a Provides 70dB of Gain Smooth, Warm and Fat Sound Quality
- Variable Input and Output Gain Controls
- Excellent as a Tube DI
- XLR and 1/4” Inputs and Outputs +48 volts
- Phantom Power
- Phase Reversal Switch
- Superior Sonic Performance to On-Board Preamps
- TEC-Award Nominated Design
- Portable, All Steel Construction
- 1 Year Warranty
Technical Specifications
Frequency Response
10Hz to 20kHz (+0,-1dB)
Total Harmonic Distortion
<0.1% (typical)
CMMR
> 75dB (typ @1kHz)
Dynamic Range
> 100dB (20Hz to 20kHz)
Equivalent Input Noise
-129dBu (‘A’ weighted XLR to XLR)
Input Impedance
2k OHM (XLR), 840K OHM (1/4”)
Maximum Gain
70dB (XLR to XLR typical)
Maximum Input Level
+14dBu (XLR), +22dBu (1/4”)
Maximum Output Level
+28dBu (XLR), +22dBu (1/4”)
Output Impedance
600 OHM (XLR), 300 OHM (1/4”)
Power Requirements
9 VAC @ 700ma (typ)
Dimensions
5.0”D x 5.5”W x 2.0”H
Weight
1.5 lbs
