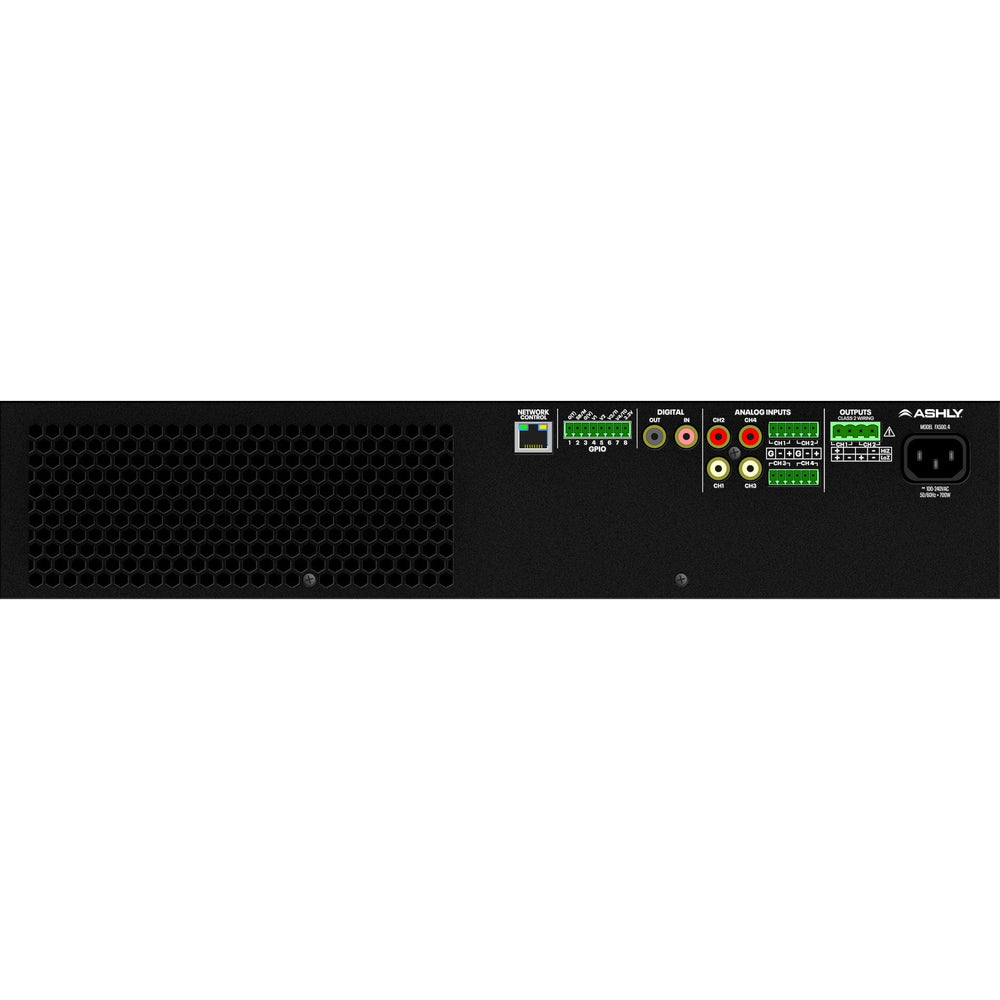

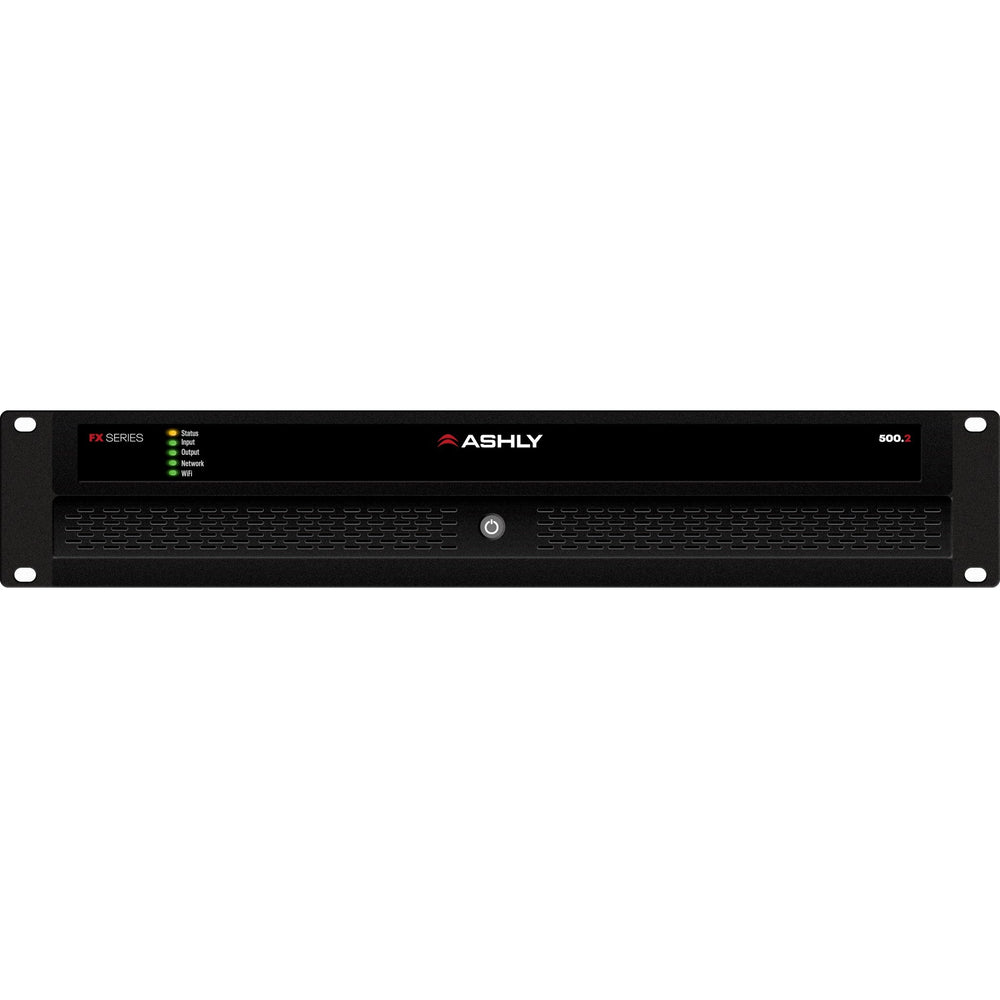

Ashly FX500.2 2-Channel 500W DSP Power Amplifier

The FX Series’ pedigree is the culmination of compact Class D design and Ashly’s years of developing easy-to-use software. Along with a newly incorporated DSP engine & software UI, the FX series takes amplification to new levels. Each FX model offers a healthy compliment of IO (include Digital SPDIF In & Out) and programmable integration ports for remote Volume Control, GP triggers and more. FX is networkable via Ethernet for wired LAN connection, or via its built-in WiFi hotspot. FX allows system configurations that don’t require additional equipment, such as stand-alone DSP or speaker system processors. All of that is in one box.

The FX Series features a powerful DSP engine that can configure to suit virtually any task, without the need for additional equipment. From processing input sources, routing and output DSP that can fine tune the sound of any speaker. Everything you need is right there. These will mix into Zones A-D and then into Outputs (2 or 4 depending on the number of amplifier channels). All models have a 4-channel DSP configuration with Input processing, Zone Processing, Output Processing, Speaker Processing and Device Settings

Key Features

• 500W x 2 @ 2/4 Ohms, 1 x 1000W @70/100V
• Intuitive Browser-based software Interface
• Comprehensive DSP (4 Input x 2 Output)
• Ethernet & Wi-Fi (WAP) connectivity for DSP control
• Dynamic Power Sharing-up to 750W (single channel driven @ 2 Ohms)
• Advanced Dynamic Power Sharing distributes power between channels, with 2x channel power
• Networkable via Ethernet or built-in WiFi
• Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
• Browser-based UI accessed via PC or mobile device. No software to install
• All models have 4 Input channels x 2 or 4 Output channels
• Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software
• Customized Speaker Presets made be created, saved & loaded for each output channel
• Addressable GPIO, Standby/Mute & VC remote ports. VC assignable per channel via software
• 1/2 RU models easy to hide in “non-rack” installations
• Highly efficient Class D and lightweight
• Optional hardware for 1/2 RU models for rack & wall/surface mounting
