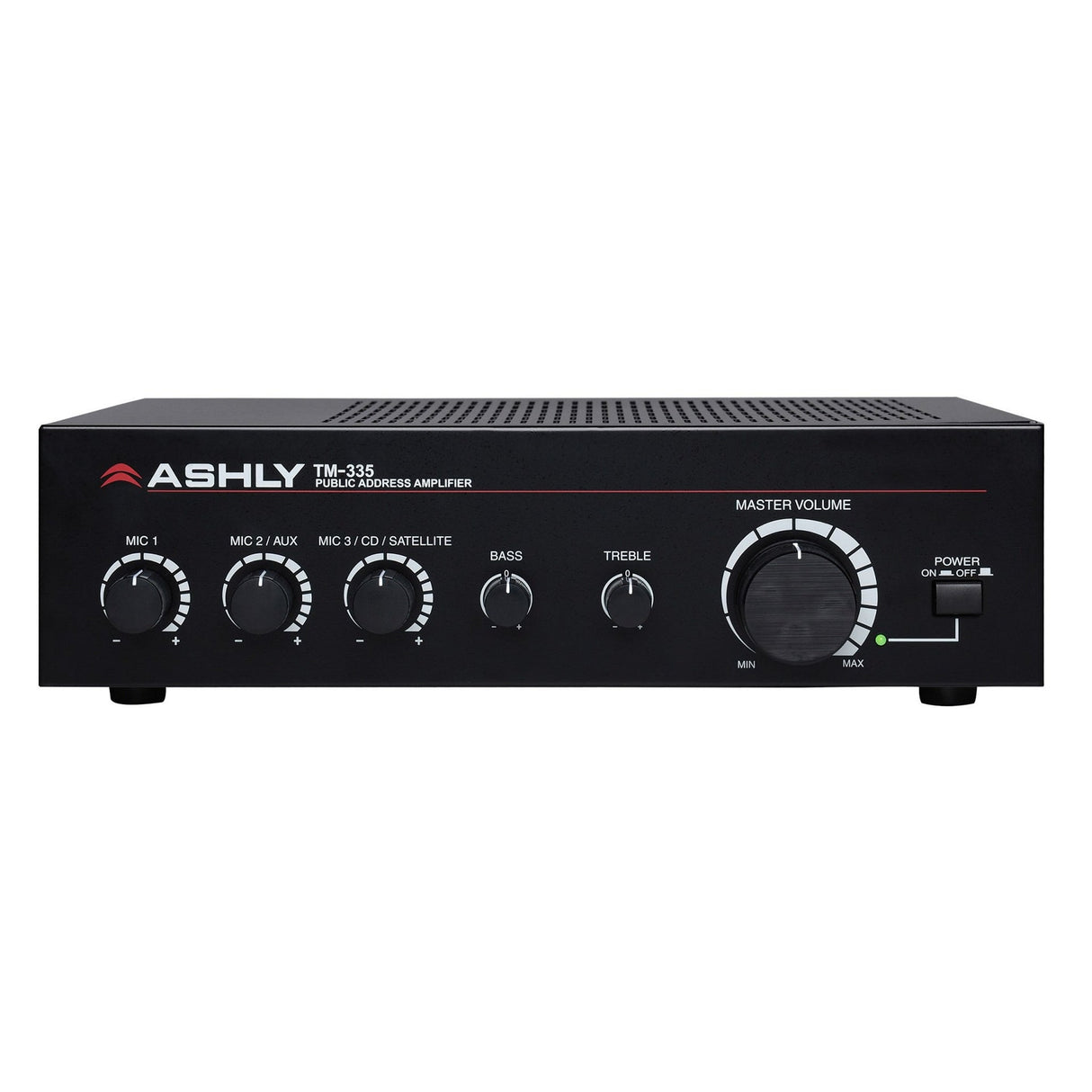

Ashly TM-335 35W Compact Mixer/Amplifier

The Ashly TM-335 is a high-performance, 3-channel audio mixer engineered to deliver exceptional sound quality and versatile functionality for audio professionals. Whether you're managing live sound events, setting up a recording studio, or handling any situation requiring precise audio control, this mixer is designed to meet your needs. With its robust construction and intuitive interface, the TM-335 offers a seamless mixing experience, ensuring clarity and reliability in all audio applications.

Featuring three high-quality input channels, the TM-335 ensures that each signal is processed with minimal noise and maximum clarity. Its versatile connectivity options allow for easy integration with various audio sources, while the durable design guarantees longevity even under demanding conditions. The mixer’s efficient power management and thermal dissipation capabilities make it a reliable choice for extended use, providing professional-grade audio performance in a compact and user-friendly package.

Key Features

• 3 high-quality input channels for precise audio control
• Excellent signal-to-noise ratio for clear sound
• Versatile output power options for various applications
• Efficient power draw and thermal management
• Intuitive tone control and input sensitivity adjustments

Technical Specifications

Channels
3
Signal to Noise (26dB Gain)
89dB
Output Power: 5% THD
4 Ohms, 8 Ohms, 25V, 70V 35W
Line Current Draw: @ 120VAC 60Hz
Standby Mode: 0.11A
Typical (1/8 power pink noise): 0.27A
Max (1/3 power sine wave): 0.31A
Thermal Dissipation: BTU/hr
Standby Mode: 30
Typical (1/8 power pink noise): 68
Max (1/3 power sine wave): 75
General
Operating Temp: -10˚C ~ +40˚C
Tone Control: Bass (100Hz) ±10dB, Treble (10kHz) ±10dB
Input Sensitivity: -50dBV / 600 Ohms (Mic 1, 2, 3), -15dBV / 10k Ohms (Aux, CD/Satellite)
Frequency Response (+0, -3dB): 130Hz–20kHz (Mic 1, 2, 3), 50Hz–20kHz (Aux, CD/Satellite), 330Hz–3kHz (Telephone)
THD: < 5% (35W @ 1KHz)
Dimensions
11.4”W x 3”H x 7.3”D (290mm x 76mm x 185mm)
Unit Weight
8.7lbs (3.95kg)
Shipping Weight
11lbs (5kg)
Power Requirements
100–120VAC, 50/60Hz or 220–240VAC, 50/60Hz
