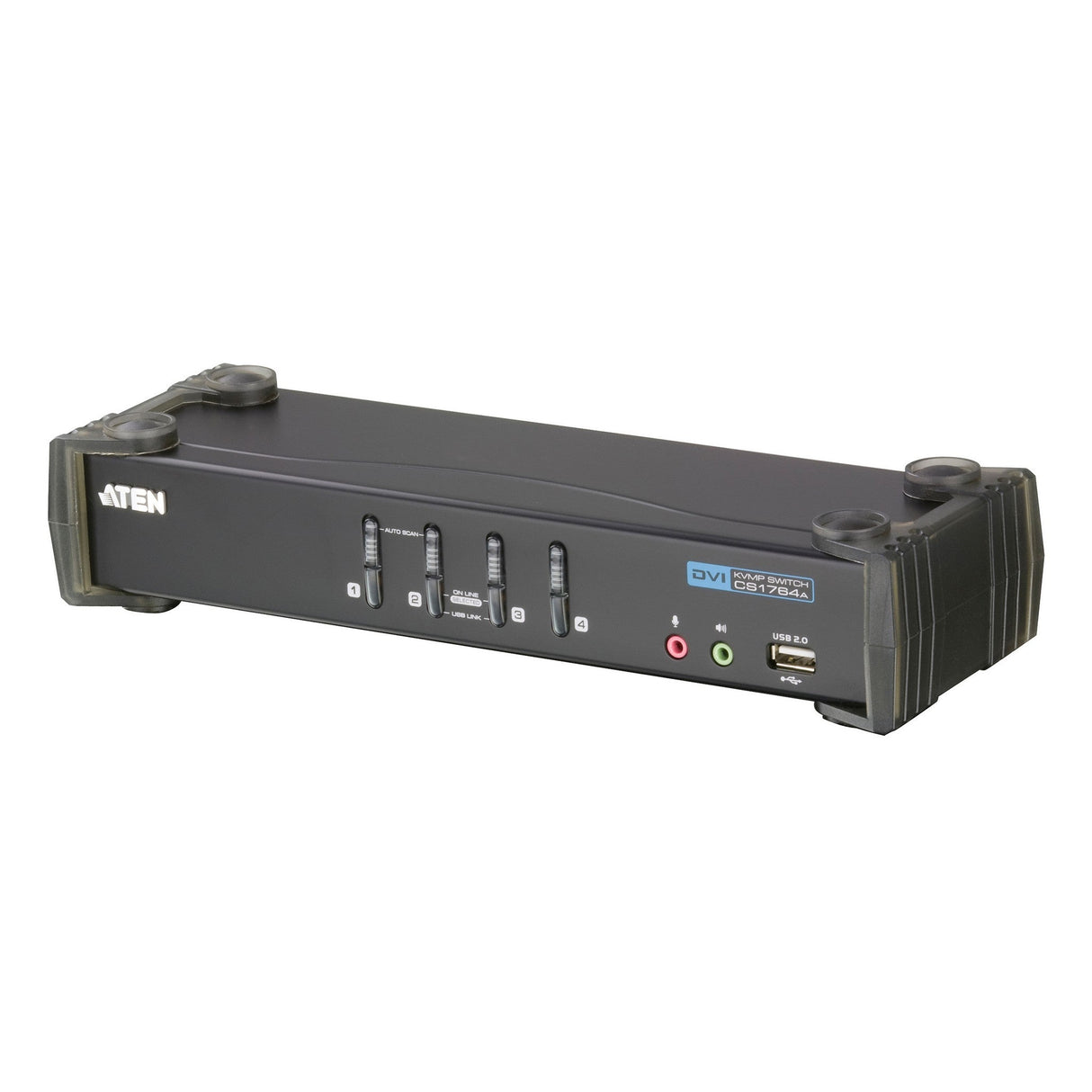

ATEN CS1764A 4-Port USB DVI/Audio KVMP Switch
The CubiQ CS1764A USB 2.0 DVI KVMP Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN's new Video DynaSync technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
Key Features
- One USB console controls four DVI computers and two additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification

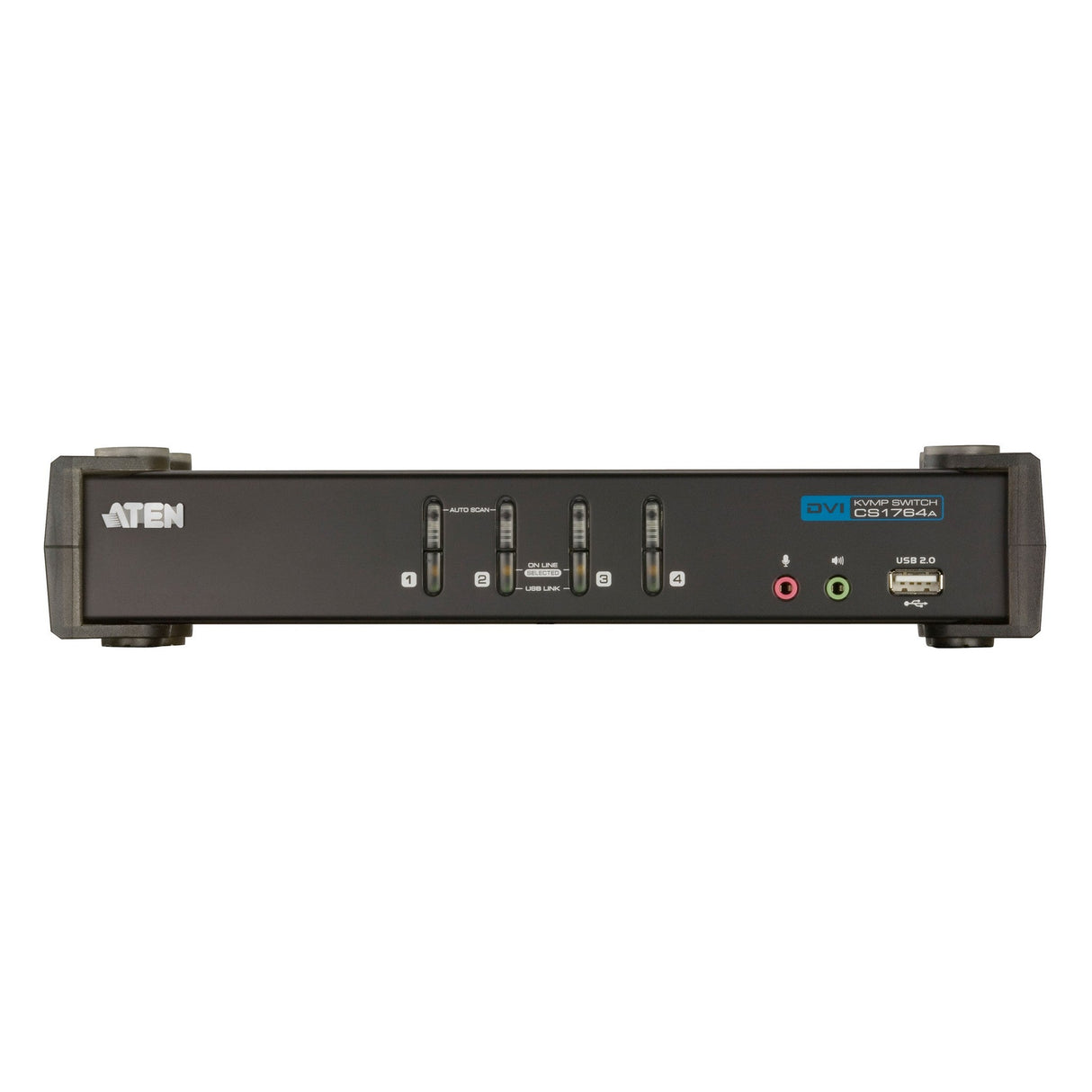

- Computer selection via front panel pushbuttons and hotkeys
- Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Superior video quality - 1920 x 1200, 60Hz; DDC2B
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with the DVI specifications
- HDCP compliant
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Sun /Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- Firmware upgradable via USB
Technical Specifications
Computer Connections
4
Port Selection
Hotkey, Pushbutton, Mouse
Connectors
Console Ports
2 x USB Type A Female (White; front panel)
1 x DVI-I Female (White)
2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel)
2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)

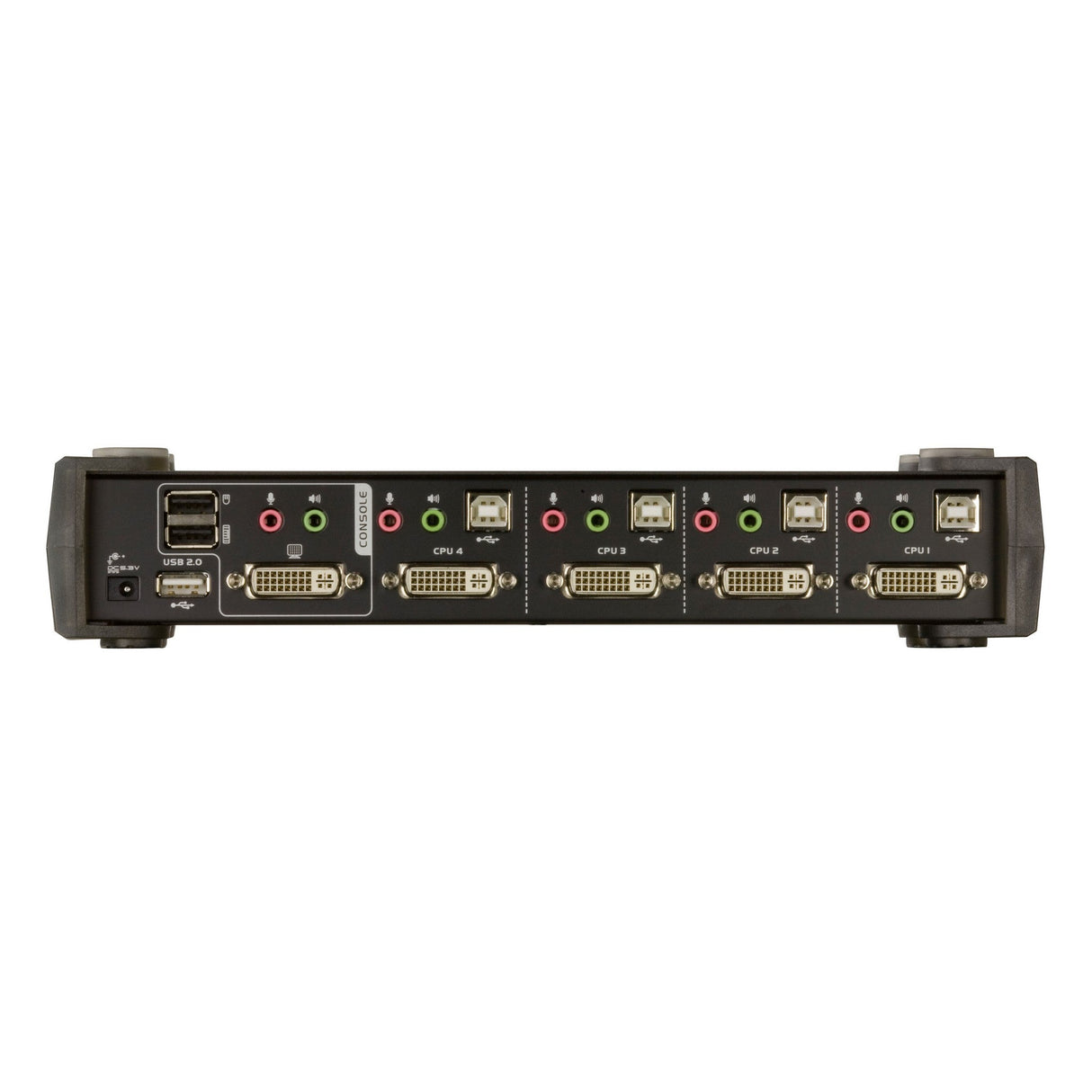

KVM Ports
4 x USB Type B Female (White)
4 x DVI-I Female (White)
4 x Mini Stereo Jack Female (Green)
4 x Mini Stereo Jack Female (Pink)
Power
1 x DC Jack
USB Hub
USB Hub
Switches
Selected
4 x Pushbutton
LEDs
USB Link
4 (Green)
On Line /Selected
4 (Orange)
Emulation
Keyboard / Mouse
USB
Video
1920 x 1200@ 60Hz; DDC2B
Scan Interval
1-99 Seconds (Default: 5 sec.)
Power Consumption
DC5.3V:4. 8W:38BTU
Environmental
Operating Temperature
0 - 50Ā°C
Storage Temperature
-20 - 60Ā°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.94 kg (2.07 lb)
Dimensions (L x W x H)
27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
