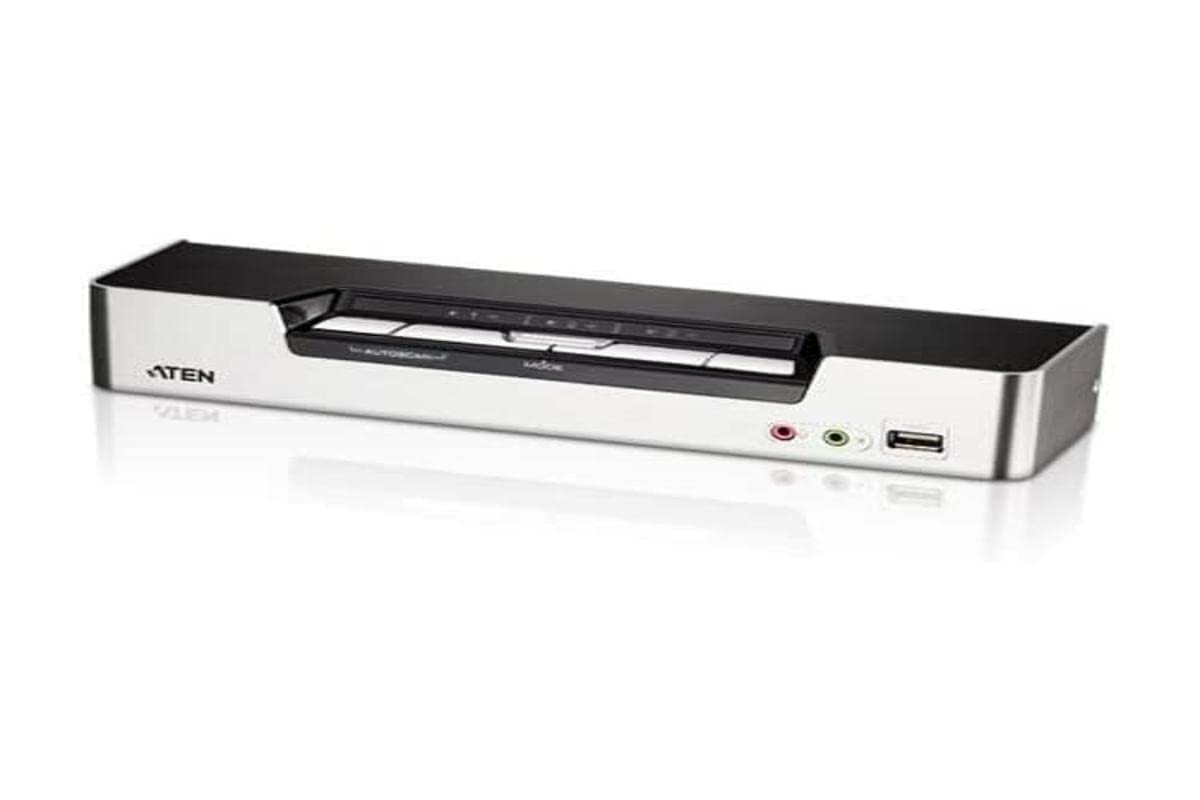

ATEN CS1794 4-Port USB HDMI/Audio KVMP Switch

With its unique design and innovative features, the CubiQ CS1794 USB 2.0 HDMI KVMP Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.

Key Features

• 4-port HDMI USB 2.0 KVMP Switch
• One USB console controls four HDMI-interface computers and two additional USB devices
• 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
• Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
• HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
• Dolby True HD and DTS HD Master Audio support
• Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
• Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
• Supports widescreen resolutions
• Multiplatform support - Windows, Linux,and Mac
• Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
• Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Complete keyboard emulation for error-free booting
• Mac keyboard support and emulation*
• Auto Scan Mode for monitoring all computers and HDMI devices
• Firmware Upgradable

Technical Specifications

Computer Connections
4
Port Selection
Hotkey, Pushbutton
Connectors
Console Ports
2 x USB Type A Female (rear panel)
1 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports
4 x USB Type B Female
4 x HDMI Female (Black)
4 x 3.5 mm Audio Jack Female (Green)
4 x 3.5 mm Audio Jack Female (Pink)
Firmware Upgrade
1 x 3.5 mm Audio Jack Female (Black)
Power
1 x DC Jack
USB Hub
2 x USB Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected
5 x Pushbutton
LEDs
Audio
5 (Green)
KVM
5 (Orange)
USB
5 (Green)
Emulation
Keyboard / Mouse
USB
Video
1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Scan Interval
1-99 seconds (default: 5 sec.)
Power Consumption
DC5.3V:3.62W:43BTU
Environmental
Operating Temperature
0-50C
Storage Temperature
-20-60C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal, Plastic
Weight
0.53 kg ( 1.17 lb )
Dimensions (L x W x H)
26.23 x 7.68 x 4.40 cm
(10.33 x 3.02 x 1.73 in.)
