ATEN CS1944DP 4-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
The ATEN CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1944DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1944DP is specifically designed for where multIt'sking is needed such as design, financial trading, and video post production.
Key Features
- One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality - Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)
- Supports MST (Multi-Stream Transport)
- Supports Console keyboard emulation / bypass feature
- Supports Console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
- Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
- DisplayPort 1.2 compliant; HDCP compliant
- Supports HD audio
- Power on detection
- Firmware upgradable
Technical Specifications
Computer Connections
4
Port Selection
Hotkey, Pushbutton, Mouse, RS-232 Commands

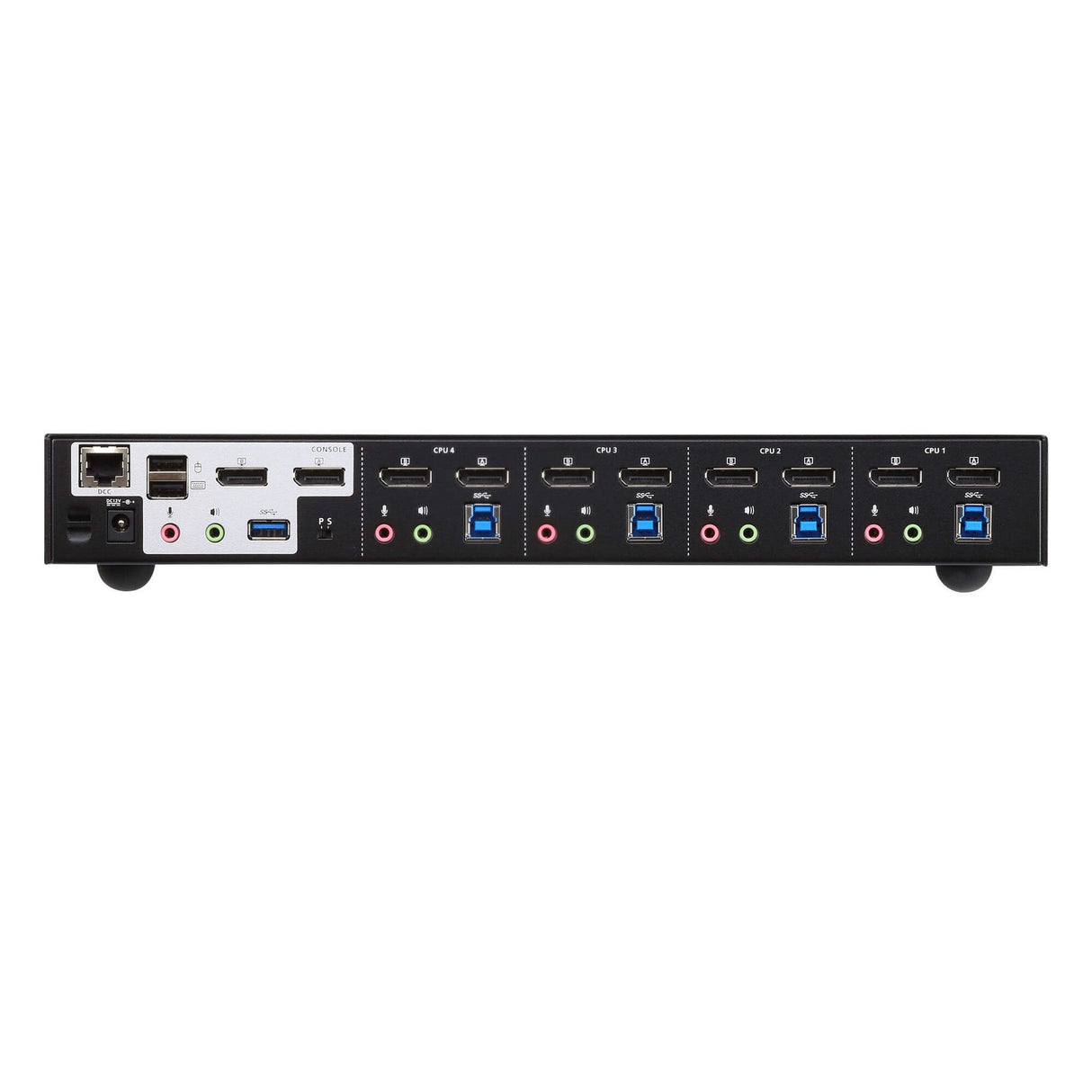

Connectors
Console Ports
2 x USB Type A Female
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports
4 x USB3.1 Gen1 Type B Female (Blue)
8 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports
1 x RJ-45 Female
Power
1 x DC Jack
USB Hub
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
LEDs
KVM
5 (Orange)
Audio
5 (Green)
USB Link
5 (Green)
Switches
Selected
5 x Pushbutton
Station Selection
1 x Slide Switch
Emulation
Keyboard / Mouse
USB
Video
4096 x 2160 @ 60Hz
Scan Interval
1-99 seconds (default: 5 seconds)
Power Consumption
DC12V:6. 125W:85BTU
Environmental
Operating Temperature
0-50Ā°C
Storage Temperature
-20-60Ā°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
1.51 kg (3.33 lb)
Dimensions (L x W x H)
33.50 x 15.66 x 4.40 cm
(13.19 x 6.17 x 1.73 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
