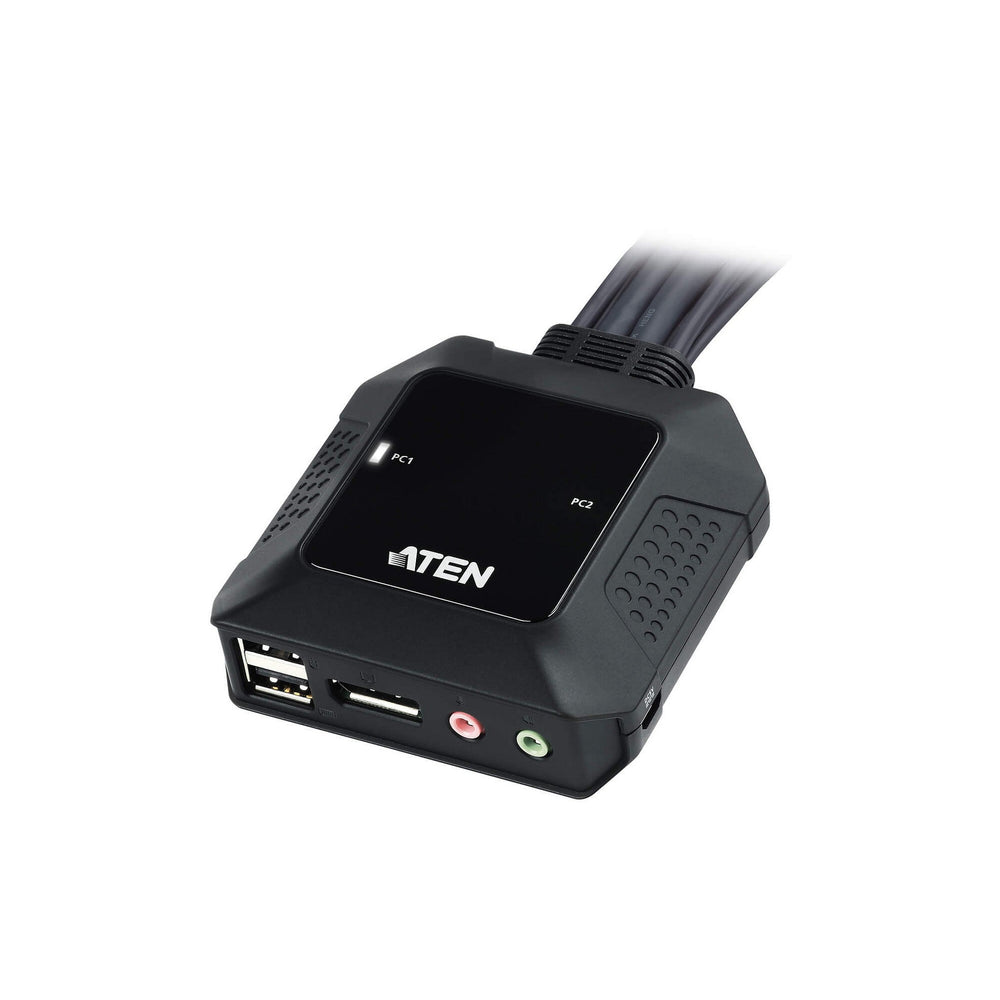

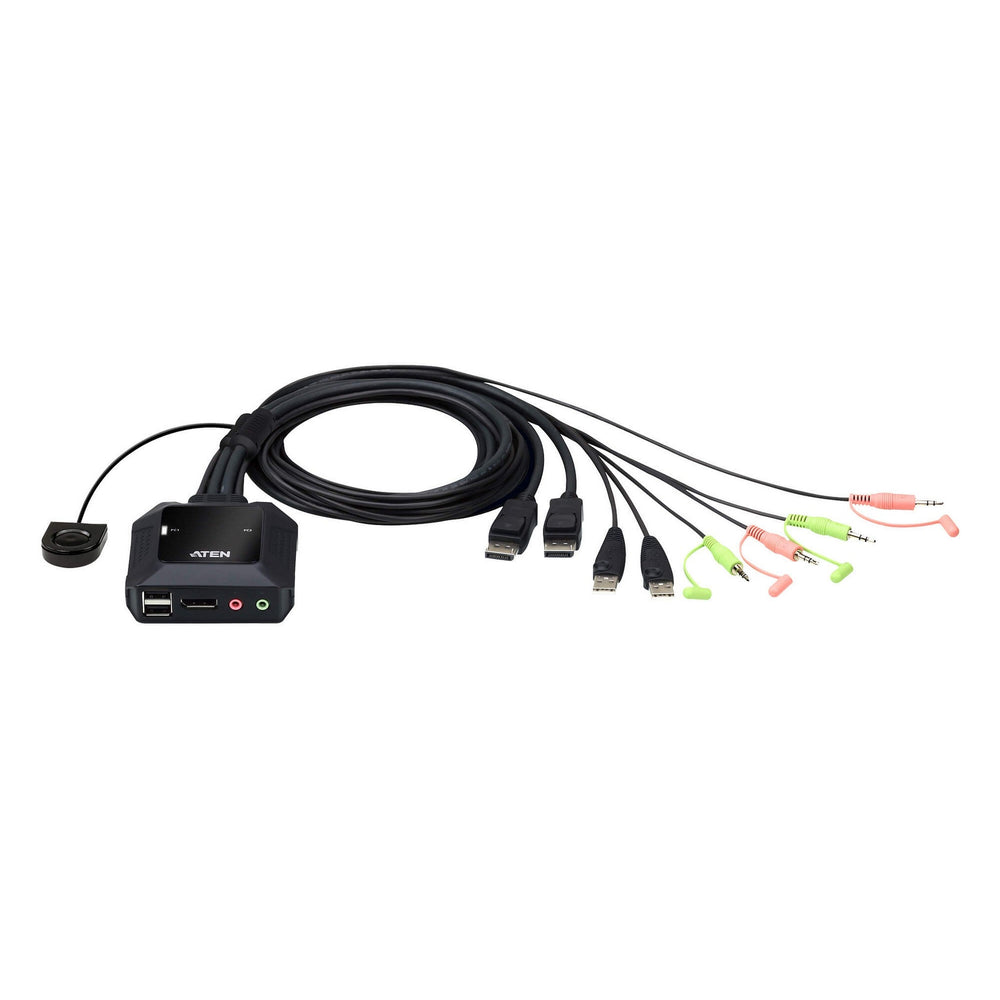

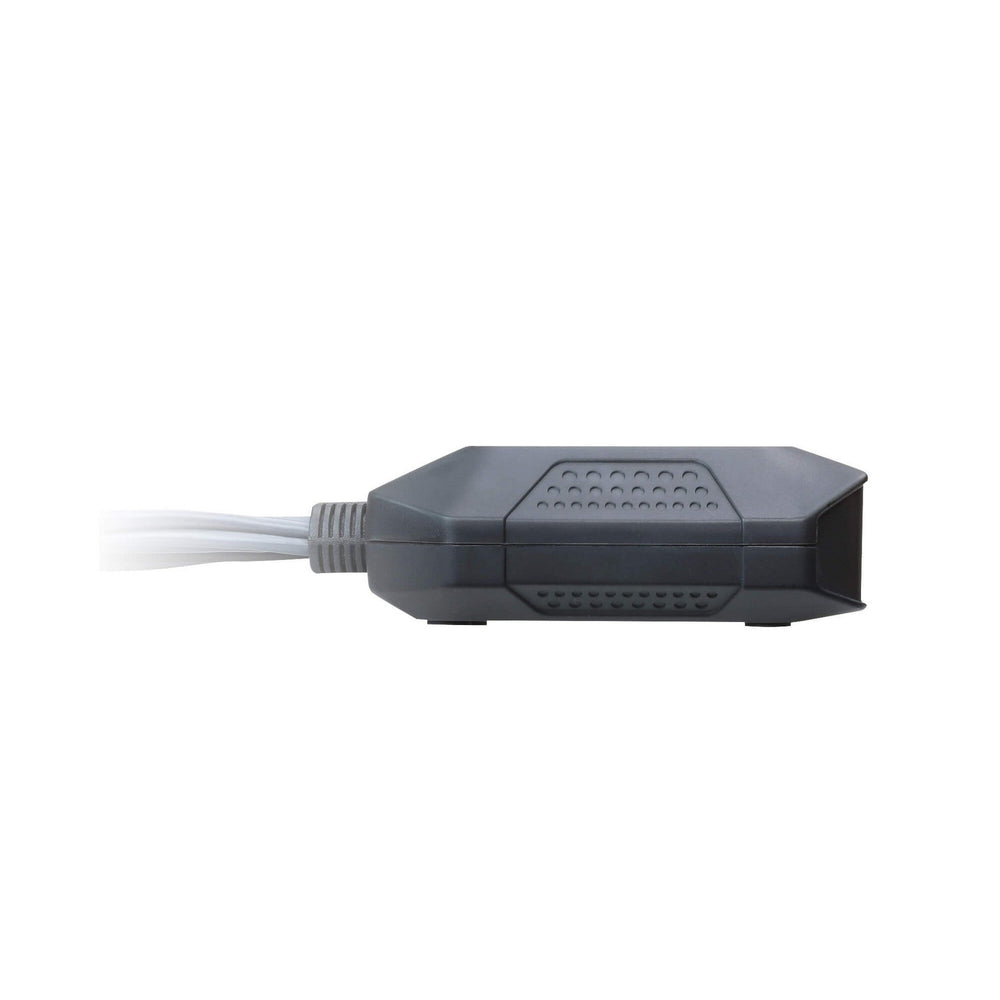

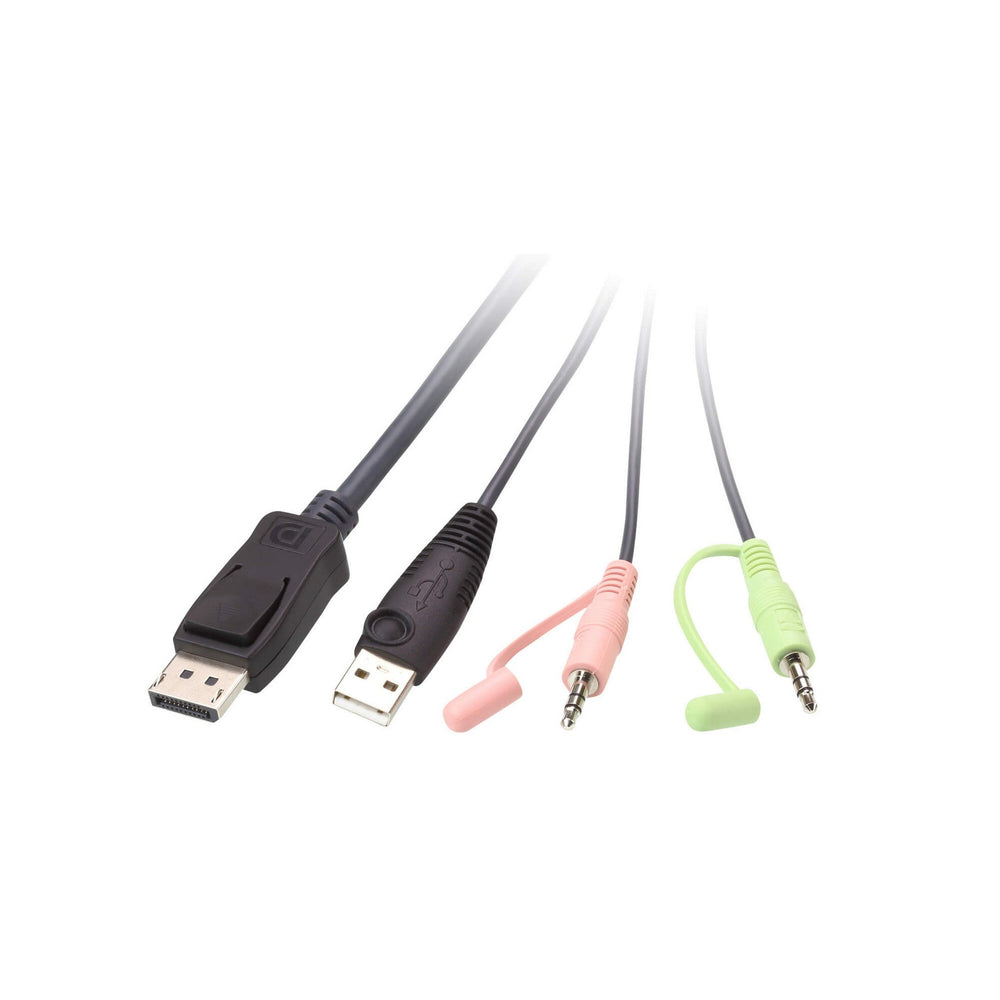

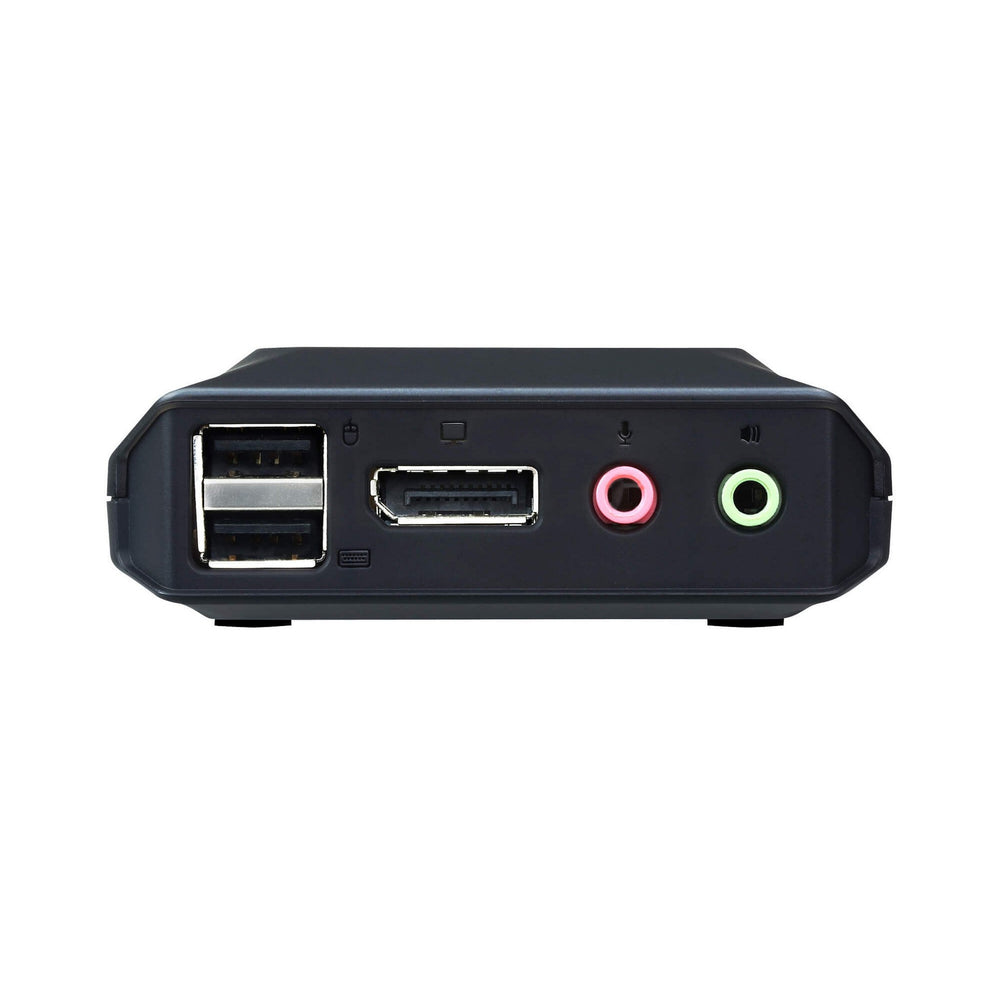

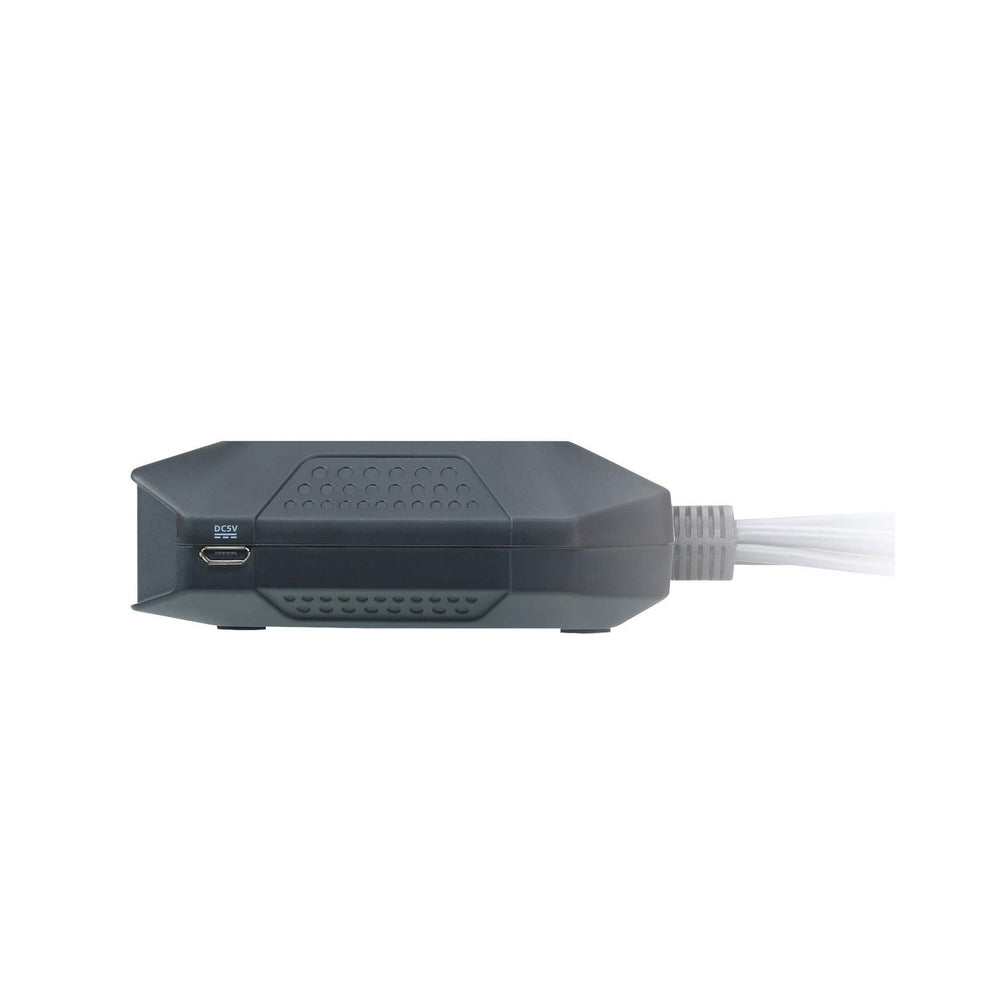

ATEN CS22DP 2-Port USB DisplayPort Cable KVM Switch
ATEN CS22DP 2-Port USB DisplayPort Cable KVM Switch
Free Shipping
ATEN CS22DP 2-Port USB DisplayPort Cable KVM Switch
The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
The CS22DP supports multiplatform operations allowing you to switch between two PC’s running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized.
It’s fast and easy to set up the CS22DP. Simply plug the KVM cables into their respective ports on the CS22DP and on the computers. There is no need to install software or configure devices - just plug and play.
Key Features
- One KVM console controls two USB DisplayPort computers
- Superior video quality - up to 4096 x 2160 @ 30Hz
- Computer selection via Remote Port Selector
- Multiplatform support - Windows, Mac, and Linux
- Supports microphone and speakers
- The console USB ports can be used for USB peripheral sharing1
- Supports USB hot-plugging
- DisplayPort 1.1 compliant; HDCP compliant
- Bus-powered
Technical Specifications
Computer Connections
2
Port Selection
Remote Port Selector
Connectors
Console Ports
1 x DisplayPort Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM (Computer) Ports
2 x DisplayPort Male
2 x USB Type A Male
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)
Power (Optional)
1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected)
2 (White)
Cable Length
KVM
2 x 1.2 m
Remote Port Selector
1.8 m
Emulation
Video
4096 x 2160 @ 30Hz
Power Consumption
DC5V:1. 38W:28BTU
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.35 kg (0.77 lb)
Dimensions (L x W x H)
8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
