ATEN CS82U 2-Port PS/2-USB VGA KVM Switch
Description
Description
ATEN CS82U 2-Port PS/2-USB VGA KVM Switch
The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.
Key Features
- One PS/2-USB VGA console controls two VGA interface computers.
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Multiplatform support - Windows, Linux, Mac, and Sun
- Superior video quality - 2048 x 1536; DDC2B
- Video DynaSync - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping - supports English, Japanese, and French keyboards
- Gaming keyboard support
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
- Bus-Powered
Technical Specifications
Computer Connections
2
Port Selection
Hotkey, Pushbutton, USB Mouse

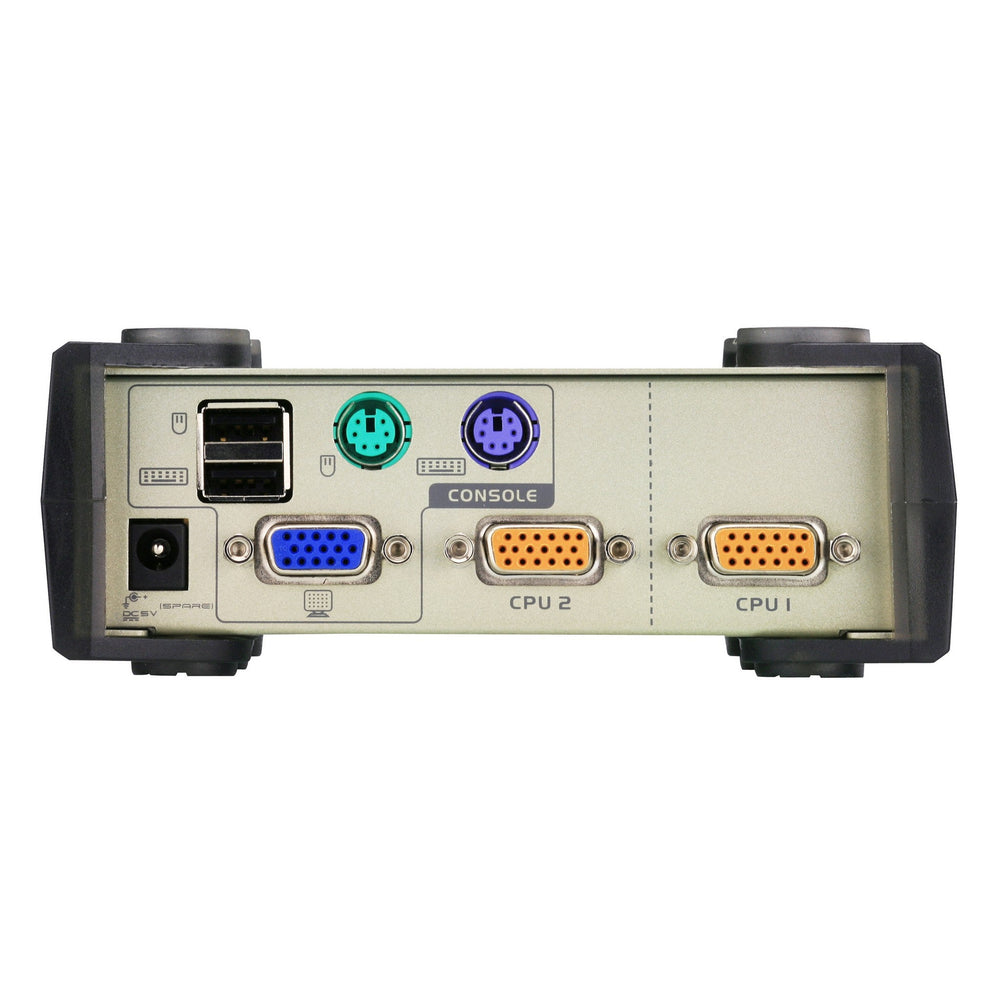

Connectors
Console Ports
1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
KVM Ports
2 x SPHD-18 Female (Yellow)
Power
1 x DC Jack

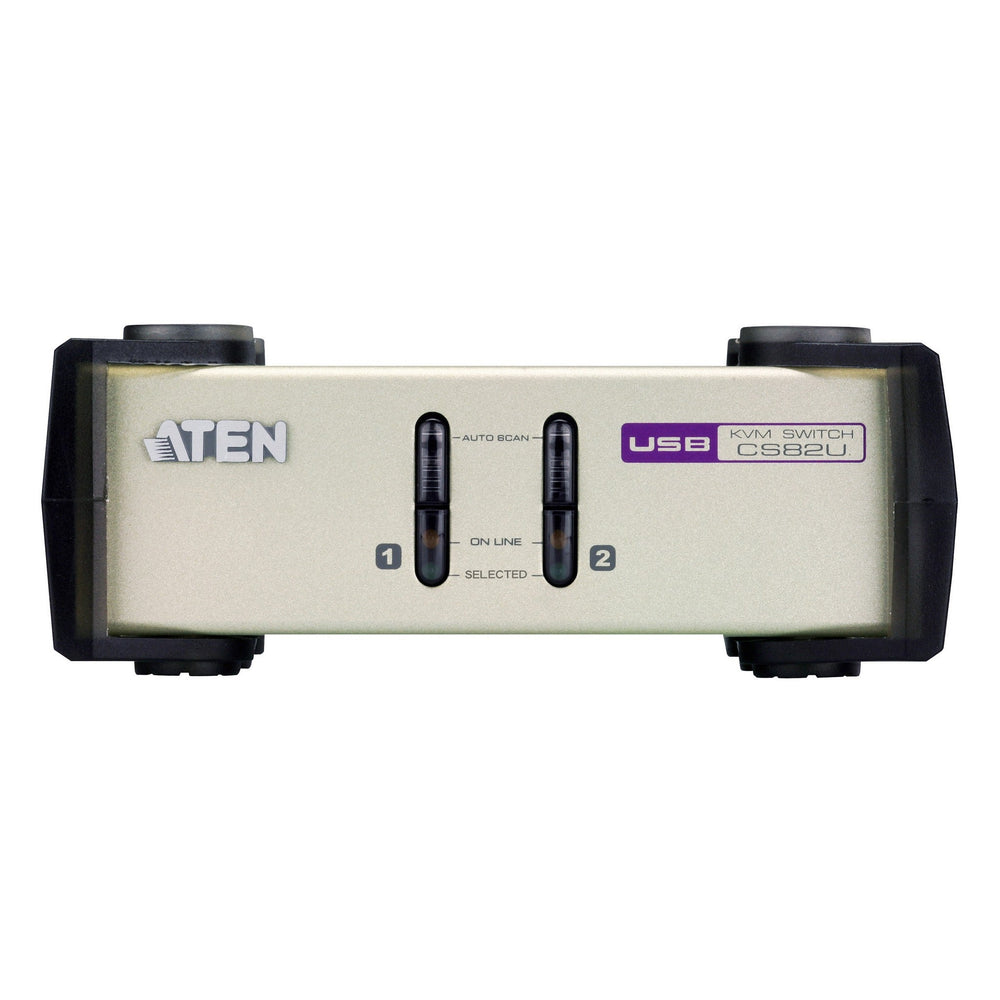

Switches
Selected
2 x Pushbutton
LEDs
Online
2 (Orange)
Selected
2 (Green)
Emulation
Keyboard / Mouse
PS/2, USB
Video
2048 x 1536 @ 60 Hz; DDC2B
Scan Interval
3, 5, 10, 20 seconds (default: 5 secs.)
Power Consumption
DC5V:0. 72W:12BTU
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.54 kg (1.19 lb)
Dimensions (L x W x H)
14.00 x 8.80 x 5.55 cm
(5.51 x 3.46 x 2.19 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
