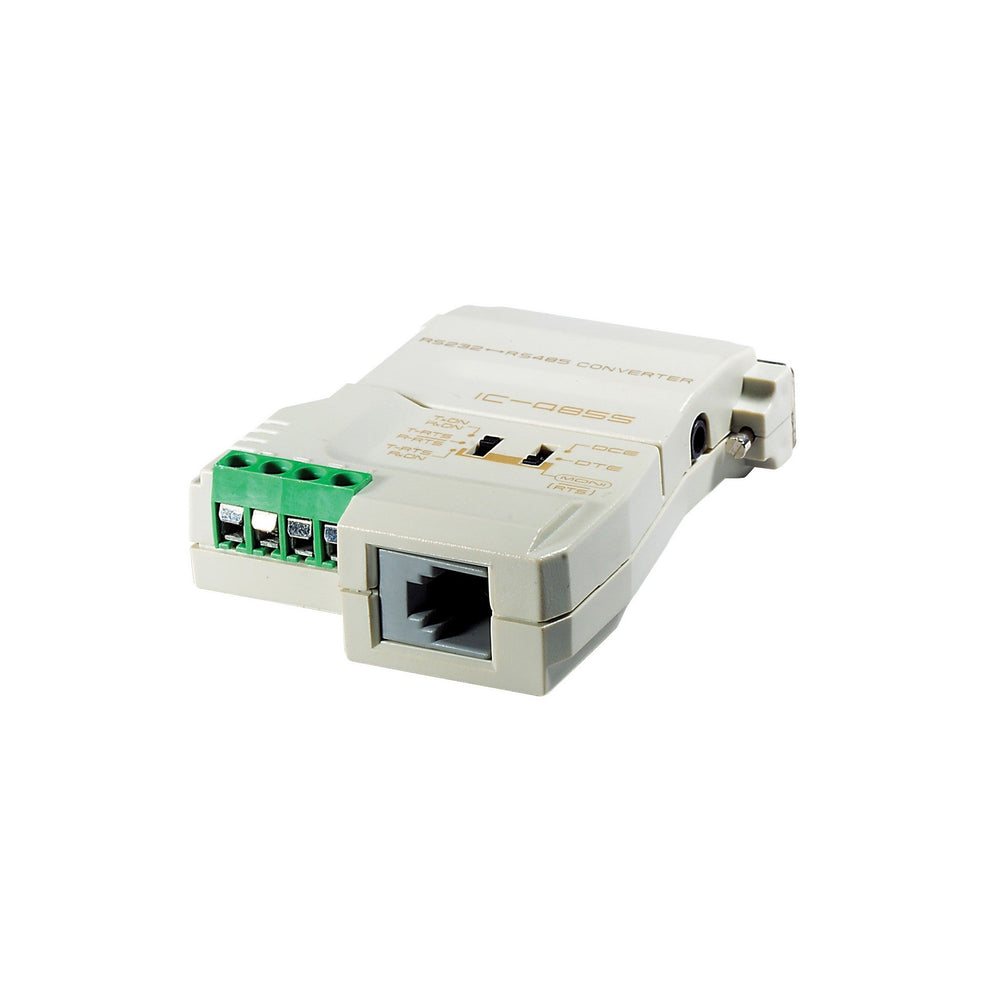

ATEN IC485S RS-232/RS-485 Interface Converter
IC485S is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance applications up to 1200 m (4000 ft.). It'supports the connection of up to 32 hubs and features monitoring to confirm the data passing between devices.
Key Features
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex; two wire half duplex.
- Compact size.
- Cable distance of up to 1200m (4000 ft.).
- Monitor configuration support.
- Supports baud rates up to 115.2Kbps.
- OS Support: Windows 2000, Windows XP
Technical Specifications
Connectors
1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
1x RJ-11 Female
Switches
DCE, DTE, Monitor
TxON, RxON
TxRTS, RxRTS
TxRTS, RxON
Power Consumption
DC9V:0. 82W:2BTU
Signal Range
1200 m <4000'> (Max)
Data Rate
Up to 100 Kbps under 1200 m <4000'>
Environmental
Operating Temperature
0 ~50 Degrees C
Storage Temperature
-20 ~ 60 Degrees C
Humidity
0~80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.05 kg (0.11 lb)
Dimensions (L x W x H)
7.90 x 5.45 x 2.10 cm (3.11 x 2.15 x 0.83 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
