ATEN UC9040 StreamLIVE PRO All-In-One Multi-Channel AV Mixer

ATEN UC9040 StreamLIVE PRO All-In-One Multi-Channel AV Mixer

The StreamLIVE PRO is a portable, all-in-one, multi-channel audio / video mixer device that integrates an 1080p video capture, video recorder, video switch, stream broadcaster, video converter, 4K video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE PRO makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook,and Twitch.

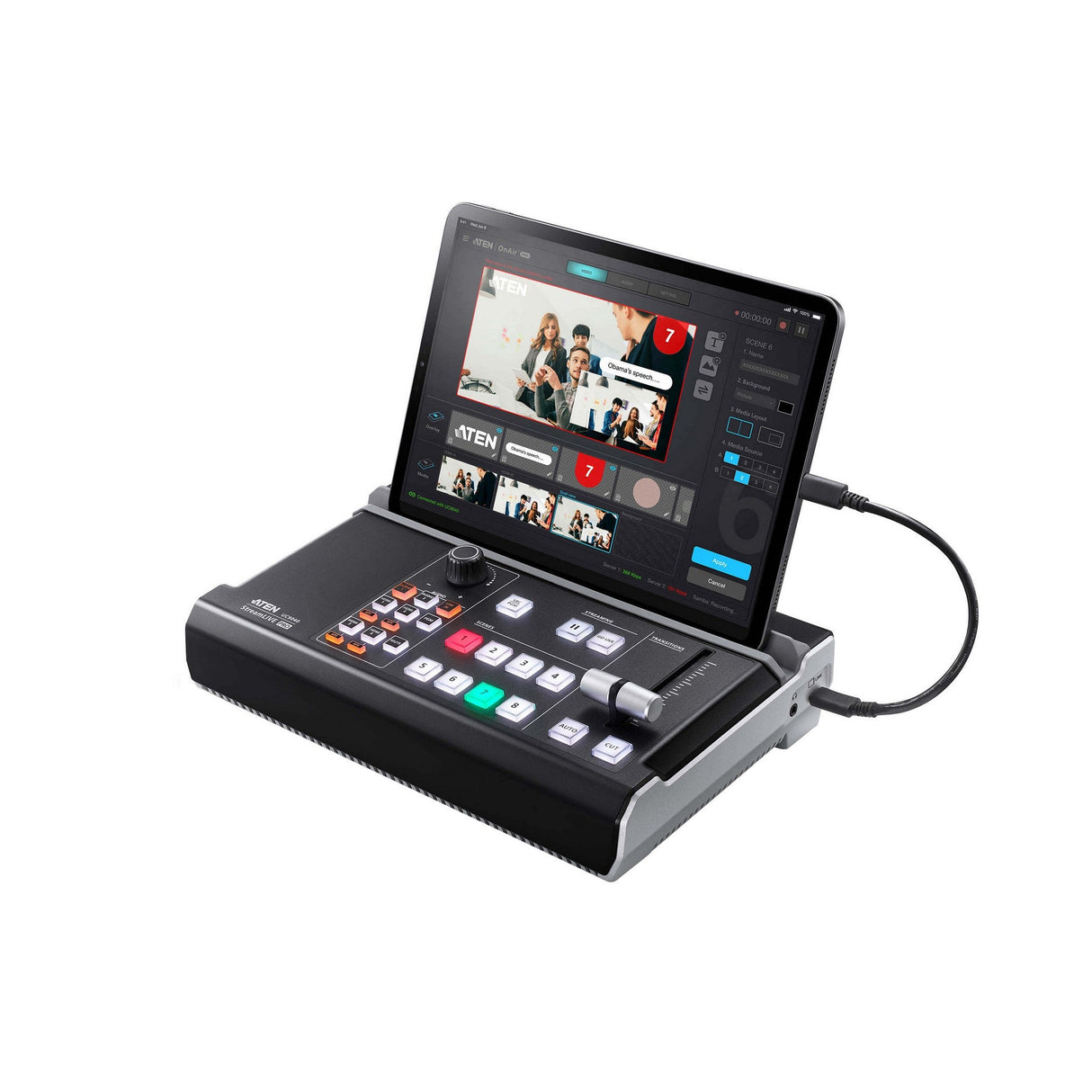

For added convenience, the StreamLIVE PRO features an intuitive app, OnAir, which is designed for use with supported Android / Windows devices or iPads, making it easy to monitor, edit image layouts, and DVE, PiP or PbP settings. There are eight stunning DVE transitions including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square. The StreamLIVE PRO is PC and software-free, and with its well-designed control panel, it makes livestreaming operations smooth and effortless. Users can even preview video and monitor audio levels before going live with their web broadcast! To get started, simply connect audio / video sources with Ethernet and an ATEN OnAir-installed Android / Windows device or iPad, and you are ready to roll.

For enterprises in need of delivering remote presentations on Skype, Zoom, MS Teams, OBS, or other platforms for meetings, online events, and webinars alike, the StreamLIVE PRO works with ATEN Stream to USB software, which helps convert streams into USB webcam signals. Moreover, the software enables operators to monitor the live production coming from all StreamLIVE PROs in a media pool and to broadcast each stream to the right destination.

When it comes to outputting content from an iPhone / iPad, usually UI elements appear on the video feed, which is not aesthetically pleasing. This is where ATEN OnAir Cam app helps! The app helps capture camera feed from an iPhone / iPad and turn it into an 1080P @ 60 Hz HDMI video source devoid of on-screen icons or overlays. Such clean camera feed can be used on the StreamLIVE PRO for live stream rig or post production set-up enhancement, achieving higher production value.

Whether users are capturing, editing or streaming, the StreamLIVE PRO, with its ergonomic and practical design, is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, the StreamLIVE PRO addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.

Key Features

• All-in-one design to simplify streaming workflow - integrates capabilities of 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
• Professional-quality live streaming everywhere - compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere
• 1080p recording - features media recording that can be used to record a program and save recordings directly to a connected external hard drive via USB

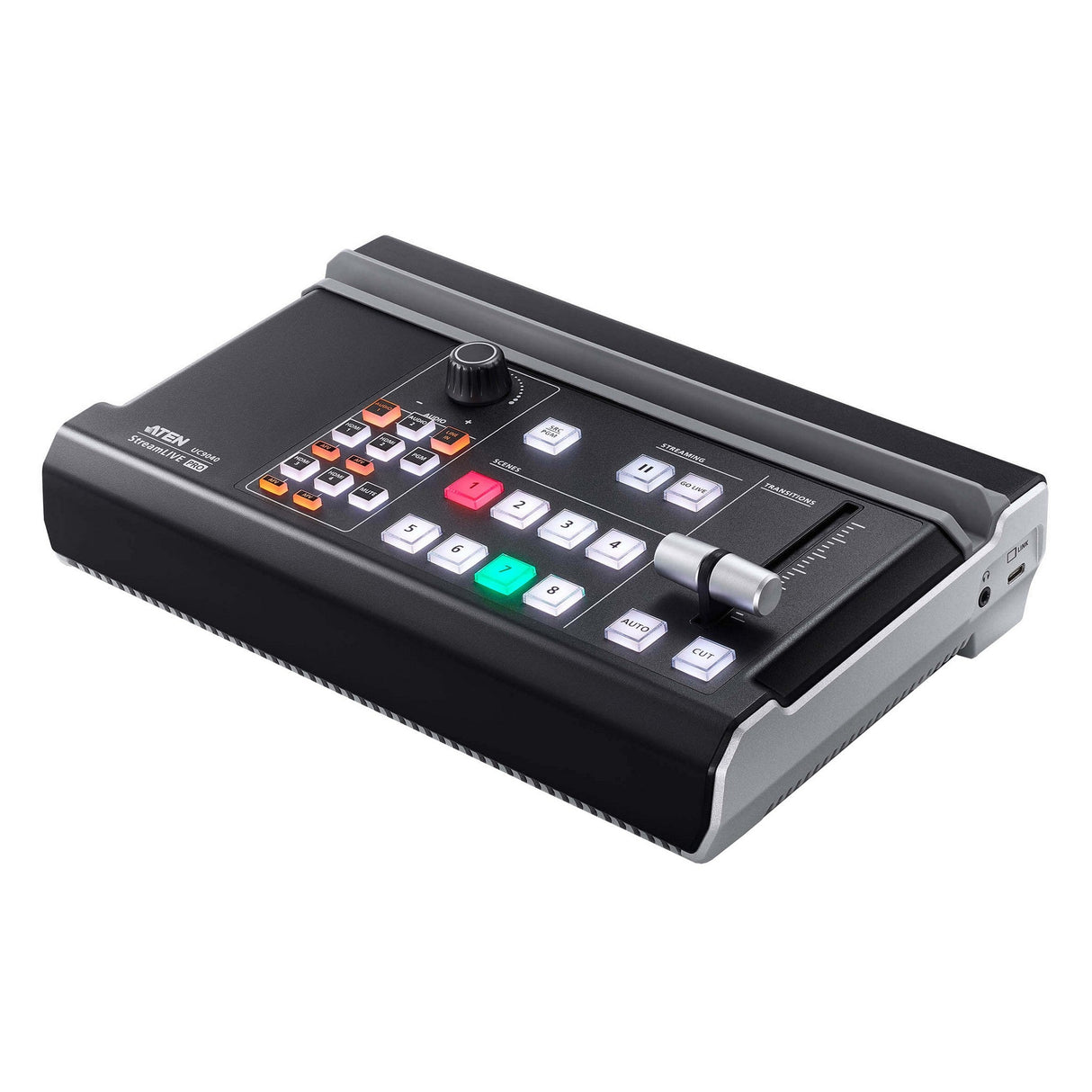

• Compact mixer control panel - switches and mixes multiple AV sources with the easily identifiable luminous keys
• Intuitive and powerful app OnAir - allows for preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish
• DVE (Digital Video Effect) video transition - includes circle drop, window slice, polka dot, circle open, fade, heart, cross hatch, and random square
• Storyboard-like management - quick and smooth transitions control for professional programming during live events
• Audio Management - multi-channel audio mixing with faders, meters, and balance for every input
• Fanless and optimized thermal air flow system for quiet operation
• MultIt'sk designed handle-stand to enhance portability and ergonomic comfort angle
• Supports Android / Windows devices or iPads
• Works with ATEN Stream to USB software - converts streams from multiple StreamLIVE PROs into USB webcam signals for delivering remote presentations on Skype, Zoom, MS Teams, OBS and more
• Receives clean HDMI camera feed via ATEN OnAir Cam app - the app helps capture the iPhone / iPad camera feed and turn it into a clean 1080P @ 60 Hz HDMI video source without on-screen icons or overlays for the StreamLIVE PRO's usage

Technical Specifications

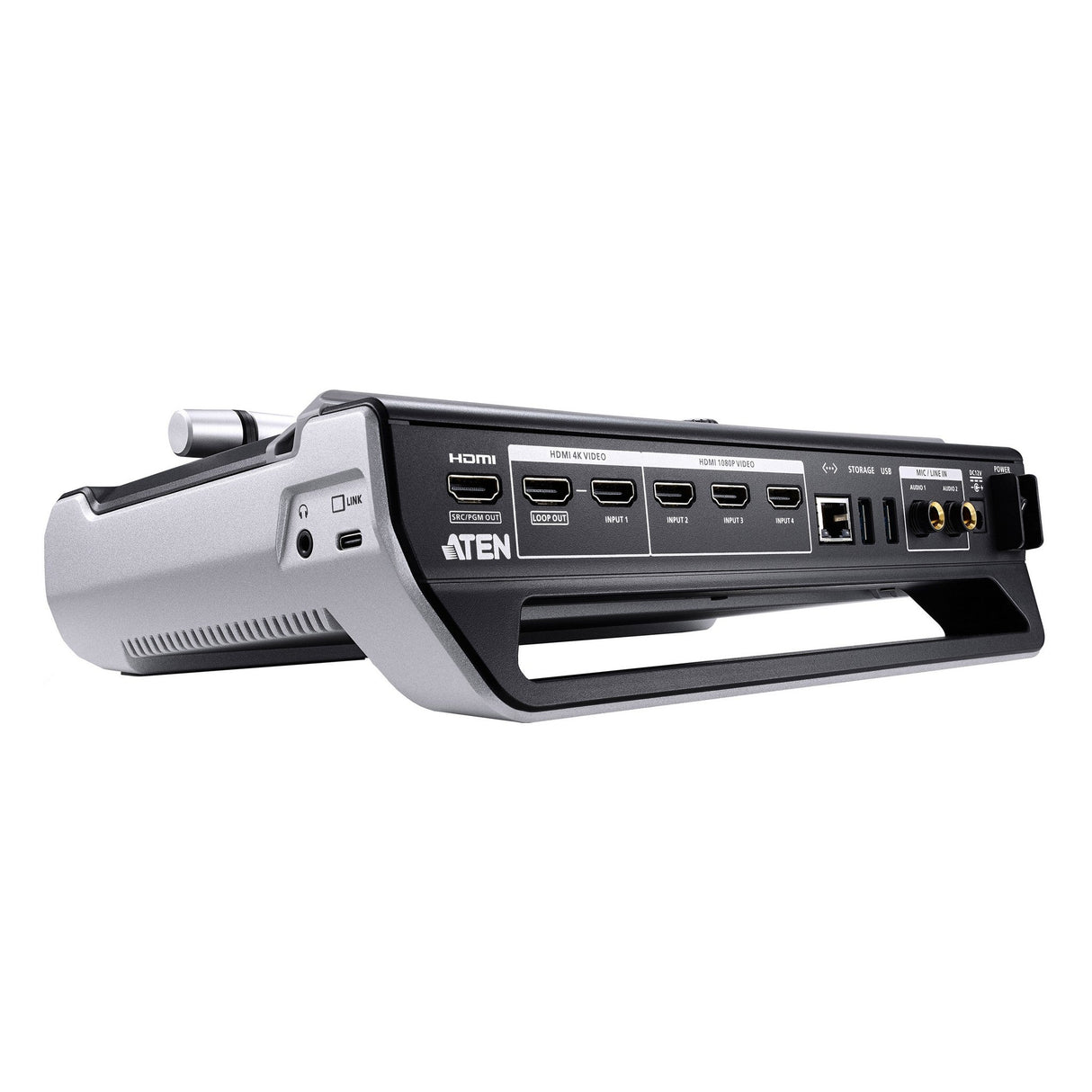

Video Input
Interfaces
1 x 4K HDMI Type-A Female (Up to 2160p60, unencrypted)
3 x HDMI Type-A Female (Up to 1080p60, switcher, unencrypted)
Video Output
Interfaces
1 x 4K Loop-Thru HDMI Type-A Female (Up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female (Up to 1080p60, unencrypted)
Video Sampling
4:2:2 8-bit
Color Space
4:2:2 YUV
Video Resolution
HDMI 1 Input
VGA (640x480@60), 480p60/50/30/25, SVGA (800x600@60), XGA (1024x768@60), 720p60/50/30/25, SXGA (1280x1024@60), WXGA+(1440x900@60), UXGA (1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
HDMI 2/3/4 Input
VGA (640x480@60), 480p60/50/30/25, SVGA (800x600@60), XGA (1024x768@60), 720p60/50/30/25, SXGA (1280x1024@60), WXGA+(1440x900@60), UXGA (1600x1200@60 RB), 1080p60/50/30/25
SRC/PGM HDMI Output
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25
HDMI Loop-Through Output
VGA (640x480@60), 480p60/50/30/25, SVGA (800x600@60), XGA (1024x768@60), 720p60/50/30/25, SXGA (1280x1024@60), WXGA+(1440x900@60), UXGA (1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Audio Inputs
Interfaces
HDMI captured inputs (stereo)
2 x 1/4” TRS jack (dual mono)
Audio Outputs
Interfaces
HDMI outputs (stereo)
1x 1/8” TRS jack (stereo)
Network Protocol
Dual-stream encoder supports direct live streaming to CDN server over ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
Video Encoding
Format
H.264
Bit rate
512Kbps~10Mbps
Color Format
YUV420
Resolution
1080p30/25, 720p60/50/30/25, 480p60/50/30/25
Audio Encoding
Format
AAC
Sampling rate
48kHz
Bit rate
128kbps
Recording Storage
Max. video resolution
1080p30/25
File format
MP4
Support media
USB 3.x compatible mobile drive (HDD / SSD), at least 32GB of free space
Connection
2x USB 3.1 Gen1 Type-A Female (blue)
1x USB Type-C
1x GbE LAN port
Environmental
Operating Temperature
0 - 40 Degrees C
Storage Temperature
-20 - 60 Degrees C
Humidity
0 - 80% RH, Non-Condensing
OS Support
System requirements for iPads
iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required)
iPad Pro (1st and 2nd gen) iPad (5th gen or later) iPad Air (3rd gen or later) iPad Mini (5th gen or later)
System requirements for Android tablets
Android 9 and above
Octa-Core ARM Cortex grade CPU and above
Minimum 2.75GB system RAM
UC9040 with Firmware Ver.1.1.109 is also required
System requirements for Chromebook
Chromebook with Android APP support
UC9040 with Firmware Ver.1.3.121 is also required
System requirements for Windows PC
A PC with Windows 10 version 17763.0 or higher, 32/64-bit
CPU
Intel i3 Dual Core 2.8Ghz or higher
RAM
4GB or more
OnAir App for Window from Windows Store
UC9040 with Firmware Ver.1.3.122 is also required
Power
Maximum Input Power Rating
DC12V, 7.5A
Power Consumption
DC12V:17. 37W:184BTU
Physical Properties
Housing
Metal
Weight
1.85 kg (4.07 lb)
Dimensions (L x W x H)
28.85 x 18.99 x 9.66 cm (11.36 x 7.48 x 3.8 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
