ATEN UH3238 USB-C Travel Dock with Power Pass-Through
Description
Description
ATEN UH3238 USB-C Travel Dock with Power Pass-Through
Designed and made to be a portable and versatile connectivity solution, the UH3238 USB-C Travel Dock with Power Pass-Through contains 5 essential ports - one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port - to provide connectivity and power supply for users that travel and require mobile office scenarios. The Thunderbolt 3 and USB 3.2 Gen 1- compatible interface guarantees superior data transmission speed up to 5 Gbps. With the support for up to 4K HDMI (3840 x 2160 @ 60Hz), the device allows users to multIt'sk at stunningly realistic UHD resolution. The UH3238 boasts a plug-and-play design and is compatible with all major operating systems (Windows, macOS X, iPadOS, and Android). Weighing at just 44g, it is a compact, yet competent, and ideal data and power transmission solution for every mobile workstation ecosystem.
Key Features

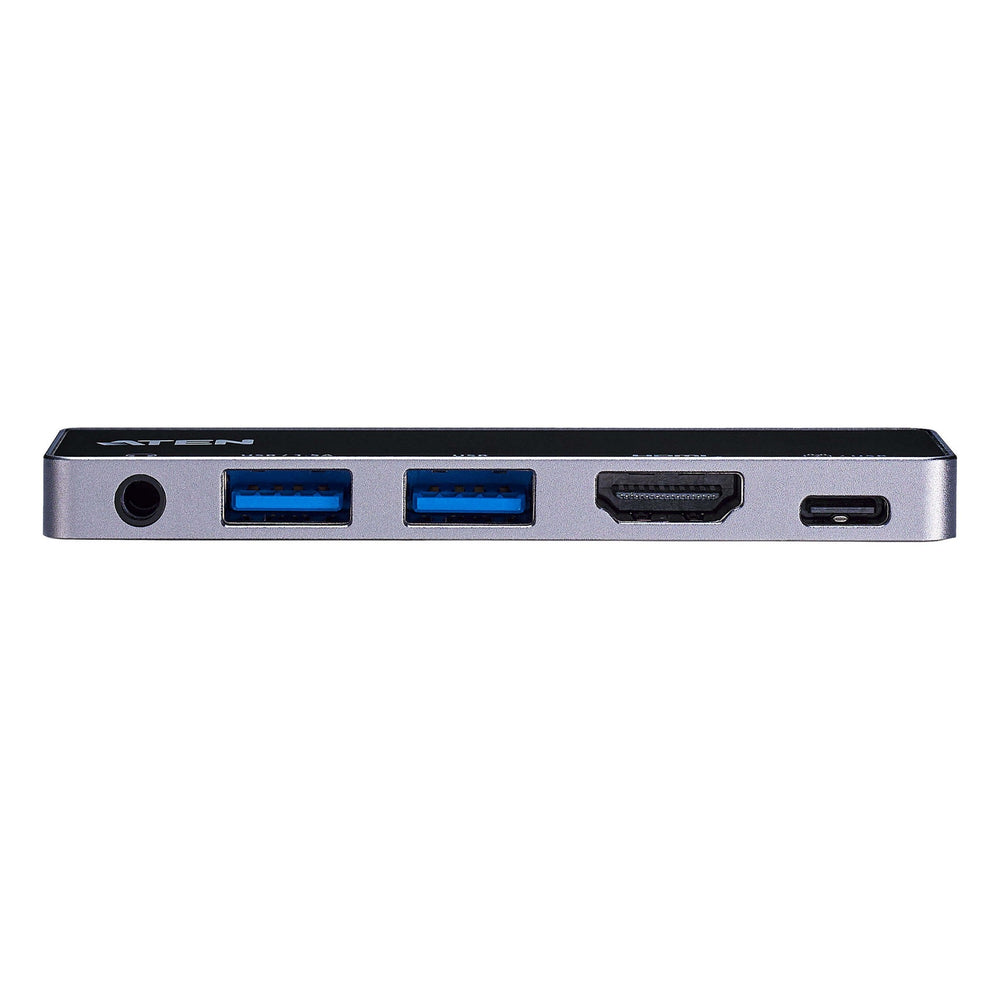

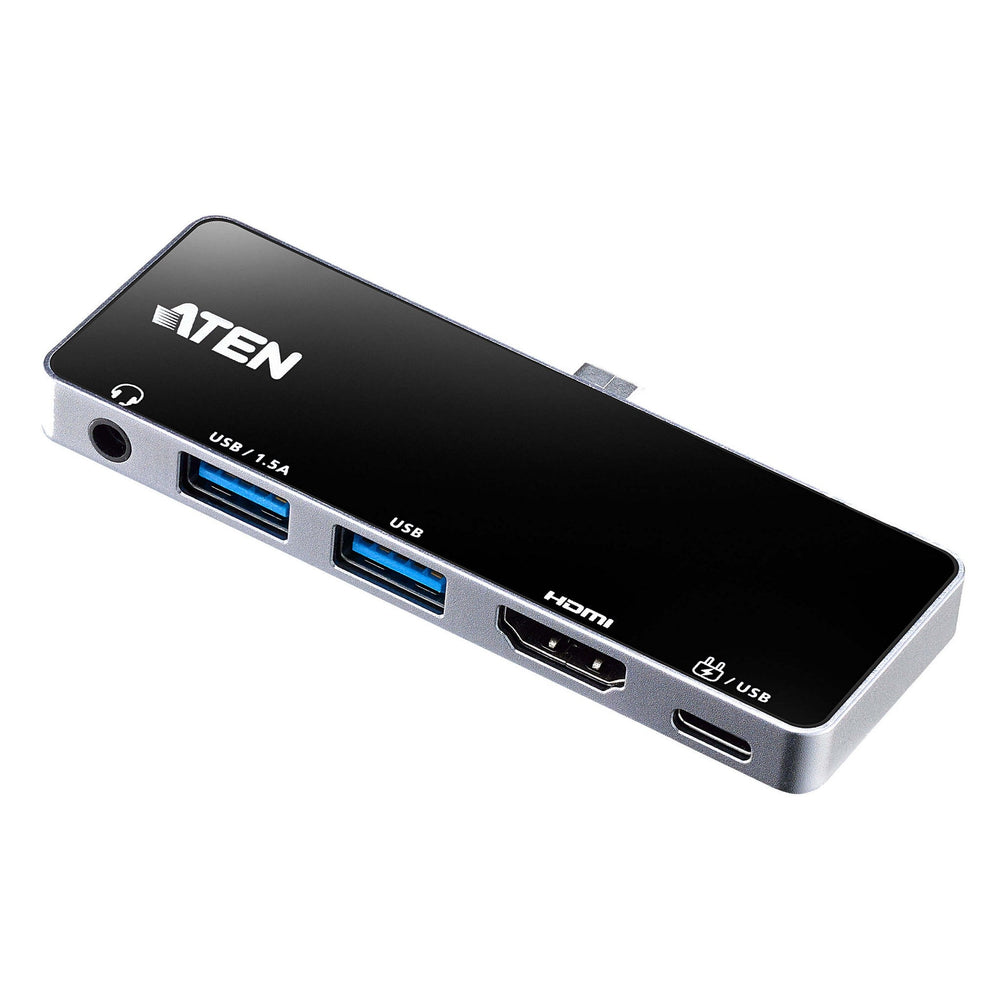

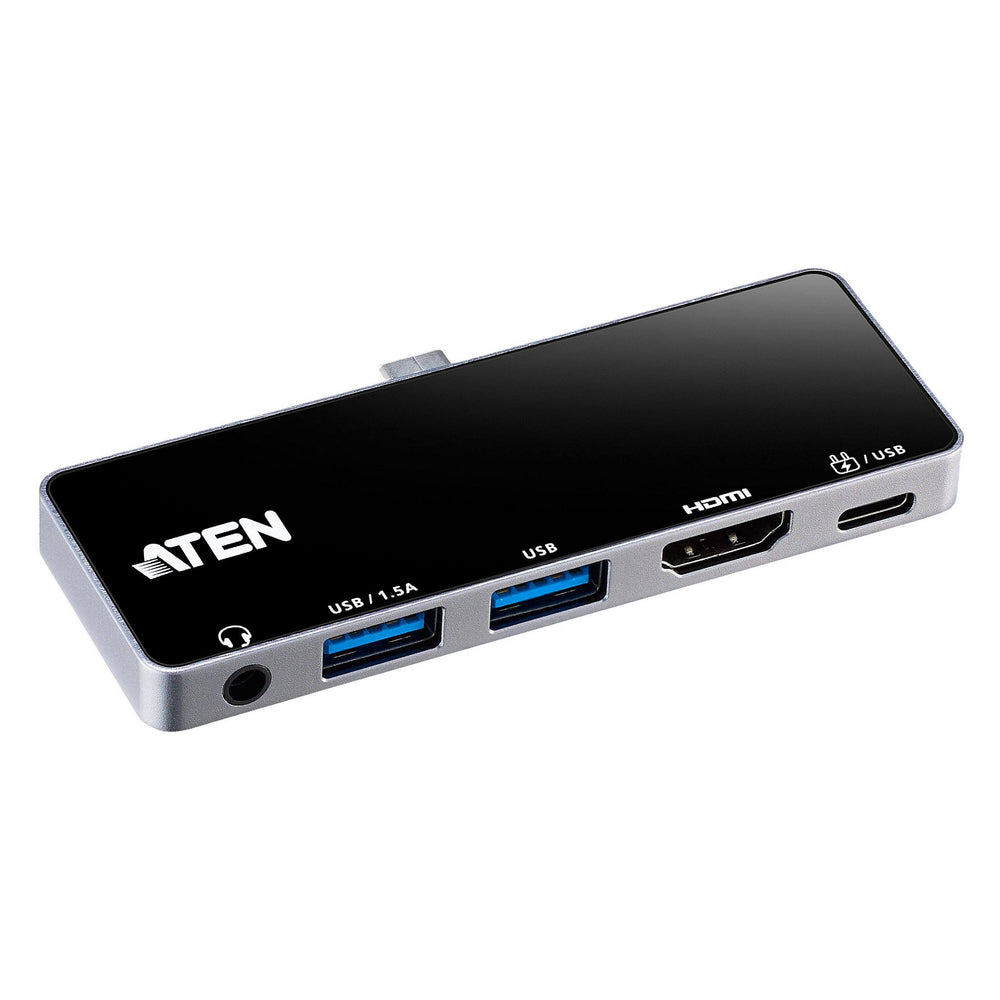

- 5-in-1 travel dock that includes one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port
- Supports USB PD 3.0 for charging up to 92W via USB-C PD power adapter - power profiles include 5V, 9V, 15V, 20V
- Supports DP 1.4 Alt mode with up to 4K (3840 x 2160) @ 60Hz for superior video output
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
- Plug and play - no drivers needed
- Works with all major operating systems: Windows, macOS X, iPad Pro (USB-C), and Android
- Compatible with Thunderbolt 3 (USB-C)
- Compact, lightweight design for mobile workstation
- Apple M1 chip compatible
Technical Specifications
Computer Connections
1
Connectors
Computer
USB 3.2 Gen 1 Type-C
Device
1 x USB 3.2 Gen 1 Type-A female supports BC 1.2 (Max. output 5V, 7.5W) *
1 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W) *
1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12.5W) *
*a. 2 x USB-A ports share total 5V, 9W when UH3238 powered by external USB-C PD power adapter
*b. 2 x USB-A and 1 x USB-C ports share total 5V, 7.5W when UH3238 powered by iPad via USB-C.
*c. 2 x USB-A and 1 x USB-C ports share total 5V, 12.5W when UH3238 powered by PC via USB-C. (@5V,3A bus-powered)
Video Output
1 x HDMI Female (Black)
Audio
1 x 3.5mm stereo 4-pole microphone and headphone jack
Power
1 x USB Type-C Female (supports USB 3.2 Gen 1 Data transfer) *
*Support Power Delivery 3.0 for laptop charging up to 92W, power profiles include 5V, 9V, 15V, 20V (additional USB-C PD power adapter needed)
Video Resolution
3840 x 2160@60Hz*
* To get max bandwidth, upstream should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP1.2 Alt mode supported upstream, the max resolution of HDMI is 4k@30Hz due to bandwidth limitation
Power Consumption
DC5V:8WBTU
System Requirements
Windows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation,
Mac OS X 10.12 and above, USB-C enabled computer
iPadOS 13.1 and above, iPad Pro (USB-C)
Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode
Environmental
Operating Temperature
0-40 Degrees C
Storage Temperature
-20-60 Degrees C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Aluminum
Weight
0.04 kg (0.1 lb)
Dimensions (L x W x H)
9.00 x 3.20 x 0.82 cm
(3.54 x 1.26 x 0.32 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
