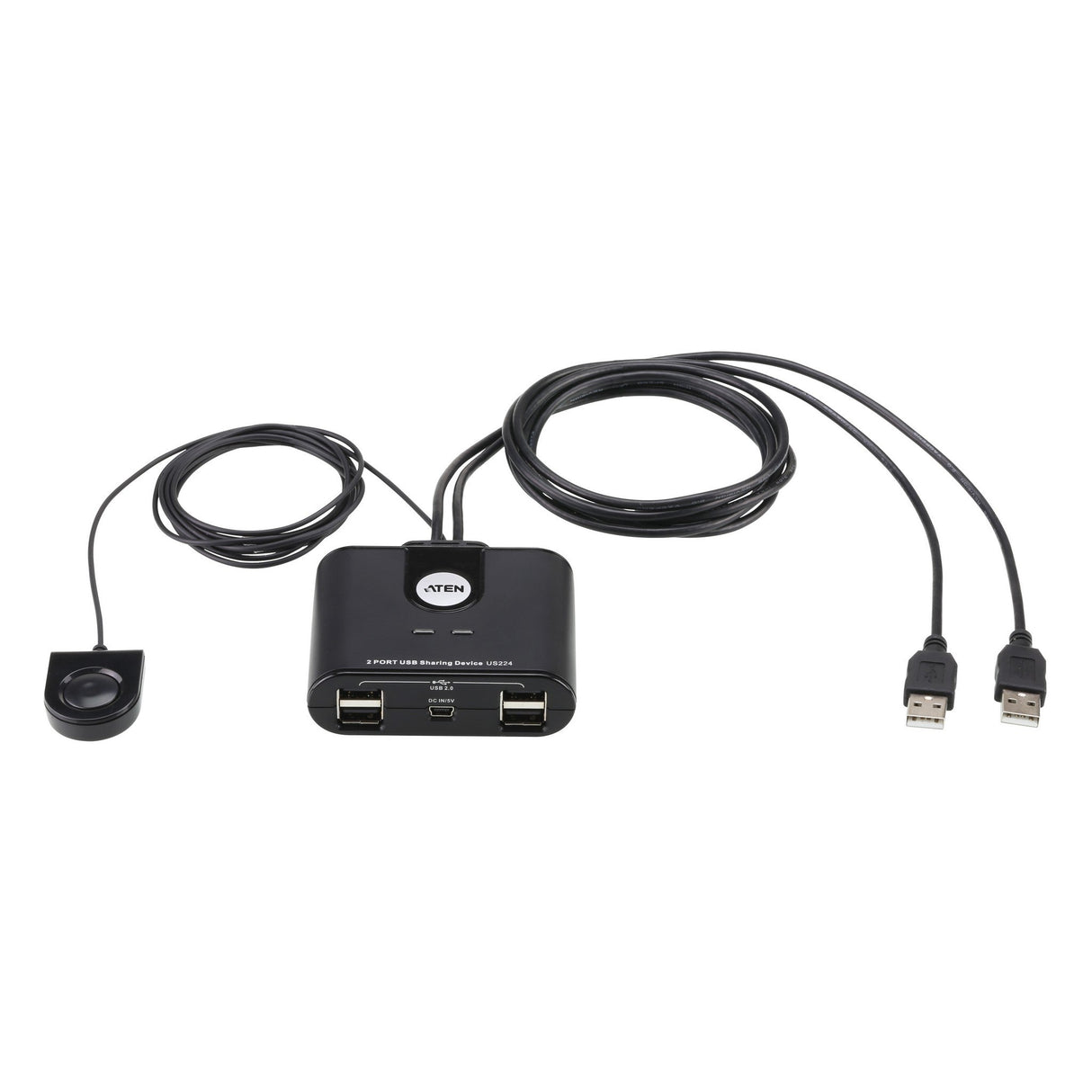

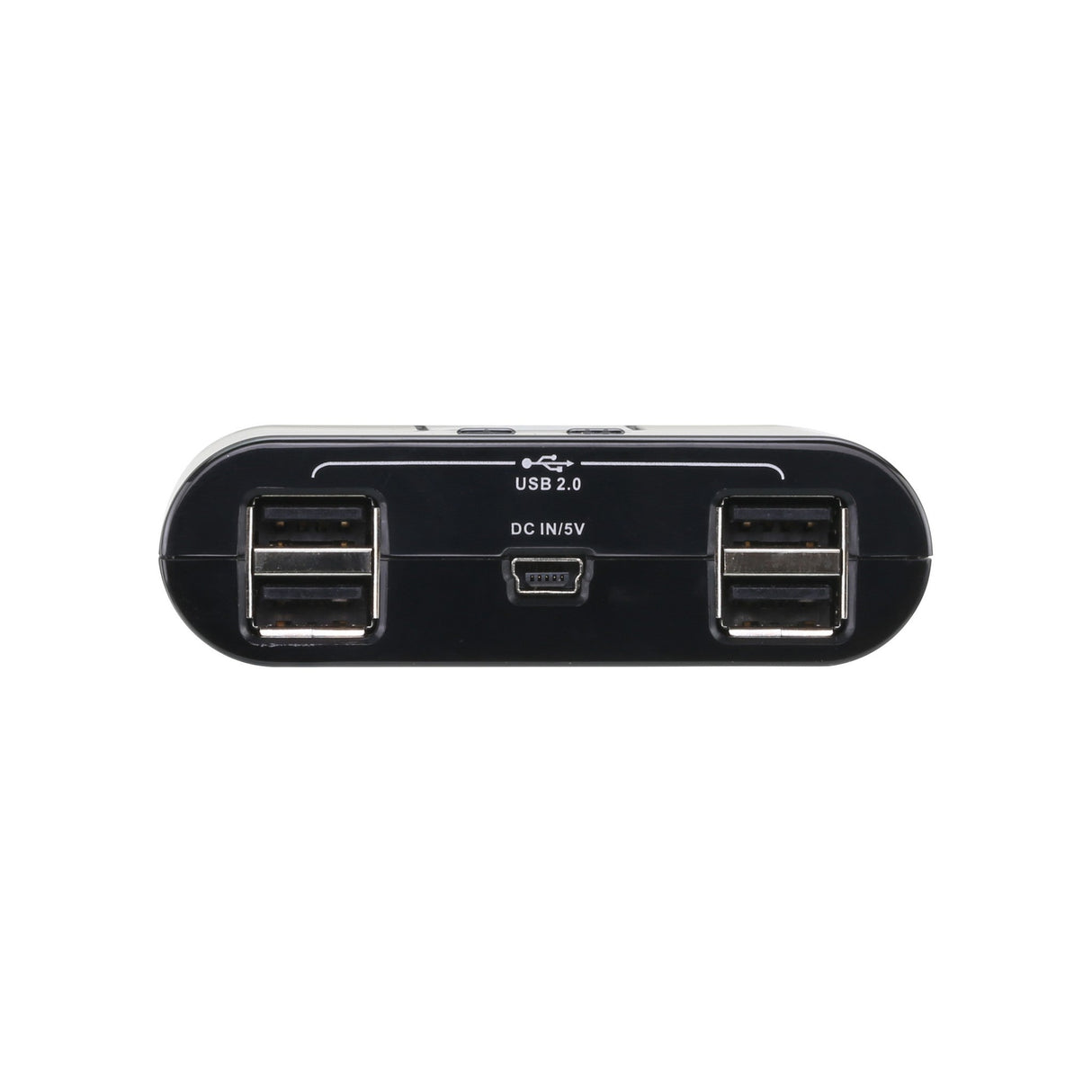

ATEN US224 2 x 4 USB 2.0 Peripheral Sharing Switch
ATEN US224 2 x 4 USB 2.0 Peripheral Sharing Switch
ATEN US224 2 x 4 USB 2.0 Peripheral Sharing Switch
The US224 is a 2-port USB peripheral sharing device that enables 2 computers to share the use of 4 USB devices - a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US224 all-in-one design allows for a neat and tidy installation - no need to connect 2 separate USB cables to the computer, thus eliminating cable clutter.
Key Features
- 4 built in USB ports - all-in-one design allows for a neat and tidy installation that reduces cable clutter
- Enables 2 computers to share 4 USB devices - a USB keyboard, mouse and up to two peripheral devices
- Simple port selection via remote port selector for convenient switch placement
- USB 2.0 compliant
- Multiplatform support - Windows, Linux ,Mac and Sun
- LED indicators display port focus
- Overcurrent protection
- Non-powered (supports optional USB power adapter)
- Hot pluggable
Technical Specifications
Computer Connections
2
Port Selection
Remote port selector
Connectors
Computer
2 x USB Type A Male (Black)
Device
4 x USB Type A Female (Black)
Power (Optional)
1 x USB mini B Female (Black)
Cable Length
USB Cable
2 x 1.2 m
Remote Port Selector
1.8 m
LEDs
Selected
2 (Green)
Environmental
Operating Temperature
0-40C
Storage Temperature
-20-60C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.14 kg ( 0.31 lb )
Dimensions (L x W x H)
8.24 x 6.65 x 2.53 cm
(3.24 x 2.62 x 1 in.)
