ATEN US3324 2 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
ATEN US3324 2 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
ATEN US3324 2 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
ATEN US3324 is a 2-port USB 3.1 Gen1 peripheral sharing device that allows users to share four USB devices between 2 different general computers by using USB 3.1 Gen 1 Type-B to Type-A cables. The US3324 allows for a neat and tidy installation -The connecting cables are bundled to save the extra cost of purchasing USB cables. The additional USB 3.1 Gen 1 Type-B to Type-C cable included in the US3324 package, which can connect to the USB-C computers and allows for hybrid and flexible usage, is the most cost-effective solution for USB-C equipped laptops and tablet computers
Key Features
- Enables 2 computers to share 4 USB 3.1 Gen1 devices
- Simple port selection via remote port selector for convenient switch placement
- USB 3.1 Gen1 compliant, supporting data transfer rates of up to 5Gbps
- LEDs indicates which computer is active
- Over-current protection
- Micro USB power jack for additional power supply
- Bus-powered - no external power supply needed
- Plug and Play - no drivers or external power adapter needed
- Multiplatform support - Windows, Linux and Mac
Technical Specifications
Computer Connections
2
Port Selection
Remote port selector
Connectors
Computer

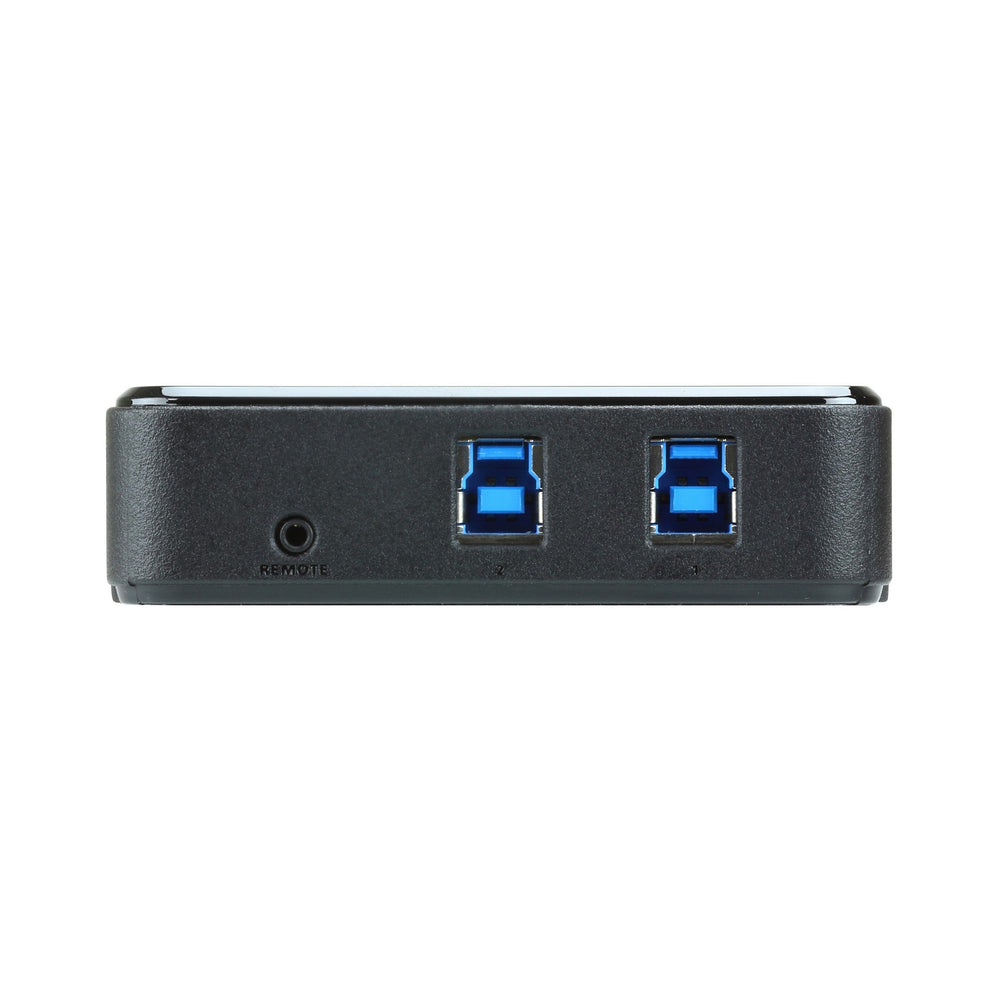

2 x USB Type B Femal (Blue)
Device

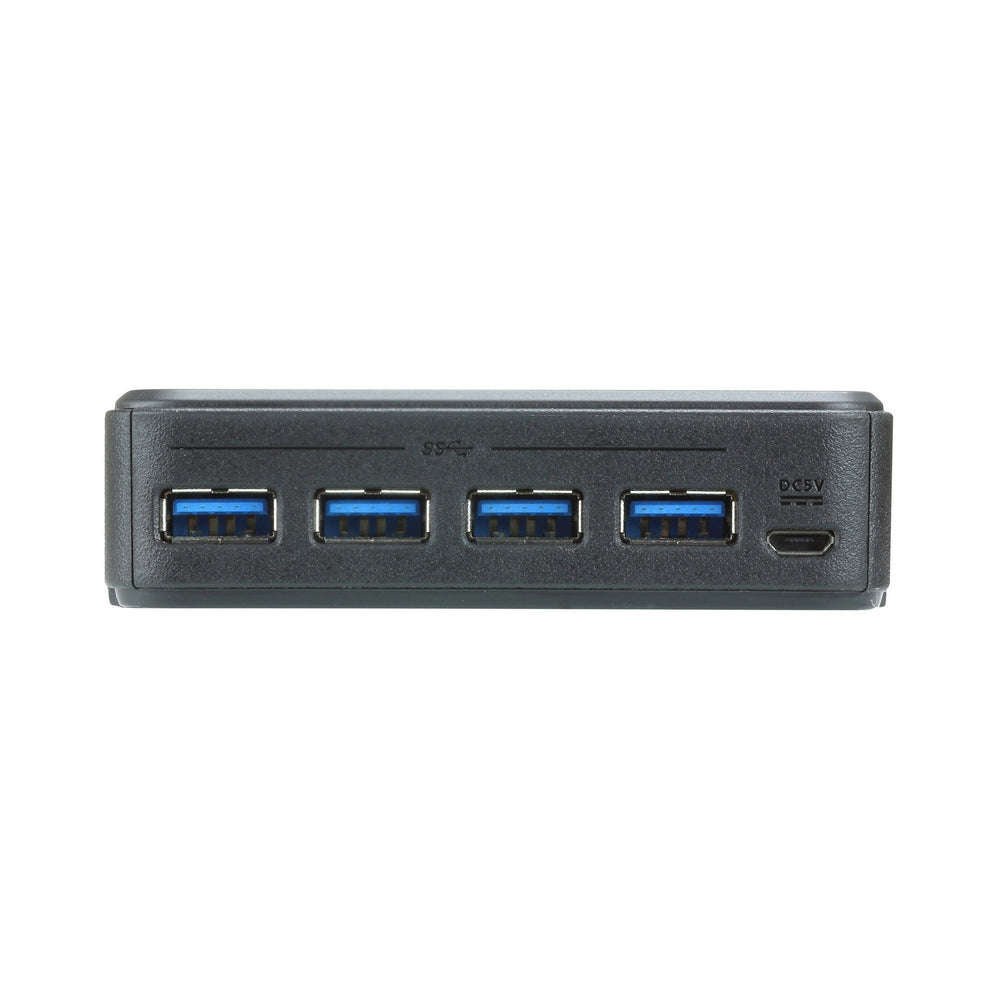

4 x USB Type A Female (Blue)
Power (Optional)
1 x USB micro B Female (Black)
Cable Length
USB Cable
USB 3.1 Gen 1 B to A Cable 1.2m x 2
USB 3.1 Gen 1 B to C Cable 1.8m x 1
Remote Port Selector
1.8 m
LEDs
Selected
2 (White)
Environmental
Operating Temperature
0-40C
Storage Temperature
-20-60C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.12 kg ( 0.26 lb )
Dimensions (L x W x H)
9.37 x 9.30 x 2.68 cm
(3.69 x 3.66 x 1.06 in.)
