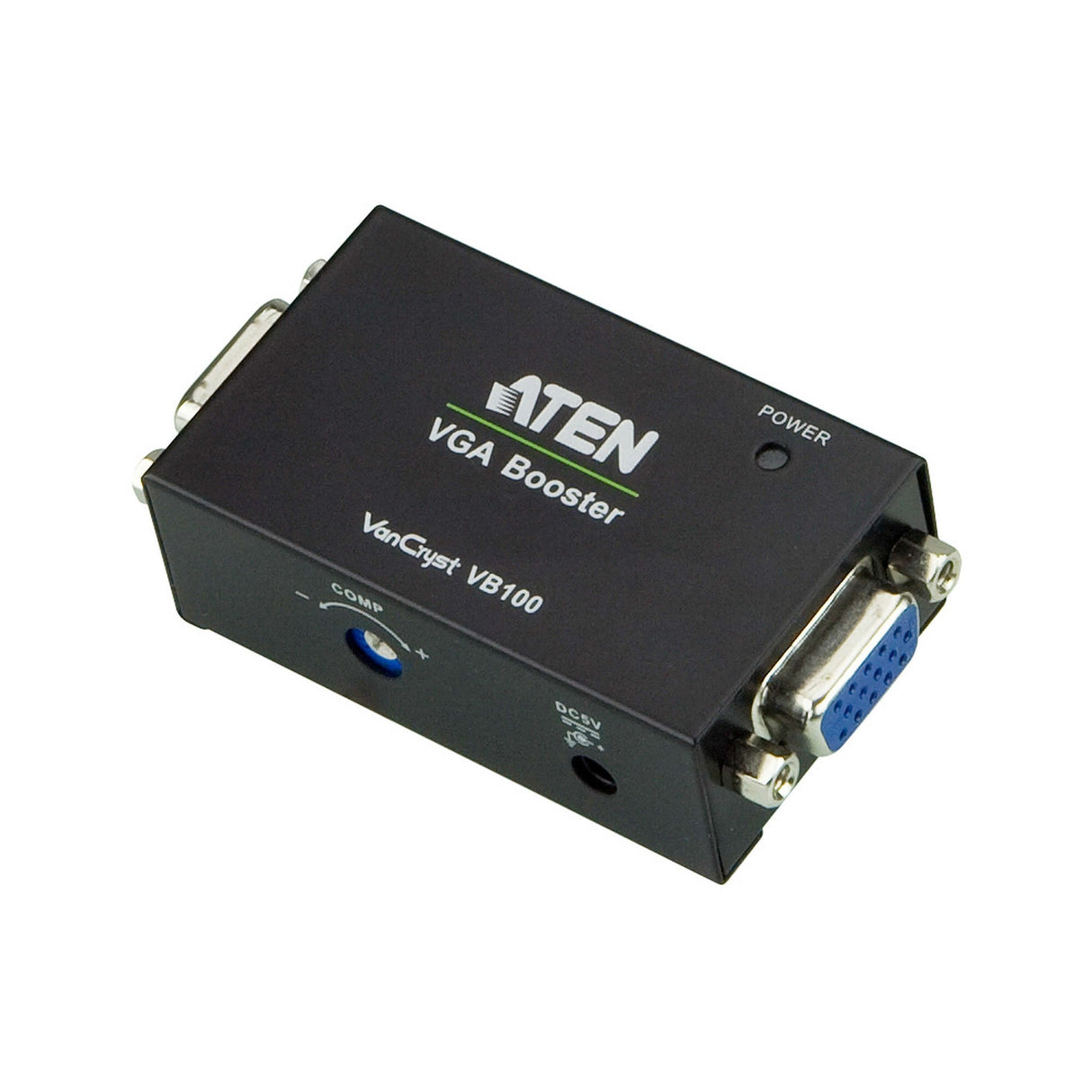

Aten VB100 VGA Signal Booster Adapter

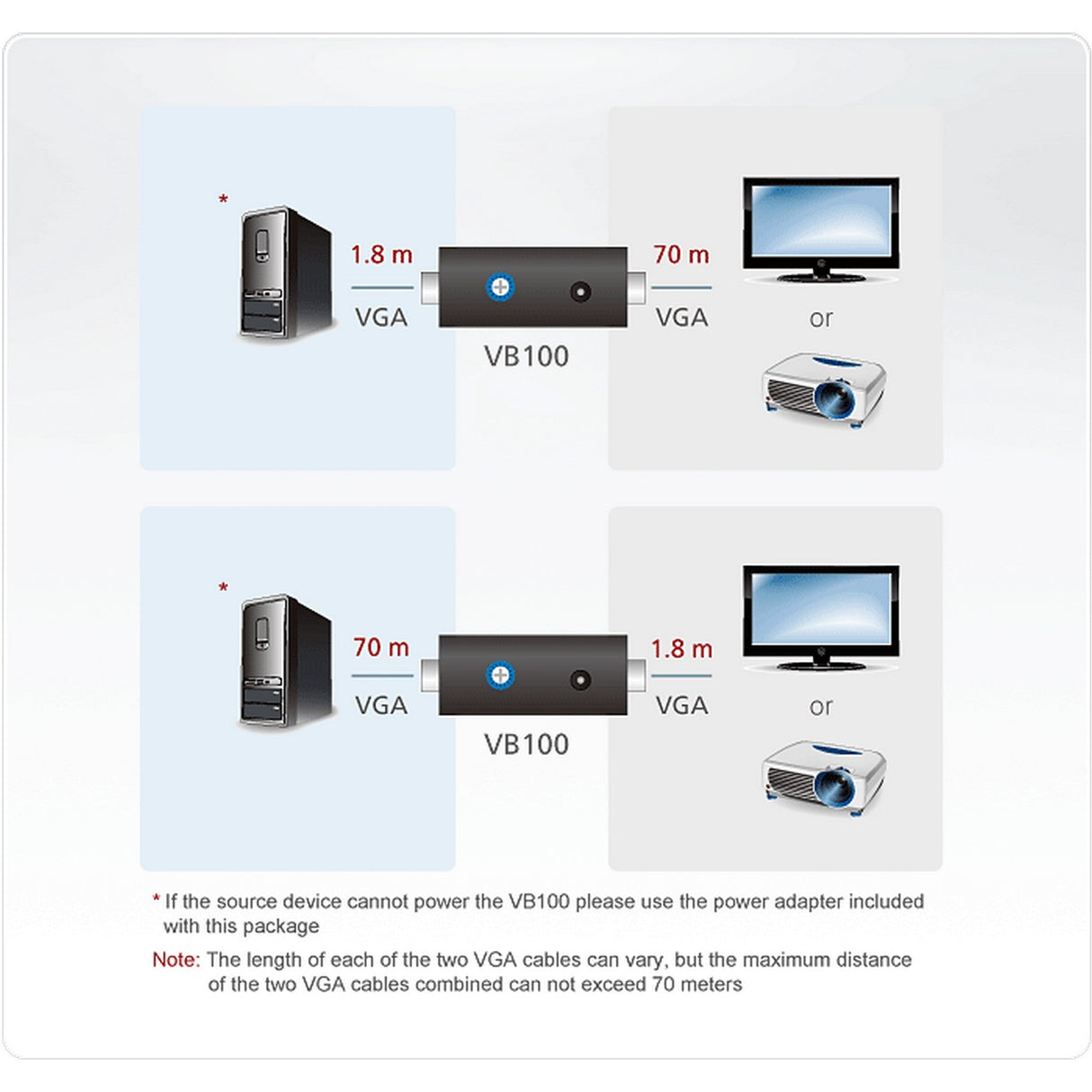

The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away. The VGA booster extends the display distance without any signal loss; to bring you a crystal clear video display at a longer distance. The VB100 is built with a compact housing design for easy installation and manual gain control to improve image quality at different distances. The VB100 can be powered from the VGA source and has a built-in LED indicator for power. The VB100 supports hotplugging and requires no software forinstallation, making it an easy, compact, and affordable solution to extend your VGA display.
Key Features
- Long distance transmission up to 70 m
- Adjustable video compensation manually adjust signal strength to compensate for distance
- Superior video quality up to 1920 x 1200 (30 m); 1280 x 1024 (70 m)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Compact housing
- LED indication of power status and source device
- Plug-and-play no software installation required
Technical Specifications

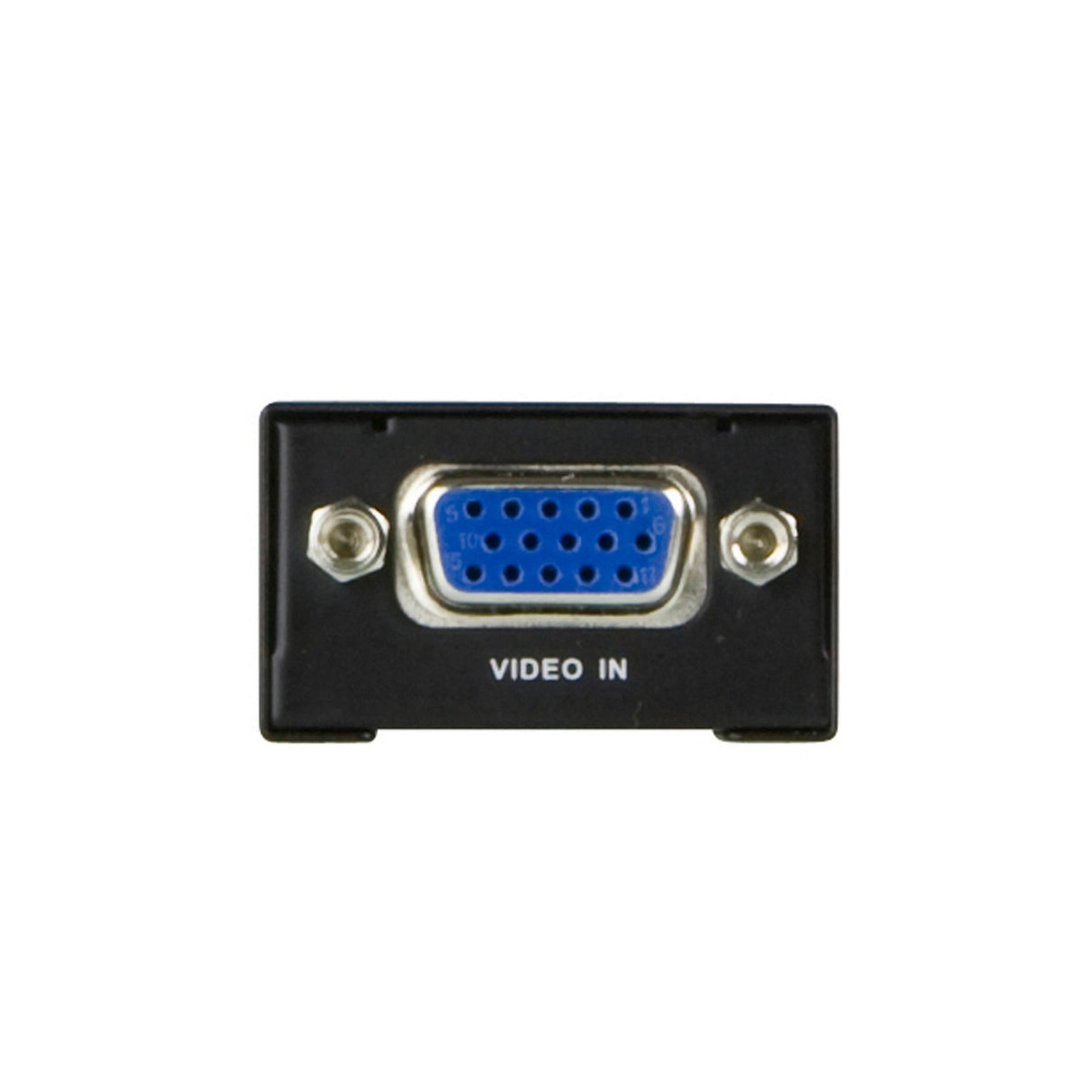

Video Input
Interfaces
1 x HDB-15 Female (Blue)
Impedance
75

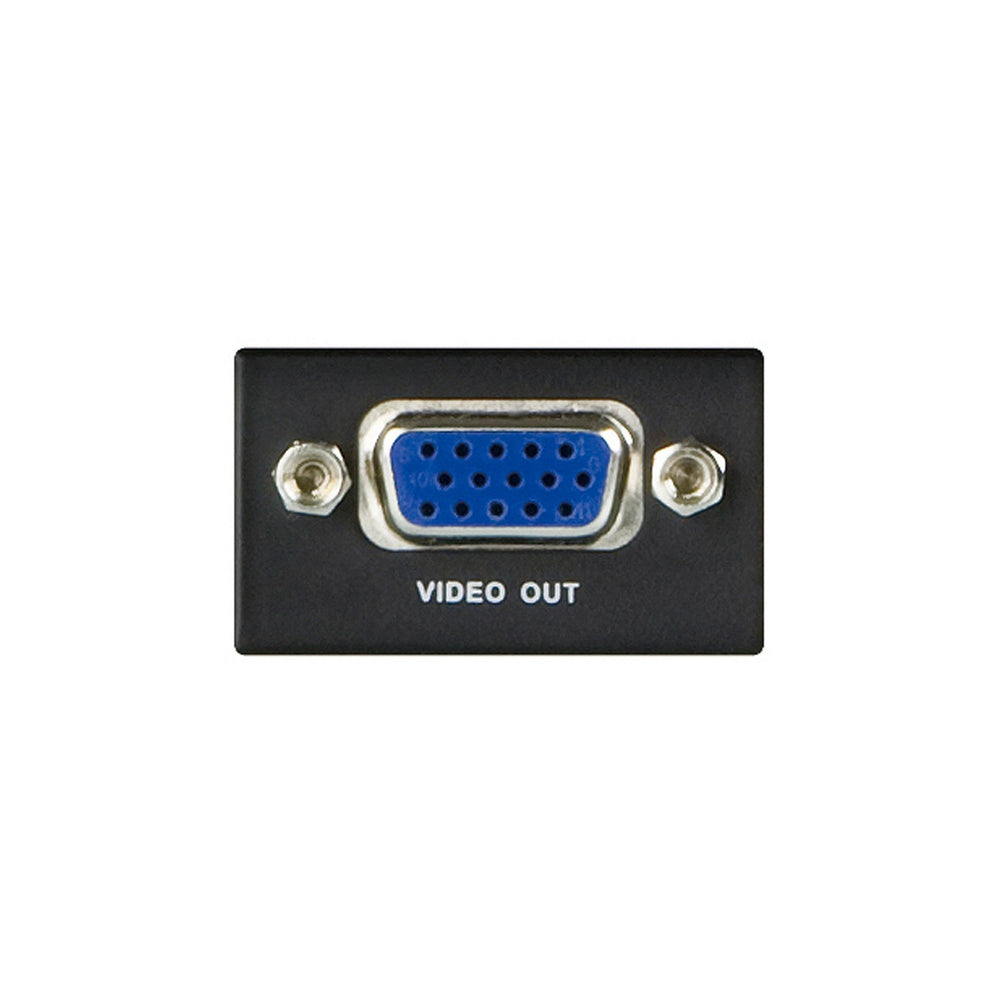

Video Output
Interfaces
1 x HDB-15 Female (Blue)
Impedance
75
Video
Max. Bandwidth
300 MHz
Max. Resolutions / Distance
Up to 1920 x 1200@30m; 1280 x 1024@70m
Power
Connectors
1 x DC Jack
Consumption
5 VDC, 0.9W
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.06 kg ( 0.13 lb )
Dimensions (L x W x H)
3.53 x 6.88 x 2.06 cm
(1.39 x 2.71 x 0.81 in.)
Carton Lot
10 pcs
