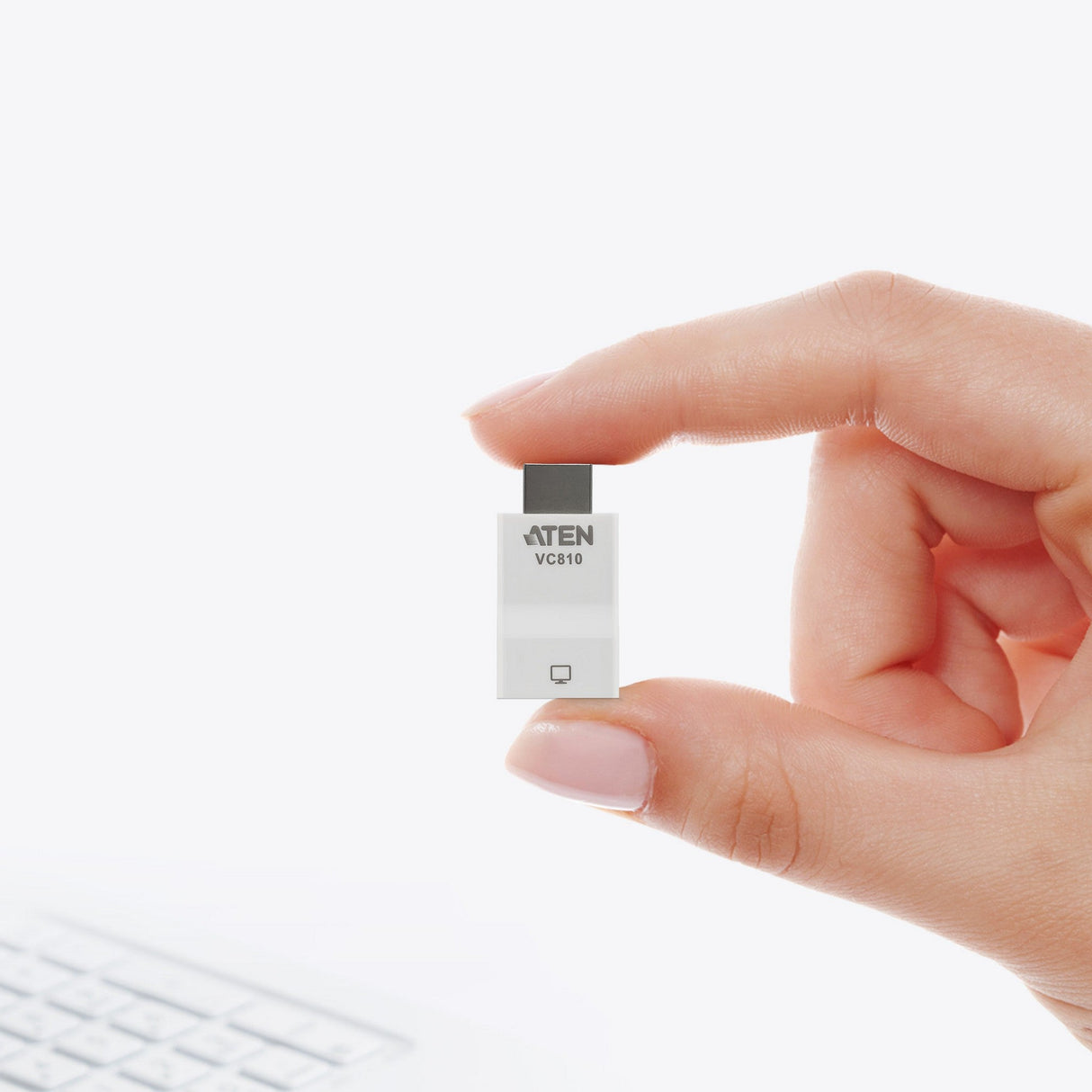

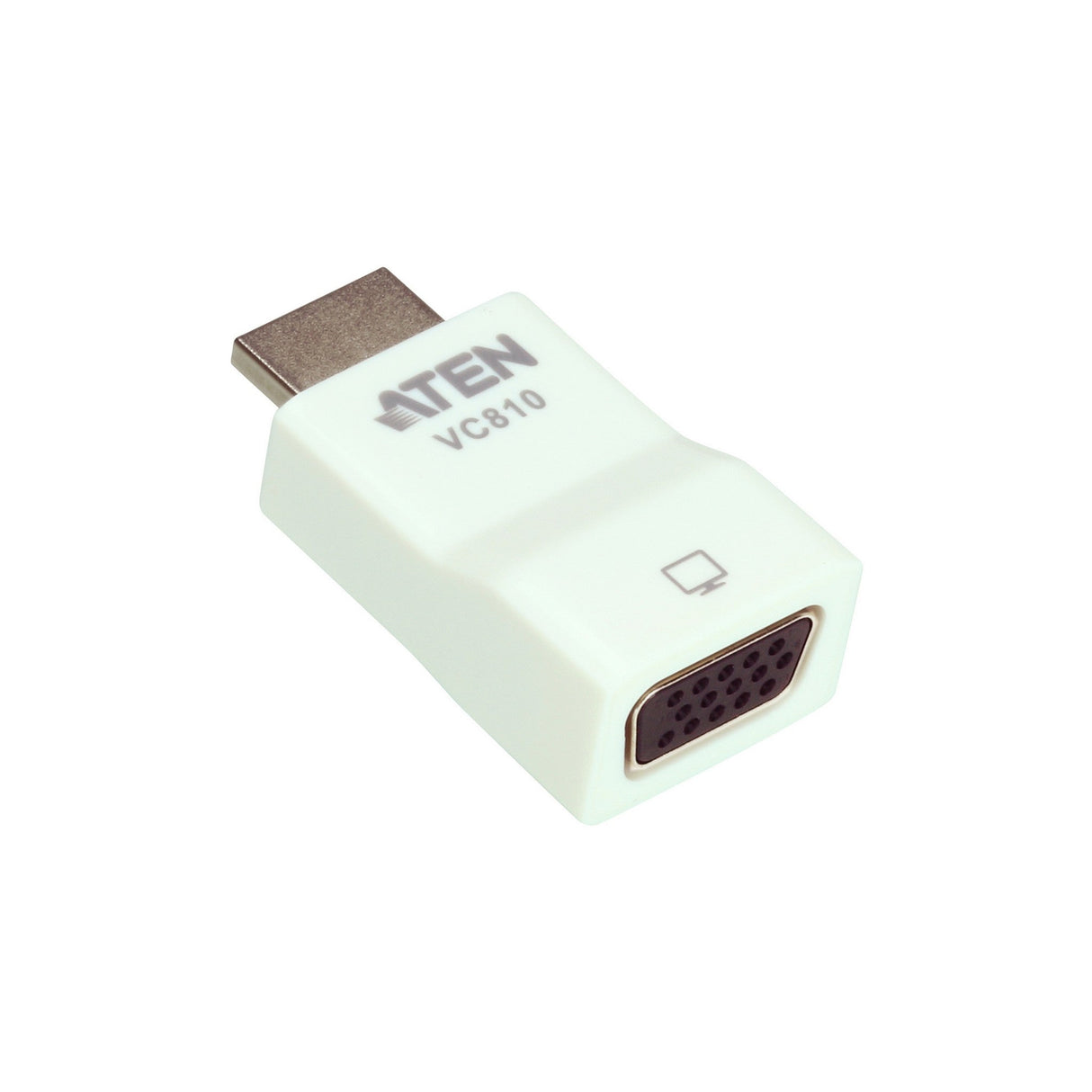

Aten VC810 HDMI to VGA Cable Adapter
The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display (e.g. projector, LCD monitor, etc) without upgrading to an HDMI-compatible display at extra cost. It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments like conference room where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability.
Key Features
- Converts HDMI signals to VGA output
- Superior video quality up to 1920 x 1200, 1080p
- Supports wide screen formats
- Non-powered
- Package Contents: 1x VC810 HDMI-to-VGA converter
Technical Specifications
Video Input
Interfaces
1 x HDMI Type A Male (Black)
Impedance
100
Video Output
Interfaces
1 x HDB-15 Female (Black)
Impedance
75
Video
Max. Pixel Clock
200 MHz
Max. Resolution
Up to 1920 x 1200
Environmental
Operating Temperature
0 - 60 ºC
Storage Temperature
-10 - 70 ºC
Humidity
40 - 85% RH, Non-Condensing
Physical Properties
Housing
Plastic
Weight
0.01 kg ( 0.02 lb )
Dimensions (L x W x H)
4.55 x 2.30 x 1.48 cm
(1.79 x 0.91 x 0.58 in.)
Carton Lot
40 pcs
