ATEN VC880 | HD Video Repeater Plus and Audio De-embedder

ATEN | SKU: ATEN-CVTR-VC880
$17200

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New

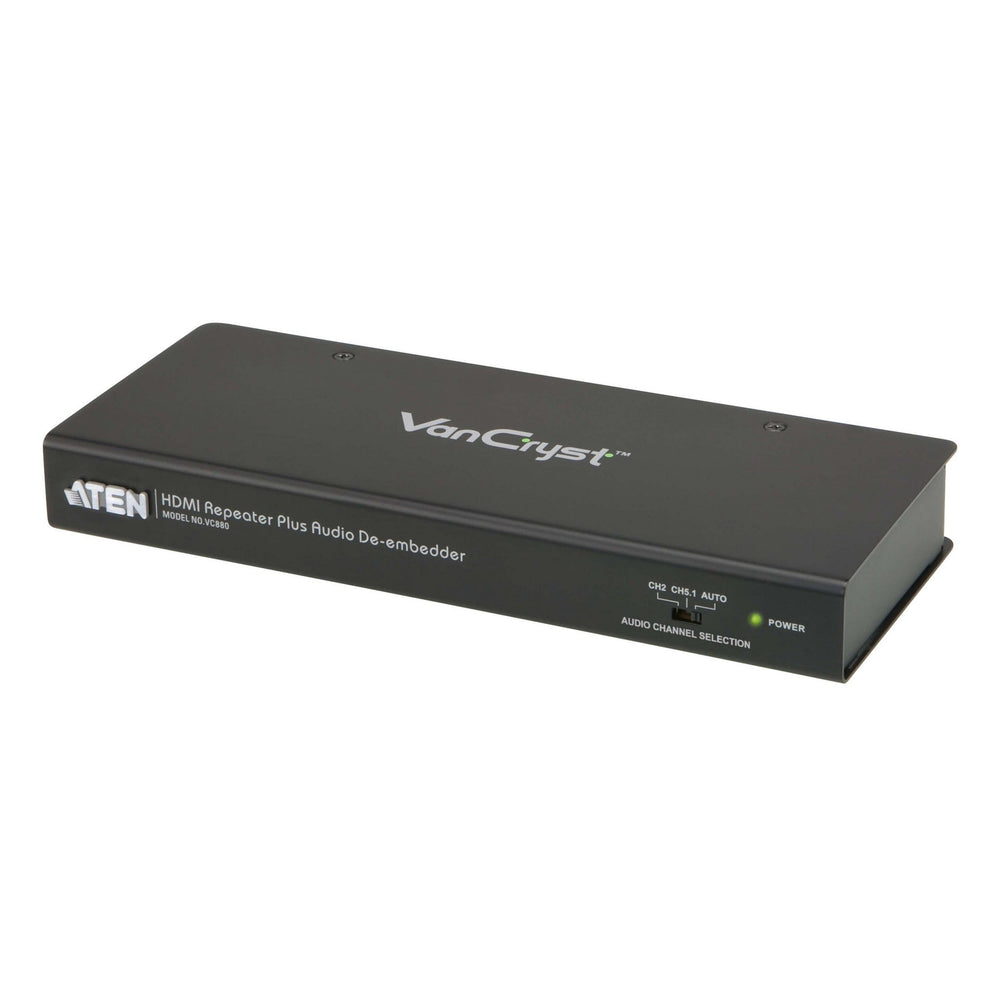

ATEN VC880 HD Video Repeater Plus and Audio De-embedder

The VC880 is an HDMI Repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, users can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high quality audio output. With support for 3D TV formats, the VC880 is ideal for users who want to enjoy high definition video with their choice of high defi nition audio output on TVs, projectors, A/V receivers or speakers.

Key Features

  • Repeats HDMI input signal up to 50 feet (15 m)
  • Extracts HDMI audio signal and outputs as additional audio source
  • Supports optical / coaxial digital audio and analog stereo audio
  • HDMI and HDCP compatible
  • Super Video Quality up to 1920x1080 (1080p)
  • Firmware upgradable
  • CH2/CH5.1/Auto mode audio channel selection
  • Supports 3D video
  • Supports Audio on/off switch for HDMI output
  • Expandable to three levels provides three levels of audio output for one HDMI at distance up to 150 feet (45 m)

Technical Specifications

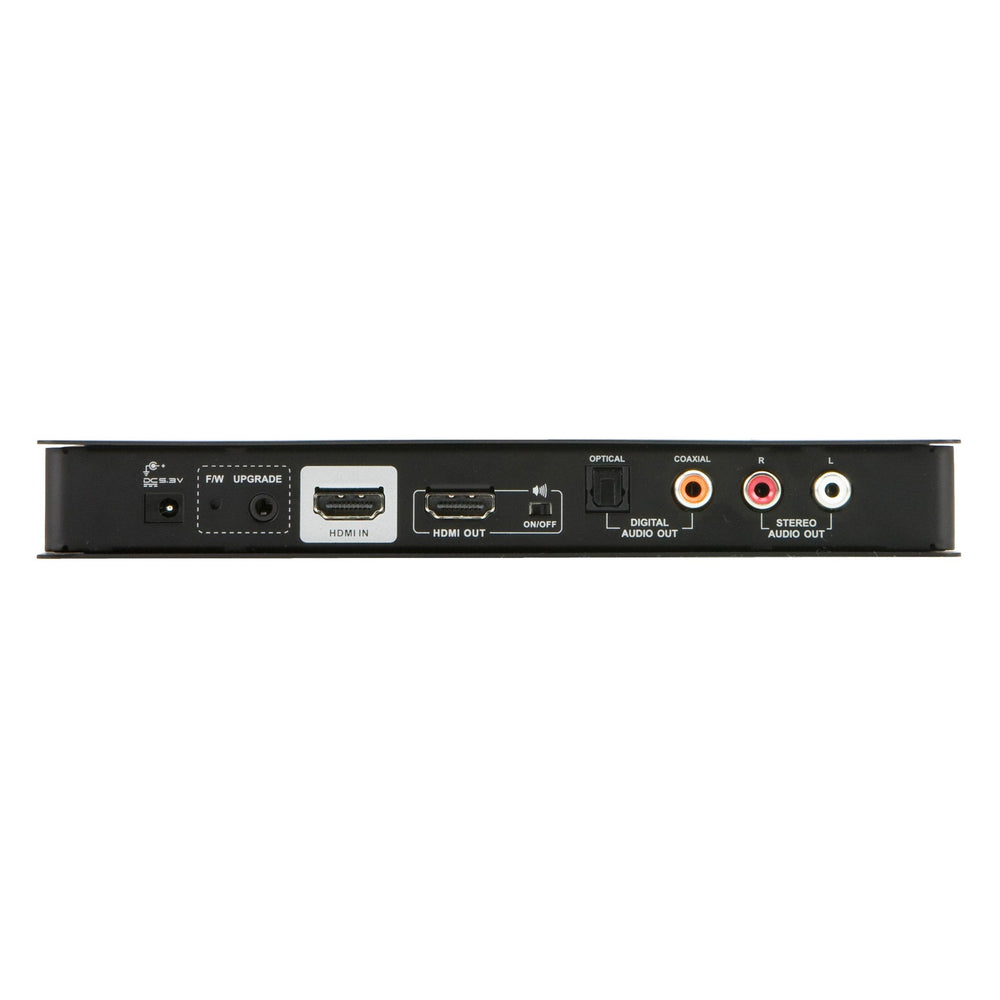

Video Input: 1 x HDMI Female
Video Output: 1 x HDMI Female
Audio Output: 1 x TOSLINK (Optical) / 1 x RCA (Coaxial) / 2 x RCA (Stereo)
Power: 1 x DC Jack
Flash ROM Upgrade: 1 x 4-conductor 3.5 mm Jack
Power On: 1 x (Green)

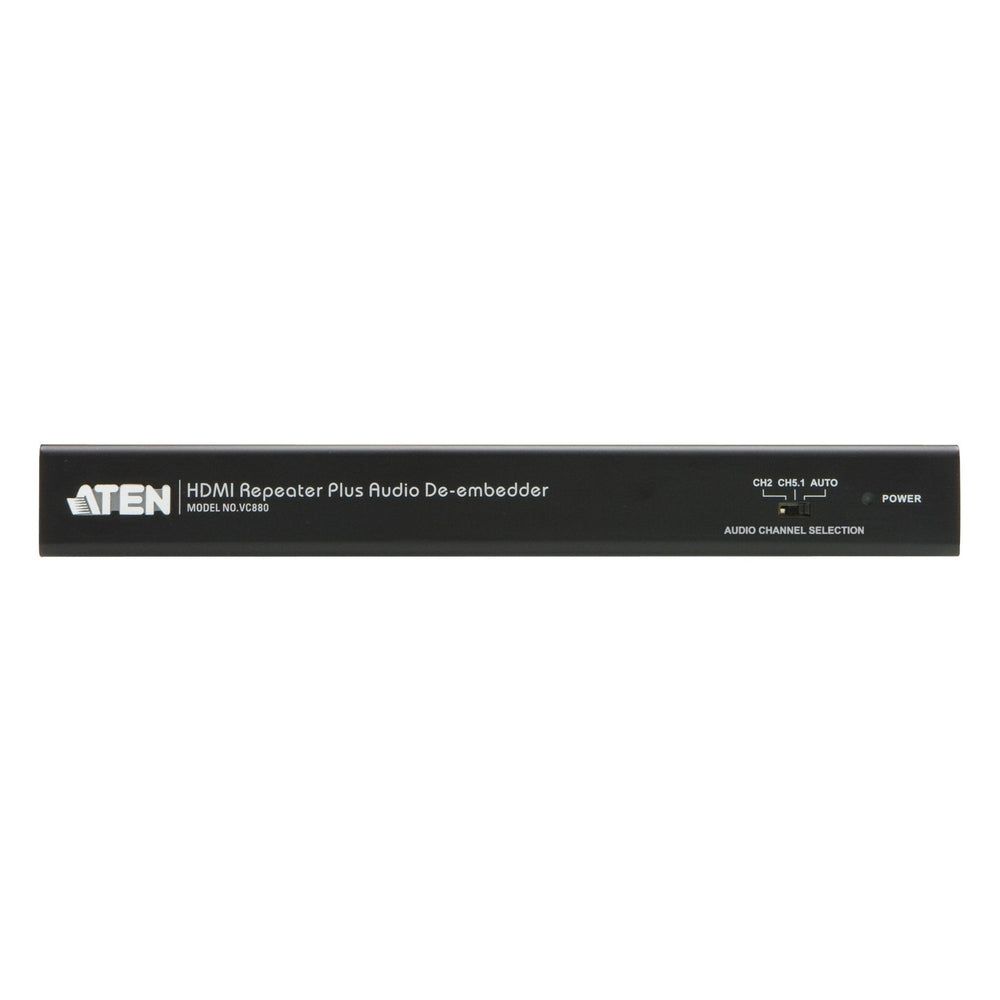

Mode Selection: Audio Channel - 1 x Slide Switch / HDMI Audio On/Off - 1 x Slide Switch
F/W Upgrade: 1 x semi-recessed pushbutton
Voltage: 5.3 VDc
Amps: 150 mA
Power Consumption: 0.8 W - 3 BTU / hr
Unit Weight: 1 lb.
Case Qty: 20
Case Weight: 32.9 lb.
Case Dimension: 19.3x 12.4x 13.3 in.
Unit Package Dimensions: 9.4x 6.3x 2.4 in
Unit Weight with package: 1.2 lb.
Unit Dimension: 7.9x 3.2x 1 in.
