Aten VC981 | Mini DisplayPort to 4K HDMI Active Cable Adapter
Aten VC981 | Mini DisplayPort to 4K HDMI Active Cable Adapter

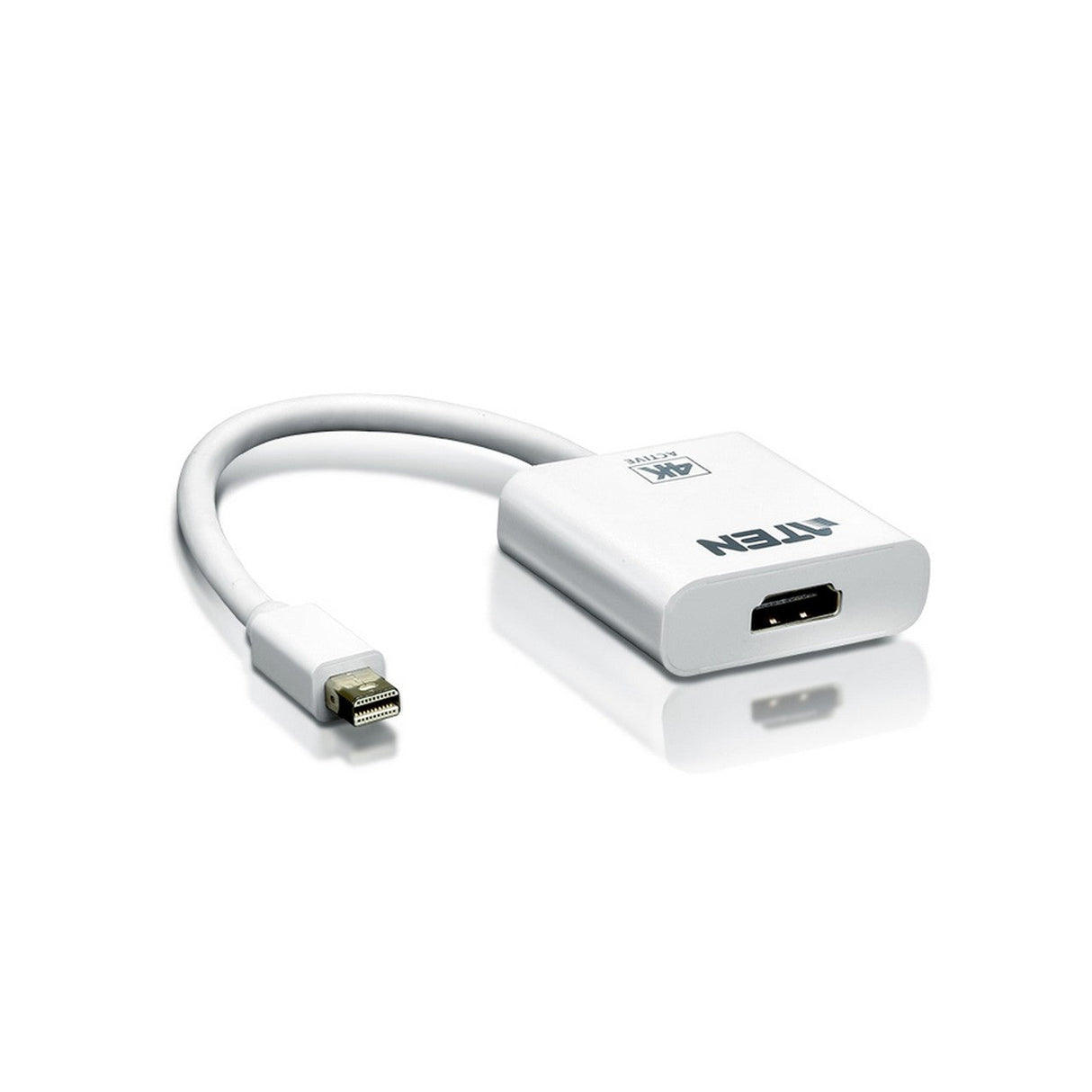

Aten VC981 Mini DisplayPort to 4K HDMI Active Cable Adapter
The VC981 is an active Mini DisplayPort to HDMI adapter that allows you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.
The ATEN VC981 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high-performance signal conversion solution.
Key Features
- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
- Active adapter features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
- Supports AMD Eyefinity Technology (multi-screen setups)
- Audio supported
- No software or driver installation required
Technical Specifications
Video Input
Interfaces
1 x Mini DisplayPort Male (White)
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Video
Max. Pixel Clock
297 MHz
Max. Resolution
3840 x 2160@30Hz, 1920 x 1200@60Hz.
Compliance
DP1.2a, HDMI(3D, Deep Color, 4K), HDCP 1.3
Audio
Output
1 x HDMI Type A Female (Black)
Environmental
Operating Temperature
0 - 50 ºC
Storage Temperature
-20-60 ºC
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Plastic
Weight
0.04 kg ( 0.09 lb )
Dimensions (L x W x H)
17.50 x 4.50 x 1.50 cm
(6.89 x 1.77 x 0.59 in.)
Carton Lot
40 pcs
