ATEN VE150A Cat5 VGA Extender up to 500 Feet

ATEN VE150A Cat5 VGA Extender up to 500 Feet

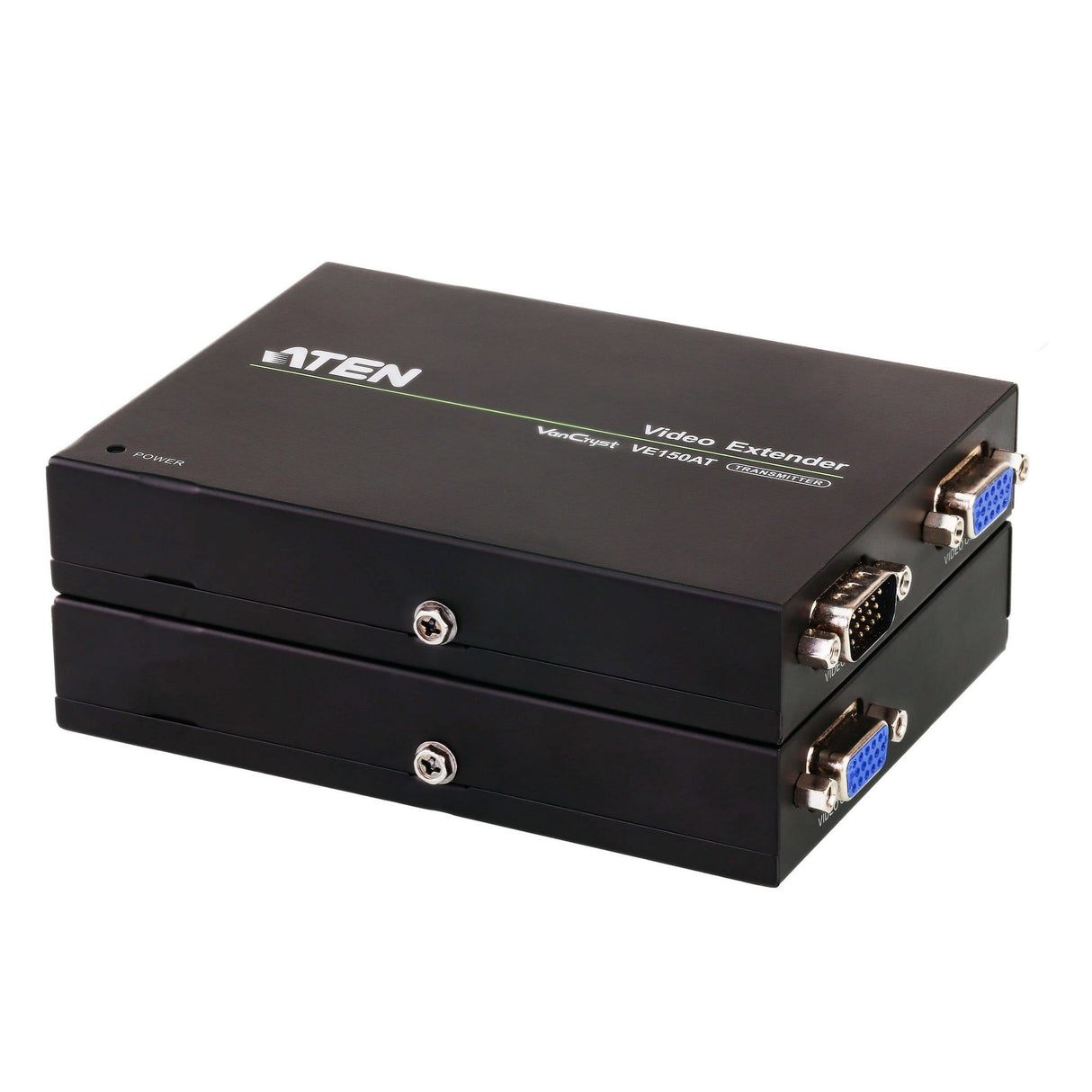

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 500 feet (150m). It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location

Key Features

• Uses Cat 5e cables to connect the local and remote units
• Supports one local and one remote display
• Long distance transmission up to 150 m
• Adjustable gain control manually adjust signal strength to compensate for distance
• Superior video quality up to 1920x1200 100 feet(30 m);1600x1200 330 feet(100 m); 1280x1024 500 feet(150 m)
• Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
• Supports wide screen formats
• Supports hot-plugging
• Built-in 8KV/15KV ESD protection
• Supports DDC for the local monitor
• Easy installation
• Rack Mountable
• Plug-and-play no software installation required

Technical Specifications

VE150AT
Operating Temp.: 0 - 50°C
Storage Temp. : -20 - 60°C
Humidity: 0 - 80% RH, Non-condensing
Weight: 0.5 lb. (0.24 kg)
Dimensions (L x W x H): 5 x 3.6 x 0.9 in. (12.77 x 9.04 x 2.26 cm)

VE150AR
Operating Temp.: 0 - 50°C
Storage Temp. : -20 - 60°C
Humidity: 0 - 80% RH, Non-condensing
Weight: 0.5 lb. (0.24 kg)
Dimensions (L x W x H): 5 x 3.6 x 0.9 in. (12.77 x 9.04 x 2.26 cm)
