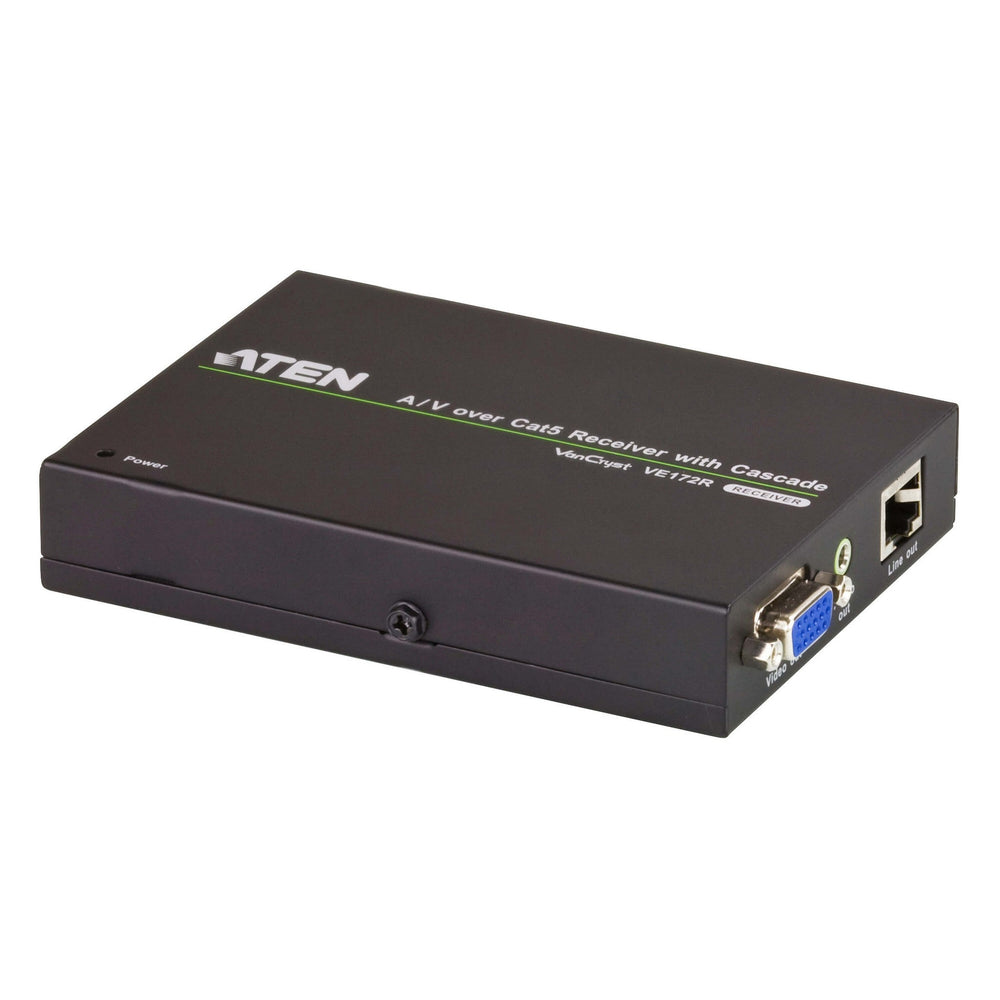

ATEN VE172R AV over Cat5 Receiver with Cascade
VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 500 feet (150m).
Compatible Transmitter Units:
VE170T A/V Over Cat 5 Transmitter
VS1204T A/V Over Cat 5 Transmitter
VS1208T A/V Over Cat 5 Transmitter
Compatible Receiver Units:
VE172R A/V Over Cat 5 Receiver with Cascade
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
Key Features
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Cascadable up to 10 levels
- Long distance transmission up to 150m
- Superior video quality - 1920x1200 @ 60Hz 100feet(30 m);1600x1200 @ 60Hz 330 feet(100 m); 1280x1024@ 60Hz 500 feet(150 m)
- Audio enabled (mono)
- Adjustable gain/compensation control manually adjusts signal strength to compensate for distance
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
Technical Specifications

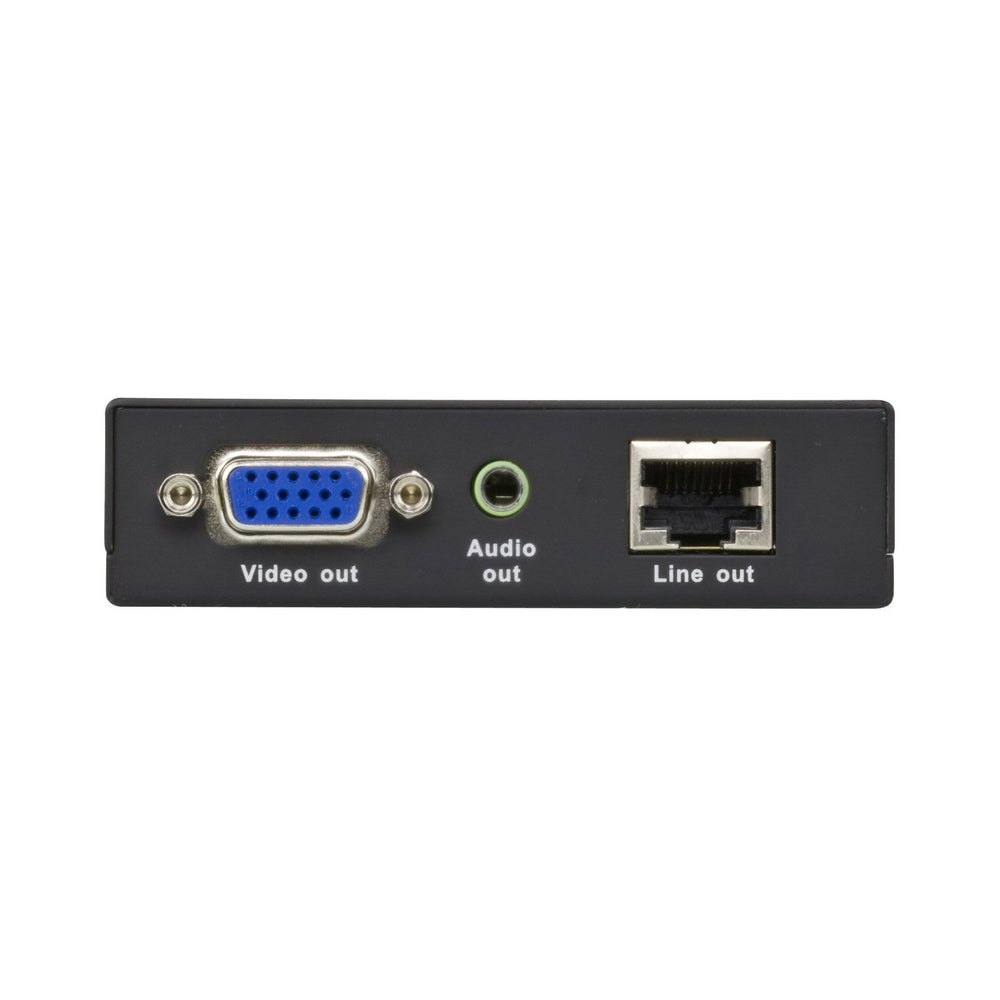

Video Out: 1 x HDB-15 Female (Blue)
Audio Out: 1 x Mini Stereo Jack Female (Green)

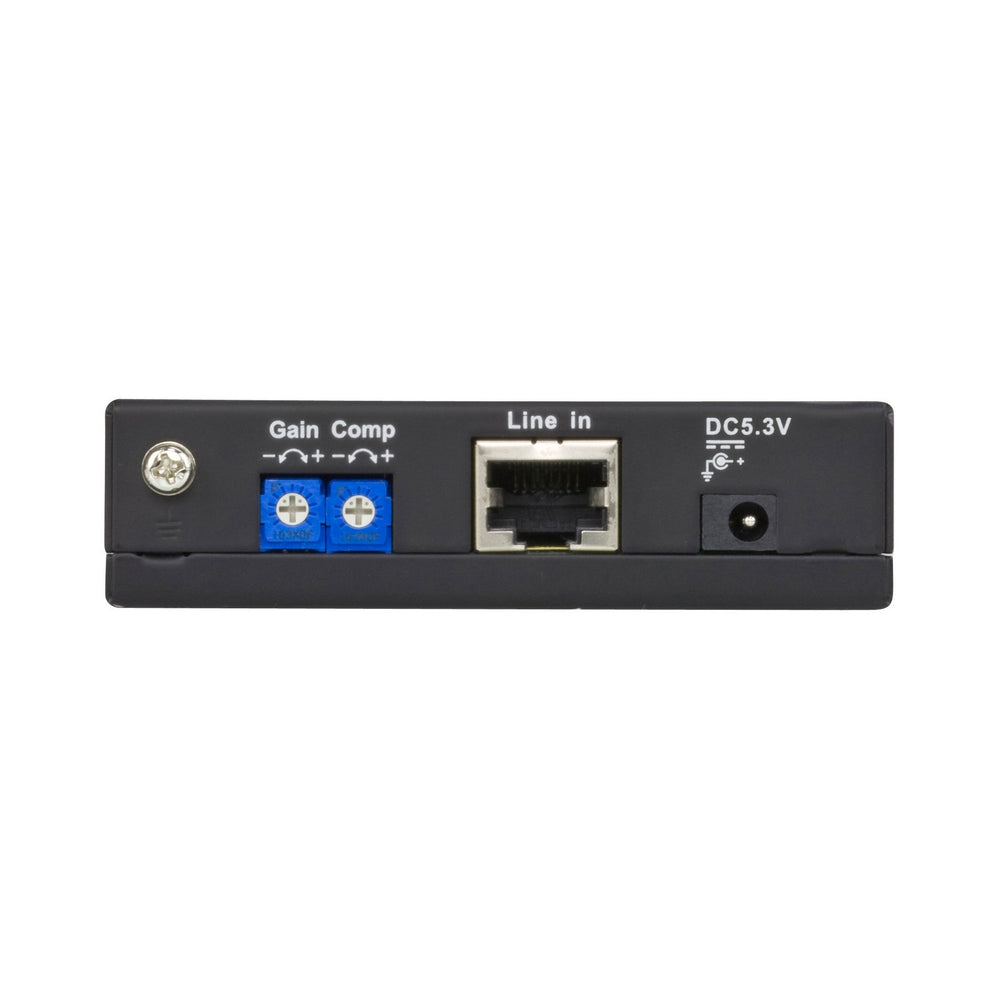

Line Input: 1 x RJ-45 Female
Line Output: 1 x RJ-45 Female
Power: 1 x DC Jack
Power: 1 (Green)
Manual Gain / Compensations Control: 2 x Knob
Video: 1920 x 1200 @60Hz 100 feet(30m),
1600 x 1200 @60Hz 330 feet(100m),
1280 x 1024 @60Hz 500 feet(150m)
Power consumption: DC5.3V, 2.3W
Operating Temp. : 0-50°C
Storage Temp. : -20-60°C
Humidity: 0-80% RH, Non-condensing
Housing: Metal
Weight: 0.5 lb. (242g)
Dimensions(L x W x H) : 4.7 x 3.4 x 0.9 in. (11.95 x 8.56 x 2.26 cm)
