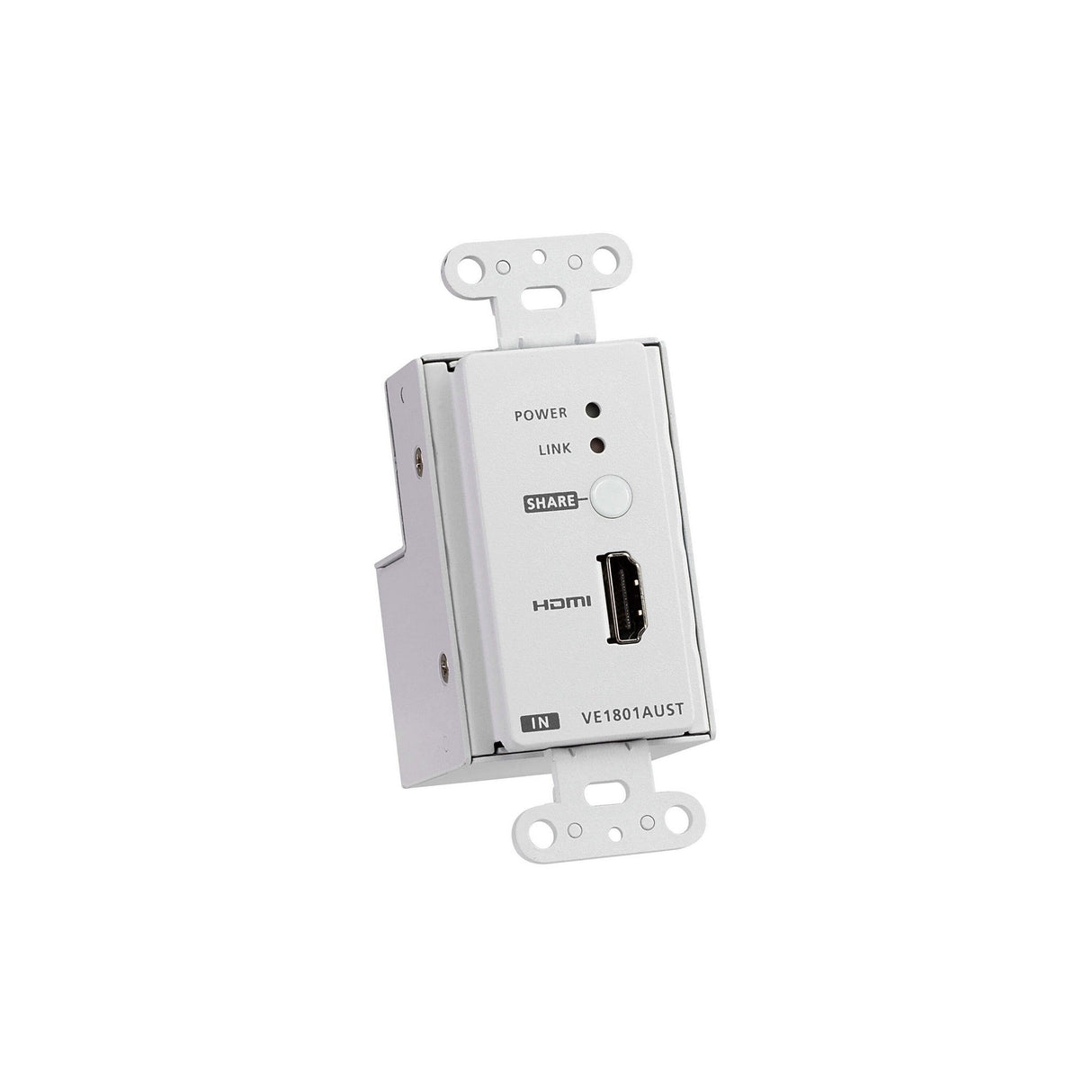

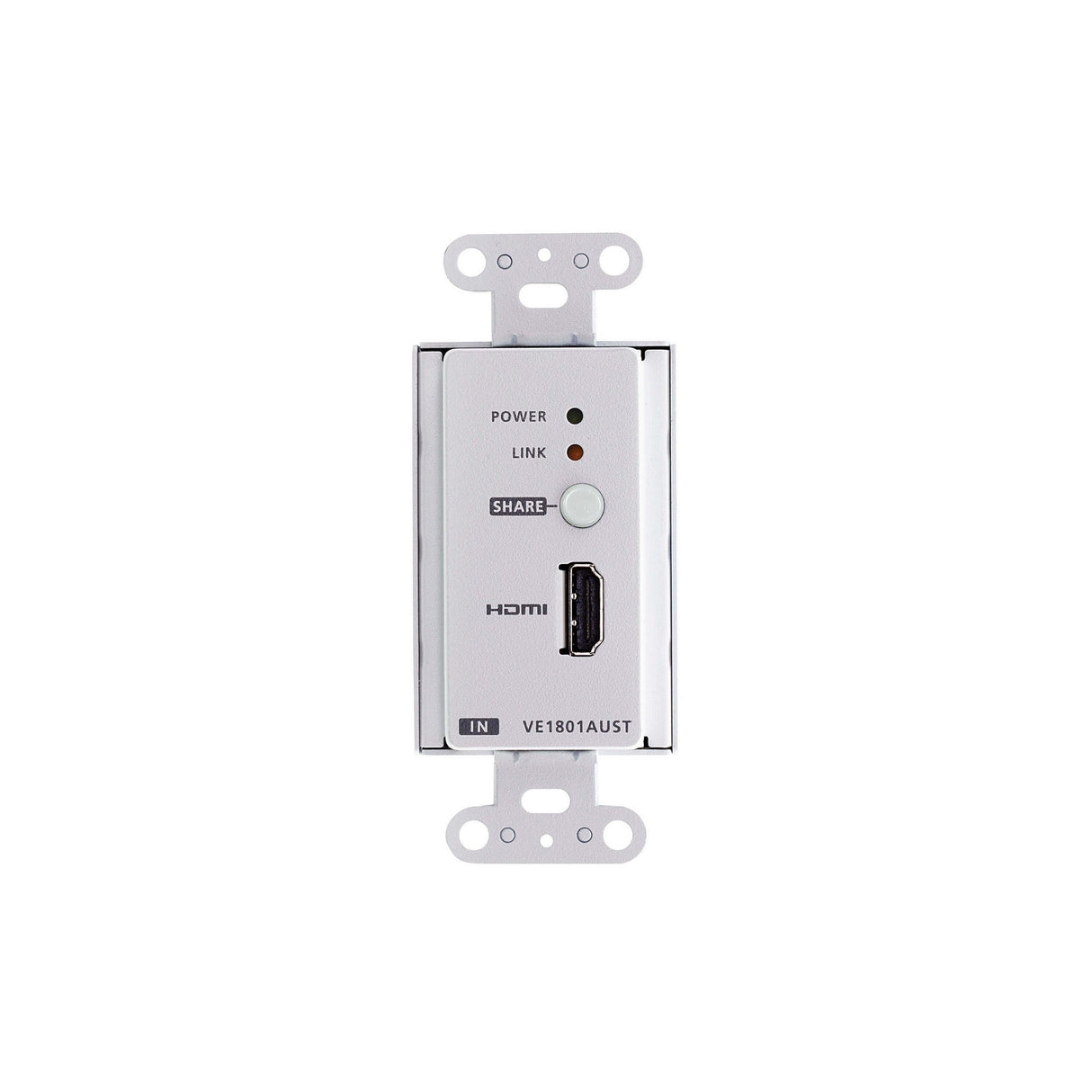

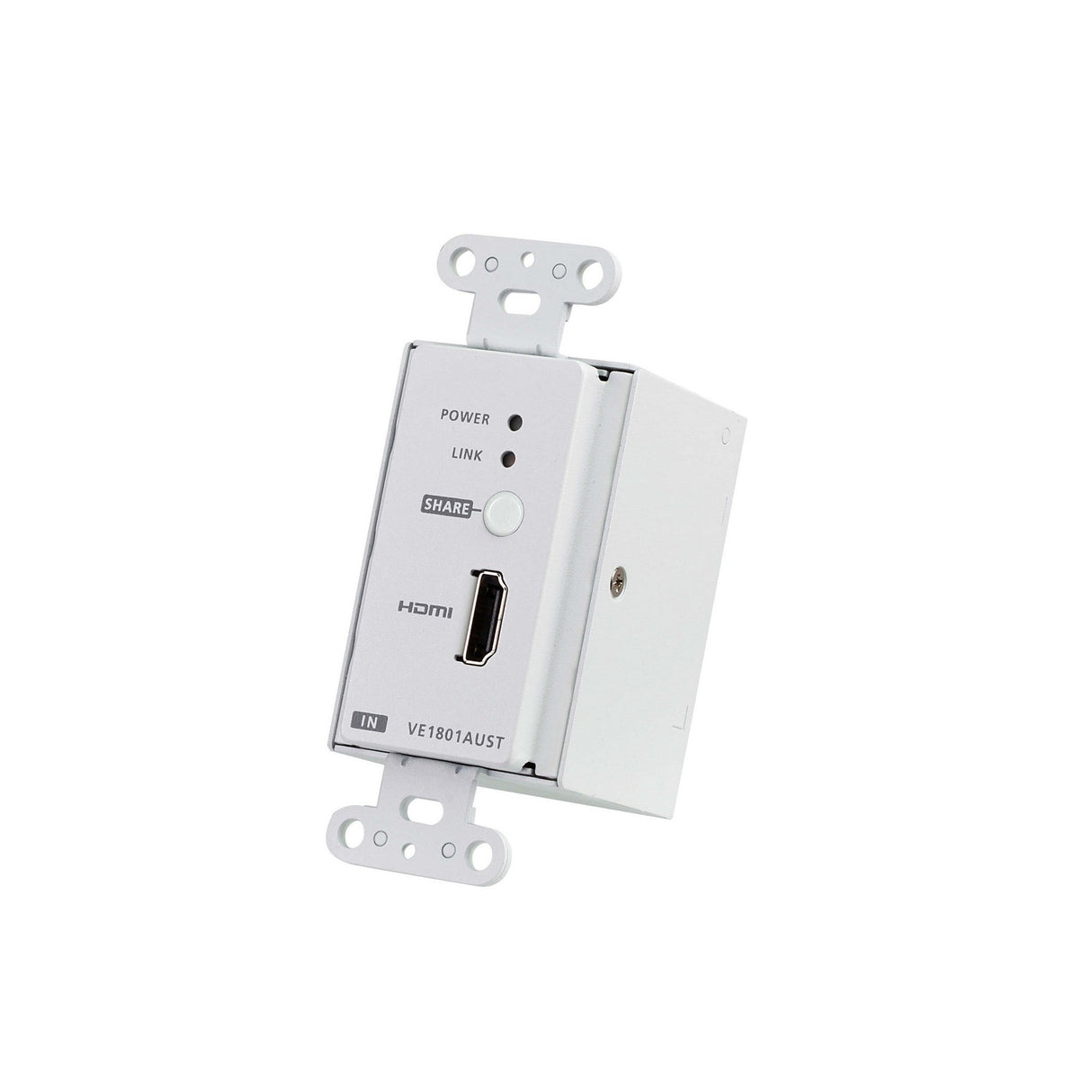

ATEN VE1801AUST HDMI HDBaseT-Lite Transmitter with US Wall Plate/PoH

ATEN VE1801AUST HDMI HDBaseT-Lite Transmitter with US Wall Plate/PoH

The ATEN VE1801AUST HDMI HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize HDMI signal transmission with support of 3D, Deep color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.

The VE1801AUST can be easily mounted in a 1-gang junction box with US wall plate, concealing bulky cable setups and presenting needed information in sight. In addition, with built-in PoH (Power over HDBaseT) function, the VE1801AUST receives power supply from a connected PoH PSE supported receiver and streamlines complex power line deployment.

Expanding on previous models by the share function, the VE1801AUST can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1801AUST is ideal for use in meeting rooms, digital educational environments or any application requiring stable high-quality transmission and effortless installation.

Key Features

• 4K up to 40 m
• 1080p up to 70 m
• Built-in PoH (Power over HDBaseT) function - the VE1801AUST receives power supply from the HDBaseT output port
• HDMI (3D, Deep color, 4K); HDCP 2.2 compliant

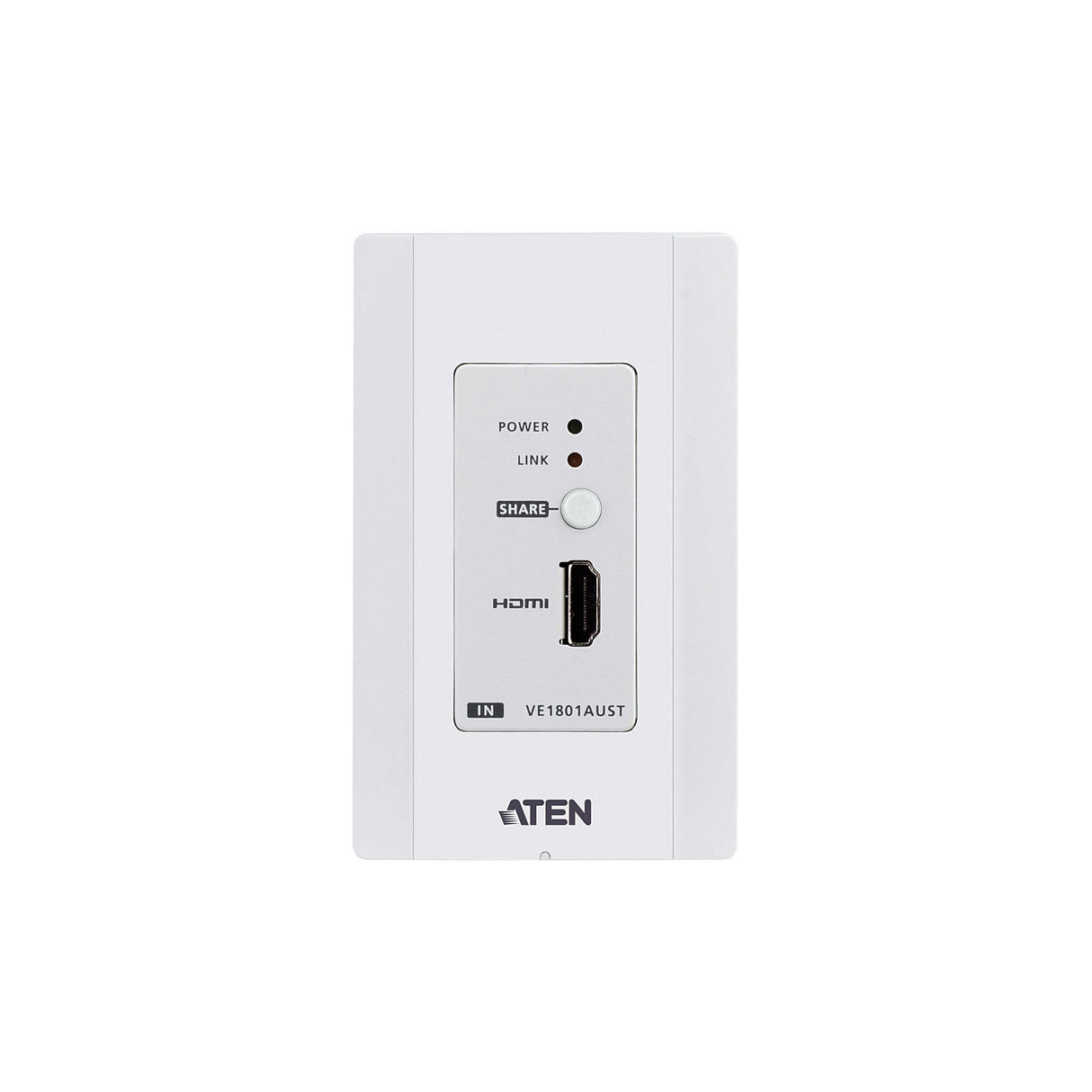

• Designed to mount in a 1-gang junction box with US wall plate
• Supports RS-232 channel transmission
• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
• HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
• Share function - the VE1801AUST can remotely switch source when connecting to a compatible receiver, e.g., VP1421
• LED indication of device status
• Supports wide screen format
• Built-in 8KV / 15KV ESD protection
• Plug-and-play

Technical Specifications

Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100Ω
Max. Distance
3 m
Video
Max. Data Rate
10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP
2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input
1 x HDMI Type A Female (Black)
Control

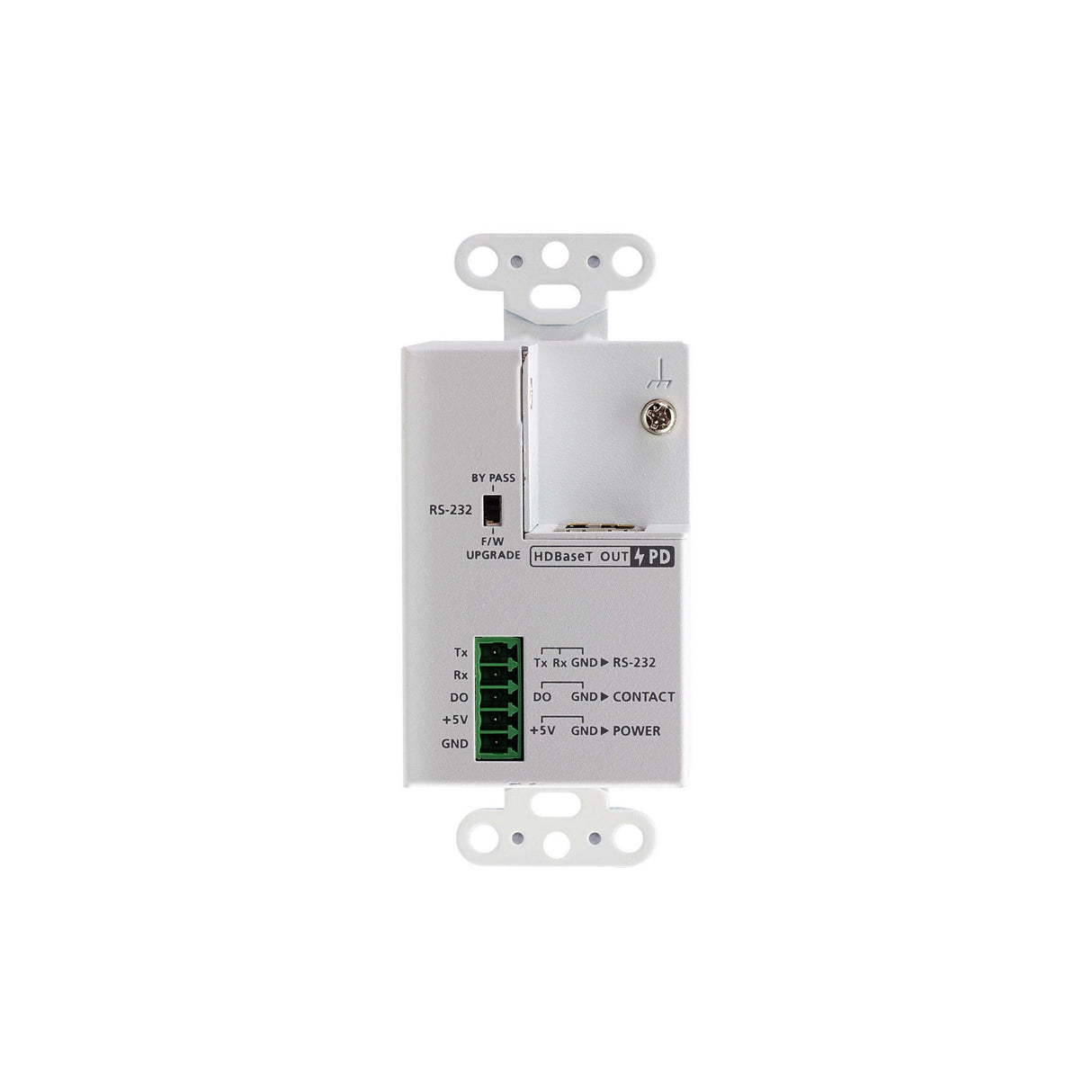

RS-232 Channel
1 x Terminal Block (3 pole, TX/RX/GND, Green)
Contact Out
1 x Terminal Block (2 pole, DO/GND, Green)
Connectors
Unit To Unit

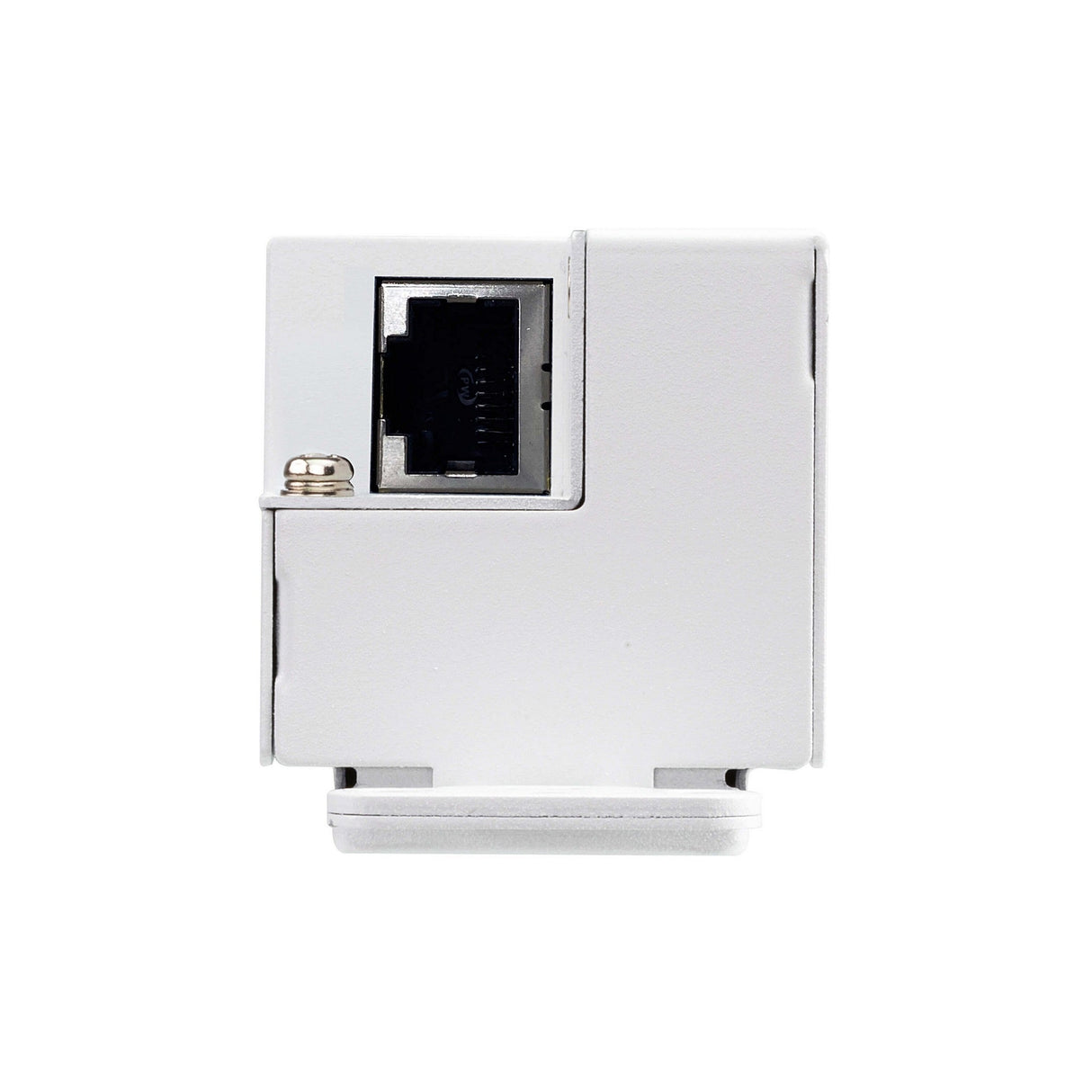

1 x RJ-45 Female
Power
1 x Terminal Block (2 pole, +5V/GND, Green) or
1 x RJ-45 Female (POH)
Power Consumption
DC5V:3. 26W:15BTU
POH: 4W:19BTU
Environmental
Operating Temperature
0 - 40 Degrees C
Storage Temperature
-20 - 60 Degrees C
Humidity
0% - 80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.21 kg (0.46 lb)
Dimensions (L x W x H)
10.41 x 4.44 x 5.00 cm (4.1 x 1.75 x 1.97 in.)
Faceplate Dimensions (L x W x H)
11.39 x 6.99 x 0.64 cm (4.48 x 2.75 x 0.25 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
