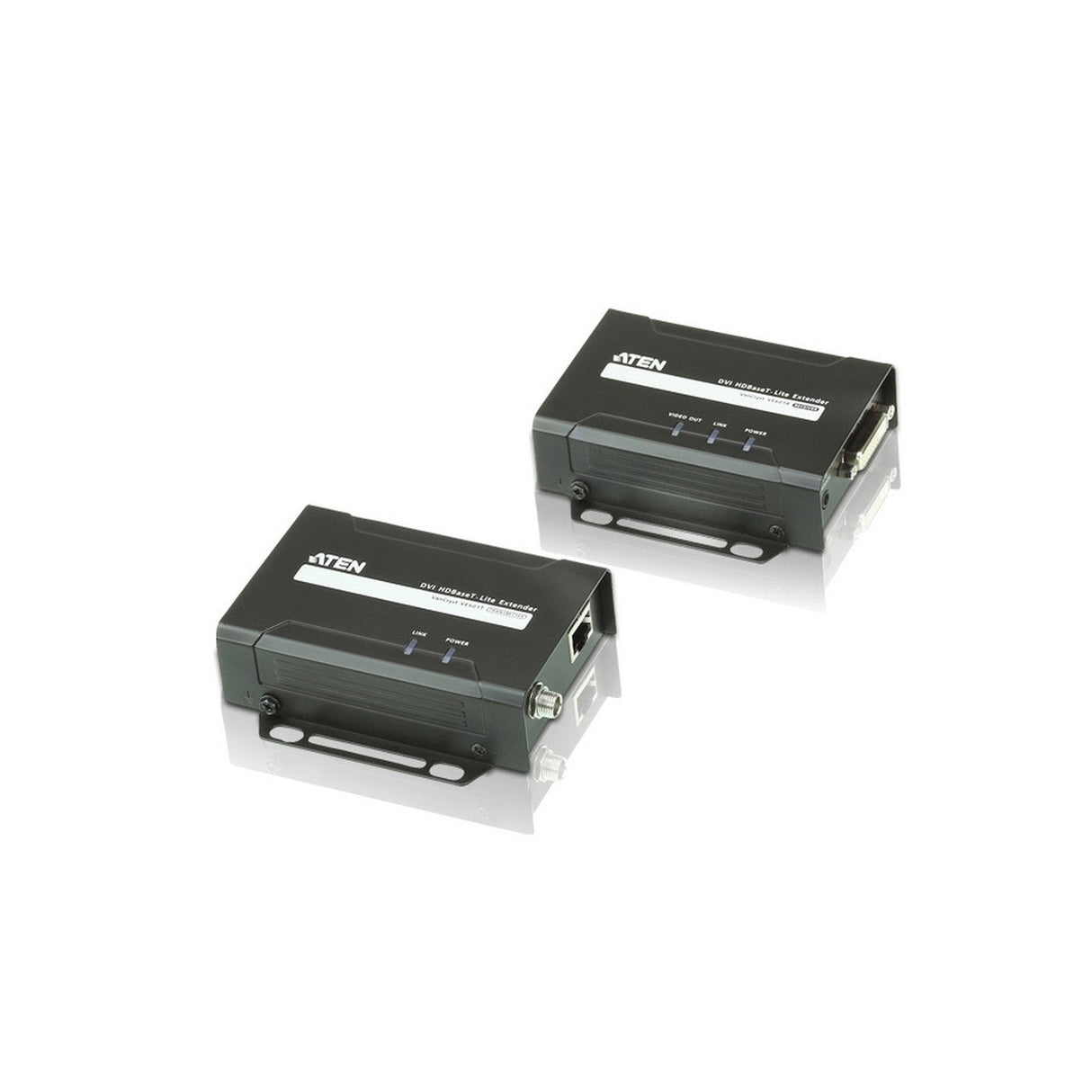

Aten VE601 Rack Mountable DVI HDBaseT Lite Extender

Aten VE601 Rack Mountable DVI HDBaseT Lite Extender

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

Key Features

• HDBaseT Connectivity extends a DVI connection up to 70 meters via a single Ethernet cable
• HDBaseT Anti-Jamming resists signal interference during video transmission using HDBaseT technology
• Rack-Mountable
• This combination of ATEN and HDBaseT technology even supports sharing
• 1920 x 1200 media up to 40 m away
• Package Contents: 1x VE601T/R DVI HDBaseT-Lite Extender, 2x Power Adapters, 1x User Instructions

Technical Specifications

VE601R
Video Output
Interfaces
1 x DVI-D Female (White)
Impedance
100
Video
Max. Data Rate
10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock
340 MHz
Compliance
DVI (3D, Deep Color)
HDCP compatible
Max. Resolutions / Distance
Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a);
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a)
Power
Connectors
1 x DC Jack with locking
Consumption
5 VDC, 4.23 W
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20 - 60°C
Humidity
0% - 80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.25 kg ( 0.55 lb )
Dimensions (L x W x H)
10.20 x 8.70 x 3.00 cm
(4.02 x 3.43 x 1.18 in.)
