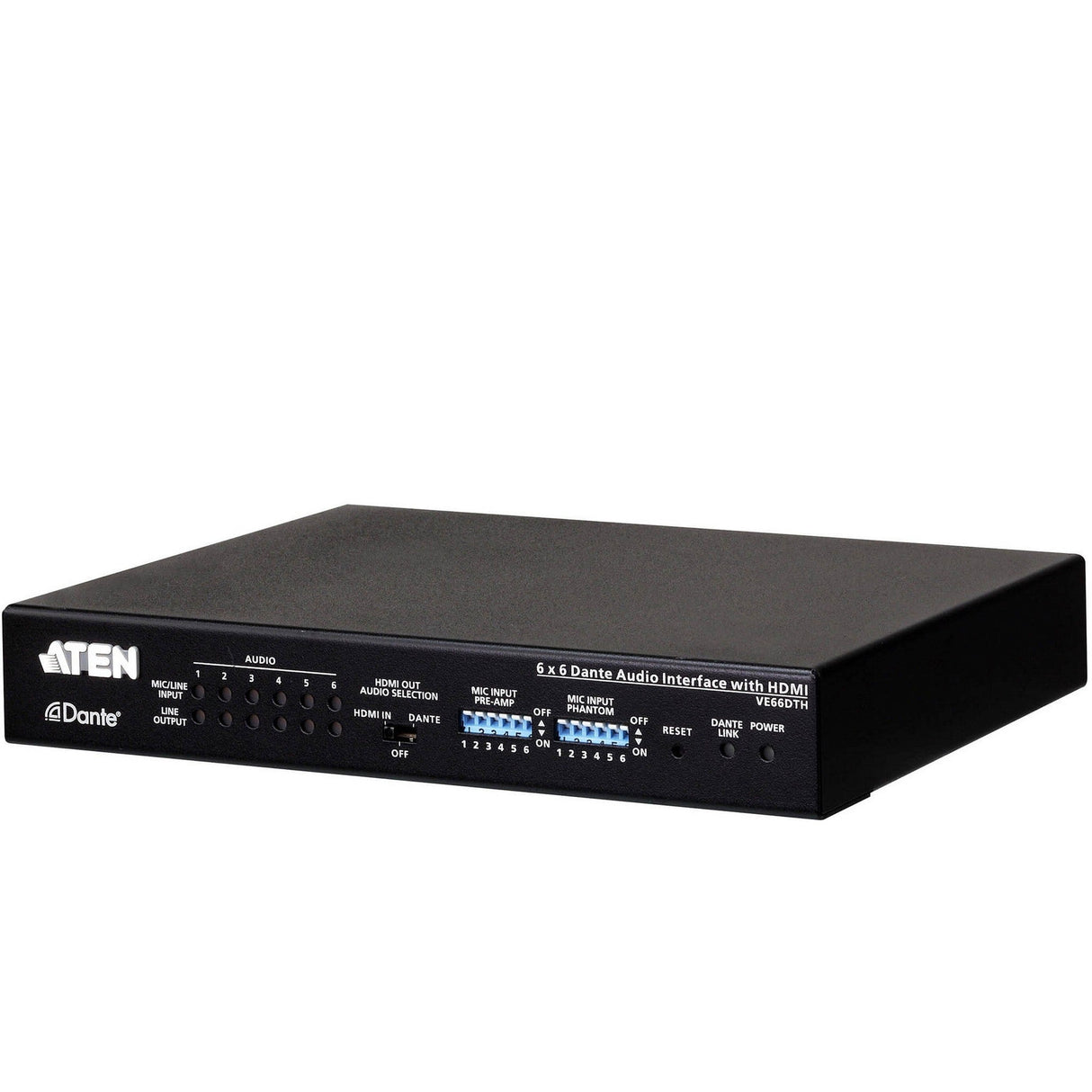

ATEN VE66DTH 6 x 6 4K Dante Audio Interface with HDMI 2.0

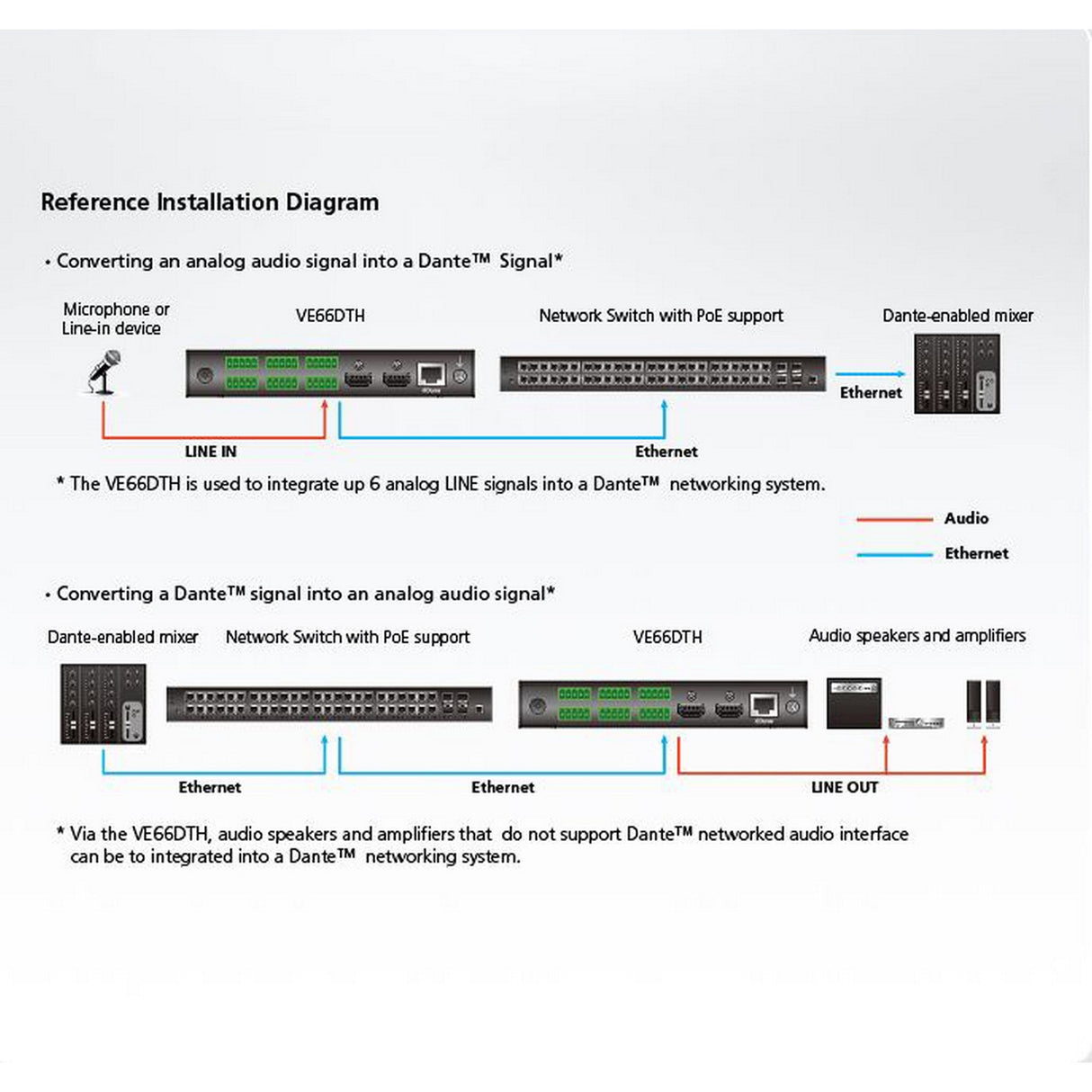

ATEN VE66DTH is a Dante-enabled six-input/six-output Audio Interface with HDMI. Using Dante - the most popular audio networking solution created by Audinate, the VE66DTH is capable of delivering uncompressed, close-to-zero latency digital audio signals across your standard IP network. The VE66DTH transmits and receives up to 6-channel of audio inputs and outputs via a Dante network - the audio inputs can support not only the line input but also the dynamic and condenser microphones at the same time. Additionally, the device can also provide condenser microphones with 48V Phantom power supply. With its built-in PoE (Power over Ethernet), the VE66DTH can be powered by a compatible PSE device through Ethernet cable. Moreover, the VE66DTH provides flexible audio capability with audio de-embedding and embedding. It can de-embed HDMI stereo audio signals to the Dante networking system and embed Dante audio signals into the HDMI output.

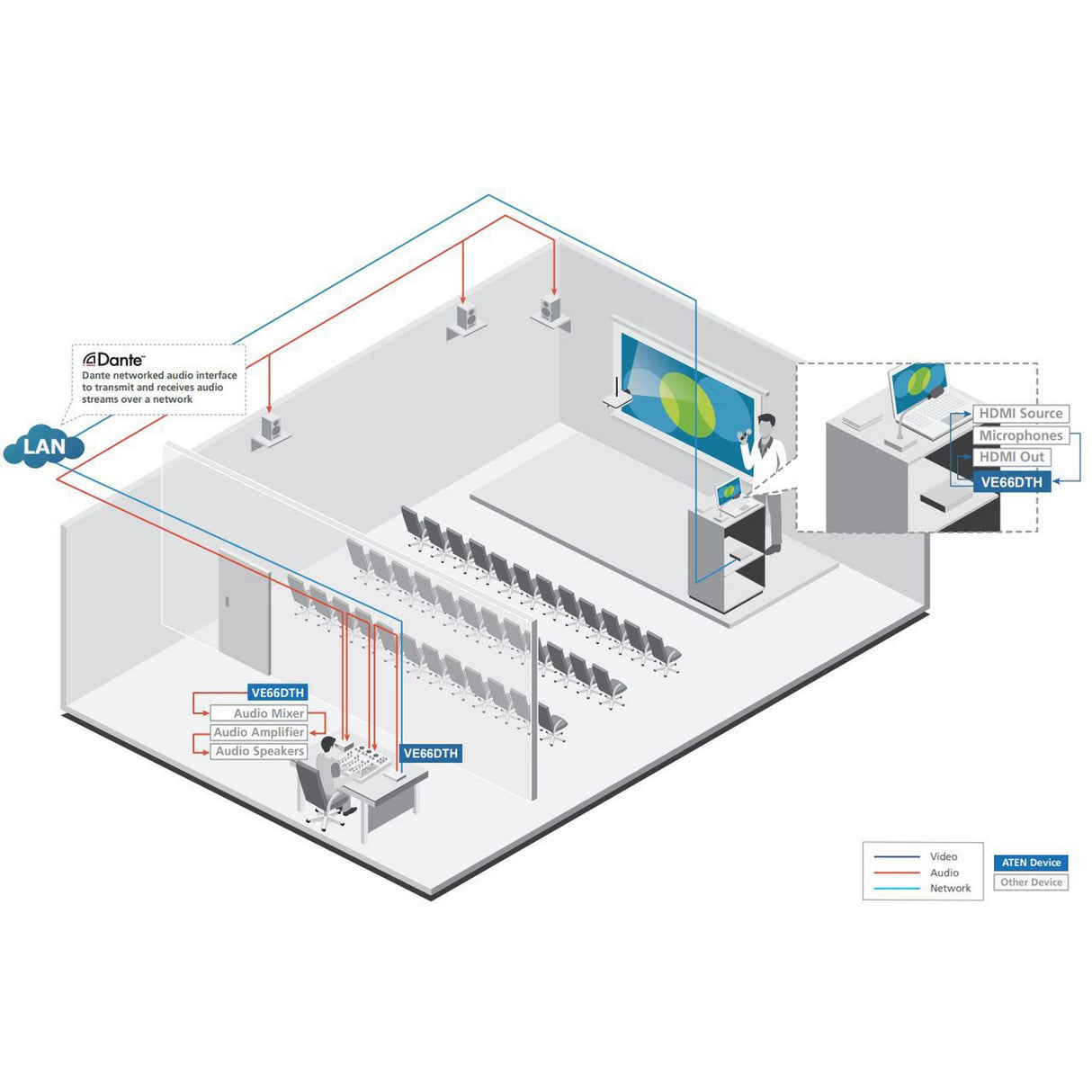

The VE66DTH is tailor-made to a wide range of environments, such as conference centers, concert halls, entertainment facilities or wherever that requires implantation of Dante-based professional audio devices for extended and flexible networked AV applications. Users of the VE66DTH can benefit from improved system performance, reduction in cabling and more to installations of all sizes.

Key Features

• Features Dante networked audio interface - a complete audio networking solution that distributes uncompressed, multi-channel audio transmission via standard Ethernet networks, with near-zero latency and perfect synchronization
• Integrates up to 6-channel balanced mono audio Line/Mic input signals onto a Dante-enabled audio system and supports both dynamic and condenser microphones
• Provides 48V Phantom power supply to condenser microphones
• AES67 support
• Easy to use and set up - User can use “Dante Controller” for the simple setup
• Delivers up to 6-channel balanced mono audio Line outputs from the Dante network to the audio system
• Supports HDMI 2.0 input with HDCP 2.2 compliant - the HDMI input can de-embed HDMI stereo audio to the Dante network
• Supports HDMI 2.0 local output - the VE66DTH can embed the Dante audio into HDMI output
• Supports PoE - power can be supplied by a compatible PSE device through Ethernet cable

Technical Specifications

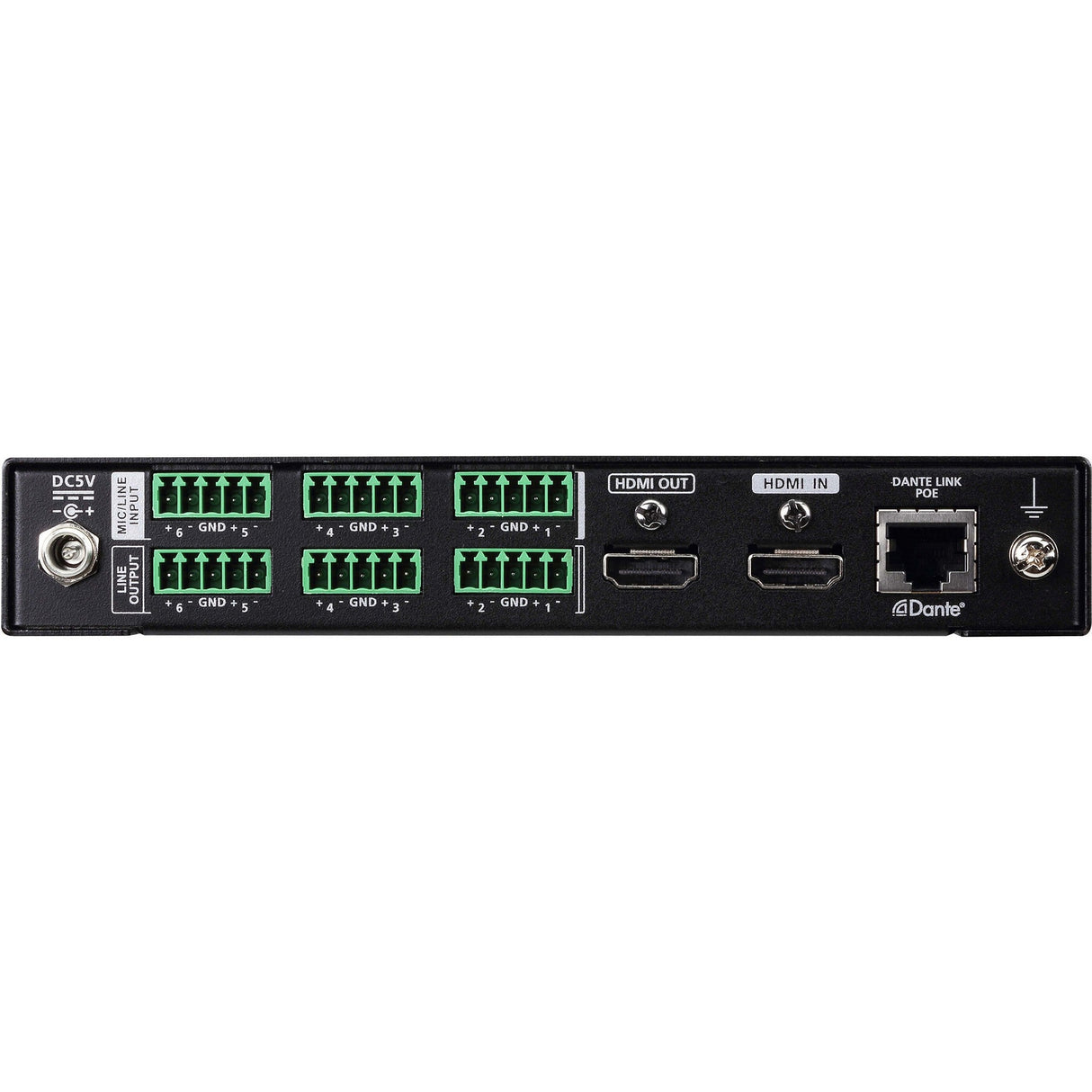

Line/Mic Input
3 x 3.5 mm captive screw connector, 5 pole; Analog mono, balanced
Impedance
>6.8k ohms unbalanced; >13.6k ohms balanced, Maximum level: 0dBV (1Vrms), Mic Pre-amp: +40 dB, balanced, Phantom Power: +48V,10mA
HDMI Input
HDMI Stereo Audio
Line Output
3x 3.5 mm captive screw connector, 5 pole; Analog mono, balanced Impedance: 50 ohms unbalanced, 100 ohms balanced Maximum level
0dBV (1Vrms)
Audio Format
Uncompressed, 24-bit, selectable at 44.1, 48, 88.2, or 96 kHz
Latency
Deterministic, based on user selection: 1.0 ms (default)
Frequency response
20Hz~20KHz, +/- 0.3dB, THD + Noise: < -65dB (0.1%) (1KHz,1Vrms @ 0dBV), S/N: > 80dB (1KHz,1Vrms @ 0dBV), Cross Talk: < -50dB (15KHz,1Vrms @ 0dBV).
Input
8 audio channels (6x Analog Input & 1x HDMI Stereo Audio)
Output
8 audio channels (6x Analog output & 1x HDMI Stereo Audio Embedded from HDMI/Dante)
Video Input
Interfaces, 1x HDMI Type A female (Black), Impedance - 100-ohm, Max. Distance: 1.8m
Video Output
Interfaces, 1x HDMI Type A female (Black), Impedance - 100 ohm
Video Max. Resolution
Up to 4096x 2160 / 3840 x 2160 @ 60Hz (4:4:4), Compliance: HDMI 2.0 (3D, Deep Color, 4K); 4K HDR, HDCP 2.2 Compatible
Ethernet Control
1x RJ-45 Female (Silver) through Dante
Power Consumption
DC5V:8. 9W:41BTU, POE:11. 1W:52BTU
Operating Temperature
0-40 Degrees C
Storage Temperature
-20 - 60 Degrees C
Humidity
0 - 80% RH, Non-Condensing
Housing
Metal
Weight
1.87 lb
Dimensions (L x W x H)
6.86x 6.1x 1.13 in.
Item Includes
1x VE66DTH 6 x 6 Dante Audio Interface with HDMI
6x 5-Pole Terminal Blocks
4x Foot Pads
1x Mounting Kit
1x Power Adapter
1x User Instructions
